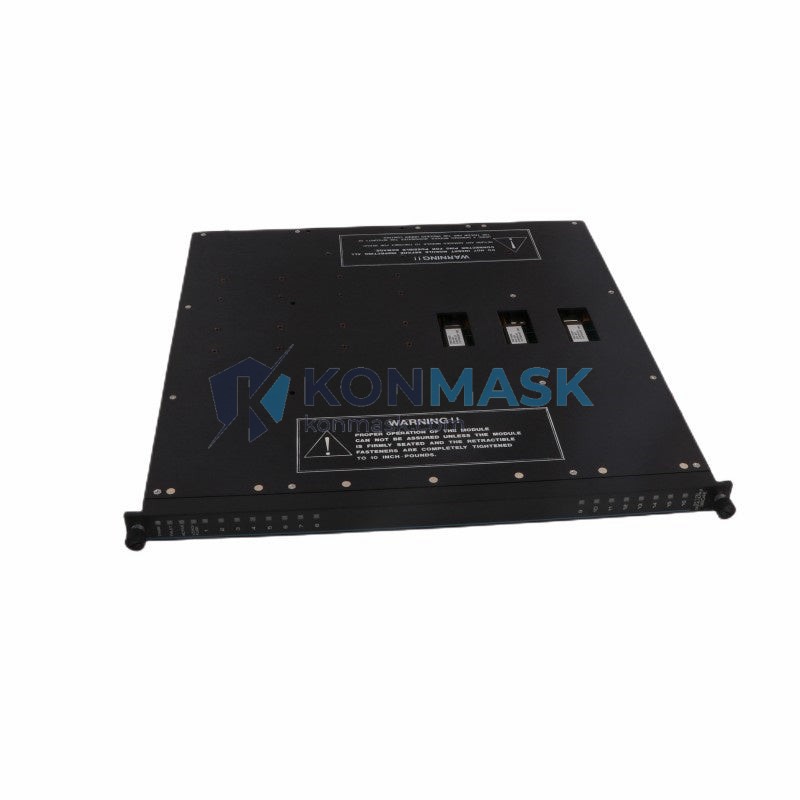

TRICONEX 3603T — 32-Channel Digital Output Module | Tricon TMR Safety Platform
Engineering Background: The TRICONEX 3603T is a field-proven Digital Output (DO) module designed exclusively for the Tricon Triple Modular Redundant (TMR) safety system — one of the most widely deployed Safety Instrumented System (SIS) platforms in the global process industries. Built to IEC 61511 and IEC 61508 standards, the 3603T delivers deterministic, fault-tolerant discrete output control in environments where a single point of failure is unacceptable.
Product Positioning: The 3603T is the standard 32-channel 24 VDC digital output module for Tricon chassis-based architectures. It is the preferred choice for ESD (Emergency Shutdown), F&G (Fire & Gas), and BMS (Burner Management) applications across oil & gas, petrochemical, power generation, and nuclear facilities. Procurement engineers specify this module when upgrading aging Tricon I/O racks or expanding existing SIS infrastructure without altering the certified system architecture.
Complete Technical Specifications
Module Identification
- Part Number: 3603T
- Module Type: Digital Output (DO)
- Platform: TRICONEX Tricon TMR Safety System
- Form Factor: Single-slot Tricon I/O module
Output Characteristics
- Number of Channels: 32 discrete output channels
- Output Voltage: 24 VDC (nominal)
- Output Type: Solid-state (transistor) sourcing outputs
- Load Current: Up to 0.5 A per channel (consult datasheet for derating)
- Short-Circuit Protection: Yes — per-channel electronic protection
- Diagnostic Coverage: High — continuous online self-test via TMR voting logic
Safety & Certification
- Safety Integrity Level: SIL 3 capable (IEC 61508 / IEC 61511)
- Architecture: Triple Modular Redundant (TMR) — 2oo3 voting
- Fault Tolerance: Single fault tolerant; continues operation on one leg failure
- Proof Test Interval: Per system SIL verification documentation
Environmental & Physical
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Weight: ~500 g (module only)
- Mounting: Tricon main chassis or expansion chassis slot
Communication & Compatibility
- Backplane Interface: Tricon proprietary TMR backplane bus
- Compatible Chassis: Tricon 8-slot and 16-slot main/expansion chassis
- Compatible Controllers: Tricon MP (Main Processor) — all generations supporting 3600-series I/O
- Hot-Swap: Yes — module replacement without system shutdown (verify with site SOP)
Proven Application Environments
- Oil & Gas: Wellhead control panels, pipeline ESD, compressor shutdown systems
- Petrochemical & Refining: Reactor protection, distillation column safety, fired heater BMS
- LNG & Terminals: Loading arm interlocks, cryogenic valve control, F&G integration
- Power Generation: Turbine protection, boiler safety, generator trip circuits
- Nuclear: Non-safety-class auxiliary systems (verify classification with site nuclear authority)
- Chemical & Specialty: Batch reactor interlocks, pressure relief valve actuation
Engineering Advantages
- Zero-Downtime Replacement: Hot-swap capability preserves process continuity during module exchange — critical for continuous-process facilities with no planned shutdown windows.
- TMR Voting Integrity: 2oo3 output voting eliminates spurious trips caused by single-leg failures, directly reducing process availability loss.
- Continuous Diagnostics: Online self-test runs every scan cycle; faults are annunciated to the Tricon MP without interrupting output state — enabling predictive maintenance rather than reactive replacement.
- Backward Compatibility: Drop-in replacement for earlier 3600-series DO modules in existing certified Tricon architectures — no re-engineering of the safety case required.
- Proven Field Record: 3600-series modules have accumulated millions of operating hours across global SIS installations since the 1990s.
System Architecture & Signal Flow
In a Tricon TMR architecture, the 3603T operates as follows:
- Three independent I/O legs (Leg A, B, C) each read the output command from the Main Processor.
- 2oo3 voting logic on the backplane determines the final output state — a single leg disagreement does not change the output.
- Solid-state output drivers on each leg switch the 24 VDC field load (solenoid valve, relay coil, indicator, etc.).
- Diagnostic feedback from each leg is reported back to the MP every scan, enabling fault isolation to the channel level.
- Field wiring connects via the Tricon terminal panel (TP) associated with the module slot — no rewiring required on module swap.
Sourcing & Quality Verification
- Source: Konmask.com sources 3603T modules from authorized distributors and verified surplus channels with documented chain of custody.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional bench-test prior to shipment.
- Documentation: Certificate of conformance (CoC) and test report available on request.
- Packaging: ESD-safe anti-static bag, foam-lined carton, and moisture barrier — compliant with IPC/JEDEC J-STD-033 handling guidelines.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Confirm compatibility: Verify your Tricon chassis generation and MP firmware version support 3600-series I/O (consult your Tricon system documentation or contact our engineers).
- Request a quote: Contact [email protected] or call +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Submit PO: Purchase orders accepted via email; proforma invoice issued within 1 business day.
- Shipping: DHL / FedEx / UPS express available; export documentation (commercial invoice, packing list, EAR99 classification) provided for international shipments.
- Incoming inspection: We recommend verifying part number label, revision level, and performing a Tricon system diagnostic scan after installation.
Technical FAQ
Q: Is the 3603T compatible with the Tricon v9 and v10 controller generations?
A: The 3603T is designed for the Tricon 3000-series chassis and is compatible with Tricon MP controllers that support 3600-series I/O. Confirm firmware compatibility with your Tricon system documentation or contact Schneider Electric / Triconex support for your specific MP version.
Q: Can the 3603T be replaced online without a process shutdown?
A: Yes — Tricon supports hot-swap of I/O modules. However, site-specific Safe Work Procedures (SWP) and Management of Change (MOC) requirements must be followed. Consult your SIS engineer before performing any online module replacement.
Q: What is the difference between the 3603T and the 3603E?
A: The “T” suffix denotes the standard Tricon TMR variant. The “E” suffix (if applicable) may denote an enhanced or extended-temperature variant. Verify the exact part number against your Tricon I/O module catalog before ordering.
Q: Does Konmask provide a functional test report with the module?
A: Yes. A bench-test report and certificate of conformance are available upon request at time of order.
Q: What export classification applies to the 3603T?
A: The TRICONEX 3603T is generally classified as EAR99 under US Export Administration Regulations. Buyers are responsible for verifying applicable export controls for their destination country.
