Safety PLC Power Solution – TRICONEX 8305E | Tricon Power Module
Where This Product Is Used
The TRICONEX 8305E Power Module is a critical component in Triconex Triple Modular Redundancy (TMR) safety instrumented systems. It is deployed across high-stakes industrial environments where continuous, uninterrupted power delivery is non-negotiable:
- Oil & Gas: Offshore platforms, onshore wellheads, pipeline SCADA stations, and LNG terminals requiring SIL 3-rated emergency shutdown (ESD) systems
- Petrochemical & Refining: Reactor protection systems, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS)
- Power Generation: Turbine control and protection panels, boiler safety systems, and nuclear auxiliary control
- Chemical Processing: Continuous process safety loops where power interruption triggers unsafe states
- Pulp & Paper / Mining: Redundant control architectures requiring hot-standby power modules
Engineers specify the 8305E when the application demands fault-tolerant power with automatic failover — zero-downtime switchover between redundant power paths is a core design requirement.
Technical Specifications

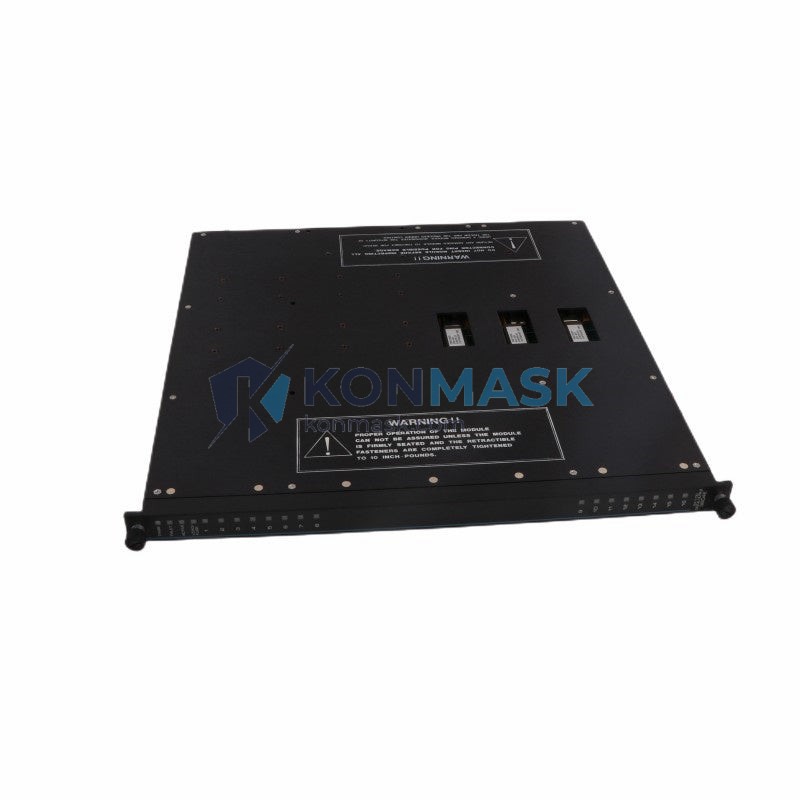

- Part Number: 8305E
- Manufacturer: TRICONEX (Schneider Electric)
- Series: Tricon / TMX Safety System
- Module Type: Power Supply Module
- Architecture: Triple Modular Redundancy (TMR)
- Input Voltage: 85–264 VAC / 100–300 VDC (wide-range universal input)
- Output: Regulated DC power to chassis backplane
- Redundancy: Hot-standby, bumpless transfer on fault
- Safety Integrity Level: SIL 3 capable (IEC 61511 / IEC 61508)
- Operating Temperature: 0°C to +60°C
- Weight: Approx. 500 g
- Form Factor: Single-slot Tricon chassis module
- Diagnostics: Continuous self-test with fault annunciation via chassis LEDs and TriStation software
Why Engineers Specify This Model
- TMR Architecture: Three independent power paths vote 2-of-3 — a single power module fault does not interrupt system operation
- Hot-Swap Capable: Replace a failed module under live system conditions without process shutdown
- Wide Input Range: Accepts both AC and DC sources, simplifying integration with UPS and battery-backed supplies
- Proven Field Record: Deployed in thousands of SIS installations globally; long mean time between failures (MTBF)
- TriStation Integration: Power module health is visible in real time via TriStation 1131 engineering workstation
- Regulatory Alignment: Designed to meet IEC 61508 SIL 3, IEC 61511, and applicable ATEX/FM requirements for hazardous area installations
Complete System Bill of Materials
The 8305E is typically specified alongside the following Tricon system components:
- Tricon Main Chassis (e.g., 8310, 8312)
- Tricon Communication Module (e.g., 4351A, 4352A)
- Tricon Digital Input Modules (e.g., 3501E, 3503E)
- Tricon Digital Output Modules (e.g., 3601E, 3603E)
- Tricon Analog Input Modules (e.g., 3700A, 3703E)
- TriStation 1131 Engineering Software (v4.x / v9.x)
- Redundant UPS / DC power source for input feed
Contact support@konmask.com for complete BOM assistance and cross-reference support.
Compliance & Industry Standards
- IEC 61508: Functional Safety of E/E/PE Safety-related Systems (SIL 3)
- IEC 61511: Functional Safety for the Process Industry Sector
- ATEX / IECEx: Suitable for use in systems installed in classified hazardous areas (verify zone rating with project documentation)
- FM Approved: Factory Mutual certification for applicable North American installations
- CE Marking: Compliant with applicable EU directives
- RoHS: Consult current product revision documentation for RoHS status
Quality Assurance & Sourcing
Konmask.com sources TRICONEX 8305E modules through verified industrial automation supply channels. Every unit offered is subject to the following quality controls:
- Visual Inspection: Boards, connectors, and housings inspected for physical damage, corrosion, or counterfeit indicators
- Traceability: Serial numbers and firmware revisions documented prior to shipment
- Functional Verification: Where test equipment is available, modules are bench-tested before dispatch
- Packaging: Anti-static ESD packaging with desiccant; double-boxed for international freight
- Warranty: 12-month replacement warranty against manufacturing defects
We do not list modules with unknown provenance or missing documentation. If a unit cannot be verified, it is not offered for sale.
How to Source This Part
- Submit your RFQ via support@konmask.com with your required quantity, delivery timeline, and any firmware revision requirements
- Receive a formal quotation with lead time, unit price, and shipping options within 1 business day
- Confirm purchase order — we accept T/T bank transfer, PayPal, and trade credit for approved accounts
- Shipment dispatched with tracking; DHL / FedEx express available for urgent requirements
- Post-delivery technical support available via email and WhatsApp
Phone / WhatsApp: +0086 19859288691
Email: support@konmask.com
Application-Specific FAQ
Q: Can the 8305E be replaced while the Tricon system is online?
A: Yes. The 8305E supports hot-swap replacement. The TMR architecture maintains system operation while the faulty module is removed and a replacement is inserted. Always follow Triconex maintenance procedures and verify with your site safety authority before performing live maintenance.
Q: Is the 8305E compatible with both Tricon and Trident chassis?
A: The 8305E is designed for the Tricon TMR platform. Trident systems use a different power module form factor. Confirm chassis compatibility using your system’s hardware manual or contact us for cross-reference support.
Q: What is the typical lead time for the TRICONEX 8305E?
A: Lead time varies by stock availability. In-stock units ship within 3–5 business days. For out-of-stock situations, typical sourcing lead time is 2–6 weeks. Contact us for real-time availability.
Q: Do you supply the 8305E with a certificate of conformance (CoC)?
A: Yes. A CoC is provided with every shipment. For safety-critical applications requiring additional documentation (e.g., FAT records, calibration certificates), please specify at the time of order.
Q: Can Konmask assist with a full Tricon system build or spare parts kit?
A: Yes. We support complete system BOM sourcing, including chassis, I/O modules, communication cards, and power modules. Submit your BOM to support@konmask.com for a consolidated quotation.
