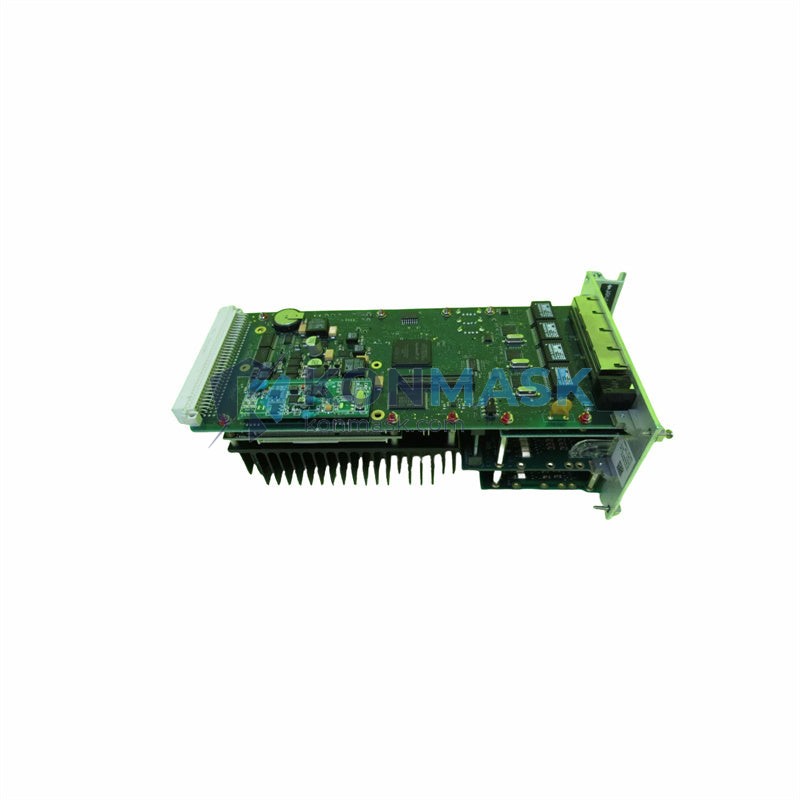

TRUMPF CPX 18-22-91-A1 Main Board | Laser Control Replacement, Equivalent & Selection Guide
The TRUMPF CPX 18-22-91-A1 is a core main board (motherboard/control board) used in TRUMPF laser processing systems. As a critical component of the CPX control platform, it manages real-time communication, axis coordination, and system diagnostics. This page provides full technical specifications, compatible replacement options, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: CPX 18-22-91-A1
- Manufacturer: TRUMPF
- Series: CPX Control Platform
- Component Type: Main Control Board (Motherboard)
- Application: TRUMPF laser cutting & processing machines
- Form Factor: Industrial PCB module
- Weight: Approx. 200 g
- Condition Available: New OEM / Tested Refurbished / Exchange
- Warranty: 12 months (new); 6 months (refurbished)
Compatible Replacement & Equivalent Models
When the original CPX 18-22-91-A1 is unavailable or cost-prohibitive, the following alternatives may be considered depending on your machine generation and firmware version. Always verify compatibility with your machine’s control software before installation.
- TRUMPF CPX 18-22-91-A2 — Revised hardware revision; functionally equivalent in most CPX-series machines
- TRUMPF CPX 18-22-90-A1 — Previous generation; compatible with older firmware stacks
- TRUMPF CPX 18-22-92-A1 — Upgraded variant with enhanced I/O; check connector pinout before swapping
- Third-party compatible boards — Available for select TRUMPF platforms; requires firmware validation and is not recommended for safety-critical axes
Note: Konmask.com recommends using genuine TRUMPF OEM parts for primary laser control functions. Contact our technical team for cross-reference verification.
Why Choose the Original CPX 18-22-91-A1
- ✅ Guaranteed firmware compatibility with TRUMPF TruTops and TOPS 300 control software
- ✅ Certified for safety-critical functions — axis control, E-stop logic, and interlock management
- ✅ Factory-tested to TRUMPF quality standards with full traceability
- ✅ Plug-and-play replacement — no re-parameterization required in most cases
- ✅ Long-term availability through authorized distribution channels
Typical Applications
- TRUMPF TruLaser series laser cutting machines
- TRUMPF TruMatic punch-laser combination systems
- TRUMPF TruBend press brake control upgrades
- CPX-platform CNC retrofit and repair projects
- Spare parts inventory for high-uptime production environments
System Compatibility
The CPX 18-22-91-A1 is designed for integration within the TRUMPF CPX control architecture. Confirmed compatible systems include:
- TruLaser 3030 / 5030 / 5040 (CPX-equipped variants)
- TruMatic 6000 / 7000 series
- Systems running TOPS 300 or TruTops Boost with CPX hardware layer
For machines outside this list, please provide your machine serial number and software version when inquiring — our team will confirm compatibility within 24 hours.
Selection Guide
Use the following criteria to select the correct board for your application:
- Step 1 — Identify your machine model & serial number (found on the machine nameplate)
- Step 2 — Note the existing board part number (printed on the PCB label or in the service manual)
- Step 3 — Check firmware version — some hardware revisions require specific firmware builds
- Step 4 — Confirm connector type — CPX boards use proprietary TRUMPF connectors; verify pinout matches
- Step 5 — Choose condition — New OEM for critical axes; tested refurbished for non-critical or backup stock
Still unsure? Send your machine details to support@konmask.com and our engineers will recommend the correct part.
Quality Assurance & Sourcing
All TRUMPF CPX boards supplied by Konmask.com undergo the following process:
- Visual inspection and PCB integrity check
- Functional power-on test with logged results
- ESD-safe packaging and anti-static shipping protection
- Traceable sourcing from authorized distributors or certified refurbishers
- Documentation provided: test report, packing list, certificate of conformity (on request)
How to Order
- Add the CPX 18-22-91-A1 to your cart and proceed to checkout, or
- Contact us directly for bulk orders, exchange programs, or urgent same-day dispatch requests
- For B2B / wholesale pricing, email support@konmask.com with your company name and required quantity
- Lead time: In-stock items ship within 1–2 business days; sourced items 5–10 business days
Replacement & Compatibility FAQ
Q: Can I use a CPX 18-22-91-A2 instead of the A1 revision?
A: In most cases yes — the A2 is a hardware revision of the A1 with the same functional footprint. However, confirm with your TRUMPF service documentation or contact us before swapping.
Q: Is this board compatible with TruLaser 1030?
A: The TruLaser 1030 uses a different control platform. Please contact us with your machine serial number for the correct part.
Q: Do you offer an exchange / core return program?
A: Yes. We accept faulty boards as core returns for credit toward a replacement. Contact us for details.
Q: What is the lead time for a new OEM unit?
A: Typically 1–2 business days for in-stock units. For sourced OEM units, allow 5–10 business days.
Q: Can Konmask.com provide a test report?
A: Yes, a functional test report is available upon request for all refurbished units.
