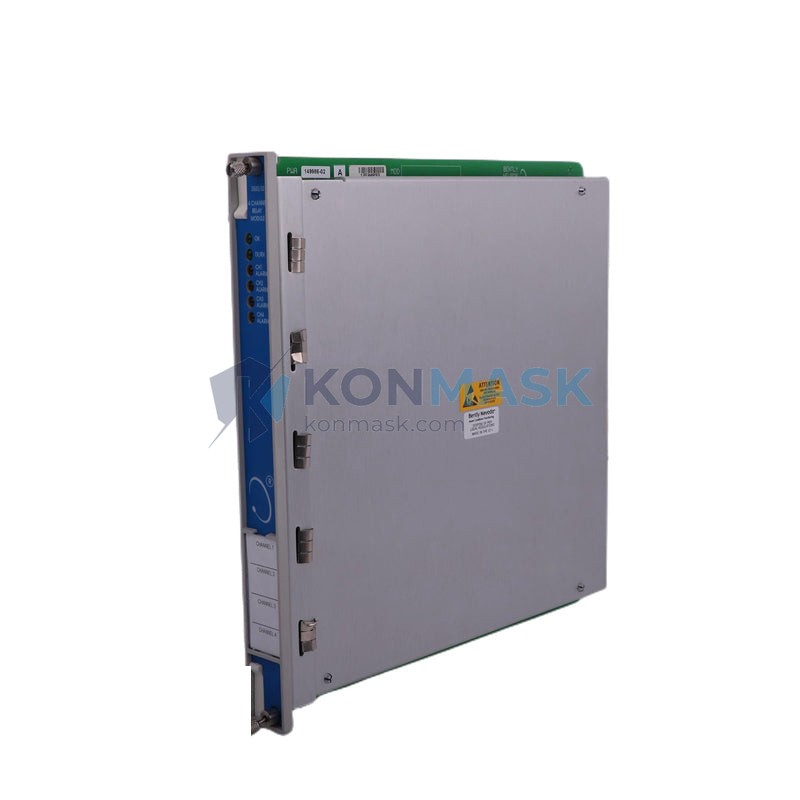

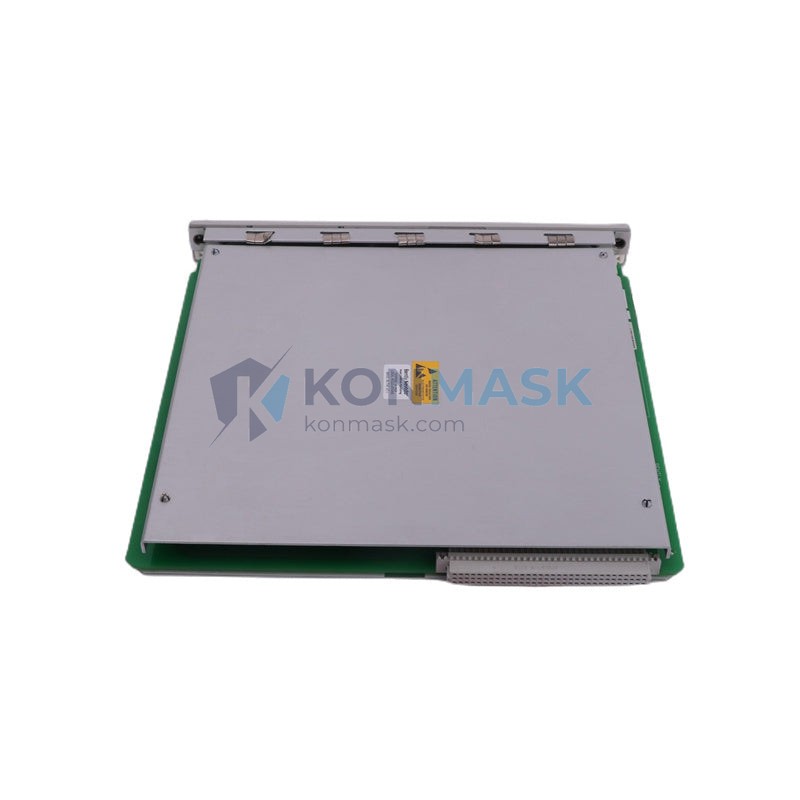

Machinery Protection Relay Solution — Bently Nevada 3500/32 125712-01 | 3500 Series
Where This Product Is Used
The Bently Nevada 3500/32 125712-01 4-Channel Relay Module is a critical output component deployed in continuous machinery protection systems across heavy industry. Engineers specify this module in the following environments:
- Gas & Steam Turbine Protection — Provides relay-based trip and alarm outputs for overspeed, high vibration, and axial displacement events on GE, Siemens, and Mitsubishi turbines.
- Centrifugal & Reciprocating Compressor Trains — Interfaces with 3500/42M, 3500/44M, and 3500/50 monitor cards to execute automatic shutdown on bearing temperature or shaft vibration exceedance.
- Pumps & Rotating Machinery — Used in API 670-compliant protection racks for boiler feed pumps, cooling water pumps, and large motor-driven equipment.
- Offshore & Onshore Oil & Gas Platforms — Installed in SIL-rated safety loops where relay output integrity is mandatory for process safety management (PSM) compliance.
- Power Generation & Utilities — Integrated into DCS/ESD architectures alongside Emerson Ovation, ABB 800xA, and Honeywell Experion systems for coordinated trip logic.
- Petrochemical & Refinery Units — Deployed in compressor control panels for ethylene crackers, hydrogen compressors, and refrigeration trains.
Technical Specifications
| Part Number | 125712-01 |
| Module Type | 4-Channel Relay Output Module |
| Series | Bently Nevada 3500 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Number of Relay Channels | 4 |
| Relay Type | SPDT (Form C) electromechanical relays |
| Contact Rating | 5 A @ 250 VAC / 30 VDC (resistive load) |
| Operating Voltage | 18–32 VDC (supplied via 3500 rack backplane) |
| Rack Compatibility | 3500/05, 3500/05E, 3500/15 (standard & TMR racks) |
| Slot Occupancy | Single-width module slot |
| Communication | Backplane bus — no external wiring required for logic |
| Operating Temperature | 0°C to +65°C |
| Weight | 750 g (approx.) |
| Certifications | CE, SIL 2 capable (system-level), API 670 compliant |
Why Engineers Specify This Model
- 4 Independent Relay Channels — Enables simultaneous alarm, danger, and auxiliary trip outputs from a single module slot, reducing rack footprint.
- Form C (SPDT) Contacts — Supports both normally-open and normally-closed wiring configurations, essential for fail-safe and de-energize-to-trip (DETT) logic.
- Backplane-Integrated Logic — Relay states are driven directly by the 3500 monitor cards via the rack backplane, eliminating external relay panels and reducing wiring complexity.
- Hot-Swap Capable — Modules can be replaced under power in non-trip conditions, supporting zero-downtime maintenance strategies.
- Proven Field Reliability — The 3500 platform has over 30 years of deployment history in API 670 protection systems globally.
- TMR Architecture Support — Compatible with Triple Modular Redundant rack configurations for highest-availability SIL applications.
Complete System Bill of Materials
The 3500/32 relay module operates within the Bently Nevada 3500 modular protection rack. A typical machinery protection system BOM includes:
- 3500/05 or 3500/05E — Rack & Power Supply
- 3500/15 — Rack Interface Module (RIM)
- 3500/20 — Keyphasor Module
- 3500/42M or 3500/44M — Proximitor/Seismic Monitor
- 3500/50 — Tachometer Module
- 3500/32 125712-01 — 4-Channel Relay Module (this item)
- 3500/92 or 3500/93 — Communication Gateway Module
- Bently Nevada 330100 / 330130 — Proximity Probes & Extension Cables
Contact support@konmask.com for complete rack configuration assistance and BOM pricing.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition) — Full compliance for vibration, position, and speed monitoring relay outputs.
- IEC 61511 / IEC 61508 — SIL 2 capable at system level when integrated with certified 3500 rack architecture.
- CE Marking — Compliant with EU Low Voltage Directive and EMC Directive.
- ATEX / IECEx — Suitable for use in Zone 2 classified areas when installed per Bently Nevada installation guidelines (barriers required).
- ISO 10816 / ISO 13373 — Compatible with vibration measurement and condition monitoring standards.
Quality Assurance & Sourcing
Konmask.com sources Bently Nevada 3500 series modules through established industrial automation supply channels. Every unit offered is subject to the following quality process:
- Visual & Physical Inspection — Connector integrity, PCB condition, and label verification against OEM part number.
- Functional Verification — Where applicable, relay contact continuity and backplane interface are tested prior to dispatch.
- Traceability Documentation — Certificate of conformance and sourcing records available on request.
- Packaging — Anti-static ESD packaging with foam insert protection for international shipment.
- Warranty — 90-day replacement warranty against DOA (Dead on Arrival) defects.
How to Source This Part
To place an order or request a formal quotation for the Bently Nevada 3500/32 125712-01:
- Online: Add to cart directly on this page — stock availability confirmed at checkout.
- Email RFQ: support@konmask.com — include quantity, required delivery date, and project site.
- Phone / WhatsApp: +0086 19859288691 — available for urgent procurement and technical pre-sales questions.
- Lead Time: In-stock units ship within 1–3 business days. Ex-stock international shipments via DHL / FedEx with full tracking.
- Payment: T/T (Wire Transfer), PayPal, and major credit cards accepted. Pro-forma invoice available.
Application-Specific FAQ
Q: Can the 3500/32 125712-01 be used in a TMR (Triple Modular Redundant) rack?
A: Yes. The 3500/32 is compatible with both standard and TMR 3500 rack configurations. In TMR mode, relay voting logic is managed by the rack architecture — no additional external voting relay panel is required.
Q: What is the difference between 125712-01 and other 3500/32 part numbers?
A: The suffix (-01, -02, etc.) denotes hardware revision levels. The 125712-01 is the standard production revision. Functionally, it is interchangeable with later revisions in most applications. Confirm firmware compatibility with your system integrator if upgrading from an earlier revision.
Q: Is this module suitable for SIL 2 safety loops?
A: The 3500/32 is SIL 2 capable at the system level when used within a certified 3500 rack architecture per IEC 61511. A SIL assessment by a qualified functional safety engineer is required for final loop validation.
Q: Can I use this relay module with a DCS or ESD system?
A: Yes. The relay dry contacts (SPDT) can be wired directly to DCS digital input cards or ESD logic solvers. The module is commonly interfaced with Emerson DeltaV SIS, Triconex, and Yokogawa ProSafe-RS systems.
Q: Do you provide installation and commissioning support?
A: Konmask.com provides pre-sales technical consultation and documentation support. For on-site commissioning, we can recommend qualified Bently Nevada system integrators in your region.
