Allen-Bradley 1756-OF6VI Isolated Analog Output Module | Replacement, Equivalent & Selection Guide

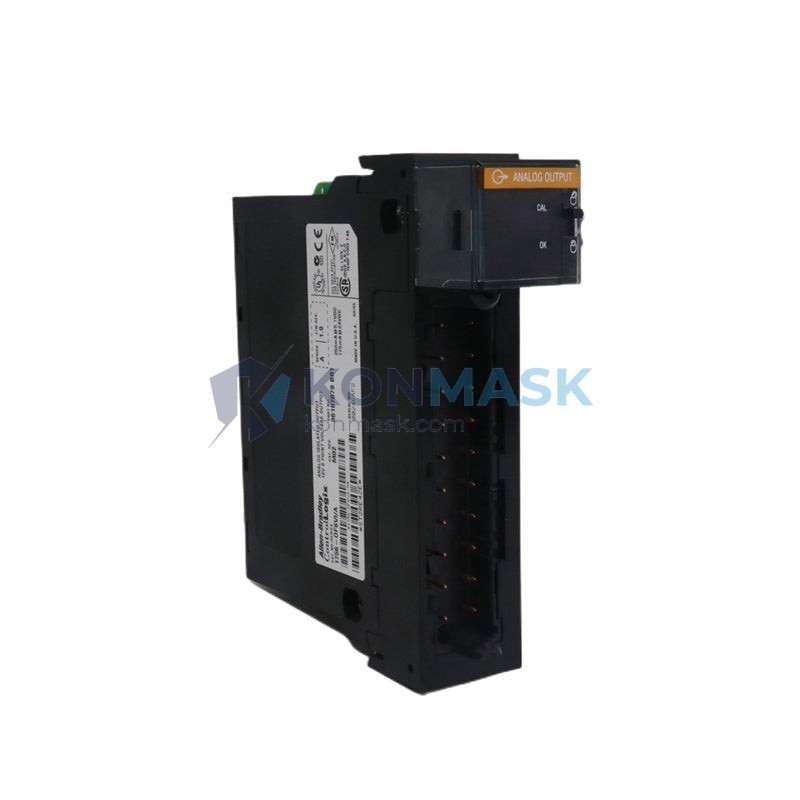

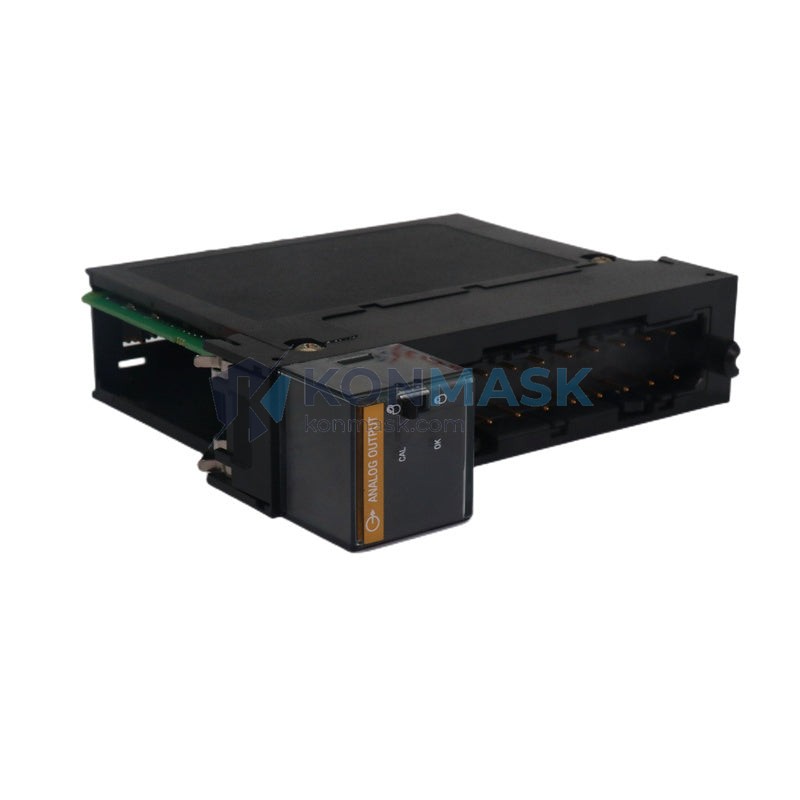

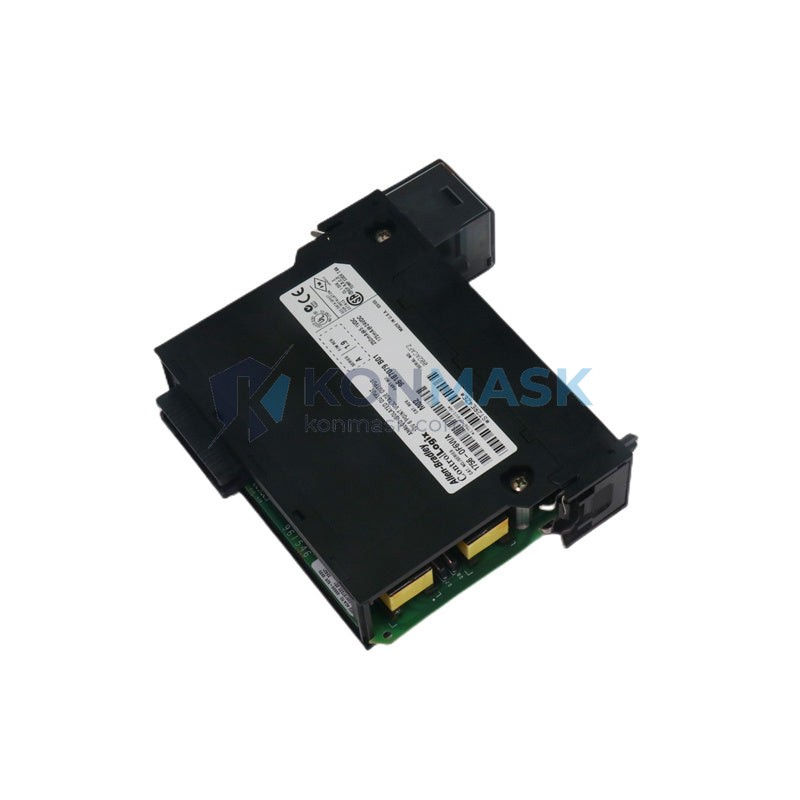

The Allen-Bradley 1756-OF6VI is a 6-channel voltage/current isolated analog output module designed for the Rockwell Automation ControlLogix 1756 chassis platform. It delivers precision analog control signals to field devices such as control valves, variable-frequency drives, and positioners in process-critical environments where channel-to-channel isolation is mandatory.
Engineers specifying replacements or equivalents for the 1756-OF6VI must account for its galvanic isolation architecture, output resolution, update rate, and Studio 5000 / RSLogix 5000 firmware compatibility. This guide consolidates direct drop-in options, functional equivalents, and cross-brand alternatives to help procurement teams and maintenance engineers make confident sourcing decisions — whether the original module is discontinued, lead-time constrained, or budget-restricted.
Technical Specifications
- Part Number: 1756-OF6VI
- Series: Allen-Bradley ControlLogix 1756
- Output Channels: 6 (voltage or current, software-selectable per channel) — key for replacement: must match channel count
- Output Ranges (Voltage): 0–10 V DC, ±10 V DC
- Output Ranges (Current): 0–20 mA, 4–20 mA
- Resolution: 16-bit — critical for precision loop control; verify equivalent meets same resolution
- Isolation: Channel-to-channel and channel-to-backplane galvanic isolation — mandatory for multi-loop process plants
- Update Rate: 1 ms (RPI configurable)
- Output Load (Voltage): ≥ 1 kΩ
- Output Load (Current): ≤ 750 Ω
- Operating Temperature: 0–60 °C
- Backplane Current Draw: 125 mA @ 5 V DC; 2 mA @ 24 V DC
- Module Keying: Electronic (software-enforced)
- Certifications: UL, CE, C-Tick, ATEX Zone 2 (with 1756-A series chassis)
- Weight: Approx. 280 g
- Compatible Chassis: All 1756 ControlLogix chassis (1756-A4, A7, A10, A13, A17)
- Firmware Compatibility: RSLogix 5000 / Studio 5000 v16 and above
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements (Same Form, Fit & Function)
- 1756-OF6VI /B, /C (later series revisions) — Rockwell-released series upgrades; fully backward-compatible with existing wiring and Studio 5000 configuration. Preferred replacement when original series is unavailable. No firmware changes required.
- 1756-OF6VI (refurbished / tested) — Factory-tested pull units with full I/O verification. Suitable for maintenance replacement when new stock lead times exceed 12 weeks. Konmask provides 90-day functional warranty on all refurbished units.
2. Functional Equivalents (Same Platform, Different Model)
- 1756-OF8 (non-isolated, 8-channel) — Suitable substitute when channel-to-channel isolation is not required. Offers 2 additional channels. Verify loop grounding scheme before substitution. Resolution and update rate are equivalent.
- 1756-OF6CI (current-only isolated) — Functional equivalent for 4–20 mA current loop applications only. Does not support voltage output. Confirm field device input type before specifying.
- 1756-OF4 (4-channel isolated) — Reduced channel count; suitable when only 4 output loops are required. Saves one slot in constrained chassis configurations.
3. Cross-Brand Alternatives (Interoperability Requires Engineering Review)
- Siemens 6ES7532-5HF00-0AB0 (S7-1500 AQ 8×U/I HF) — 8-channel isolated analog output for Siemens S7-1500 platform. Not a direct substitute; requires platform migration. Comparable isolation and 16-bit resolution. Consider only in greenfield or full-platform replacement projects.
- Schneider Electric BMXAMO0802 (Modicon M340) — 8-channel analog output for M340 platform. Cross-brand migration requires full I/O remapping and PLC program adaptation. Not recommended for like-for-like replacement.
- Beckhoff EL4038 (EtherCAT 8-channel ±10 V) — Suitable for distributed I/O architectures. Requires EtherCAT master and adapter module. Evaluate only when migrating to PC-based control.
⚠ Prerequisite & Caution: Always verify firmware revision, series letter, and chassis slot compatibility before substitution. Cross-brand alternatives require full engineering validation and are not plug-and-play replacements. Contact Konmask for a free compatibility assessment.
Why Choose the Original 1756-OF6VI Model
- Guaranteed firmware compatibility: The 1756-OF6VI is natively supported in Studio 5000 / RSLogix 5000 with zero configuration overhead — no driver updates, no EDS file imports, no re-commissioning risk.
- Full channel-to-channel galvanic isolation: Eliminates ground loop interference in multi-loop process plants, meeting IEC 61511 SIL 2 loop integrity requirements that functional equivalents may not satisfy.
- 16-bit output resolution: Delivers ±0.015% full-scale accuracy, essential for precision valve positioning and flow control where substitutes with lower resolution introduce unacceptable process deviation.
- Rockwell Automation certification and lifecycle support: Covered under Rockwell’s Product Lifecycle Policy with access to firmware updates, TechConnect support, and documented change history — critical for FDA 21 CFR Part 11 and IEC 62443 compliance audits.
- ATEX Zone 2 rated (with approved chassis): Certified for use in hazardous areas, a qualification that cross-brand alternatives may not carry without separate ATEX re-certification.
- Proven MTBF in continuous process environments: Field data from petrochemical and pharmaceutical installations documents >100,000-hour MTBF, reducing unplanned downtime risk versus unvalidated substitutes.
Typical Applications
- Oil & Gas — Wellhead Control: Driving 4–20 mA signals to electro-hydraulic valve actuators in wellhead automation panels; isolated outputs prevent ground faults from propagating across safety loops.
- Pharmaceutical — Bioreactor Control: Precise ±10 V DC signals to peristaltic pump drives and agitator VFDs in GMP-regulated bioreactor systems; 16-bit resolution supports ±0.1 RPM setpoint accuracy.
- Chemical Processing — Distillation Column: Multi-loop analog output to reflux ratio control valves; channel isolation prevents cross-talk between adjacent control loops operating at different ground potentials.
- Power Generation — Turbine Governor Control: 4–20 mA output to electro-hydraulic actuators on steam turbine governor valves; 1 ms update rate meets dynamic response requirements of speed control loops.
- Water & Wastewater — Dosing Systems: Analog output to chemical dosing pump drives in chlorination and pH correction systems; isolated outputs comply with IEC 60364-4-41 separation requirements.
- Automotive Manufacturing — Paint Line Conveyors: Voltage output to VFDs controlling conveyor speed in electrostatic paint booths; isolation prevents high-voltage transients from damaging the ControlLogix backplane.
System Compatibility
- 1756-A7 / A10 / A13 / A17 Chassis — Standard ControlLogix chassis; 1756-OF6VI occupies one slot in any position.
- 1756-L7x / L8x ControlLogix Controllers — Primary CPU for coordinating analog output tasks; supports Produced/Consumed tags for distributed I/O sharing.
- 1756-EN2T / EN3TR EtherNet/IP Communication Module — Provides remote I/O access and DLR ring topology redundancy for the chassis.
- 1756-PA75 / PB75 Power Supply — Provides 5 V DC and 24 V DC backplane power; verify total backplane current budget when adding 1756-OF6VI (125 mA @ 5 V).
- 1492-AIFM6-F-5 Analog Interface Module — Pre-wired terminal block interface for 1756-OF6VI; eliminates field wiring errors and reduces commissioning time by up to 60%.
- Studio 5000 Logix Designer v21+ — Required for full module configuration including output scaling, fault states, and channel-level diagnostics.
Selection Guide
Answer these three questions to confirm the 1756-OF6VI — or its replacement — is the right fit for your application:
- Q1: Does your application require channel-to-channel isolation? If yes, the 1756-OF6VI or 1756-OF6CI are the only ControlLogix-native options. Non-isolated modules (e.g., 1756-OF8) are not suitable substitutes.
- Q2: Do you need both voltage and current output on the same module? If yes, only the 1756-OF6VI supports software-selectable V/I per channel. The 1756-OF6CI is current-only and cannot substitute in mixed-signal applications.
- Q3: Is your system running RSLogix 5000 v16 or Studio 5000 v21+? If yes, the 1756-OF6VI is natively supported. For older firmware (v13–v15), contact Konmask to verify series revision compatibility before ordering.
Not sure which model fits your system? Contact Konmask at support@konmask.com — our engineers provide free compatibility assessments within 24 hours.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources 1756-OF6VI modules exclusively from authorized Rockwell Automation distributors, certified surplus dealers with documented chain of custody, and direct OEM decommission programs. We do not source from unverified grey-market channels.
4-Step Inspection Process:
- Step 1 — Visual & Physical Inspection: Enclosure integrity, connector pin condition, label authenticity, and series revision verification against Rockwell’s published part number matrix.
- Step 2 — Functional I/O Test: All 6 output channels tested across full voltage (0–10 V, ±10 V) and current (4–20 mA, 0–20 mA) ranges using calibrated Fluke 754 reference standard. Pass threshold: ±0.02% full scale.
- Step 3 — Firmware & Diagnostics Verification: Module installed in live 1756 chassis; Studio 5000 diagnostics confirm no fault codes, correct firmware revision, and valid module identity object (EDS).
- Step 4 — Burn-In & Final QC: 48-hour powered burn-in at 50 °C ambient; post-burn-in I/O re-test confirms thermal stability. QC report generated per unit.
Documentation Available Upon Request: Certificate of Conformance, Functional Test Report, Firmware Revision Record, Chain of Custody Declaration, ATEX compliance documentation.
How to Order
- Step 1 — Submit Your Requirement: Email support@konmask.com with part number (1756-OF6VI), required series revision, quantity, and delivery timeline. Attach your existing module label photo if available for series verification.
- Step 2 — Receive Quote & Compatibility Confirmation: Konmask responds within 24 hours with pricing, lead time, available stock, and a written compatibility statement for your specific firmware version and chassis configuration.
- Step 3 — Confirm & Ship: Upon order confirmation, modules are tested, documented, and dispatched via DHL Express or FedEx International Priority. Global delivery to 150+ countries. Export documentation (CO, packing list, commercial invoice) included as standard.
Replacement & Compatibility FAQ
Q: Can I directly replace a 1756-OF6VI /A with a /B or /C series revision without changing my Studio 5000 program?
A: Yes. Rockwell Automation series revisions (/A → /B → /C) are backward-compatible at the firmware and configuration level. The module identity object is identical across series, so Studio 5000 will recognize the replacement without requiring program changes. Verify the chassis slot keying is cleared before installation.
Q: Is the 1756-OF8 a compatible substitute for the 1756-OF6VI in a process plant with multiple isolated loops?
A: No. The 1756-OF8 is a non-isolated module. In multi-loop process plants where field devices operate at different ground potentials, substituting a non-isolated module introduces ground loop currents that can cause measurement errors of up to ±2% full scale and may violate IEC 61511 functional safety loop integrity requirements. The 1756-OF6VI or 1756-OF6CI are the only equivalent isolated options within the ControlLogix platform.
Q: What is the lead time for a new 1756-OF6VI, and what substitute should I specify if lead time exceeds my maintenance window?
A: New 1756-OF6VI lead times from Rockwell Automation authorized distributors currently range from 8–20 weeks depending on series revision and region. If your maintenance window is shorter, Konmask maintains tested surplus stock with same-week dispatch capability. For applications where the 1756-OF6VI is permanently discontinued in your region, the 1756-OF6CI (current-only) is the closest Rockwell-native equivalent for 4–20 mA loops. Contact support@konmask.com for real-time stock availability.
