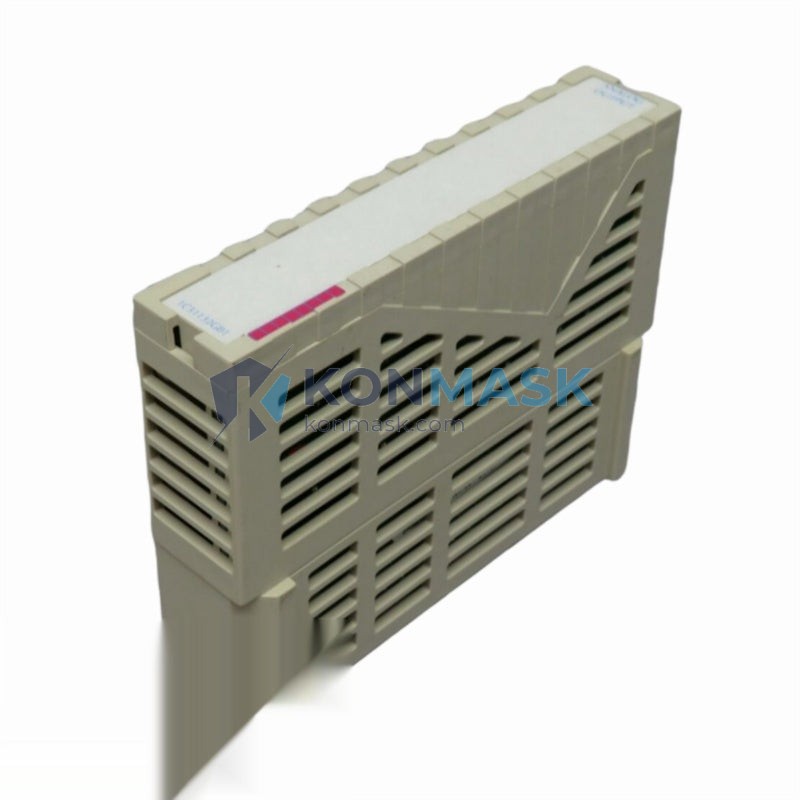

WESTINGHOUSE 1C31132G01 Analog Output Module – OVATION Distributed Control System
When an analog output module fails in a power plant or industrial process facility, the consequences cascade instantly: control loops lose their command signals, actuators freeze in last position, and operators are left managing a live process with no feedback path. Valve positioners stop responding, flow rates drift uncontrolled, and the entire regulatory control architecture built around that single card becomes inoperable. The WESTINGHOUSE 1C31132G01 Analog Output Module is the precision interface that prevents this scenario — converting digital setpoints from the OVATION controller into accurate, isolated analog signals that drive field instruments and final control elements.
Within the OVATION Distributed Control System family, the 1C31132G01 occupies a critical position as a high-density analog output card engineered specifically for demanding continuous-process environments. OVATION DCS is the platform of choice for fossil fuel power generation, nuclear balance-of-plant, and large-scale industrial automation worldwide. This module’s design reflects decades of Westinghouse engineering refinement, delivering the signal fidelity and channel isolation that mission-critical control loops demand. For facilities running OVATION-based control architectures, this part number is not interchangeable — it is the specified component.
Technical Specifications
- Part Number: 1C31132G01
- Manufacturer: Westinghouse Electric / Emerson (OVATION platform)
- Module Type: Analog Output Module
- Platform: OVATION Distributed Control System (DCS)
- Output Signal Type: 4–20 mA current loop (industry standard)
- Channel Isolation: Channel-to-channel and channel-to-bus isolation
- Form Factor: Standard OVATION I/O card, rack-mountable
- Operating Environment: Industrial-grade, suitable for control room and marshalling cabinet installation
- Communication: OVATION I/O bus interface
- Weight: Approx. 100 g (card only)
Note: Specifications above are based on published OVATION platform documentation. Always verify against your site-specific engineering drawings before installation.
Key Features & Benefits
- Precision Signal Output: Delivers stable, accurate 4–20 mA signals essential for tight regulatory control of valves, dampers, and variable-speed drives.
- Channel Isolation: Prevents ground loops and cross-channel interference — critical in electrically noisy industrial environments.
- Hot-Swap Compatibility: Designed for the OVATION rack architecture, supporting maintenance without full system shutdown where system configuration permits.
- Proven Reliability: Field-proven in continuous-duty power generation and process industries where uptime is measured in years, not hours.
- Direct OEM Replacement: Exact form, fit, and function replacement for installed OVATION systems — no re-engineering required.
- Diagnostic Support: Integrates with OVATION’s built-in diagnostics for channel-level fault detection and alarming.
Industry & Equipment Applications
- Power Generation: Coal, gas, and oil-fired boiler control; turbine governor auxiliary outputs; feedwater control loops.
- Nuclear Balance-of-Plant: Non-safety auxiliary systems running OVATION DCS architecture.
- Pulp & Paper: Digester pressure and temperature control; stock flow regulation.
- Water & Wastewater Treatment: Pump speed control, chemical dosing, and flow setpoint transmission.
- Oil & Gas Processing: Compressor anti-surge control, separator level control, and pipeline pressure regulation.
- District Heating / Combined Heat & Power (CHP): Heat exchanger bypass valve control and load-following applications.
System Integration & Compatible Parts
The 1C31132G01 is designed to operate within the OVATION I/O subsystem. Compatible and commonly paired components include:
- OVATION Controller Modules (1C31166G01, 1C31169G01 series)
- OVATION Analog Input Modules (1C31113G01, 1C31116G01 series)
- OVATION I/O Racks and Backplanes
- OVATION Power Supply Modules
- Marshalling Terminal Assemblies for 4–20 mA field wiring
If you need assistance identifying compatible modules for your specific OVATION system revision, contact our technical team with your system configuration details.
Our Quality Assurance Process
At Konmask.com, every WESTINGHOUSE 1C31132G01 module we supply goes through a structured verification process before shipment:
- Visual Inspection: Board-level inspection for physical damage, corrosion, and component integrity.
- Label & Revision Verification: Part number, revision code, and date code confirmed against order specifications.
- Functional Test (where applicable): Modules sourced from tested-good inventory are verified on compatible test benches.
- ESD-Safe Packaging: All modules shipped in anti-static bags with foam cushioning inside rigid outer packaging.
- Documentation: Test reports and traceability documentation available upon request for critical applications.
How to Order
- Submit an Inquiry: Use the contact form on this page or email [email protected] with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 1 business day with pricing, availability, and lead time.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods by arrangement.
- Ship & Track: We ship via DHL, FedEx, UPS, or freight forwarder per your preference. Full tracking provided.
For urgent plant shutdowns or emergency replacements, please call us directly at +0086 19859288691 and we will prioritize your order.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and industrial control components — not a general electronics distributor.
- Global Sourcing Network: Access to genuine and tested-good surplus OVATION modules from verified sources worldwide.
- Technical Expertise: Our team understands OVATION architecture — we can help you identify the right part, not just sell you a part number.
- Fast Response: Inquiries answered within 1 business day. Emergency support available.
- Secure Packaging & Reliable Shipping: ESD-safe, damage-free delivery to your facility anywhere in the world.
- Transparent Communication: Honest lead times, clear documentation, and no hidden fees.
Frequently Asked Questions
Q: Is the 1C31132G01 a new or refurbished module?
A: We supply both new-surplus (unused, original packaging) and tested-good refurbished units depending on availability. The condition will be clearly stated in your quotation.
Q: Can this module be used as a direct replacement without reprogramming the OVATION system?
A: Yes — as an OEM part with the same revision, it is a direct drop-in replacement. However, always verify the revision code matches your system’s I/O configuration database before installation.
Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day warranty against defects in materials and workmanship. Extended warranty options are available — ask your sales contact for details.
Q: Can you ship to my country?
A: We ship globally via major international couriers. Export documentation and commercial invoices are provided for customs clearance.
Q: What if I need multiple modules or a mix of OVATION I/O cards?
A: We handle multi-line BOM (Bill of Materials) inquiries. Send us your full list and we will provide a consolidated quote.
