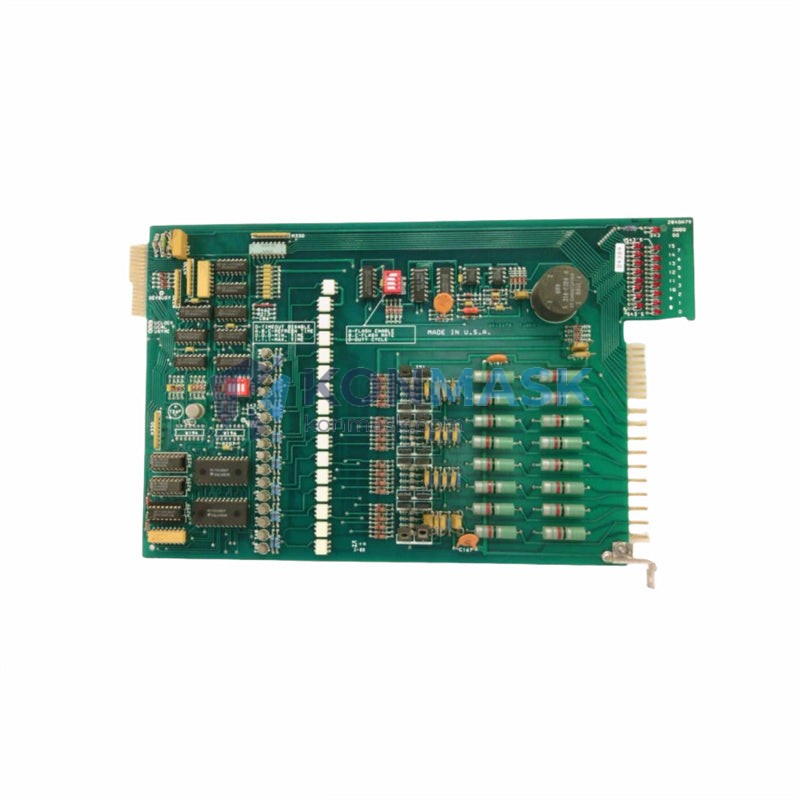

Westinghouse 7381A93G05 PCB Circuit Board – DCS Process Control Module | OVATION Platform
Engineering Background: The Westinghouse 7381A93G05 is a printed circuit board assembly engineered for distributed control system (DCS) architectures. Originally developed under Westinghouse’s industrial automation division—now carried forward through Emerson’s OVATION and legacy Westinghouse DCS lineage—this board serves as a critical signal-processing and logic-execution component within process control cabinets across power generation, petrochemical, and heavy manufacturing facilities.
Product Positioning: Designed for procurement engineers and maintenance teams requiring a verified, drop-in replacement for aging DCS infrastructure. The 7381A93G05 eliminates the need for costly system redesigns by maintaining full backward compatibility with existing backplane and I/O wiring configurations.
Complete Technical Specifications
- Part Number / SKU: 7381A93G05
- Manufacturer: Westinghouse Electric Corporation
- Module Type: PCB Circuit Board – DCS Control / Signal Processing
- Platform Compatibility: Westinghouse WDPF / OVATION DCS Series
- Form Factor: Plug-in PCB card (backplane-mounted)
- Weight: 1,980 g (approx.)
- Operating Environment: Industrial control cabinet, climate-controlled enclosure
- Compliance: Designed to OEM specification; CE / UL industrial-grade standards applicable to platform
- Condition Available: New surplus / Refurbished / Exchange
Proven Application Environments
- Thermal and nuclear power plant DCS control rooms
- Petrochemical refinery process automation cabinets
- Pulp & paper mill distributed control systems
- Steel and metals manufacturing process lines
- Water treatment and utility SCADA/DCS hybrid systems
- Any facility running legacy Westinghouse WDPF or early OVATION DCS architecture
Engineering Advantages
- Drop-in Compatibility: Maintains original backplane pinout and I/O mapping — no rewiring required
- Reduced Downtime: Immediate swap capability minimizes unplanned outage duration
- Proven Reliability: OEM-grade component selection with industrial-rated tolerances
- Long-term Availability: Sourced from verified surplus channels to support aging DCS fleets
- Cost Efficiency: Fraction of new-system replacement cost; extends DCS lifecycle by 5–15 years
System Architecture & Signal Flow
The 7381A93G05 PCB interfaces directly with the DCS backplane bus, receiving process variable signals from field I/O termination assemblies. Onboard logic circuits condition, convert, and route signals to the controller processor module. The board supports both analog and discrete signal paths typical of Westinghouse WDPF cabinet configurations. Proper seating in the designated card slot ensures full bus communication without additional configuration.
Sourcing & Quality Verification
- All units inspected upon receipt — visual, functional, and continuity checks performed
- Sourced exclusively from traceable industrial surplus, OEM overstock, or certified refurbishment programs
- Each unit ships with inspection record and 90-day operational warranty
- Anti-static packaging with humidity indicator card included
- Batch traceability documentation available upon request for regulated industries
Procurement Process
- Confirm Part Number: Verify 7381A93G05 against your DCS cabinet BOM or existing card label
- Request Quote: Contact Konmask.com with quantity and required condition (new / refurbished / exchange)
- Lead Time: In-stock units ship within 1–3 business days; sourced units within 5–10 business days
- Payment & Export: T/T, PayPal, and trade finance options available; export documentation provided for international shipments
- Installation Support: Technical guidance available via email or video call for qualified engineers
Technical FAQ
Q: Is the 7381A93G05 compatible with both WDPF and OVATION DCS platforms?
A: The board was originally designed for the Westinghouse WDPF platform. Compatibility with OVATION depends on the specific cabinet revision — contact our technical team to confirm before ordering.
Q: Can this board be repaired if it has a known fault?
A: Yes. Konmask.com offers board-level repair and exchange programs. Submit your faulty unit for evaluation and receive a tested replacement.
Q: What warranty is provided?
A: All units carry a 90-day operational warranty covering manufacturing defects and functional failure under normal operating conditions.
Q: Do you provide certificates of conformance or test reports?
A: Yes, upon request for regulated industries (power generation, nuclear, etc.). Please specify requirements at time of order.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume pricing available for orders of 5+ units.
