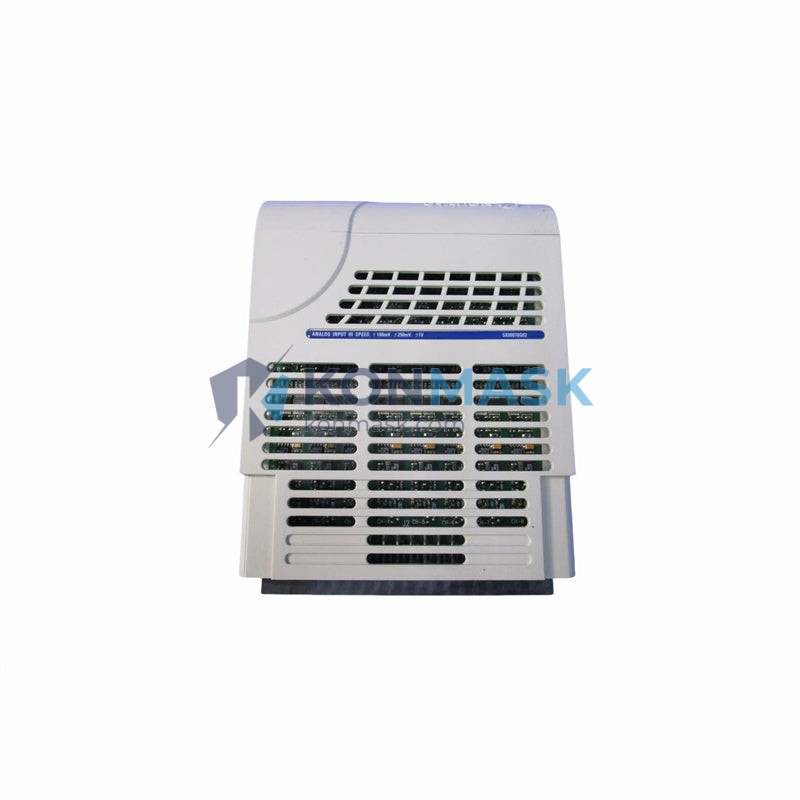

Westinghouse 5X00070G02 – Multi-Channel Analog Input Module | WDPF Distributed Control System
Engineering Background: The Westinghouse WDPF (Westinghouse Distributed Processing Family) platform has been a cornerstone of process automation in power generation, petrochemical, and heavy industrial facilities since the 1980s. Designed for mission-critical continuous process control, WDPF systems demand hardware that delivers deterministic, high-fidelity signal acquisition with minimal drift over decades of operation.
Product Positioning: The 5X00070G02 is a multi-channel analog input module engineered for the WDPF DCS architecture. It serves as the primary field-signal interface layer, converting process-level analog signals (4–20 mA / 1–5 V) into digital values for the WDPF controller bus. Procurement engineers sourcing legacy WDPF spare parts will find this module essential for sustaining plant uptime without costly full-system migrations.
Complete Technical Specifications
- Part Number / SKU: 5X00070G02
- Manufacturer: Westinghouse Electric Corporation (now Emerson / Ovation legacy)
- Module Type: Analog Input (AI)
- Platform / Series: WDPF – Westinghouse Distributed Processing Family
- Signal Type: 4–20 mA current loop / 1–5 VDC voltage input (field-configurable)
- Resolution: 12-bit A/D conversion
- Input Channels: Multi-channel (typically 8 differential or 16 single-ended)
- Input Impedance: High-impedance differential inputs with common-mode rejection
- Isolation: Optical isolation between field and backplane bus
- Power Supply: Supplied via WDPF backplane (5 VDC / 24 VDC field power)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Humidity: 5% to 95% RH, non-condensing
- Weight: Approx. 2,000 g (module + packaging)
- Form Factor: WDPF standard card cage module
- Compliance: CE, UL listed (original OEM certification)
Proven Application Environments
- Power Generation: Coal, gas turbine, and nuclear auxiliary control systems running WDPF platforms
- Petrochemical & Refining: Continuous process monitoring of temperature, pressure, and flow via 4–20 mA transmitters
- Pulp & Paper: Multi-loop analog acquisition in legacy WDPF-controlled digesters and recovery boilers
- Water Treatment: SCADA-integrated WDPF nodes requiring reliable analog front-end modules
- Steel & Metals: High-temperature process environments demanding stable, drift-resistant analog input cards
Engineering Advantages
- Drop-in Replacement: 100% form-fit-function compatible with existing WDPF card cage slots — no firmware changes required
- Optical Isolation: Protects backplane and controller from field-side ground loops and transient surges
- Proven Longevity: OEM-grade components rated for 20+ year service life in industrial environments
- Minimal Commissioning: Plug-and-play within WDPF architecture; channel configuration retained in system database
- Sustains Legacy Infrastructure: Extends WDPF system life without capital expenditure on full DCS migration
System Architecture & Signal Flow
Field transmitters (4–20 mA) connect to the module’s terminal block via marshalling cabinets. The 5X00070G02 performs signal conditioning, multiplexing, and A/D conversion, then transfers digitized process values to the WDPF controller via the proprietary backplane data bus. The controller executes control algorithms and writes outputs back through corresponding analog output modules. The module supports hot-swap within powered WDPF racks (verify with site safety procedures).
Sourcing & Quality Verification
- Condition: Surplus / Refurbished – tested to OEM functional specifications
- Inspection: Visual inspection, board-level cleaning, and functional power-on test performed prior to shipment
- Authenticity: Original Westinghouse OEM hardware — no third-party clones or counterfeit components
- Packaging: Anti-static ESD bag + foam-lined carton for safe international transit
- Warranty: 90-day operational warranty against DOA; extended warranty available on request
- Traceability: Serial number and revision level documented on shipment certificate
Procurement Process
- Confirm part number 5X00070G02 and required quantity with your engineering team
- Submit RFQ via [email protected] or place order directly on Konmask.com
- Receive pro-forma invoice with lead time confirmation (typically 1–3 business days for in-stock units)
- Payment processed; module ships with ESD packaging, test report, and commercial invoice for customs
- Post-delivery technical support available via email or phone
Technical FAQ
Q: Is the 5X00070G02 compatible with all WDPF card cage revisions?
A: Yes. The module is designed to the WDPF backplane standard and is compatible with all standard WDPF card cage generations. Verify slot type (single-width) before ordering.
Q: Can this module be used in an Emerson Ovation system?
A: No. While Emerson acquired the Westinghouse WDPF product line, Ovation uses a different hardware architecture. This module is WDPF-specific and is not interchangeable with Ovation I/O cards.
Q: What is the lead time for this part?
A: In-stock units typically ship within 1–3 business days. Contact us for current availability.
Q: Do you provide a test report with shipment?
A: Yes. A functional test certificate is included with every unit shipped from Konmask.com.
Q: Can I return the module if it does not work in my system?
A: Yes. We offer a 90-day DOA warranty. Contact [email protected] within 90 days of receipt for RMA authorization.
