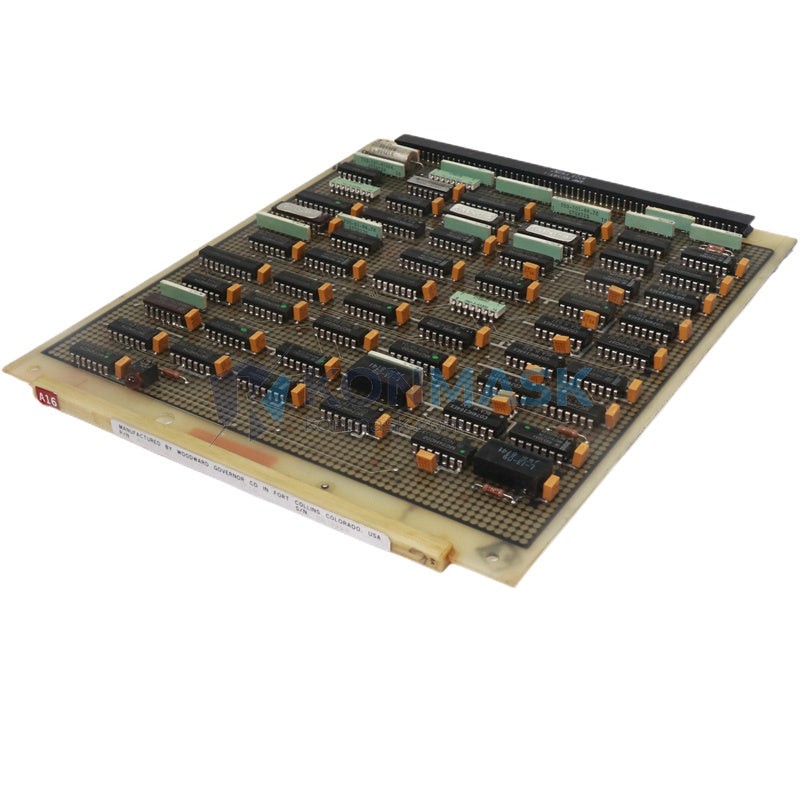

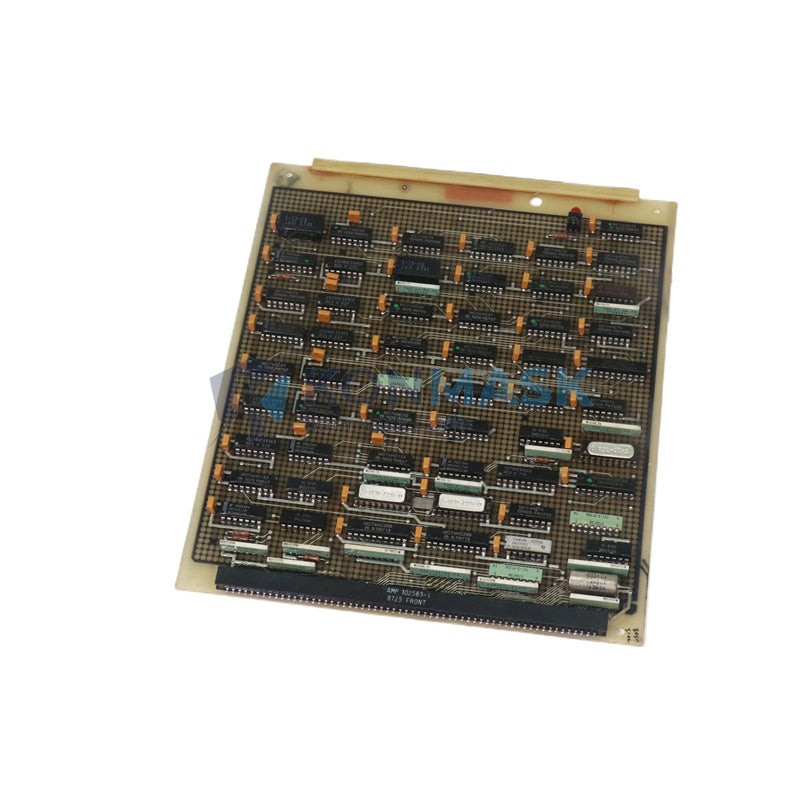

WOODWARD 5462-916 – FTC DCS II Electronic Control Module | Woodward DCS Platform
Engineering Background
The WOODWARD 5462-916 is a core electronic module within the Woodward Fuel/Temperature Control (FTC) DCS II distributed control platform — a proven architecture deployed across gas turbines, steam turbines, and industrial power generation systems worldwide. Woodward’s DCS II series represents decades of field-hardened design philosophy, engineered to deliver deterministic control response in mission-critical environments where downtime is not an option.
Product Positioning
Designed for OEM integration and MRO replacement, the 5462-916 module serves as a functional electronic processing unit within the FTC DCS II control cabinet. It is the preferred choice for plant engineers and procurement specialists seeking a direct, specification-matched replacement that eliminates re-engineering risk and preserves existing system architecture.
Complete Technical Specifications
| Manufacturer | WOODWARD |
| Part Number | 5462-916 |
| Series / Platform | FTC DCS II (Fuel Temperature Control – Distributed Control System II) |
| Module Type | Electronic Control Module |
| Form Factor | Rack-mount / Panel-mount (DCS II chassis compatible) |
| Weight | 280 g (nominal) |
| Operating Environment | Industrial — suitable for turbine control enclosures |
| Communication Interface | Woodward DCS II proprietary backplane bus |
| Condition Available | New / Refurbished / Exchange |
| Compliance | Manufactured to Woodward quality standards; CE-compatible installations |
Note: Full electrical specifications (voltage rails, I/O count, signal ranges) are available upon request or via Woodward OEM documentation. Contact support@konmask.com for datasheet access.
Proven Application Environments
- Gas turbine fuel control systems (GE, Siemens, Solar, Rolls-Royce frame turbines)
- Steam turbine governing and protection panels
- Combined-cycle power plant DCS cabinets
- Industrial compressor and pump control stations
- Offshore platform and marine power management systems
- Petrochemical plant process control infrastructure
Engineering Advantages
- Drop-in Compatibility: Direct replacement for existing 5462-916 installations — no firmware re-flashing or hardware modification required in standard configurations.
- Deterministic Control Response: Woodward DCS II architecture is designed for real-time, scan-cycle-consistent processing critical to turbine speed and fuel control loops.
- Reduced Commissioning Risk: OEM part number match eliminates cross-reference ambiguity and integration uncertainty during planned or emergency maintenance windows.
- Long Service Life: Woodward modules are designed for extended MTBF in continuous-duty industrial environments with wide temperature tolerance.
- Spares Availability: Konmask maintains sourcing channels for legacy Woodward DCS II components, supporting plants operating beyond OEM active production cycles.
System Architecture & Signal Flow
The FTC DCS II platform operates as a modular distributed control architecture. The 5462-916 electronic module interfaces with the DCS II backplane, receiving process variable inputs (temperature, pressure, speed signals) and executing control algorithms to generate actuator output commands — typically to fuel control valves or governor actuators. The module communicates with the system HMI and historian via the Woodward proprietary network layer, maintaining synchronized state across redundant control paths where applicable.
Signal flow summary:
- Field sensor inputs → 5462-916 analog/digital input conditioning
- Control algorithm execution (PID, sequencing, protection logic)
- Output commands → actuator drivers / relay outputs
- Status & diagnostics → DCS II system bus → HMI / SCADA
Sourcing & Quality Verification
- Source Traceability: All units are sourced from verified industrial surplus, authorized distributors, or OEM-certified refurbishment centers.
- Incoming Inspection: Each module undergoes visual inspection, label verification (part number, revision, serial range), and functional bench testing where applicable.
- Packaging: ESD-safe anti-static packaging with moisture barrier; shipped in rigid outer carton with foam cushioning.
- Documentation: Certificate of conformance and test report available upon request for critical plant applications.
- Warranty: 12-month warranty against manufacturing defects under normal operating conditions (see full warranty terms at Konmask.com/policies).
Procurement Process
- Inquiry Submission: Contact support@konmask.com with your part number (5462-916), required quantity, and delivery timeline.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order or online checkout accepted; proforma invoice available for bank transfer payments.
- Quality Hold Option: Request pre-shipment inspection report or third-party testing for critical applications.
- Shipping: DHL / FedEx / UPS express available; export documentation (commercial invoice, packing list, COO) provided for international shipments.
- After-Sales Support: Technical support available via email and phone throughout installation and commissioning.
Technical FAQ
Q: Is the 5462-916 compatible with both early and late revision DCS II chassis?
A: Compatibility depends on chassis revision and firmware version. Please provide your existing system revision details when inquiring so we can confirm interoperability.
Q: Can this module be repaired rather than replaced?
A: Woodward-authorized repair is available for select DCS II modules. Contact us to assess repair vs. replacement economics for your specific failure mode.
Q: Do you offer exchange / core return programs?
A: Yes. Exchange pricing is available — return your failed core unit for credit against the replacement. Contact us for exchange terms.
Q: What is the typical lead time for in-stock units?
A: In-stock units ship within 1–3 business days. For sourced units, lead time is typically 5–15 business days depending on supply chain availability.
Q: Is a Woodward datasheet or wiring diagram available?
A: We can provide available OEM documentation upon order confirmation. Some documents are subject to Woodward distribution agreements.
