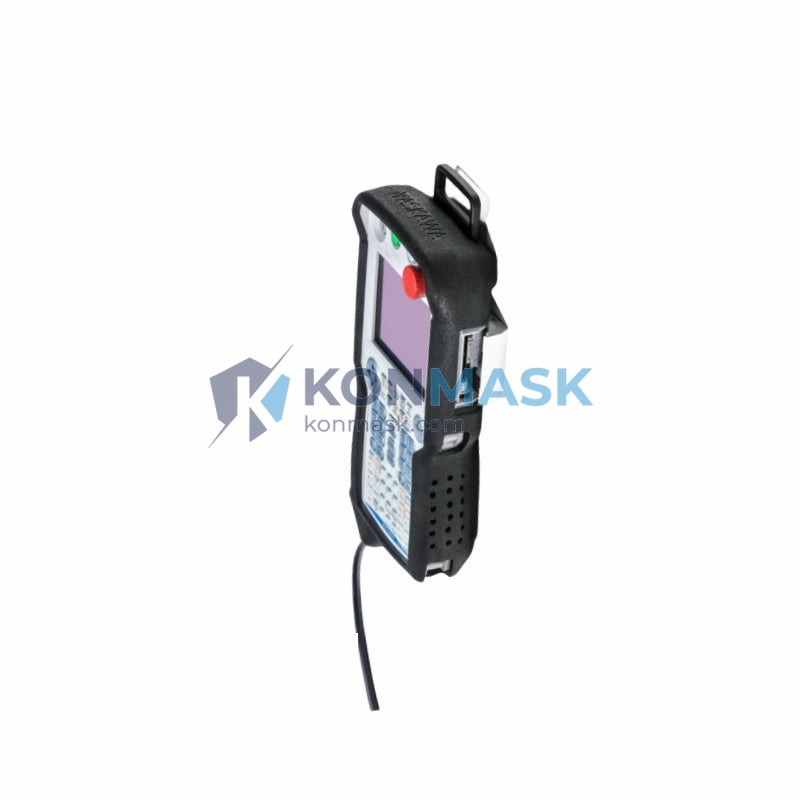

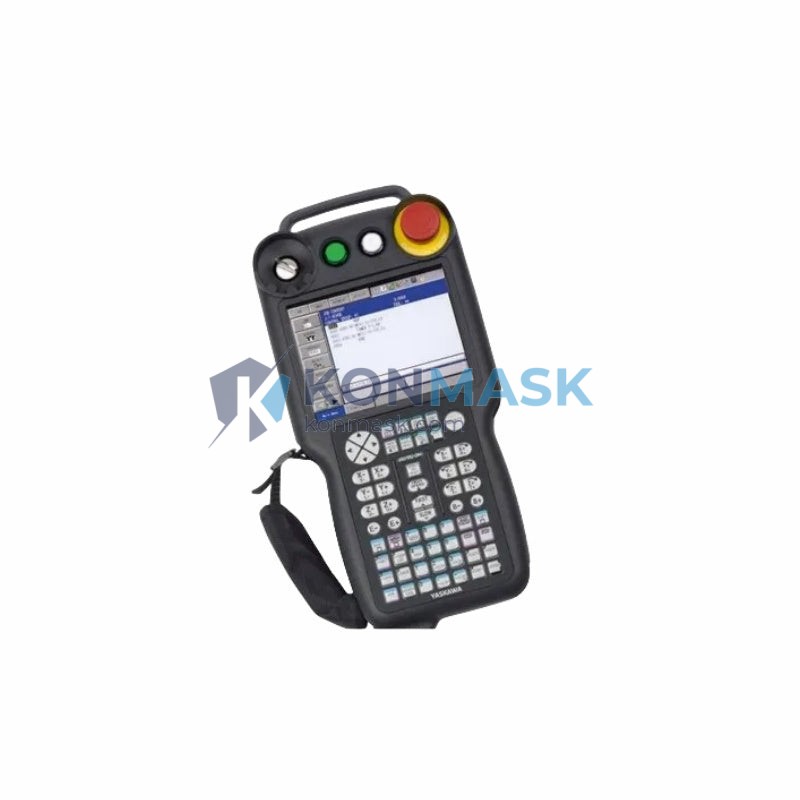

Yaskawa JZRCR-APP01-1 YRC1000 Robot Teach Pendant | Replacement, Equivalent & Selection Guide
The Yaskawa JZRCR-APP01-1 is the dedicated programming teach pendant for the YRC1000 robot controller series. Designed for intuitive robot motion programming, job editing, and real-time monitoring, this pendant is an essential interface component for Yaskawa Motoman industrial robot systems. This page provides full technical specifications, compatible replacement options, equivalent models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | JZRCR-APP01-1 |
| Compatible Controller | Yaskawa YRC1000 |
| Brand | Yaskawa / Motoman |
| Type | Robot Teach Pendant (Programming Terminal) |
| Display | Color LCD Touchscreen |
| Interface | USB, Ethernet (controller-side) |
| Safety Features | 3-position Enable Switch, Emergency Stop Button |
| Weight | Approx. 560 g |
| Cable Connection | Dedicated YRC1000 pendant cable |
| Operating Temperature | 0°C to 45°C |
| IP Rating | IP54 (dust and splash resistant) |
| Language Support | Multi-language (English, Japanese, Chinese, etc.) |
| Condition Available | New / Refurbished / Tested Used |
Compatible Replacement & Equivalent Models
If the JZRCR-APP01-1 is unavailable or you are evaluating alternatives, the following models offer functional compatibility or serve as direct replacements within the Yaskawa ecosystem:
- JZRCR-APP01-2 — Updated revision of the APP01-1; direct drop-in replacement for YRC1000 controllers with firmware ≥ V2.xx
- JZRCR-YPP21-1 — Teach pendant for DX200 controller; functionally similar but NOT electrically compatible without adapter
- JZRCR-NPP21-1 — NX100 series pendant; older generation, incompatible connector
- JZRCR-MPP21-1 — FS100 controller pendant; compact form factor, different protocol
- Smart Pendant (JZRCR-SPP01-1) — Next-generation touchscreen pendant for YRC1000micro and YRC1000; requires Smart Pendant option enabled on controller
⚠ Always verify controller firmware version and pendant cable compatibility before substituting models. Contact Konmask for cross-reference verification.
Why Choose the Original JZRCR-APP01-1
- Guaranteed Compatibility: Factory-matched to YRC1000 hardware and firmware — zero configuration risk
- Full Feature Access: Unlocks all YRC1000 programming functions including INFORM language, job management, and I/O monitoring
- Safety Certification: Meets IEC 60204-1 and ISO 10218-1 safety standards with certified 3-position enable switch
- Durability: Industrial-grade housing rated IP54, designed for factory floor environments
- OEM Support: Eligible for Yaskawa warranty and authorized service center support
Typical Applications
- Automotive body welding and assembly lines using Yaskawa Motoman robots
- Arc welding and spot welding automation cells
- Material handling, palletizing, and pick-and-place systems
- Machine tending and CNC loading applications
- Painting and coating robot systems
- General-purpose 6-axis industrial robot programming
System Compatibility
The JZRCR-APP01-1 is exclusively designed for use with the Yaskawa YRC1000 robot controller. It is not compatible with the following controllers without hardware/firmware modification:
- DX200 — Different pendant connector and protocol
- FS100 — Compact controller with proprietary pendant interface
- NX100 / XRC — Legacy systems with incompatible connectors
- YRC1000micro — Requires Smart Pendant or specific micro-series pendant
For multi-controller environments, consult Konmask’s engineering team for a compatibility matrix.
Selection Guide
Use the following decision framework to select the correct teach pendant for your Yaskawa robot system:
- Step 1 — Identify your controller model: Check the nameplate on the controller cabinet (YRC1000, DX200, FS100, etc.)
- Step 2 — Check firmware version: Navigate to System Info on your existing pendant or controller HMI
- Step 3 — Verify cable type: YRC1000 uses a specific 37-pin pendant cable — confirm your cable is intact or order a replacement
- Step 4 — Choose condition: New OEM for critical production lines; certified refurbished for backup/training units; tested used for budget-sensitive projects
- Step 5 — Confirm Smart Pendant eligibility: If upgrading to JZRCR-SPP01-1, verify the Smart Pendant software option is licensed on your YRC1000
Quality Assurance & Sourcing
All JZRCR-APP01-1 units sourced through Konmask.com undergo the following quality process:
- Visual inspection for physical damage, connector integrity, and display condition
- Functional power-on test and button/keypad verification
- Enable switch and E-stop safety circuit continuity test
- Firmware version documentation provided with each unit
- Secure anti-static packaging with serial number traceability
We source from authorized distributors, certified refurbishers, and decommissioned production lines with full traceability documentation available on request.
How to Order
- Online: Add to cart directly on this page — stock levels updated in real time
- Email RFQ: Send your BOM or part list to [email protected] for bulk pricing
- Phone/WhatsApp: +0086 19859288691 — available for urgent sourcing inquiries
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Payment: T/T, PayPal, credit card, and trade terms available for qualified buyers
Replacement & Compatibility FAQ
Q: Can I use JZRCR-APP01-1 on a DX200 controller?
A: No. The DX200 uses a different pendant connector and communication protocol. The correct pendant for DX200 is JZRCR-YPP21-1.
Q: Is JZRCR-APP01-2 a direct replacement for APP01-1?
A: Yes, for YRC1000 controllers running firmware V2.xx or later. For older firmware, confirm compatibility with Yaskawa or contact Konmask before ordering.
Q: Can I upgrade to the Smart Pendant (JZRCR-SPP01-1)?
A: Only if the Smart Pendant software option is licensed on your YRC1000 controller. Contact your Yaskawa service representative or Konmask to verify eligibility.
Q: Do you offer a warranty on refurbished units?
A: Yes. Konmask provides a 90-day functional warranty on all certified refurbished teach pendants. New OEM units carry the standard Yaskawa warranty.
Q: What if my pendant cable is damaged?
A: We stock YRC1000 pendant cables separately. Contact us with your cable length requirement for a quote.
