YASKAWA SGM-08A3FJ62 Servo Motor | Replacement, Equivalent & Selection Guide

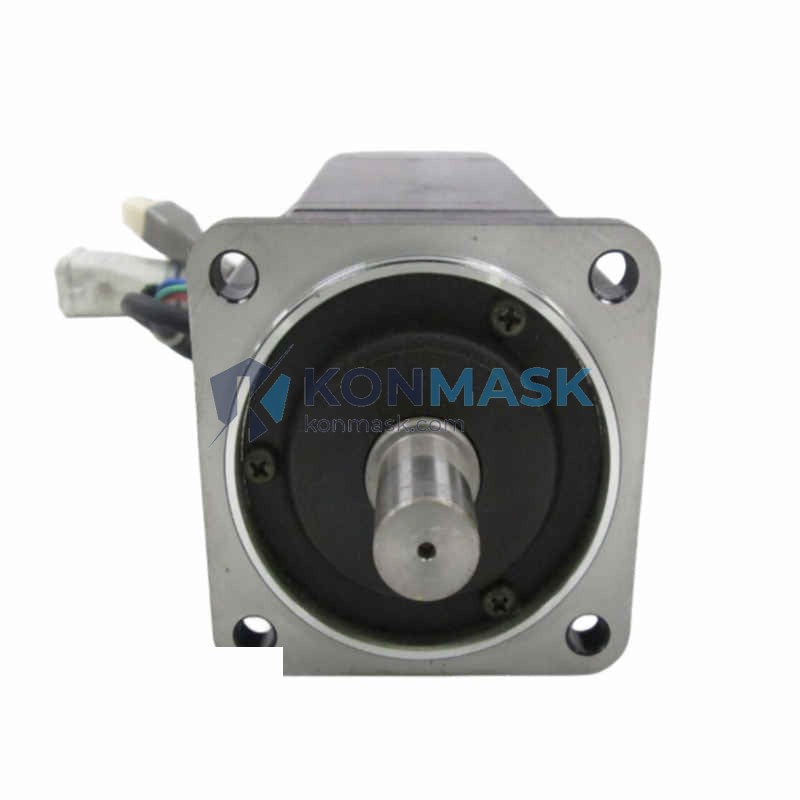

The YASKAWA SGM-08A3FJ62 is a high-performance AC servo motor from Yaskawa’s Σ (Sigma) series, designed for precision motion control in demanding industrial automation environments. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Manufacturer: YASKAWA Electric Corporation
- Model Number: SGM-08A3FJ62
- Series: Σ (Sigma) Series AC Servo Motor
- Rated Output Power: 750 W (0.75 kW)
- Rated Torque: 2.39 N·m
- Rated Speed: 3,000 rpm
- Maximum Speed: 5,000 rpm
- Voltage: 200 VAC (3-phase)
- Encoder Type: Incremental encoder (2,048 P/R)
- Shaft Type: Straight shaft with key
- Brake: With holding brake
- IP Rating: IP55 (dust and splash resistant)
- Mounting: Flange mount
- Weight: Approx. 1.8 kg
- Operating Temperature: 0°C to 40°C
- Insulation Class: Class F
Note: Always verify specifications against the official YASKAWA datasheet for your specific application requirements.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or near-equivalent replacements for the SGM-08A3FJ62. Compatibility depends on your servo drive, mechanical interface, and control system — always confirm before substitution.
- YASKAWA SGM7J-08AFC6S — Σ-7 series upgrade; same 750 W output, 23-bit absolute encoder, improved dynamic response. Drop-in mechanical fit with SGDV/SGDH drives requiring parameter adjustment.
- YASKAWA SGMJV-08ADA6S — Σ-V series equivalent; 750 W, 20-bit encoder, compatible with SGDV drives. Recommended for Σ-V system upgrades.
- YASKAWA SGM-08A3FJ61 — Same series variant without brake; suitable when holding brake is not required.
- Mitsubishi HG-SR52 — 500 W Mitsubishi equivalent (cross-brand); requires drive and wiring adaptation. Not a direct drop-in.
- Panasonic MSMF082L1U2M — 750 W cross-brand alternative; compatible with Panasonic MINAS A6 drives only.
⚠ Important: Cross-brand replacements require full system re-commissioning. Consult Konmask technical support for compatibility verification.
Why Choose the Original Model
- Proven reliability in Σ-series servo systems with millions of installed units globally.
- Seamless compatibility with YASKAWA SGDH, SGDM, and CACR-series servo drives — no parameter migration required.
- Integrated holding brake (suffix “J62”) ensures safe vertical axis and gravity-load applications.
- OEM-grade precision with tight torque ripple control, ideal for CNC, robotics, and semiconductor equipment.
- Long service life with YASKAWA’s proven winding and bearing technology.
Typical Applications
- CNC machine tool axes (milling, turning, grinding)
- Industrial robot joint drives
- Semiconductor wafer handling and pick-and-place systems
- Packaging and labeling machinery
- Textile and printing equipment
- Vertical axis applications requiring holding brake (Z-axis, gantry)
- Electronic assembly and SMT equipment
System Compatibility
The SGM-08A3FJ62 is designed to operate with the following YASKAWA servo drive families:
- SGDH series — Primary compatible drive (SGDH-08AE recommended)
- SGDM series — Compatible with appropriate capacity matching
- CACR-SR series — Legacy Σ-II system compatibility
- SGDV series — Compatible with encoder adapter; parameter reconfiguration required
Not compatible with Σ-7 (SGDV7S) drives without mechanical and encoder adaptation.
Selection Guide
Use the following criteria to confirm the SGM-08A3FJ62 is the right choice — or to identify the best alternative:
- Power requirement: If your application needs 750 W continuous output at 3,000 rpm, this model is correctly sized. For higher torque at lower speed, consider a larger frame (SGM-13 series).
- Brake requirement: The “J” suffix indicates a holding brake. If no brake is needed, select SGM-08A3FJ61 to reduce cost and weight.
- Encoder resolution: The standard 2,048 P/R incremental encoder suits most positioning tasks. For absolute positioning or battery-free retention, upgrade to the SGM7J-08AFC6S (23-bit absolute).
- Drive compatibility: Confirm your existing drive model before ordering. Mixing Σ-II motors with Σ-V or Σ-7 drives requires adaptation kits.
- Environment: IP55 rating covers most factory environments. For washdown or outdoor use, specify IP67 variants.
- Shaft configuration: Verify shaft diameter, key dimensions, and flange bolt pattern against your mechanical drawing.
Quality Assurance & Sourcing
- ✅ Genuine OEM parts sourced from authorized YASKAWA distributors and certified supply chains.
- ✅ Inspection protocol: Each unit undergoes visual, dimensional, and functional verification before shipment.
- ✅ Traceability: Serial number and date code documentation available upon request.
- ✅ Warranty: 12-month warranty against manufacturing defects.
- ✅ Anti-counterfeit: Konmask does not source from grey-market or unverified channels.
How to Order
-
Step 1: Confirm your part number:
SGM-08A3FJ62 - Step 2: Verify your compatible drive model (e.g., SGDH-08AE).
- Step 3: Add to cart or contact us for bulk pricing and lead time.
- Step 4: Provide your shipping address and preferred freight method.
- Step 5: Receive order confirmation with tracking within 1 business day.
For urgent requirements or technical pre-sales consultation, email support@konmask.com or call +0086 19859288691.
Replacement & Compatibility FAQ
Q: Can I use the SGM-08A3FJ62 with a Σ-7 drive?
A: Not directly. The Σ-7 drive (SGDV7S series) uses a different encoder protocol. An encoder adapter and parameter reconfiguration are required. We recommend upgrading to the SGM7J-08AFC6S for Σ-7 systems.
Q: Is the SGM7J-08AFC6S a direct mechanical replacement?
A: Yes — the flange dimensions and shaft specifications are identical. However, the encoder connector and wiring differ. A new motor cable (JZSP-C7M series) is required.
Q: Can I replace just the encoder on the SGM-08A3FJ62?
A: Encoder replacement is technically possible but not recommended in the field. Contact YASKAWA service or Konmask for motor refurbishment options.
Q: What is the lead time for the SGM-08A3FJ62?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 4–8 weeks depending on YASKAWA production schedule. Contact us for real-time availability.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. CoC and inspection reports are available upon request for all orders.
