Process Control & DCS Solution — YOKOGAWA AAI543-H50 | CENTUM VP Analog Output Module

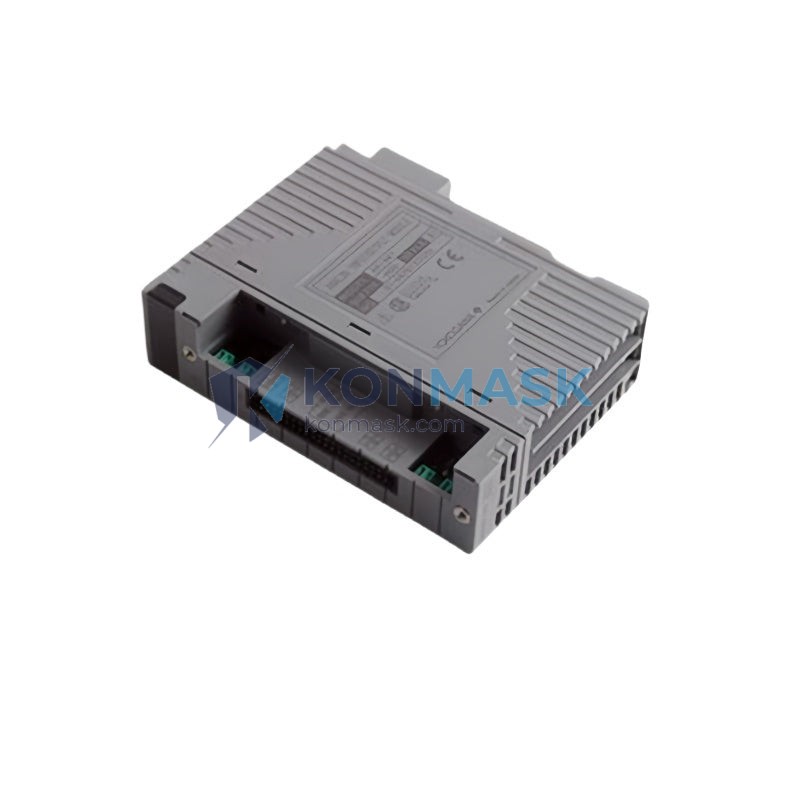

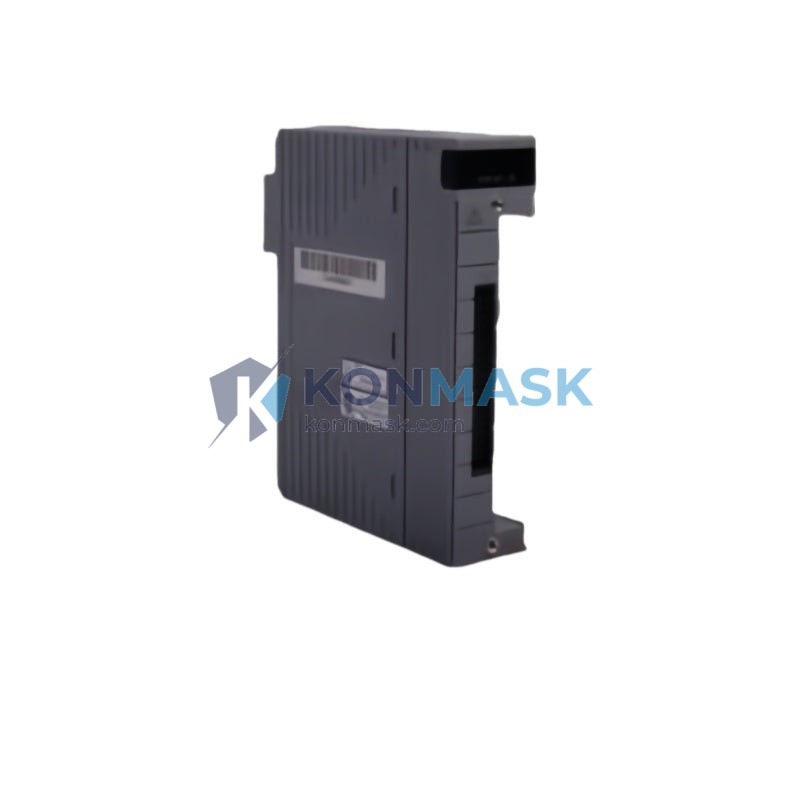

The YOKOGAWA AAI543-H50 is a 16-channel analog output module engineered for the CENTUM VP Distributed Control System. Delivering precision 4–20 mA current loop signals to field devices, it is the backbone of closed-loop process control in refineries, chemical plants, power stations, and water treatment facilities worldwide. When your process demands sub-millisecond response and IEC-compliant isolation, engineers specify the AAI543-H50.
Where This Product Is Used
- Oil & Gas Refineries — Control valve positioners, flow control loops, and pressure regulation in distillation columns and separator units.
- Petrochemical & Chemical Plants — Reactor temperature and feed-rate control via 4–20 mA signals to I/P converters and smart positioners.
- Power Generation — Turbine governor setpoint output, boiler feed-water control, and excitation system interfaces.
- Pulp & Paper Mills — Basis weight, moisture, and caliper control loops requiring high-channel-density analog output.
- Water & Wastewater Treatment — Dosing pump speed control, valve modulation, and aeration blower setpoints.
- Pharmaceutical Manufacturing — cGMP-compliant batch process control with traceable signal integrity.
- LNG Terminals — Cryogenic valve control and compressor anti-surge loops in safety-critical environments.
Technical Specifications
- Model: AAI543-H50
- Manufacturer: YOKOGAWA Electric Corporation
- Series: CENTUM VP Field Control Station (FCS) I/O
- Module Type: Analog Output (AO)
- Number of Channels: 16 channels
- Output Signal: 4–20 mA DC (current loop)
- Load Resistance: 0–750 Ω per channel
- Resolution: 13-bit (1 in 8000)
- Accuracy: ±0.1% of full scale
- Isolation: Channel-to-channel and channel-to-bus isolation
- Communication: ESB (Enhanced Signal Bus) backplane
- Power Consumption: Supplied via FCS node unit backplane
- Operating Temperature: 0°C to +55°C
- Humidity: 5% to 95% RH (non-condensing)
- Dimensions: Standard CENTUM VP I/O module form factor
- Weight: Approx. 400 g
- Certifications: CE, UL, IECEx (hazardous area variants)
- Part Number / SKU: AAI543-H50
Why Engineers Specify This Model
- High Channel Density: 16 AO channels per slot minimizes cabinet footprint and wiring cost in large DCS installations.
- Proven CENTUM VP Compatibility: Native ESB bus integration ensures zero configuration overhead and full FCS diagnostics support.
- Galvanic Isolation: Protects the control system from field-side ground loops and transient surges common in heavy industrial environments.
- Hot-Swap Capable: Module replacement without process shutdown reduces maintenance windows and improves plant availability.
- HART Pass-Through: Supports HART communication overlay for smart device asset management without additional hardware.
- Long Product Lifecycle: YOKOGAWA’s commitment to 10+ year spare parts availability makes the AAI543-H50 a low-risk long-term investment.
Complete System Bill of Materials
The AAI543-H50 operates within the CENTUM VP FCS node. A typical analog output node includes:
- AAI543-H50 — 16-ch Analog Output Module (this item)
- ANB10D / ANB11D — Node Unit (FCS backplane carrier)
- ACM12 / ACM22 — Communication Module (ESB coupler)
- APS13D — Power Supply Module (redundant pair recommended)
- AWB10D — Terminal Board (field wiring termination)
- KS1-H / KS2-H — I/O Cable (module-to-terminal board)
- EC402-50 — ESB Bus Coupler (for multi-node expansion)
Contact Konmask.com for complete BOM sourcing and cross-reference support.
Compliance & Industry Standards
- IEC 61511 — Functional Safety for Process Industry Sectors
- IEC 61000-4 — EMC Immunity (ESD, EFT, Surge, Conducted RF)
- CE Marking — EU Machinery and EMC Directives
- UL Listed — North American electrical safety
- RoHS Compliant — Restriction of Hazardous Substances
- NAMUR NE 43 — Signal levels for process control transmitters
Quality Assurance & Sourcing
- ✅ Genuine YOKOGAWA parts — sourced from authorized channels and verified distributors
- ✅ Functional testing — each module inspected and tested before shipment
- ✅ Traceability — serial number and batch documentation available on request
- ✅ Packaging — ESD-safe anti-static bags with foam-lined cartons
- ✅ Warranty — 12-month warranty against manufacturing defects
- ✅ Global shipping — DHL / FedEx express with full export documentation
How to Source This Part
- Visit Konmask.com and search AAI543-H50
- Submit a quote request with your required quantity and delivery timeline
- Receive a formal quotation within 1 business day
- Confirm order — payment via T/T, PayPal, or trade terms
- Shipment dispatched within 3–7 business days; tracking provided
📧 support@konmask.com | 📞 +0086 19859288691
Application-Specific FAQ
Q: Is the AAI543-H50 compatible with CENTUM CS 3000?
A: No. The AAI543-H50 is designed for CENTUM VP. For CS 3000 systems, the equivalent module is the AAI543-S50. Please confirm your FCS generation before ordering.
Q: Can this module drive HART-enabled smart positioners?
A: Yes. The AAI543-H50 supports HART protocol overlay on the 4–20 mA signal, enabling two-way communication with HART-capable field devices via the CENTUM VP HART DTM library.
Q: What is the maximum cable length for the 4–20 mA output loop?
A: With a 750 Ω maximum load, cable runs up to 1,500 m (AWG 18) are typically achievable. Actual distance depends on cable resistance and field device input impedance.
Q: Is hot-swap supported without process interruption?
A: Yes, provided the FCS is configured for redundant I/O or the loop is placed in manual mode at the DCS operator station prior to module removal.
Q: Do you supply the terminal board (AWB10D) and I/O cable as a kit?
A: Yes. Konmask.com can supply the complete I/O sub-assembly including module, terminal board, and cable. Request a kit quote via email.
