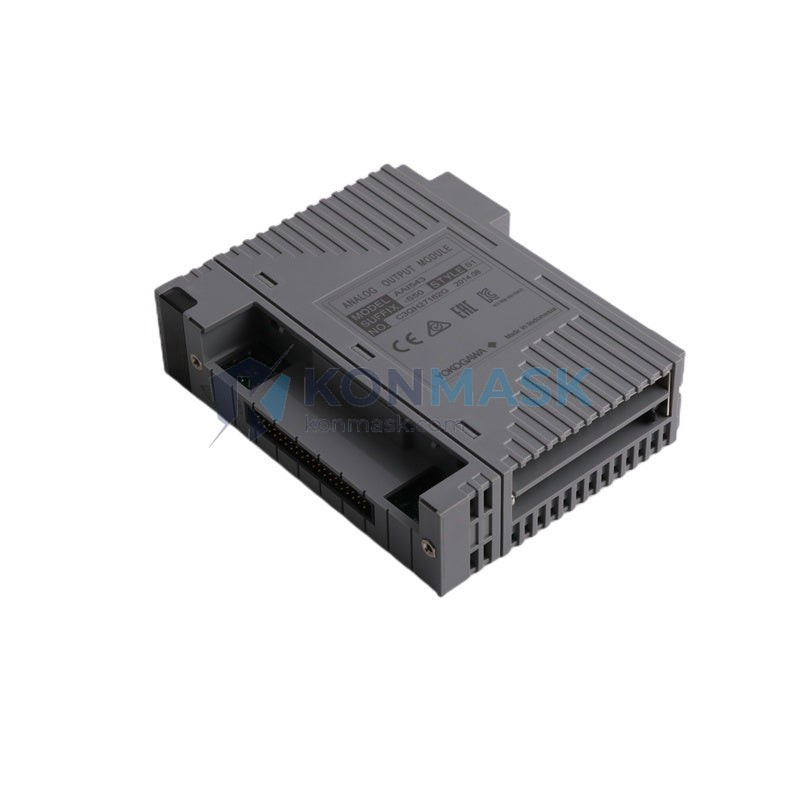

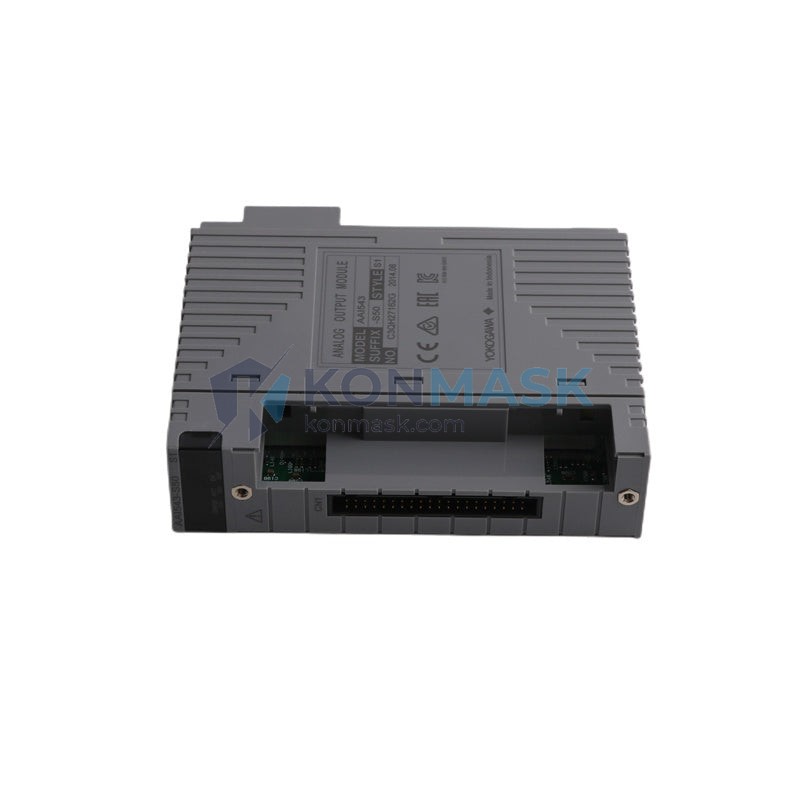

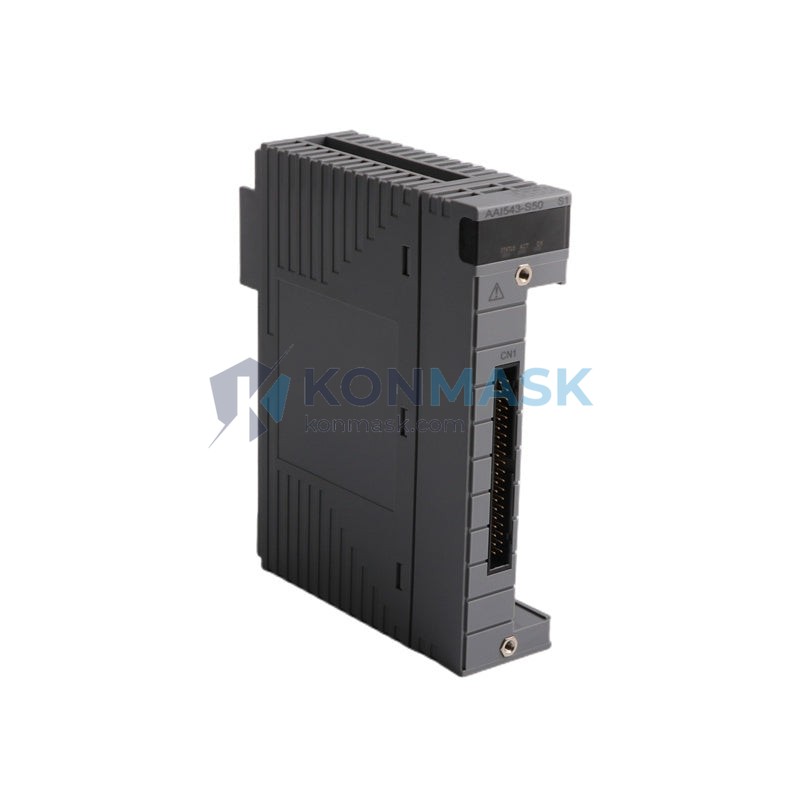

YOKOGAWA AAI543-S50 S1 — 16-Channel Analog Output Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The AAI543-S50 S1 is a high-density analog output module engineered by Yokogawa Electric Corporation for deployment within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms — the industry benchmark for process automation in refining, petrochemical, power generation, and specialty chemical facilities. Designed to IEC 61508 SIL 2 functional safety standards, this module delivers deterministic 4–20 mA current loop outputs with the signal integrity and diagnostic depth demanded by continuous-process environments.
Product Positioning
Procurement engineers sourcing replacement or expansion I/O for CENTUM VP / CS 3000 systems will find the AAI543-S50 S1 a direct, specification-matched solution. The S50 suffix denotes the 50-pin MIL-spec connector variant; the S1 suffix indicates the standard (non-redundant) configuration. Konmask.com stocks verified units with full traceability documentation, enabling rapid integration without system re-engineering.
Complete Technical Specifications
| Manufacturer | Yokogawa Electric Corporation |
| Part Number | AAI543-S50 S1 |
| Module Type | Analog Output (AO) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Number of Channels | 16 channels |
| Output Signal Range | 4–20 mA DC (current loop) |
| Output Resolution | 16-bit D/A conversion |
| Load Resistance | 0–750 Ω per channel |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Connector Type | 50-pin MIL-spec (S50) |
| Configuration | Standard / Non-redundant (S1) |
| Functional Safety | IEC 61508 SIL 2 certified |
| Power Consumption | Supplied via CENTUM VP node bus |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 300 g |
| Dimensions | Standard CENTUM VP I/O module form factor |
| Firmware Diagnostics | Open-circuit detection, output deviation alarm, self-test |
| Country of Origin | Japan |
Proven Application Environments
- Oil & Gas Refining — Control valve positioner outputs, flow control loops, pressure regulation
- Petrochemical Plants — Reactor temperature setpoint transmission, feed-rate control
- Power Generation — Turbine governor signal output, boiler combustion control
- Specialty Chemicals — Batch process setpoint delivery, dosing pump control
- Pulp & Paper — Consistency control, headbox pressure management
- Pharmaceutical / Fine Chemical — SIL 2 safety-rated output loops for critical process control
- LNG / LPG Terminals — Cryogenic valve control, compressor surge control
Engineering Advantages
- High Channel Density — 16 AO channels per module slot minimizes cabinet footprint and reduces wiring cost per loop
- SIL 2 Functional Safety — Meets IEC 61508 requirements; suitable for safety-instrumented function (SIF) output loops when integrated with a certified safety logic solver
- 16-Bit D/A Resolution — Delivers fine-grained setpoint resolution (≈0.0015% per LSB) for precision control applications
- Comprehensive Diagnostics — On-module open-circuit detection and output deviation alarms reduce MTTR and support predictive maintenance strategies
- Plug-and-Play Replacement — Hot-swap capable within CENTUM VP architecture; no system shutdown required for module exchange
- Proven Long-Term Availability — Yokogawa’s extended lifecycle support policy ensures spare parts availability for 10+ year plant horizons
System Architecture & Signal Flow
The AAI543-S50 S1 resides in a CENTUM VP Field Control Unit (FCU) node, communicating with the Field Control Station (FCS) via the Vnet/IP or ESB bus. Engineering setpoints generated by the FCS control application are transmitted to the module’s 16-bit D/A converters, which produce isolated 4–20 mA current loop signals on each of the 16 output channels. Each channel drives a field device (typically a control valve positioner or I/P transducer) through the 50-pin MIL connector and marshalling terminal block. The module continuously monitors output current against the commanded setpoint and reports deviations via the diagnostic bus to the CENTUM VP HIS (Human Interface Station) for operator visibility.
Signal path summary: FCS Setpoint → Vnet/IP Bus → FCU Node → AAI543-S50 S1 D/A Converter → 4–20 mA Output → Field Device (Control Valve / I/P Transducer)
Sourcing & Quality Verification
- Source Traceability — All units sourced from decommissioned plant inventories, authorized distributors, or OEM surplus channels with documented chain of custody
- Pre-shipment Inspection — Each module undergoes visual inspection (connector integrity, PCB condition, label legibility) and functional power-on verification prior to dispatch
- Firmware Version Confirmation — Firmware revision recorded and disclosed upon request to ensure compatibility with target CENTUM VP system revision
- Packaging — ESD-safe anti-static bag, foam-lined carton; humidity indicator card included for international shipments
- Warranty — 90-day operational warranty against DOA; extended warranty available upon request
Procurement Process
- Confirm Compatibility — Verify your CENTUM VP / CS 3000 system revision and FCU node type against AAI543-S50 S1 compatibility matrix (contact us for assistance)
- Request Quotation — Submit your RFQ via the product page or email [email protected] with required quantity and delivery timeline
- Order Confirmation — Purchase order accepted; lead time confirmed (typically 3–7 business days for in-stock units)
- Quality Check & Dispatch — Pre-shipment inspection completed; tracking number issued within 24 hours of dispatch
- Delivery & Commissioning Support — Technical support available post-delivery for installation verification and CENTUM VP configuration guidance
Technical FAQ
Q: Is the AAI543-S50 S1 compatible with CENTUM CS 3000 as well as CENTUM VP?
A: Yes. The AAI543 series is backward-compatible across CENTUM CS 3000 R3 and all CENTUM VP revisions. Confirm your FCU node generation before ordering.
Q: What is the difference between S50 and S60 connector variants?
A: The S50 suffix denotes a 50-pin MIL-spec connector; S60 denotes a 60-pin variant used in specific node configurations. Ensure your marshalling terminal block matches the connector type.
Q: Can this module be used in a redundant AO configuration?
A: The S1 suffix indicates a standard (non-redundant) configuration. For redundant output loops, the S2 variant (dual-module redundancy) is required.
Q: What firmware version is installed?
A: Firmware version is verified and disclosed upon request. Contact us with your system’s current FCS revision for compatibility confirmation.
Q: Do you provide a test report or inspection certificate?
A: A pre-shipment inspection record is available for all units. Third-party testing certificates can be arranged for critical SIL applications — contact us for details.
Q: What is the lead time for international orders?
A: In-stock units ship within 3–7 business days. Express DHL/FedEx options available. Import duties and customs clearance are the buyer’s responsibility unless otherwise agreed.
