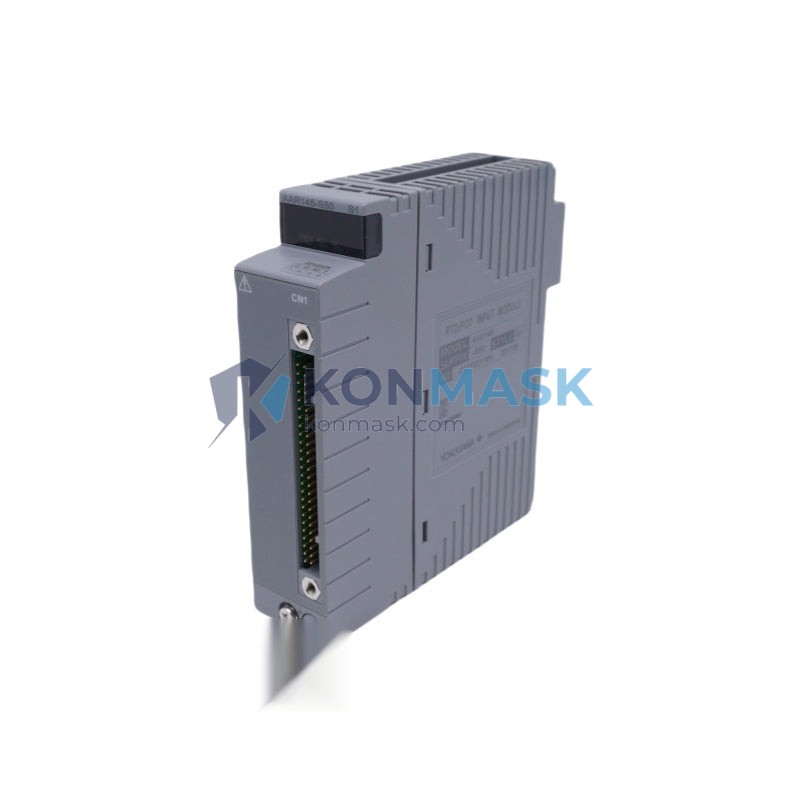

Process Control Solution – Yokogawa AAR145-S50 | CENTUM VP Analog Output Module
Where This Product Is Used
The Yokogawa AAR145-S50 is a high-density analog output module engineered for mission-critical process control environments. It is widely deployed in:
- Oil & Gas Refineries – Precise 4–20 mA control signals for valve positioners, flow control loops, and pressure regulators in upstream/downstream processes.
- Chemical & Petrochemical Plants – Continuous analog output for reactor temperature control, feed ratio management, and distillation column regulation.
- Power Generation Facilities – Turbine governor control, boiler feed-water regulation, and load dispatch automation via CENTUM VP DCS.
- Pulp & Paper Mills – Coordinated multi-loop control of drying, pressing, and forming sections requiring synchronized analog outputs.
- Pharmaceutical Manufacturing – GMP-compliant process control for bioreactors, CIP/SIP systems, and cleanroom HVAC loops.
- Water & Wastewater Treatment – Dosing pump control, aeration blower modulation, and effluent flow management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAR145-S50 |
| Series / Platform | CENTUM VP / CS 3000 |
| Module Type | Analog Output (AO) |
| Output Channels | 16 channels (isolated) |
| Output Signal | 4–20 mA DC (current output) |
| Output Resolution | 13-bit (1 in 8000) |
| Accuracy | ±0.1% of full scale |
| Load Resistance | 0–750 Ω |
| Isolation | Channel-to-channel & channel-to-bus isolated |
| Power Consumption | ≤ 5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 260 g |
| Mounting | Nest-mount (CENTUM VP I/O nest) |
| Communication Bus | V-net / ER Bus (internal) |
| Firmware Compatibility | CENTUM VP R4.x / R5.x / R6.x |
Why Engineers Specify This Model
- High Channel Density – 16 isolated AO channels per module minimizes nest slots and reduces total installed cost in large-scale DCS cabinets.
- Proven CENTUM VP Integration – Native plug-and-play compatibility with Yokogawa CENTUM VP and CS 3000 platforms; no additional configuration adapters required.
- Superior Signal Accuracy – ±0.1% FS accuracy and 13-bit resolution ensure tight loop control for sensitive process variables.
- Full Channel Isolation – Eliminates ground loops and cross-channel interference in complex multi-loop installations.
- Long-Term Availability – Konmask.com maintains verified stock of legacy and current-generation Yokogawa I/O modules to support plant lifecycle management.
- Hot-Swap Capable – Supports online replacement within CENTUM VP architecture, minimizing process downtime during maintenance.
Complete System Bill of Materials
For a complete CENTUM VP analog output subsystem, engineers typically specify the following alongside the AAR145-S50:
- Yokogawa ANB10S – I/O Nest (10-slot) for module mounting
- Yokogawa AIP835 – I/O Power Supply Unit
- Yokogawa ACM12 – Node Interface Unit (NIU) for V-net connectivity
- Yokogawa AAM21 – Analog Input Module (paired AO/AI loops)
- Marshalling terminal blocks (e.g., Weidmüller or Phoenix Contact) for field wiring
- Shielded twisted-pair cable (per ISA-5.1 standard) for 4–20 mA field runs
Compliance & Industry Standards
- IEC 61131-2 – Programmable Controllers: Equipment Requirements & Tests
- IEC 61000-4 Series – EMC Immunity (ESD, EFT, Surge, Conducted RF)
- CE Marking – EU Low Voltage Directive & EMC Directive compliant
- RoHS Compliant – Restriction of Hazardous Substances
- ATEX / IECEx – Consult factory for hazardous area installation requirements
- ISA-5.1 – Instrumentation Symbols and Identification (signal standard)
Quality Assurance & Sourcing
Every Yokogawa AAR145-S50 unit supplied by Konmask.com undergoes a structured verification process:
- Visual Inspection – Board-level examination for physical damage, corrosion, or counterfeit indicators
- Functional Bench Test – Output channel verification across full 4–20 mA range prior to dispatch
- Traceability Documentation – Serial number logging and sourcing records maintained per order
- Secure Packaging – ESD-safe anti-static bags with foam-lined cartons for international transit
Konmask.com sources modules from authorized distributors, certified resellers, and verified industrial surplus channels. All units are represented accurately as new, refurbished, or tested-used where applicable.
How to Source This Part
- Add to Cart – Select quantity and proceed to checkout directly on this page.
- Request a Quote – For bulk orders (>5 units), OEM procurement, or project BOM pricing, email support@konmask.com.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock or special-order units: 5–15 business days depending on origin.
- Export Documentation – Commercial invoice, packing list, and certificate of origin available for all international shipments.
- Payment – T/T (wire transfer), PayPal, and major credit cards accepted. LC available for orders > USD 10,000.
Application-Specific FAQ
Q: Is the AAR145-S50 compatible with CENTUM CS 3000?
A: Yes. The AAR145-S50 is backward-compatible with Yokogawa CS 3000 I/O nests and can be used as a direct replacement for legacy AO modules in CS 3000 systems with appropriate firmware revision.
Q: Can this module be used in a redundant AO configuration?
A: Redundant AO configurations in CENTUM VP typically require paired modules with the appropriate redundancy coupler. Contact our technical team to confirm the correct redundancy architecture for your application.
Q: What is the maximum cable length for 4–20 mA field wiring?
A: With a maximum loop resistance of 750 Ω and standard 0.5 mm² shielded cable (~36 Ω/km), field runs up to approximately 1,000 m are achievable. Always verify against your specific cable specification and load device impedance.
Q: Do you provide a warranty on refurbished units?
A: Yes. All tested and refurbished units carry a 90-day functional warranty. New-in-box units carry the standard Yokogawa manufacturer warranty where applicable.
Q: Can Konmask.com assist with CENTUM VP system integration?
A: We specialize in component supply. For full system integration services, we can refer you to certified Yokogawa system integrators in your region.
