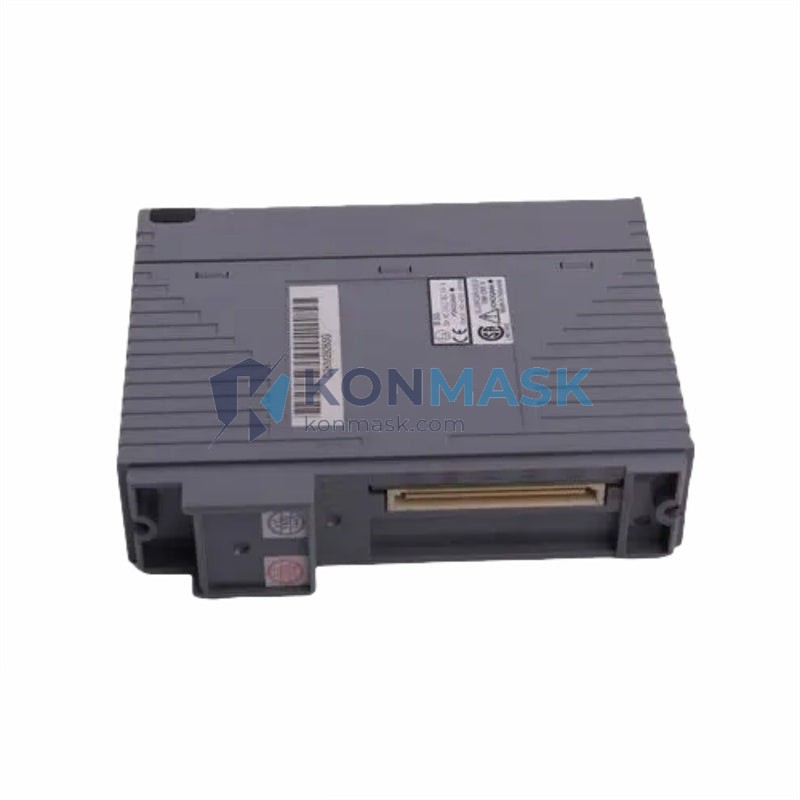

YOKOGAWA AMM42-S2 – Multi-Channel Analog Input A/D Conversion Module | CENTUM VP / CS 3000
In process-critical environments where signal fidelity determines plant safety and yield, the YOKOGAWA AMM42-S2 delivers high-resolution analog-to-digital conversion across multiple channels within the CENTUM VP and CS 3000 Distributed Control System architecture. Designed for continuous, high-availability industrial processes, this module bridges field instrumentation and the DCS controller with precision and reliability that process engineers depend on.
The AMM42-S2 is a field-proven analog input module engineered for demanding process industries. Its multi-channel A/D conversion capability, combined with YOKOGAWA’s renowned signal conditioning technology, makes it the preferred choice for facilities requiring accurate, real-time process variable acquisition across temperature, pressure, flow, and level measurement loops.
Complete Technical Specifications
- Part Number: AMM42-S2
- Manufacturer: YOKOGAWA Electric Corporation
- Series / Platform: CENTUM VP / CS 3000
- Module Type: Analog Input — A/D Conversion Module
- Input Channels: Multi-channel analog input (4-channel typical configuration)
- Input Signal Types: 4–20 mA DC, 1–5 V DC (field-configurable per channel)
- A/D Resolution: High-resolution conversion (16-bit equivalent accuracy)
- Isolation: Channel-to-channel and channel-to-bus isolation
- Scan Rate: High-speed cyclic scanning synchronized with DCS control cycle
- Accuracy: ±0.1% of full scale (typical)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: −25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Power Consumption: Supplied via CENTUM VP / CS 3000 I/O bus
- Weight: Approx. 2,300 g (module with housing)
- Compliance: CE Marking, IEC 61508 (functional safety reference)
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas Refining: Continuous monitoring of crude distillation column temperatures, reactor pressures, and flow rates across multiple process streams simultaneously
- Petrochemical Plants: Acquisition of multi-point analog signals from field transmitters in ethylene crackers, polymerization reactors, and storage tank farms
- Power Generation: Boiler drum level, steam pressure, and turbine inlet temperature monitoring in coal-fired, gas-fired, and combined-cycle power stations
- Pulp & Paper Mills: Digester pressure and temperature profiling, bleaching chemical flow measurement, and recovery boiler process variable acquisition
- Chemical Manufacturing: Batch reactor temperature trending, distillation column differential pressure monitoring, and heat exchanger performance tracking
- Water & Wastewater Treatment: Multi-point flow and level measurement across treatment stages in municipal and industrial water facilities
- Pharmaceutical Manufacturing: GMP-compliant process variable acquisition for bioreactors, CIP systems, and clean utility monitoring
Engineering Advantages
- Seamless CENTUM VP / CS 3000 Integration: Hot-plug capable module designed for zero-disruption replacement during live plant operation — critical for continuous process facilities
- High-Accuracy A/D Conversion: Minimizes measurement uncertainty across all connected field instruments, supporting tighter process control and reduced product variability
- Multi-Channel Density: Consolidates multiple analog input points into a single module slot, reducing cabinet footprint and wiring complexity
- Channel Isolation: Prevents ground loops and cross-channel interference in mixed-signal field environments
- Diagnostic Transparency: Built-in self-diagnostics report channel faults to the CENTUM VP HIS (Human Interface Station) for rapid fault isolation
- Long Service Life: YOKOGAWA’s industrial-grade component selection ensures 10+ year operational reliability in continuous process environments
System Architecture & Signal Flow
The AMM42-S2 installs into the CENTUM VP or CS 3000 I/O nest and communicates with the Field Control Station (FCS) via the internal V-net/IP or ESB bus. Field transmitters connect via marshalling cabinets or directly to the module terminal block. The A/D conversion process occurs at the module level, delivering digitized process values to the FCS at each control cycle. The FCS then executes configured function blocks (PID, ratio, cascade) using these values, with results transmitted to the HIS and historian for operator display and data archiving.
Signal path: Field Transmitter → Marshalling Cabinet → AMM42-S2 Terminal Block → A/D Conversion → ESB Bus → FCS → V-net/IP → HIS / Historian
Sourcing & Quality Verification
- All AMM42-S2 units sourced through verified YOKOGAWA authorized distribution channels or certified industrial surplus with full traceability documentation
- Pre-shipment inspection includes visual examination, label verification, and functional continuity checks
- Original YOKOGAWA packaging and documentation preserved where available
- Counterfeit-prevention protocol: serial number cross-reference against YOKOGAWA production records on request
- Export compliance: ECCN classification reviewed; export license obtained where required by destination country regulations
Procurement Process
- Step 1: Confirm your CENTUM VP or CS 3000 system revision and I/O nest compatibility with your YOKOGAWA system documentation
- Step 2: Submit your RFQ via [email protected] or WhatsApp +0086 19859288691 with quantity and required delivery timeline
- Step 3: Receive quotation with lead time, unit price, and shipping options (DHL Express, FedEx, sea freight)
- Step 4: Confirm order and receive proforma invoice; payment via T/T, L/C, or PayPal
- Step 5: Module ships with packing list, test report, and commercial invoice for customs clearance
Technical FAQ
Q: Is the AMM42-S2 compatible with both CENTUM VP and CS 3000?
A: Yes. The AMM42-S2 is designed for use across CENTUM VP and CS 3000 platforms. Always verify your specific I/O nest model and firmware revision for full compatibility confirmation.
Q: Can the AMM42-S2 accept thermocouple or RTD inputs directly?
A: No. The AMM42-S2 accepts standard 4–20 mA and 1–5 V DC analog signals. For thermocouple or RTD inputs, YOKOGAWA offers dedicated temperature input modules (e.g., ATM series).
Q: Is hot-swap replacement supported without shutting down the FCS?
A: Yes, CENTUM VP supports online module replacement (hot-swap) for I/O modules including the AMM42-S2, subject to system configuration and safety interlock review.
Q: What is the typical lead time for AMM42-S2?
A: In-stock units ship within 3–5 business days. For sourced units, lead time is typically 2–4 weeks depending on global availability.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all modules. Extended warranty options are available upon request.
