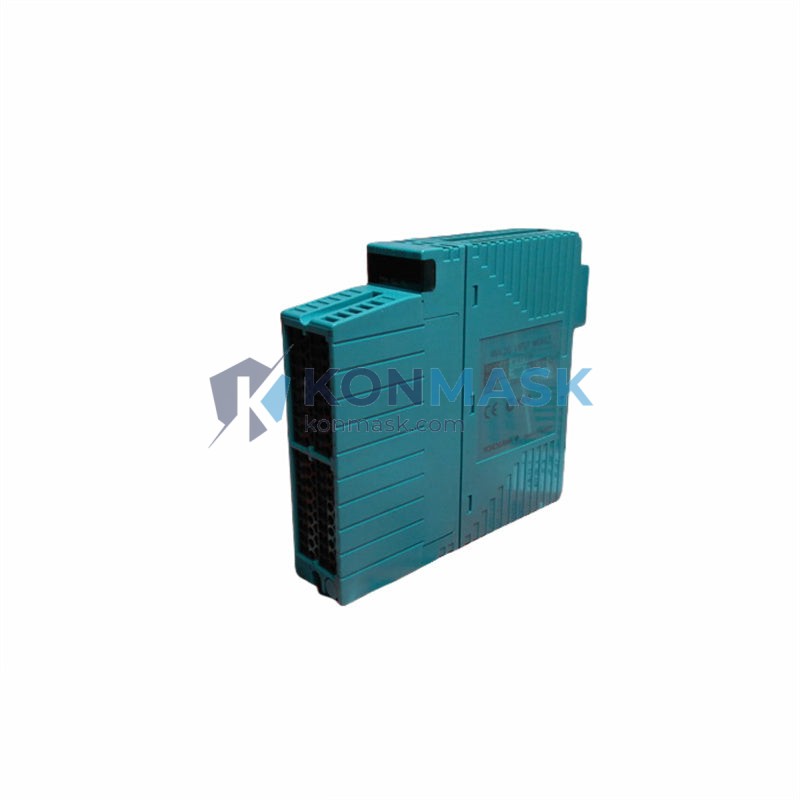

YOKOGAWA NFAI135-S51 – Multi-Channel Analog Input Module | CENTUM VP / CS 3000 Platform
Engineering Background
The NFAI135-S51 is a field-proven analog input module engineered for YOKOGAWA’s CENTUM VP and CS 3000 Distributed Control Systems (DCS). Designed to meet the rigorous demands of continuous process industries, this module delivers high-accuracy signal acquisition across multiple channels, enabling precise monitoring and closed-loop control of critical process variables including flow, pressure, temperature, and level.
Product Positioning
As a core I/O component within the CENTUM VP / CS 3000 architecture, the NFAI135-S51 is the preferred choice for instrumentation engineers and control system integrators who require deterministic analog signal processing, seamless integration with YOKOGAWA field control stations (FCS), and long-term platform compatibility. Konmask.com supplies this module as a verified OEM unit with full traceability documentation.
Complete Technical Specifications
| Part Number / SKU | NFAI135-S51 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Series / Platform | CENTUM VP / CS 3000 DCS |
| Module Type | Analog Input (AI) |
| Signal Type | 4–20 mA DC (current input) |
| Number of Channels | 16 channels (isolated) |
| Input Range | 4–20 mA / 0–20 mA (configurable per channel) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale (at 25°C) |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | Supplied via backplane bus (CENTUM VP node unit) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting | Plug-in card, CENTUM VP / CS 3000 node unit slot |
| Weight | Approx. 1,380 g (module + packaging) |
| Country of Origin | Japan |
| Compliance | CE, RoHS |
| Suffix Code -S51 | Standard specification with CE marking |
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, refinery distillation column control, pipeline SCADA integration
- Petrochemical & Chemical: Reactor temperature/pressure profiling, batch process control, safety instrumented systems (SIS) interface
- Power Generation: Boiler drum level monitoring, turbine inlet pressure acquisition, combined-cycle plant DCS expansion
- Pulp & Paper: Digester pressure control, bleaching stage flow measurement, recovery boiler instrumentation
- Pharmaceutical: Bioreactor parameter logging, clean-in-place (CIP) process monitoring, FDA 21 CFR Part 11 compliant environments
- Water & Wastewater: Pump station flow/pressure telemetry, treatment plant process control
Engineering Advantages
- High-Density I/O: 16 isolated analog input channels per slot minimizes cabinet footprint and wiring complexity
- 16-Bit Resolution: Delivers ±0.1% full-scale accuracy for precision process variable acquisition
- Full Channel Isolation: Eliminates ground loops and cross-channel interference in multi-transmitter installations
- Hot-Swap Compatible: Supports online module replacement within CENTUM VP node units without process shutdown
- Native CENTUM VP Integration: Zero-configuration plug-in compatibility with CENTUM VP R5/R6 and CS 3000 R3 field control stations
- HART Pass-Through: Supports HART protocol superimposed on 4–20 mA for smart transmitter diagnostics (firmware dependent)
- Long Product Lifecycle: YOKOGAWA’s 10+ year parts availability commitment ensures long-term plant asset integrity
System Architecture & Signal Flow
The NFAI135-S51 installs into a CENTUM VP or CS 3000 node unit (e.g., ANB10D, ANB11D) and communicates with the Field Control Station (FCS) via the high-speed V-net/IP or ESB bus. Each of the 16 channels independently samples the 4–20 mA field signal, performs 16-bit A/D conversion, applies engineering unit scaling, and transmits the process value to the FCS function block database at the configured scan rate. Channel-level diagnostics (open-circuit, over-range, under-range) are reported to the CENTUM VP HIS operator station in real time.
Typical Signal Path: Field Transmitter (4–20 mA) → Terminal Board (e.g., TB820V) → NFAI135-S51 AI Card → Node Unit Backplane → FCS (V-net/IP) → CENTUM VP HIS / Exaopc OPC Server
Sourcing & Quality Verification
- OEM Origin: All NFAI135-S51 units sourced directly from YOKOGAWA-authorized channels or verified surplus with full provenance documentation
- Pre-Shipment Inspection: Each module undergoes visual inspection, label verification (part number, revision, serial number), and functional power-on test prior to dispatch
- Packaging: Anti-static ESD bag + foam-lined carton; conforms to IEC 61340-5-1 ESD protection standards
- Documentation Included: Certificate of conformance, inspection report, original YOKOGAWA datasheet (on request)
- Warranty: 12-month Konmask warranty covering manufacturing defects; DOA replacement within 7 business days
Procurement Process
- Confirm Part Number: Verify NFAI135-S51 and suffix -S51 match your CENTUM VP / CS 3000 BOM and node unit revision
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and destination port (Incoterms: EXW Xiamen / FOB Xiamen available)
- Order Confirmation: Purchase order accepted; lead time 3–7 business days for in-stock units
- Quality Hold: Pre-shipment inspection completed; inspection report issued to buyer
- Dispatch & Tracking: Shipped via DHL Express / FedEx International Priority with full tracking and commercial invoice for customs clearance
- After-Sales Support: Technical assistance available for installation, configuration, and CENTUM VP system integration queries
Technical FAQ
Q: Is the NFAI135-S51 compatible with CENTUM VP R6.09 and later?
A: Yes. The NFAI135-S51 is backward-compatible across CENTUM VP R4 through R6.09+ and CS 3000 R3. Always verify node unit firmware revision with YOKOGAWA’s compatibility matrix before installation.
Q: Can the NFAI135-S51 accept voltage inputs (0–10 V)?
A: No. The NFAI135-S51 is a current input module (4–20 mA / 0–20 mA). For voltage input requirements, refer to YOKOGAWA NFAV135 series modules.
Q: Does this module support HART communication?
A: HART pass-through capability is firmware-dependent. Confirm with your CENTUM VP FCS firmware version and YOKOGAWA technical documentation (IM 33J01B30-01EN).
Q: What terminal board is required for field wiring?
A: The NFAI135-S51 is typically paired with YOKOGAWA terminal boards such as the TB820V or equivalent. Confirm terminal board compatibility with your node unit model.
Q: Can Konmask provide an export-compliant commercial invoice for customs?
A: Yes. Konmask provides a full commercial invoice with HS code, country of origin (Japan), unit value, and product description compliant with international customs requirements.
