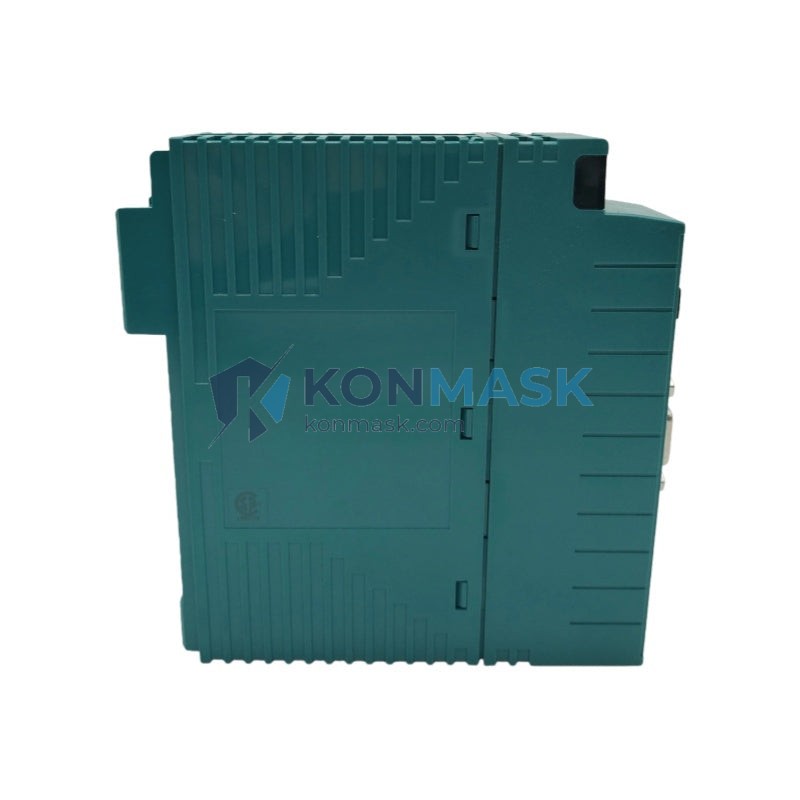

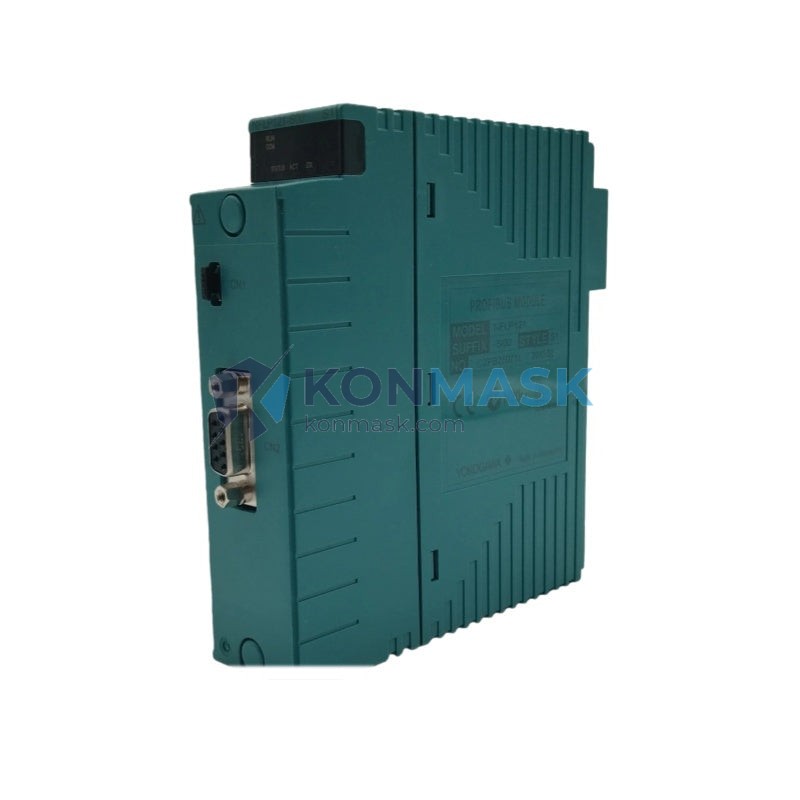

Yokogawa NFLP121-S00 – FOUNDATION Fieldbus Communication Module | STARDOM FCN/FCJ Platform
Engineering Background: The Yokogawa NFLP121-S00 is a dedicated FOUNDATION Fieldbus H1 communication module designed for integration within the STARDOM FCN (Field Control Node) and FCJ autonomous controllers. FOUNDATION Fieldbus (FF) is an all-digital, serial, two-way communications system that interconnects field equipment such as sensors, actuators, and controllers — replacing conventional 4–20 mA analog wiring in process automation environments. The NFLP121-S00 enables deterministic, high-integrity field device communication at the H1 segment level (31.25 kbit/s), making it the preferred interface for safety-critical and precision process control loops.
Product Positioning: Targeted at process industries requiring IEC 61158-compliant fieldbus integration — including oil & gas, chemical, power generation, and water treatment — the NFLP121-S00 slots directly into the STARDOM FCN/FCJ I/O chassis. It supports up to 16 field devices per H1 segment and provides native interoperability with FF-certified instruments from all major vendors. For procurement engineers sourcing replacement or expansion modules, this part is a direct OEM-equivalent with full firmware compatibility.
Complete Technical Specifications
- Part Number: NFLP121-S00
- Manufacturer: Yokogawa Electric Corporation
- Platform: STARDOM FCN / FCJ Autonomous Controller
- Protocol: FOUNDATION Fieldbus H1 (IEC 61158 / IEC 61784)
- Communication Speed: 31.25 kbit/s
- Max Field Devices per Segment: 16
- Segment Topology: Bus, tree, daisy-chain (per FF specification)
- Power Supply: Supplied via FCN/FCJ backplane (no external PSU required)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 300 g
- Dimensions: Standard STARDOM FCN module form factor
- Certifications: CE, UL, IECEx (refer to Yokogawa datasheet GS 34P02Q10-01E)
- Country of Origin: Japan
- HS Code: 8537.10
Proven Application Environments
- Oil & Gas Upstream/Midstream: Wellhead control panels and pipeline SCADA nodes using FF-certified pressure transmitters and control valves — the NFLP121-S00 provides the deterministic H1 link between field instruments and the FCN controller, eliminating analog signal degradation over long cable runs.
- Chemical & Petrochemical Plants: Reactor temperature and flow control loops where multiple FF devices (e.g., Yokogawa EJA/EJX transmitters, HART-to-FF converters) share a single H1 segment, reducing wiring cost by up to 60% versus conventional I/O.
- Power Generation: Boiler drum level and combustion air control systems requiring high-availability fieldbus segments with redundant power conditioners — the NFLP121-S00 supports standard FF power conditioner integration.
- Water & Wastewater Treatment: Distributed pump station automation where STARDOM FCN nodes operate as autonomous controllers; the NFLP121-S00 connects FF-certified flow meters and valve positioners without a central DCS.
- Pharmaceutical Manufacturing: FDA 21 CFR Part 11-compliant process skids using FF for audit-trail-capable instrument communication, leveraging the module’s deterministic scheduling for batch process integrity.
Engineering Advantages
- Native FF H1 Integration: No gateway or protocol converter required — the NFLP121-S00 is a native STARDOM FCN/FCJ module, ensuring zero latency overhead from protocol translation.
- Deterministic Scheduling: FF’s LAS (Link Active Scheduler) architecture guarantees cyclic data exchange, critical for closed-loop control applications.
- Multi-Vendor Interoperability: Certified interoperable with FF-registered devices from Emerson, Endress+Hauser, ABB, Siemens, and all major instrument manufacturers.
- Reduced Wiring Cost: Single twisted-pair cable per H1 segment supports up to 16 devices — dramatically reducing installation and commissioning costs versus conventional analog I/O.
- Advanced Diagnostics: FF device diagnostics (NE 107 NAMUR) are surfaced directly in the STARDOM engineering environment, enabling predictive maintenance without additional software.
- Hot-Swap Capable: Module replacement without full system shutdown (subject to FCN chassis configuration) minimizes process downtime during maintenance.
System Architecture & Signal Flow
In a typical STARDOM FCN deployment, the NFLP121-S00 occupies one slot in the FCN I/O chassis. The H1 segment cable (twisted-pair, shielded, max 1900 m trunk length per FF spec) connects to the module’s fieldbus terminals. Up to 16 FF field devices are wired to the segment via junction boxes or T-connectors. The FCN controller executes function blocks (PID, AI, AO, etc.) that reside either in the controller or in the field devices themselves — enabling true distributed control. Engineering configuration is performed via Yokogawa’s FAST/TOOLS or PRM (Plant Resource Manager) software, which auto-discovers all FF devices on the segment and imports their DD (Device Description) files.
Typical BOM for one H1 segment:
- 1× Yokogawa NFLP121-S00 (this module)
- 1× FF H1 Power Conditioner (e.g., Pepperl+Fuchs KFD2-HMM-16 or equivalent)
- 1× Segment terminator (active or passive, per FF wiring rules)
- Up to 16× FF-certified field instruments (transmitters, valve positioners, etc.)
- Shielded twisted-pair fieldbus cable (Type A recommended, per IEC 61158-2)
Sourcing & Quality Verification
- OEM Authenticity: All NFLP121-S00 units sourced by Konmask.com are verified against Yokogawa’s original part numbering and firmware revision records.
- Inspection Protocol: Each module undergoes visual inspection, label verification (part number, serial number, revision code), and functional power-on test prior to shipment.
- Packaging: Shipped in original or equivalent ESD-safe packaging with desiccant; anti-static bag sealed and labeled.
- Documentation: Certificate of conformance and test report available upon request; Yokogawa original datasheet GS 34P02Q10-01E provided.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
Procurement Process
- Submit RFQ: Email [email protected] with quantity, required delivery date, and destination country. Include your project PO number if available.
- Receive Quote: Pricing and lead time confirmed within 1 business day. Volume discounts available for orders of 5+ units.
- Order Confirmation: Pro forma invoice issued; payment via T/T, PayPal, or trade finance terms for qualified buyers.
- Quality Hold & Ship: Module inspected, documented, and dispatched via DHL Express, FedEx, or sea freight (buyer’s choice). Export documentation (commercial invoice, packing list, CO) included.
- After-Sales Support: Technical support available via email and WhatsApp (+0086 19859288691) for installation and commissioning queries.
Technical FAQ
Q: Is the NFLP121-S00 compatible with both FCN and FCJ controllers?
A: Yes. The module is designed for the STARDOM FCN/FCJ I/O chassis and is compatible with both controller variants. Verify chassis slot availability and firmware version (FCN R10.04 or later recommended) before installation.
Q: How many NFLP121-S00 modules can be installed in one FCN chassis?
A: The FCN chassis supports multiple I/O module slots; the exact number of NFLP121-S00 modules depends on the chassis model (FCN-100, FCN-500) and available slot count. Refer to Yokogawa TI 34P02Q10-01E for slot assignment rules.
Q: Can the NFLP121-S00 support FF HSE (High Speed Ethernet)?
A: No. The NFLP121-S00 is an H1 segment module only (31.25 kbit/s). For FF HSE integration, a separate HSE linking device is required.
Q: What is the maximum cable length for an H1 segment connected to this module?
A: Per IEC 61158-2, the maximum trunk length for Type A cable is 1900 m. Spur lengths and total segment length must comply with FF wiring rules to ensure signal integrity.
Q: Is a firmware update required when replacing an existing NFLP121-S00?
A: Firmware is stored on the FCN controller, not the module. Replacement modules are plug-and-play within the same FCN system; no firmware flashing of the module itself is required.
