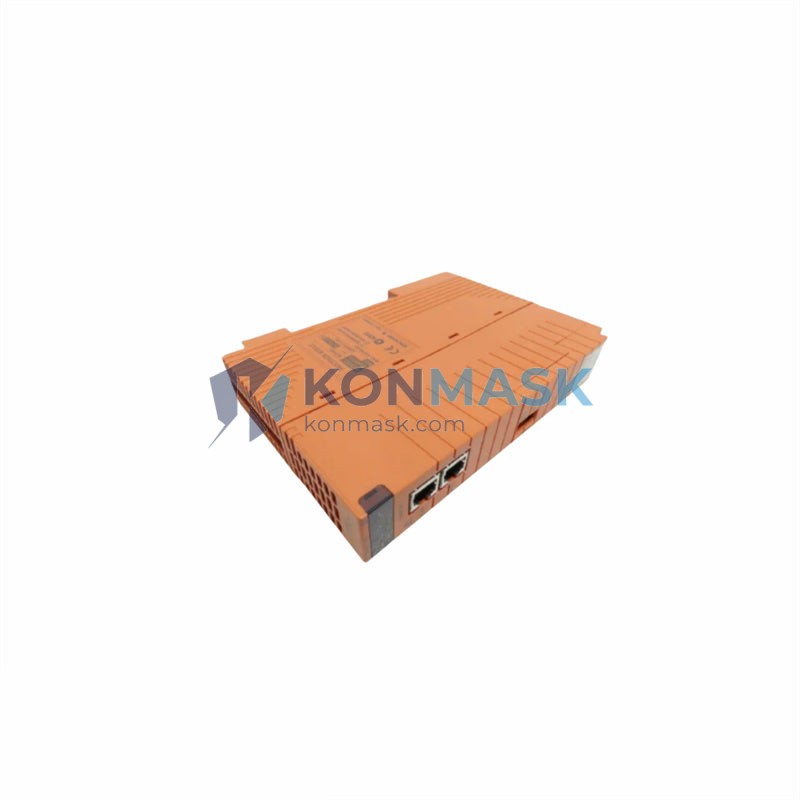

Yokogawa S9342FA Connector Unit – DCS Field I/O Terminal Interface | CENTUM VP / CS 3000 Platform
Engineering Background: The Yokogawa S9342FA is a field-side connector unit designed for use within Yokogawa’s flagship CENTUM VP and CS 3000 Distributed Control Systems. It serves as the physical termination interface between field instrument wiring and the DCS I/O subsystem, enabling clean, modular, and maintainable signal routing in process automation environments. Procurement engineers specifying DCS expansion, retrofit, or spare-parts programs will find the S9342FA a critical component for maintaining system integrity and signal fidelity.
Product Positioning: The S9342FA is a genuine Yokogawa OEM connector unit, sourced through verified industrial supply channels. It is not a third-party replica. Konmask.com stocks this component to support MRO (Maintenance, Repair & Operations) procurement, DCS expansion projects, and emergency replacement scenarios across petrochemical, power generation, pharmaceutical, and advanced manufacturing industries.
Complete Technical Specifications
- Part Number / SKU: S9342FA
- Manufacturer: Yokogawa Electric Corporation
- Product Category: Connector Unit / I/O Terminal Interface
- Compatible Platform: CENTUM VP, CENTUM CS 3000
- Subsystem: Field Control Station (FCS) I/O Module Interface
- Connector Type: Multi-pin field-side terminal connector
- Mounting: DIN rail / panel-mount compatible with Yokogawa I/O nest
- Signal Compatibility: Analog and discrete I/O field wiring termination
- Isolation: Channel-to-channel isolation per CENTUM VP I/O architecture
- Operating Temperature: 0°C to +55°C (storage: -20°C to +70°C)
- Humidity: 5% to 95% RH, non-condensing
- Weight: Approx. 1,380 g (as shipped)
- Compliance: CE, RoHS; meets IEC 61511 / IEC 61508 system-level requirements when used within certified CENTUM VP architecture
- Country of Origin: Japan
Proven Application Environments
- Petrochemical & Refining: Field junction termination for pressure, temperature, and flow transmitters in hazardous-area DCS loops
- Power Generation: Turbine and boiler control I/O wiring interface within CENTUM VP FCS cabinets
- Pharmaceutical / Life Sciences: GMP-compliant process control systems requiring traceable, OEM-certified components
- Pulp & Paper / Chemical: Continuous process DCS I/O expansion and MRO replacement
- Water & Wastewater Treatment: SCADA-integrated DCS field termination upgrades
- Semiconductor Fabrication: Precision process control I/O interface in cleanroom environments
Engineering Advantages
- Genuine OEM Part: Ensures full compatibility with Yokogawa CENTUM VP / CS 3000 I/O architecture — no firmware conflicts, no signal degradation
- Plug-and-Replace Design: Hot-swap capable within supported CENTUM VP configurations, minimizing process downtime during maintenance
- Modular Architecture: Integrates directly with Yokogawa I/O nests and marshalling cabinets without additional adapters
- Long Service Life: Designed to Yokogawa’s industrial-grade durability standards for 24/7 continuous process environments
- Traceable Provenance: All units at Konmask.com are sourced with documentation supporting quality audits and regulatory inspections
System Architecture & Signal Flow
Within the CENTUM VP / CS 3000 architecture, the S9342FA connector unit occupies the field-side termination layer of the I/O subsystem. Field instrument cables terminate at the S9342FA, which then interfaces with the corresponding I/O module (e.g., AAI141, ADV151 series) mounted in the I/O nest. This modular separation allows field wiring to remain intact during I/O module replacement, significantly reducing maintenance time and the risk of wiring errors. The connector unit is keyed to prevent incorrect module insertion, maintaining signal integrity across the full I/O channel count.
Signal flow: Field Instrument → Field Cable → S9342FA Connector Unit → I/O Module → FCS Bus → CENTUM VP HIS/ENG Station
Sourcing & Quality Verification
- All S9342FA units are inspected upon receipt: visual check, connector pin integrity, and label/serial verification
- Stored in ESD-safe, climate-controlled warehouse conditions
- Shipped with original manufacturer packaging where available
- Certificate of conformance (CoC) available upon request for regulated industries
- Traceability documentation available for pharmaceutical and nuclear-adjacent applications
Procurement Process
- Confirm Part Number: Verify S9342FA against your CENTUM VP / CS 3000 I/O nest drawing or BOM
- Request Quote: Contact support@konmask.com or call +0086 19859288691 with quantity and delivery requirements
- Lead Time: In-stock units ship within 2–5 business days; EXW Xiamen or DDP options available
- Payment: T/T, L/C, and major B2B payment methods accepted
- Documentation: Commercial invoice, packing list, CoC, and customs HS code documentation provided
Technical FAQ
Q: Is the S9342FA compatible with both CENTUM VP and CS 3000?
A: Yes. The S9342FA is designed for use across both CENTUM VP and CS 3000 platforms. Always verify against your specific I/O nest model and revision to confirm mechanical and electrical compatibility.
Q: Can the S9342FA be replaced without shutting down the I/O module?
A: In CENTUM VP configurations that support hot-swap I/O, the connector unit can be disconnected from the field side while the I/O module remains powered. Consult your CENTUM VP engineering manual (IM 33S01B30-01E) for your specific configuration.
Q: What I/O modules does the S9342FA pair with?
A: The S9342FA is designed to interface with specific Yokogawa I/O module families within the CENTUM VP / CS 3000 I/O nest. Common pairings include analog input modules (AAI series) and digital I/O modules (ADV/ADI series). Confirm the exact pairing via your system’s I/O assignment drawing.
Q: Do you provide a warranty?
A: Konmask.com provides a 90-day functional warranty on all stocked components. Extended warranty and service agreements are available for volume procurement contracts.
Q: Can you supply multiple units for a DCS expansion project?
A: Yes. We support project-quantity procurement with consolidated shipping, phased delivery, and project documentation packages. Contact us for a project BOM review.
