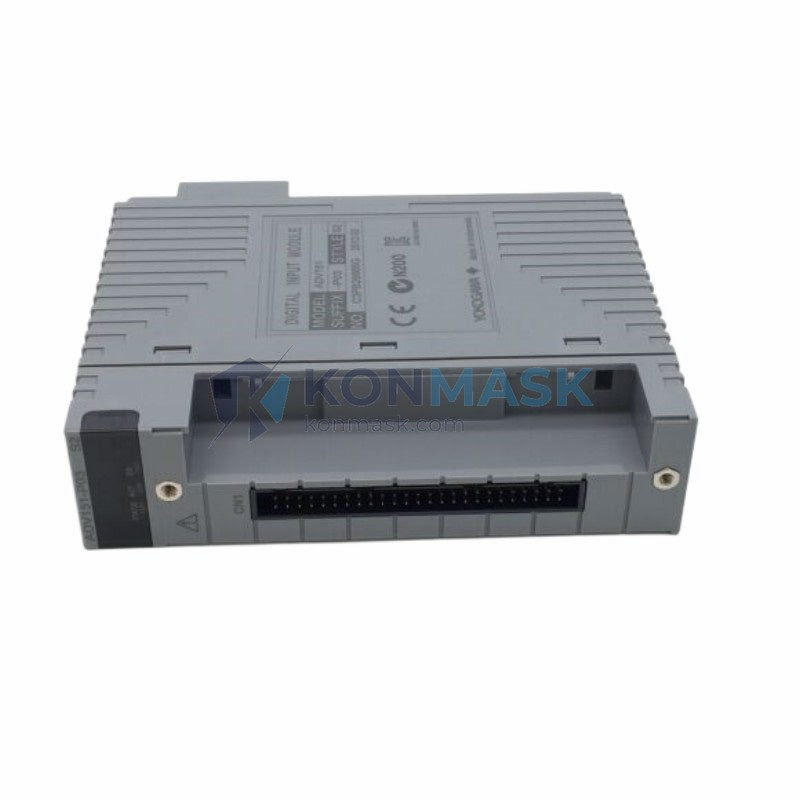

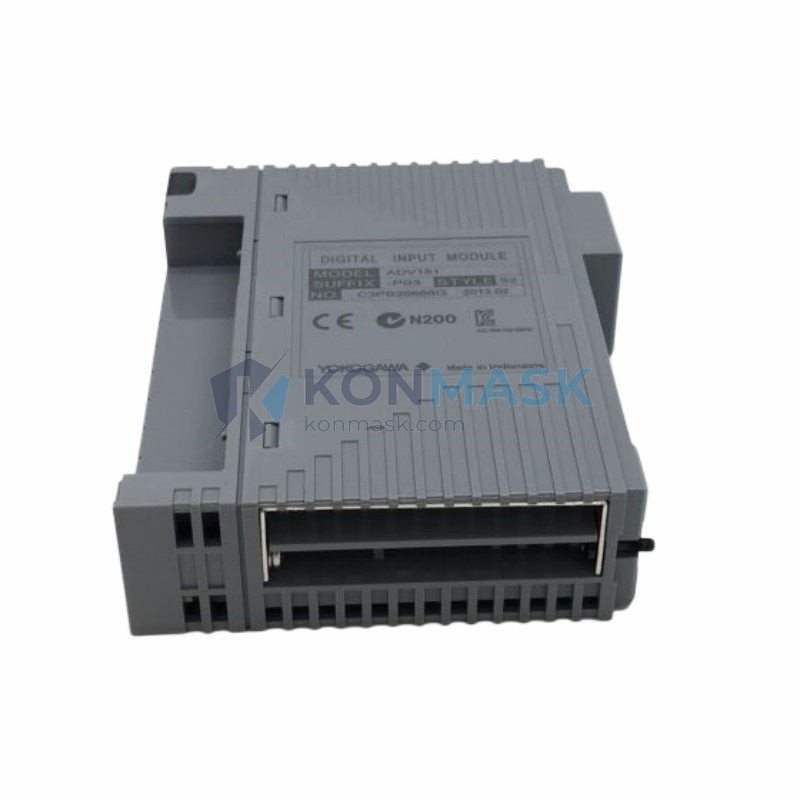

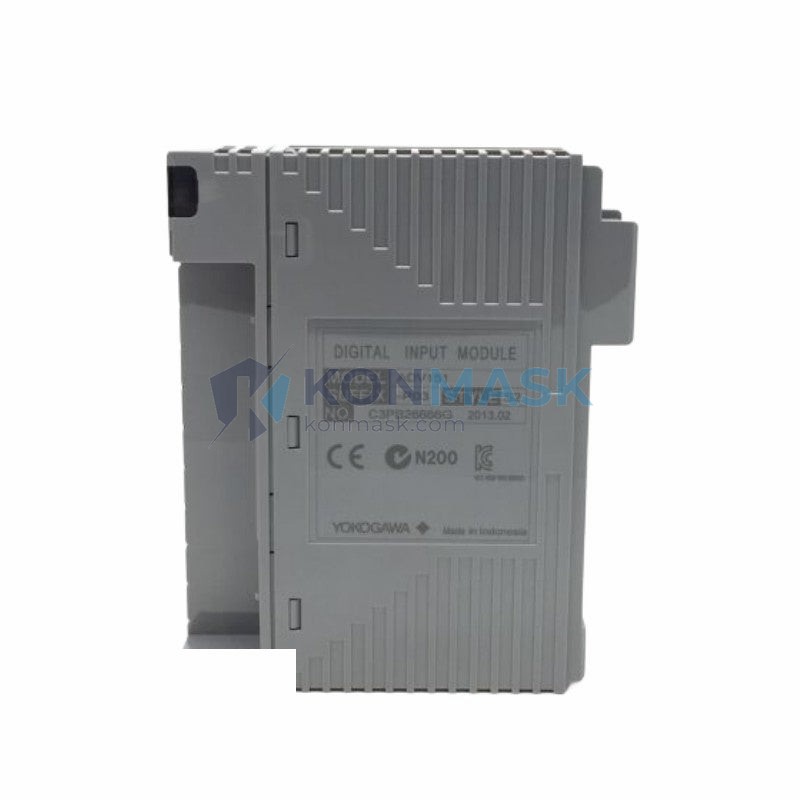

YOKOGAWA ADV151-P03 S2 — 32-Channel Digital Input Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The ADV151-P03 S2 is a field-proven digital input (DI) module designed for Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems — the industry benchmark for large-scale process automation in refining, petrochemical, power generation, and utilities. As a core I/O component of the Vnet/IP-based control architecture, this module provides reliable, high-density discrete signal acquisition from field devices including limit switches, push buttons, relay contacts, and proximity sensors.
Product Positioning
Engineered for mission-critical process environments where signal integrity and system uptime are non-negotiable, the ADV151-P03 S2 delivers 32 isolated digital input channels in a single slot, maximizing cabinet density while maintaining full IEC 61131-2 Type 1/2 compliance. It is the preferred choice for brownfield expansions, spare-parts replenishment, and greenfield CENTUM VP deployments requiring certified, OEM-grade I/O hardware.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV151-P03 S2 |
| Manufacturer | Yokogawa Electric Corporation |
| Module Type | Digital Input (DI) |
| Compatible Platform | CENTUM VP, CENTUM CS 3000 |
| Number of Channels | 32 channels per module |
| Input Voltage Range | 24 VDC (nominal) |
| Input Logic Level — ON | 15–30 VDC |
| Input Logic Level — OFF | 0–5 VDC |
| Input Current (per channel) | Approx. 7 mA @ 24 VDC |
| Isolation | Channel-to-bus optical isolation |
| IEC Compliance | IEC 61131-2 Type 1 / Type 2 |
| Response Time | ≤ 10 ms (configurable filter) |
| Connector Type | 40-pin MIL connector (field terminal unit) |
| Module Form Factor | Single-slot, hot-swap capable |
| Power Consumption | ≤ 3.5 W (typical) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 300 g |
| Certifications | CE, UL, cUL (per Yokogawa product certification) |
| Revision / Suffix | S2 (second hardware revision) |
Proven Application Environments
- Oil & Gas Refining: Valve position feedback, ESD interlock monitoring, pump run/stop status acquisition across CENTUM VP-based safety and control loops.
- Petrochemical Plants: High-density DI scanning for reactor interlocks, compressor status, and field device health monitoring.
- Power Generation: Turbine control systems requiring fast, reliable discrete input scanning with deterministic response times.
- Utilities & Water Treatment: SCADA-integrated CENTUM CS 3000 installations monitoring pump stations, valve actuators, and level switches.
- Pharmaceutical Manufacturing: GMP-compliant process control environments with validated CENTUM VP configurations requiring certified spare I/O modules.
- Brownfield Expansion Projects: Drop-in replacement for aging ADV151-P03 modules without requiring FCS reconfiguration or re-engineering.
Engineering Advantages
- 32-Channel Density: Maximizes I/O per cabinet slot, reducing hardware footprint and wiring complexity versus lower-density alternatives.
- Optical Isolation: Channel-to-bus isolation eliminates ground loop interference and protects the FCS backplane from field-side transients.
- Hot-Swap Capability: Modules can be inserted and removed under power without shutting down the FCS node, enabling zero-downtime maintenance in live process environments.
- Configurable Input Filter: Adjustable debounce filtering suppresses contact bounce and electrical noise from mechanical switches and relay contacts.
- S2 Revision Compatibility: Fully backward-compatible with existing ADV151-P03 installations; no firmware update or FCS builder modification required for direct substitution.
- OEM-Grade Quality: Manufactured to Yokogawa’s IEC 61508-aligned production standards, ensuring long-term reliability in continuous-process environments.
System Architecture & Signal Flow
The ADV151-P03 S2 resides in the I/O unit of a CENTUM VP or CS 3000 Field Control Station (FCS). Field wiring connects to the corresponding Field Terminal Unit (FTU) via a 40-pin MIL cable. Each of the 32 DI channels is optically isolated before the signal is multiplexed onto the internal I/O bus and transmitted to the FCS CPU over the Vnet/IP control network. The FCS builder software (CENTUM VP Engineering Environment) automatically recognizes the module type and revision upon insertion, requiring no manual address configuration.
Signal path: Field device → FTU terminal block → 40-pin MIL cable → ADV151-P03 S2 input circuit → optical isolator → I/O bus → FCS CPU → Vnet/IP → HIS operator station.
Sourcing & Quality Verification
- All ADV151-P03 S2 modules supplied by Konmask.com are sourced from authorized Yokogawa distributors or verified industrial surplus channels with documented chain of custody.
- Each unit undergoes incoming inspection including visual examination, label verification (model number, revision suffix, serial number), and functional continuity checks prior to listing.
- Modules are shipped in anti-static packaging with protective end caps to prevent connector damage in transit.
- Certificate of conformance (CoC) and original Yokogawa documentation available upon request for regulated industries.
- Konmask.com does not supply counterfeit, remarked, or refurbished-without-disclosure components. All condition grades are explicitly stated in the product listing.
Procurement Process
- Step 1 — Verify Compatibility: Confirm your FCS node type (VP / CS 3000), I/O unit model, and existing ADV151-P03 revision before ordering. Contact our engineering team if uncertain.
- Step 2 — Request Quote or Order Online: Add to cart for standard pricing, or contact support@konmask.com for volume pricing, lead-time confirmation, or project-based procurement.
- Step 3 — Export & Compliance Check: For international shipments, Konmask.com handles HTS/HS code classification (HS 8537.10) and export documentation. ECCN classification available on request.
- Step 4 — Shipping: Standard orders ship within 1–3 business days from Hong Kong. DHL Express, FedEx International Priority, and sea freight consolidation available. Lead time for out-of-stock units: 2–4 weeks via Yokogawa authorized channel.
- Step 5 — After-Sales Support: 12-month warranty on new units. Technical support for installation and FCS integration available via email or WhatsApp.
Technical FAQ
Q: Is the ADV151-P03 S2 compatible with CENTUM VP R6.xx?
A: Yes. The ADV151-P03 S2 is supported across all CENTUM VP releases including R4, R5, and R6. No FCS builder update is required for direct module substitution.
Q: Can this module be used in a CS 3000 system?
A: Yes. The ADV151-P03 series is cross-compatible between CENTUM CS 3000 and CENTUM VP I/O units sharing the same physical form factor and bus protocol.
Q: What is the difference between ADV151-P03 and ADV151-P03 S2?
A: The S2 suffix denotes the second hardware revision, incorporating minor component updates for improved EMC performance and extended component lifecycle. It is a direct drop-in replacement for the original ADV151-P03.
Q: Does the module support HART pass-through?
A: No. The ADV151-P03 S2 is a discrete digital input module and does not support HART communication. For HART-enabled analog input, refer to the AAI143 or AAI141 series.
Q: What Field Terminal Unit (FTU) is required?
A: The ADV151-P03 S2 pairs with the ADT151 field terminal unit. Verify your existing FTU model before ordering to ensure cable and terminal compatibility.
Q: Is hot-swap supported without process interruption?
A: Yes, provided the FCS is configured for redundant I/O or the affected channels are in a non-critical monitoring role. Always consult your site’s MOC (Management of Change) procedure before performing live module swaps in safety-critical loops.
