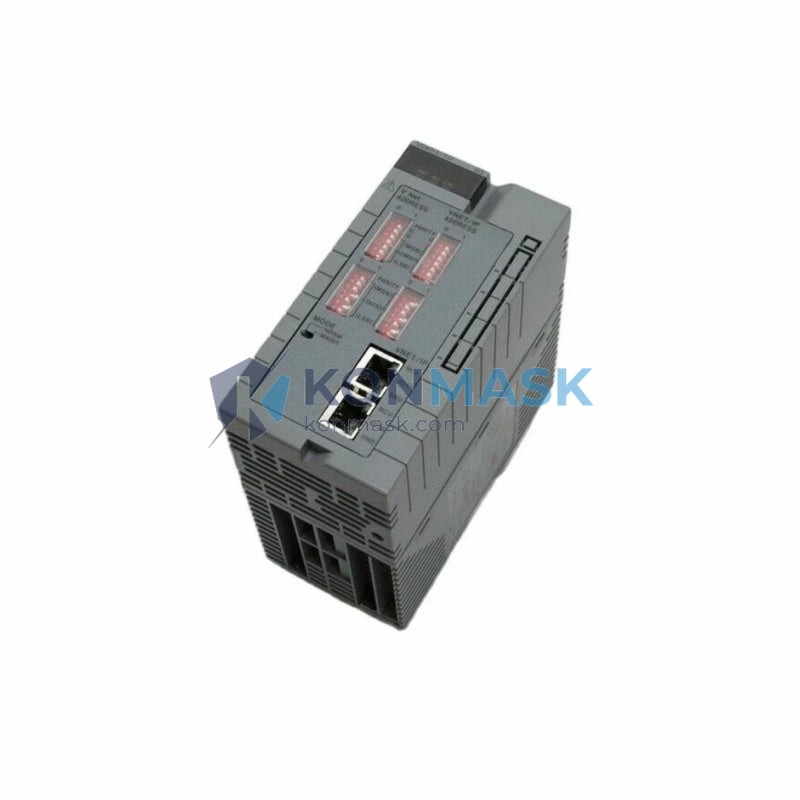

Yokogawa SSB401-53 – ESB Bus Interface Slave Module | CENTUM CS/VP DCS Platform
The Yokogawa SSB401-53 is a dedicated ESB (Extended Serial Bus) Interface Slave Module engineered for integration within Yokogawa’s CENTUM CS and CENTUM VP Distributed Control Systems. Designed for process automation engineers who demand deterministic communication, high-noise immunity, and seamless interoperability within Yokogawa’s field-proven DCS architecture, the SSB401-53 serves as the critical link between field I/O stations and the central control domain.
At Konmask.com, we supply the SSB401-53 as a verified OEM component, fully tested and traceable to Yokogawa’s manufacturing standards — making it the preferred sourcing choice for MRO, system expansion, and emergency replacement projects.
Complete Technical Specifications
| Part Number | SSB401-53 |
| Manufacturer | Yokogawa Electric Corporation |
| Series / Platform | CENTUM CS / CENTUM VP DCS |
| Module Function | ESB Bus Interface Slave Module |
| Bus Type | ESB (Extended Serial Bus) |
| Node Role | Slave (field-side interface) |
| Communication Protocol | Yokogawa ESB proprietary protocol |
| Mounting | DIN rail / CENTUM I/O nest |
| Power Supply | Supplied via backplane bus |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Weight | Approx. 200 g |
| Certifications | CE, UL (per Yokogawa system certification) |
| Country of Origin | Japan |
Proven Application Environments
- Oil & Gas Refineries: ESB slave modules coordinate I/O data exchange between remote field panels and the CENTUM VP operator station, maintaining sub-second scan cycles critical for process safety.
- Chemical & Petrochemical Plants: Deployed in hazardous-area DCS architectures where reliable bus communication prevents costly process upsets and unplanned shutdowns.
- Power Generation: Integrated into boiler management and turbine control systems requiring deterministic data transfer across extended cable runs.
- Pulp & Paper / Water Treatment: Used in multi-node ESB networks where the SSB401-53 aggregates field I/O signals from distributed marshalling cabinets.
- Pharmaceutical Manufacturing: Supports GMP-compliant process control loops with validated communication integrity across the ESB network.
Engineering Advantages
- Deterministic Bus Timing: ESB protocol ensures fixed-cycle, collision-free data transfer — eliminating latency variability that can compromise PID loop performance.
- High EMI Immunity: Designed for industrial environments with heavy electrical noise from VFDs, motors, and high-voltage switchgear.
- Hot-Swap Compatible: Supports online replacement within CENTUM VP systems, minimizing process downtime during maintenance windows.
- Seamless CENTUM Integration: Plug-and-play compatibility with Yokogawa’s CENTUM CS and VP I/O nests — no firmware reconfiguration required for direct replacement.
- Long Service Life: Built to Yokogawa’s industrial-grade component standards with extended MTBF ratings suitable for 24/7 continuous process operations.
System Architecture & Signal Flow
In a typical CENTUM DCS topology, the SSB401-53 resides in the field I/O nest and communicates upstream to the ESB Master module (e.g., SB401) located in the Field Control Station (FCS). The ESB bus carries both process data and diagnostic information in a cyclic polling architecture:
- ESB Master (FCS side) → ESB Bus Cable → SSB401-53 Slave (I/O Nest) → Backplane → I/O Modules (AI/AO/DI/DO)
- The SSB401-53 handles bus address decoding, data buffering, and error detection, forwarding clean process values to the FCS for control execution.
- Diagnostic LEDs on the module front panel provide real-time bus status, communication health, and fault indication for rapid field troubleshooting.
Sourcing & Quality Verification
- OEM Authenticity: All SSB401-53 units sourced by Konmask.com are genuine Yokogawa components — no counterfeit or refurbished substitutes.
- Pre-Shipment Testing: Each module undergoes functional verification prior to dispatch, including bus communication handshake and power-on self-test confirmation.
- Traceability: Units are supplied with original Yokogawa labeling, date codes, and where available, factory test records.
- Packaging: Anti-static ESD packaging with moisture barrier protection for safe international shipping.
- Warranty: 12-month warranty against manufacturing defects, with technical support from Konmask’s engineering team.
Procurement Process
- Submit Inquiry: Contact us via support@konmask.com or +0086 19859288691 with your required quantity and delivery timeline.
- Receive Quote: Our team provides a competitive price quote with lead time confirmation within 24 business hours.
- Order Confirmation: Purchase order accepted via email; payment terms discussed based on order volume and customer profile.
- Quality Check & Dispatch: Module tested, packaged in ESD-safe materials, and shipped with full documentation.
- After-Sales Support: Konmask engineers available for installation guidance, compatibility verification, and warranty claims.
Technical FAQ
Q: Is the SSB401-53 compatible with both CENTUM CS and CENTUM VP systems?
A: Yes. The SSB401-53 is designed for use across Yokogawa’s CENTUM CS and CENTUM VP DCS platforms. Always verify the specific I/O nest and FCS model compatibility with your system documentation before installation.
Q: Can the SSB401-53 be replaced online without shutting down the process?
A: In CENTUM VP systems with redundant FCS configurations, hot-swap replacement is supported. Consult your CENTUM VP system engineering manual for the specific procedure applicable to your installation.
Q: What is the maximum ESB cable length supported?
A: ESB bus cable length limits are defined by the CENTUM system engineering specifications. Typical maximum distances range from 100 m to 500 m depending on cable type and network configuration. Refer to Yokogawa’s CENTUM VP Hardware Engineering Guide for exact values.
Q: How do I verify the module is communicating correctly after installation?
A: The SSB401-53 front panel LEDs indicate bus communication status. Additionally, the CENTUM VP HIS (Human Interface Station) provides real-time I/O nest diagnostics and bus health monitoring via the system’s engineering tools.
Q: Does Konmask provide cross-reference support for alternative Yokogawa ESB modules?
A: Yes. Contact our engineering team with your current module part number and system configuration, and we will identify compatible alternatives or direct replacements.
