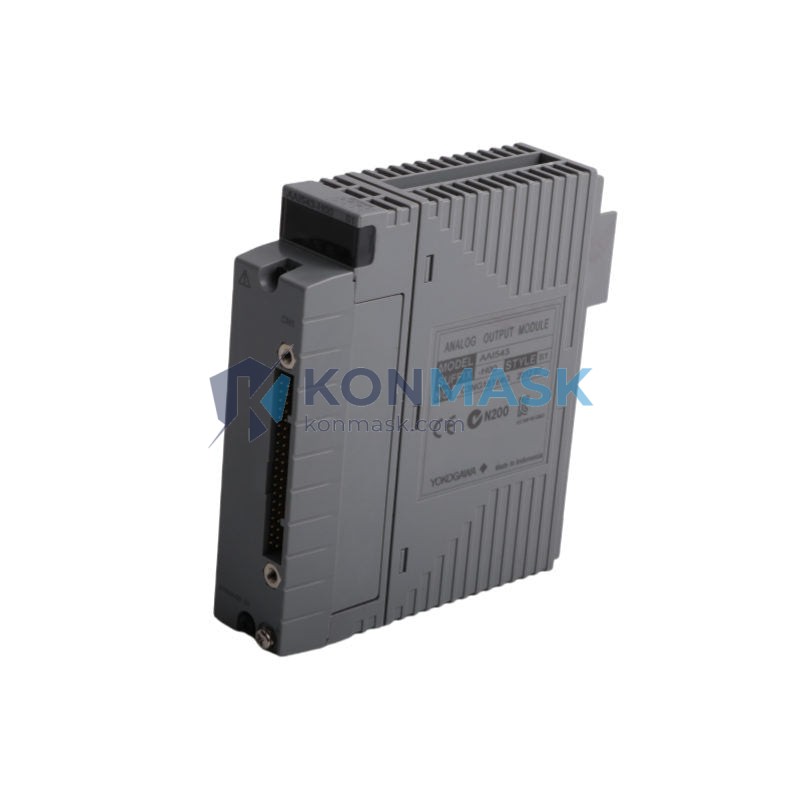

YOKOGAWA AAI543-H00 S1 – 16-Channel Analog Input Module | CENTUM VP / CS 3000 DCS Platform
Engineering Background
The AAI543-H00 S1 is a high-density analog input module engineered for YOKOGAWA’s CENTUM VP and CS 3000 distributed control systems — the backbone of process automation in refining, petrochemical, power generation, and pharmaceutical industries worldwide. Designed to IEC 61511 functional safety standards, this module delivers deterministic 4–20 mA signal acquisition with optional HART pass-through, enabling seamless integration with smart field instruments without additional infrastructure.
Product Positioning
Targeting process control engineers and MRO procurement teams, the AAI543-H00 S1 serves as a direct OEM replacement or capacity-expansion card within existing CENTUM VP / CS 3000 I/O subsystems. Its 16-channel density reduces rack space requirements while maintaining full backward compatibility with legacy CS 3000 field wiring — a critical advantage during brownfield upgrades where minimizing downtime is paramount.

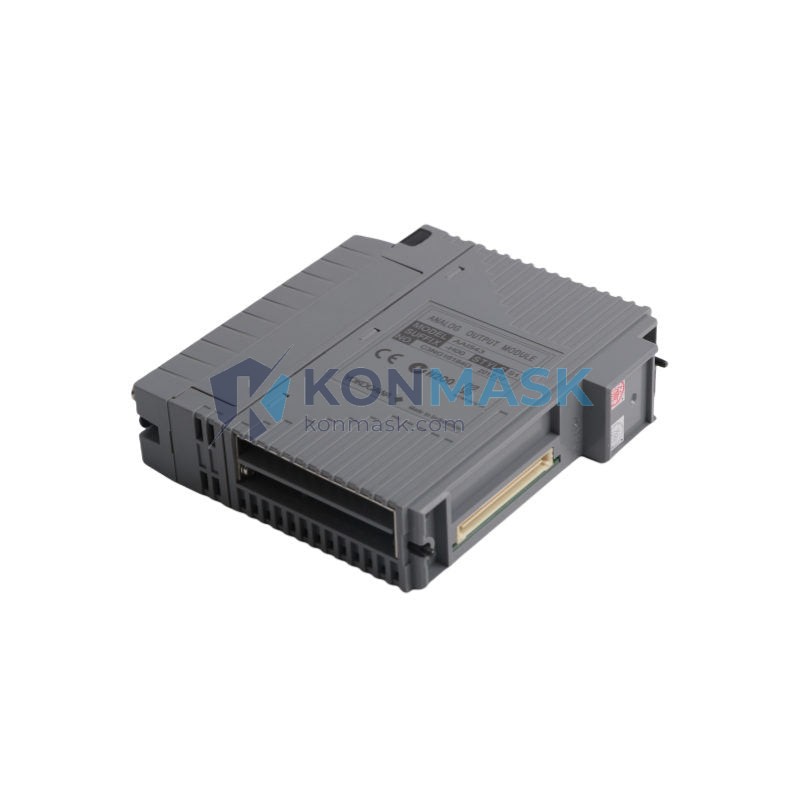

Complete Technical Specifications
- Part Number: AAI543-H00 S1
- Manufacturer: YOKOGAWA Electric Corporation
- Series / Platform: CENTUM VP / CS 3000 (Vnet/IP & V-net compatible)
- Module Type: Analog Input (AI)
- Channel Count: 16 channels (single-ended)
- Input Signal Range: 4–20 mA DC (standard); 1–5 V DC (optional)
- HART Communication: HART 5 / HART 7 pass-through per channel (H00 suffix)
- Resolution: 16-bit ADC
- Accuracy: ±0.1% of full scale (at 25 °C)
- Isolation: Channel-to-bus optical isolation; group isolation between channel banks
- Power Consumption: ≤ 4.5 W (typical, all channels active)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −25 °C to +70 °C
- Humidity: 5–95% RH (non-condensing)
- Vibration Resistance: IEC 60068-2-6 compliant
- Weight: 360 g
- HS Code: 8537.10
- Country of Origin: Japan
- Firmware Revision: S1 (as labeled)
- Certifications: CE, UL, FM (refer to YOKOGAWA datasheet GS 33J60B10-01EN for full listing)
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, midstream pipeline SCADA, downstream refinery DCS expansion
- Petrochemical & Chemical: Reactor temperature/pressure loop acquisition, batch process control
- Power Generation: Boiler drum level, turbine inlet parameter monitoring
- Pharmaceutical / Life Sciences: GMP-compliant process parameter logging, validated HART asset management
- Pulp & Paper / Water Treatment: Multi-loop analog acquisition in remote I/O cabinets
Engineering Advantages
- High Channel Density: 16 AI channels per slot reduces cabinet footprint vs. 8-channel predecessors
- HART Multiplexing: H00 variant supports simultaneous HART communication on all 16 channels — no external HART multiplexer required
- Hot-Swap Capable: Module can be replaced under power within CENTUM VP redundant I/O nodes, minimizing process interruption
- Brownfield Compatibility: Direct pin-compatible replacement for AAI141 / AAI543 series predecessors; existing marshalling wiring retained
- Diagnostics: On-board self-diagnostics report open-wire, over-range, and ADC fault conditions to the HIS operator station in real time
System Architecture & Signal Flow

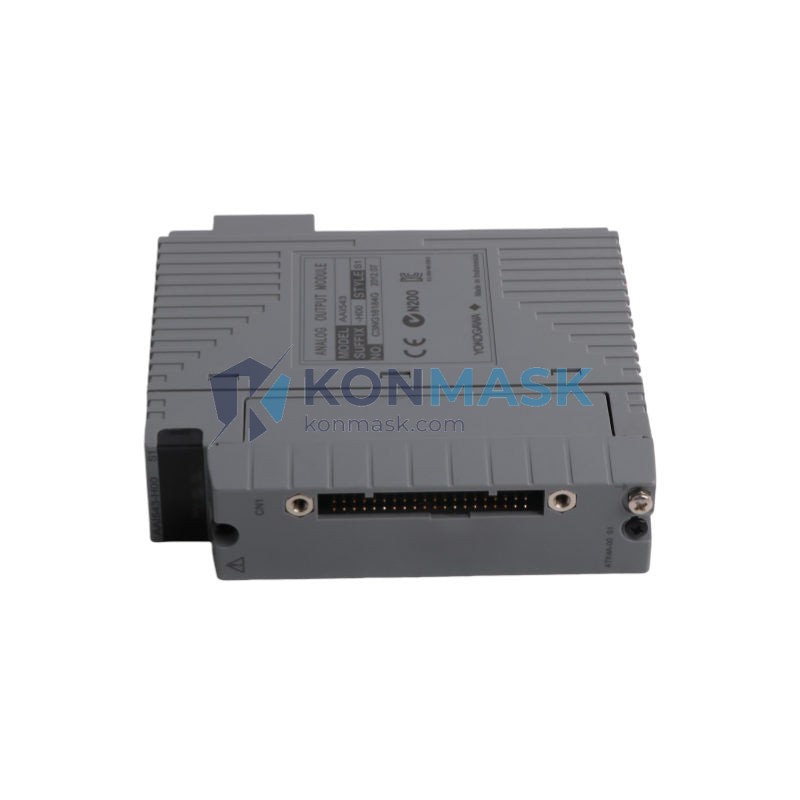

The AAI543-H00 S1 resides in a CENTUM VP Node Unit (e.g., ANB10D, ANB11D) or CS 3000 Field Control Station (FCS). Field 4–20 mA signals enter via the front-mounted terminal block, pass through per-channel surge protection, and are digitized by the 16-bit ADC array. Digitized values are transferred over the internal V-net/IP bus to the Field Control Unit (FCU) at the configured scan rate (typically 100–500 ms). HART secondary variable data is extracted by the integrated HART modem and forwarded to the Plant Resource Manager (PRM) for asset health monitoring — all without interrupting primary process control loops.
Sourcing & Quality Verification
- Stock Condition: Genuine YOKOGAWA OEM hardware; sourced from decommissioned plant upgrades or authorized surplus channels
- Inspection Protocol: Each unit undergoes visual inspection (label integrity, connector condition, no physical damage), functional power-on verification, and firmware revision confirmation prior to listing
- Traceability: Serial number and revision label photographed and retained on file; available upon request with purchase order
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for international shipments
- Warranty: 90-day operational warranty against DOA; extended warranty available — contact sales
Procurement Process
- Confirm Compatibility: Verify your FCS node type (ANB10D / ANB11D / AFV10D) and available slot count in your CENTUM VP / CS 3000 configuration tool
- Request Quote: Contact support@konmask.com with your PO number, required quantity, and delivery timeline
- Lead Time: In-stock units ship within 2 business days; EXW Xiamen / DDP options available
- Export Compliance: YOKOGAWA modules may be subject to Japanese export control regulations (FEFTA); Konmask handles all necessary export documentation
- Payment Terms: T/T, PayPal, credit card; Net-30 available for qualified accounts
Technical FAQ
Q: Is the AAI543-H00 S1 compatible with CENTUM VP R6.x?
A: Yes. The AAI543 series is supported across CENTUM VP R4.x through R6.x. Confirm node firmware version ≥ R4.02 for full HART 7 support.
Q: Can this module replace an AAI543-H00 without the S1 suffix?
A: The S1 suffix denotes a hardware revision. In most installations it is a direct drop-in replacement; however, verify with YOKOGAWA’s compatibility matrix (TI 33J60B10-01EN) for your specific FCS firmware version.
Q: What is the maximum cable length for 4–20 mA field wiring?
A: YOKOGAWA specifies a maximum loop resistance of 600 Ω. For 0.5 mm² cable (~36 Ω/km), this permits field runs up to approximately 800 m under standard conditions.
Q: Does Konmask provide configuration or commissioning support?
A: Yes. Remote engineering support for module insertion, I/O builder tag assignment, and HART device registration in PRM is available. Contact us for a support scope quotation.
