PLC I/O Wiring Solution — Allen-Bradley 1492-IFM40F | Digital Interface Module
Where This Product Is Used
The Allen-Bradley 1492-IFM40F is a 40-point digital interface module (IFM) designed to simplify field-device wiring on Allen-Bradley SLC 500 and MicroLogix I/O systems. It is widely deployed in:
- Discrete manufacturing lines — connecting proximity sensors, limit switches, and pushbuttons to SLC 500 digital I/O cards without point-to-point terminal blocks
- Automotive assembly plants — high-density wiring panels where space and installation time are critical constraints
- Food & beverage processing — hygienic control panels requiring clean, traceable wiring layouts
- Material handling & conveyor systems — interfacing photoelectric sensors and solenoid outputs across multi-zone conveyor PLCs
- Water/wastewater treatment — SCADA-connected SLC 500 panels monitoring digital field instruments
- OEM machine builders — standardizing wiring harness design across product families using Allen-Bradley I/O platforms
Technical Specifications
- Part Number: 1492-IFM40F
- Manufacturer: Allen-Bradley (Rockwell Automation)

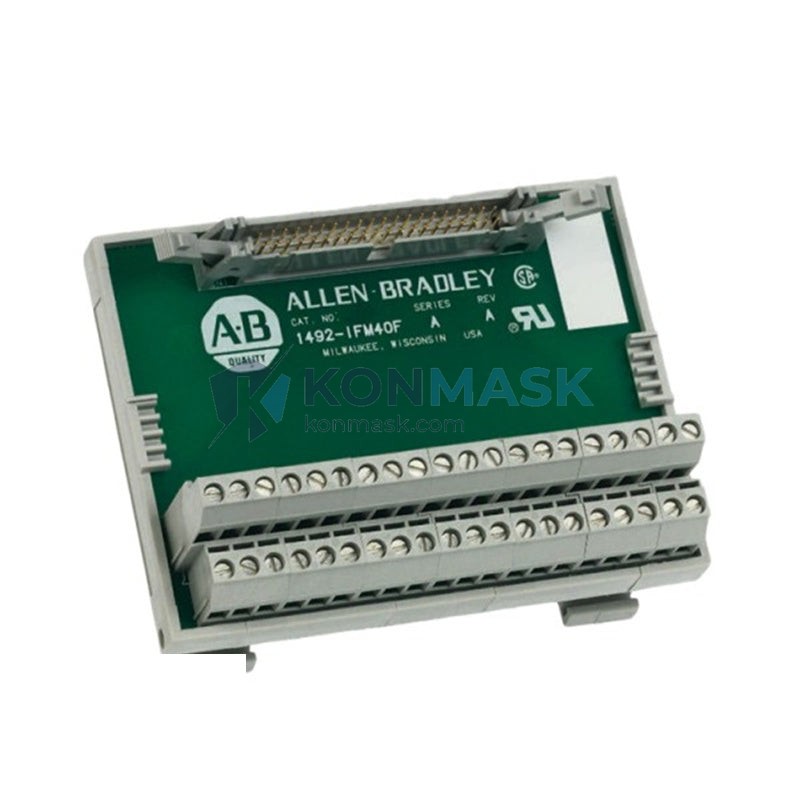

- Module Type: Digital Interface Module (IFM), Flat-Cable Style
- I/O Points: 40-point
- Connection Style: Flat ribbon cable (pre-wired to compatible 1746 I/O modules)
- Terminal Type: Screw-clamp field-wiring terminals
- Compatible I/O Modules: Allen-Bradley 1746 SLC 500 digital I/O modules (40-point)
- Mounting: DIN rail
- Weight: Approx. 200 g
- Standards: UL Listed, CE Marked
Why Engineers Specify This Model
- Eliminates point-to-point wiring errors — the flat-cable interface connects directly to the 1746 I/O module, reducing mis-wiring risk during panel build
- Reduces installation time by up to 60% compared to individual terminal block wiring on 40-point I/O cards
- Labeled, numbered terminals map 1:1 to I/O card channels, making troubleshooting and commissioning faster
- Compact DIN-rail footprint preserves panel real estate in high-density enclosures
- Rockwell-native compatibility — no adapters, no third-party risk; fully supported in Rockwell’s documentation and spare-parts ecosystem
- Long product lifecycle — the 1492-IFM series has been a standard in SLC 500 panels for decades, ensuring long-term spare availability
Complete System Bill of Materials
A typical SLC 500 digital I/O sub-system using the 1492-IFM40F includes:
- Allen-Bradley 1746-IB40 or 1746-OB40 — 40-point digital input/output module
- 1492-IFM40F — this interface module (field-wiring termination)
- 1492-ACABLE040XL — flat ribbon cable connecting IFM to I/O module (specify length)
- 1746-A13 / 1746-A7 — SLC 500 chassis (select rack size per project)
- 1747-L553 or compatible — SLC 5/05 processor
- 1606-XLP power supply — 24 VDC panel power
- Field devices: Turck, Balluff, or Banner proximity/photoelectric sensors
Compliance & Industry Standards
- UL 508A — Industrial Control Panels
- CE Marking — EU Low Voltage Directive & EMC Directive compliance
- RoHS Compliant — restricted hazardous substances
- IEC 61131-2 — programmable controller hardware requirements
- NFPA 79 — electrical standard for industrial machinery (applicable panel design)
Quality Assurance & Sourcing
Every 1492-IFM40F unit sourced through Konmask.com undergoes the following verification process:
- Visual inspection against Rockwell Automation OEM packaging and label standards
- Catalog number, date code, and country-of-origin verification
- Functional continuity check on terminal blocks and ribbon-cable connector
- Anti-static packaging with humidity indicator card for transit protection
- Traceable documentation available upon request (test records, COO declaration)
We source from authorized distribution channels and vetted industrial surplus with full chain-of-custody records. Counterfeit-risk screening is applied to all Allen-Bradley parts before listing.
How to Source This Part
- In-stock orders: Add to cart and check out — ships within 1–2 business days from our warehouse
- Bulk / project quantities: Contact support@konmask.com for volume pricing and lead-time confirmation
- Urgent requirements: Call or WhatsApp +0086 19859288691 for same-day quotation
- International shipping: DHL Express, FedEx International, and sea freight available — duties and customs documentation provided
- OEM / integrator accounts: Ask about net-30 terms and dedicated account management
Application-Specific FAQ
Q: Is the 1492-IFM40F compatible with 1746-IB32 or 1746-OB32 modules?
A: No. The IFM40F is specifically designed for 40-point I/O modules. For 32-point modules, you need the 1492-IFM32F.
Q: Does this module include the flat ribbon cable?
A: No. The 1492-IFM40F is the termination module only. The mating cable (1492-ACABLE040XL or equivalent) must be ordered separately. Contact us and we can supply both together.
Q: Can I use this IFM with a ControlLogix or CompactLogix system?
A: The 1492-IFM40F is designed for the SLC 500 / 1746 I/O platform. For ControlLogix 1756 or CompactLogix 1769 systems, different IFM families apply. Contact our team for the correct cross-reference.
Q: What is the maximum wire gauge for field terminations?
A: The screw-clamp terminals on the 1492-IFM40F accept 22–14 AWG (0.34–2.5 mm²) solid or stranded conductors.
Q: Is this a new or refurbished unit?
A: Please confirm stock condition at time of inquiry. We carry both factory-new and tested-surplus units; condition and warranty terms are stated on the product listing or quotation.
