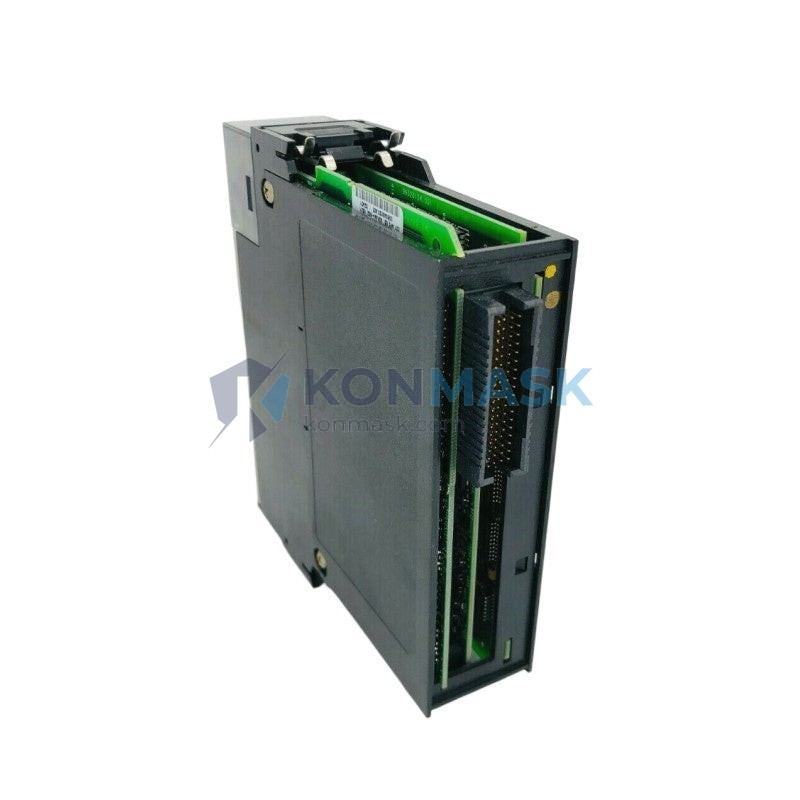

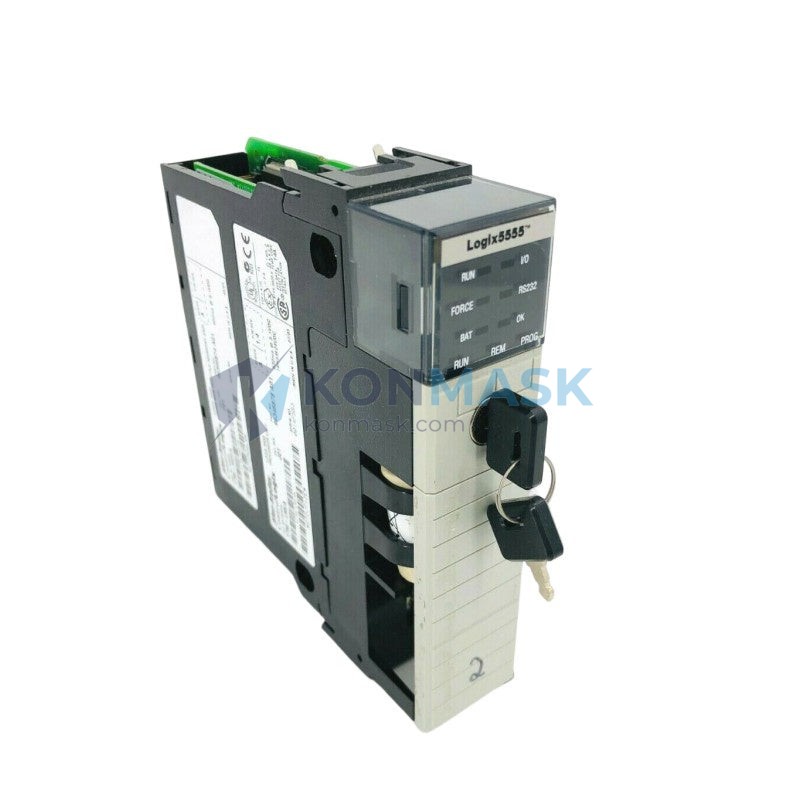

Continuous Process Control Solution – Allen-Bradley 1756-L55M22 | Logix5555 Processor 1.5MB Non-Volatile
In continuous process industries — oil & gas, chemical, power generation, and water treatment — unplanned controller downtime costs an average of USD $260,000 per hour in lost throughput, off-spec product, and regulatory exposure. Legacy PLC-5 and SLC-500 platforms running 24/7 batch and continuous loops face scan-time degradation as tag counts exceed 50,000, creating dangerous latency in PID cascade loops and safety interlock response. Plants operating on 1990s-era processors report up to 37% longer fault-recovery cycles compared to modern 32-bit architectures, directly impacting OEE and compliance audit outcomes.
The Allen-Bradley 1756-L55M22 Logix5555 Processor addresses these challenges at the architecture level. Its 1.5MB non-volatile user memory — backed by a lithium-free capacitor retention circuit — eliminates battery-dependent program loss during power excursions, a critical requirement for SIL-rated loops under IEC 61511. The 32-bit RISC processor executes ladder, function block, structured text, and sequential function chart routines simultaneously, enabling a single controller to manage continuous regulatory control, discrete safety interlocks, and motion axes without the latency penalties of multi-controller handshaking. For DCS migration projects, the 1756-L55M22 supports Producer/Consumer messaging over ControlNet and EtherNet/IP, allowing phased cutover without full plant shutdown.
Where This Product Is Used
Oil & Gas — Upstream & Midstream
- Wellhead RTU replacement: Manages pressure, temperature, and flow PID loops at remote wellheads; operates across –40 °C to +60 °C ambient with conformal-coated backplane modules; meets API 14C surface safety system requirements.
- Pipeline SCADA node: Executes compressor surge control and ESD logic with <10 ms scan time; integrates with HART field devices via 1756-IF16H analog input modules.
- Gas processing skid: Controls amine absorber column temperature cascades and glycol regeneration cycles; supports ISA-88 batch sequencing for startup/shutdown procedures.
Chemical & Petrochemical
- Reactor temperature cascade control: Manages inner/outer PID loops for exothermic reactors; non-volatile memory ensures setpoint retention during utility power dips common in chemical plants.
- Distillation column automation: Handles 200+ analog tags for reflux ratio, reboiler duty, and overhead pressure control; structured text routines execute Smith Predictor dead-time compensation.
- Batch formulation (ISA-88): Sequences charge, react, transfer, and clean phases with full audit trail via FactoryTalk Batch integration; supports FDA 21 CFR Part 11 electronic records.
Power Generation & Utilities
- Turbine auxiliary control: Manages lube oil, seal gas, and cooling water systems for gas turbines; redundant ControlLogix chassis configuration achieves 99.99% availability.
- Boiler combustion control: Executes cross-limiting air/fuel ratio logic and O₂ trim loops; scan time <5 ms for burner management system (BMS) interlock response per NFPA 85.
- Substation automation: Controls transformer tap changers and capacitor bank switching; communicates via DNP3 and IEC 61850 GOOSE messaging through 1756-ENBT bridge modules.
Water & Wastewater Treatment
- WWTP aeration basin control: Manages dissolved oxygen PID loops and blower VFD speed references; operates in NEMA 4X enclosures in high-humidity environments up to 95% RH non-condensing.
- Chlorination dosing system: Executes flow-paced chlorine residual control with compound loop; integrates with online analyzers via 4–20 mA and HART protocol.
- Pump station SCADA: Controls wet well level, pump sequencing, and telemetry reporting; supports DNP3 Secure Authentication v5 for AWIA 2018 cybersecurity compliance.
Automotive & Discrete Manufacturing
- Paint shop environmental control: Manages oven temperature zones, exhaust fan VFDs, and VOC monitoring interlocks; integrates with Rockwell iTRAK and Kinetix motion systems.
- Weld cell sequencing: Coordinates robot I/O, fixture clamping, and weld timer logic; Producer/Consumer messaging delivers <1 ms deterministic data exchange on ControlNet.
- Press line safety: Executes Category 3 safety functions via 1756-OBV8EI output modules; supports SISTEMA validation for EN ISO 13849-1 PL d compliance.
Food & Beverage / Pharmaceutical
- CIP/SIP sequence control: Manages clean-in-place and steam-in-place cycles with ISA-88 phase logic; non-volatile memory retains validated recipes during power interruptions — critical for FDA batch record integrity.
- Filling line speed regulation: Controls servo-driven fill heads and checkweigher feedback loops; structured text PID with anti-windup prevents overfill on viscous products.
- Environmental monitoring: Logs temperature, humidity, and differential pressure for cleanroom compliance; data historian integration via OPC-UA to OSIsoft PI or Ignition SCADA.
Technical Specifications

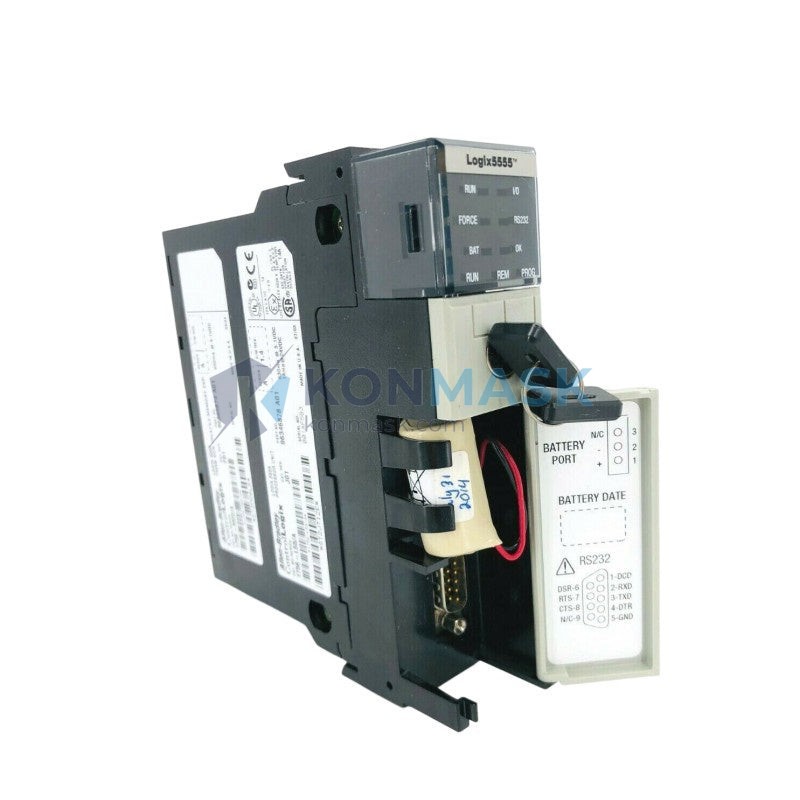

| Parameter | Value | Application Relevance |
|---|---|---|
| Catalog Number | 1756-L55M22 | Direct replacement for 1756-L55M12 (1MB) in memory-intensive applications |
| Series | Logix5555 / ControlLogix | Compatible with all 1756 I/O, motion, and communication modules |
| User Memory | 1.5MB Non-Volatile | Supports 100,000+ tags; non-volatile eliminates battery-dependent program loss |
| Processor Type | 32-bit RISC | Executes ladder, FBD, ST, and SFC simultaneously without scan-time penalty |
| Typical Scan Time | <1 ms per 1,000 rungs (ladder) | Meets BMS interlock response requirements per NFPA 85 and IEC 61511 |
| Communication Ports | RS-232 (DF1/DH-485), Backplane | Legacy HMI integration; backplane Producer/Consumer for ControlNet/EtherNet/IP bridges |
| Operating Temperature | 0 °C to +60 °C | Suitable for standard control room and NEMA 12 enclosure environments |
| Storage Temperature | –40 °C to +85 °C | Safe for cold-climate warehouse storage and shipping |
| Relative Humidity | 5–95% non-condensing | Compatible with water/wastewater plant environments |
| Power Consumption | 4.5W @ 5VDC backplane | Low thermal load; compatible with 1756-PA72 and 1756-PB72 power supplies |
| Backplane Compatibility | 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot) | Scalable from small skid controllers to large DCS-equivalent systems |
| Firmware | Upgradeable via ControlFlash | Supports Studio 5000 Logix Designer v16–v35+ |
| Weight | 300 g | Standard 1756 module form factor |
| Certifications | UL, CE, C-Tick, FM Class I Div 2 | Global market access; hazardous area suitability |
Why Engineers Specify This Model
- In continuous process DCS migration projects, the 1756-L55M22 delivers phased cutover capability because its Producer/Consumer messaging architecture allows new ControlLogix nodes to coexist with legacy PLC-5 systems on the same ControlNet network, meeting ISA-99 change management requirements without full plant shutdown.
- In SIL-rated safety interlock applications, the 1756-L55M22 delivers non-volatile program retention because its capacitor-backed memory eliminates the battery failure mode that causes SIL verification failures under IEC 61511 functional safety audits.
- In ISA-88 batch pharmaceutical manufacturing, the 1756-L55M22 delivers validated recipe integrity because structured text phase logic with non-volatile setpoint storage satisfies FDA 21 CFR Part 11 electronic batch record requirements without external UPS dependency.
- In multi-axis motion and process hybrid applications, the 1756-L55M22 delivers unified control architecture because a single Logix5555 processor executes motion, process PID, and discrete safety routines concurrently, eliminating inter-controller communication latency that causes axis synchronization errors.
- In remote oil & gas SCADA installations, the 1756-L55M22 delivers reliable cold-start recovery because non-volatile memory retains the full control program and last-known setpoints through extended power outages, meeting API 14C restart-without-operator requirements.
- In water utility AWIA 2018 compliance projects, the 1756-L55M22 delivers cybersecurity-ready architecture because it supports DNP3 Secure Authentication v5 and role-based access control via FactoryTalk Security, meeting EPA cybersecurity baseline requirements for critical water infrastructure.
Complete System Bill of Materials
The following components form a complete ControlLogix process control node around the 1756-L55M22:
| Item | Catalog No. | Function | Relationship to 1756-L55M22 |
|---|---|---|---|
| ControlLogix Chassis (10-slot) | 1756-A10 | Backplane housing for all modules | Host chassis for the processor |
| AC Power Supply | 1756-PA72 | 120/240VAC to 5VDC/24VDC backplane power | Powers the processor at 4.5W; supports up to 10A backplane |
| EtherNet/IP Bridge | 1756-ENBT | 100 Mbps EtherNet/IP communication | Extends processor I/O and messaging to plant LAN/SCADA |
| ControlNet Bridge | 1756-CNB | ControlNet scheduled messaging | Enables deterministic I/O scanning for motion and process loops |
| Analog Input (16-ch HART) | 1756-IF16H | 4–20 mA + HART field device input | Feeds PID loop process variables to the processor |
| Analog Output (8-ch) | 1756-OF8 | 4–20 mA control valve and VFD output | Delivers processor PID output to final control elements |
| Digital Input (32-ch) | 1756-IB32 | 24VDC discrete input for limit switches, PSVs | Provides interlock status to processor safety logic |
| Digital Output (16-ch relay) | 1756-OW16I | Isolated relay output for motor starters, solenoids | Executes processor discrete output commands |
| Programming Software | Studio 5000 Logix Designer | IEC 61131-3 programming environment | Required for program development, download, and online monitoring |
| Redundancy Module (optional) | 1756-RM2 | Hot-standby processor redundancy | Pairs with second 1756-L55M22 for bumpless switchover in SIL applications |
Compliance & Industry Standards
- UL 508 (Industrial Control Equipment) — Issued by Underwriters Laboratories; confirms the module meets North American electrical safety requirements for industrial control panels, required by most US and Canadian plant acceptance inspections.
- CE Marking (EN 61131-2) — European conformity for programmable controllers; mandatory for installations in EU member states and accepted in UK UKCA-equivalent assessments.
- FM Class I, Division 2, Groups A–D — Factory Mutual approval for use in areas where flammable gases may be present under abnormal conditions; required for oil & gas wellhead and compressor station installations in North America.
- C-Tick (RCM) — Australian Communications and Media Authority electromagnetic compatibility mark; required for Australian and New Zealand industrial installations.
- IEC 61131-3 (Programming Languages) — International standard for PLC programming languages; the 1756-L55M22 supports all five language types, enabling code portability and third-party validation.
- IEC 61511 (Functional Safety — SIS) — The processor’s non-volatile memory and deterministic scan time support SIL 1–2 safety instrumented function implementation when used with appropriate I/O modules and validated application code.
Quality Assurance & Sourcing
Sourcing Channels: Units are sourced from authorized Rockwell Automation distributors, certified surplus dealers with documented chain of custody, and decommissioned plant asset liquidations with full maintenance history. We do not source from unverified grey-market channels.
4-Step Inspection Process:
- Visual & Physical Inspection: Firmware label verification, connector pin inspection, housing integrity check, and counterfeit screening against Rockwell Automation genuine product markings.
- Functional Bench Test: Module powered in a live 1756 chassis; ControlFlash firmware version confirmed; RSLinx Classic communication established; memory read/write cycle executed.
- Burn-In & Thermal Cycle: 48-hour powered soak at operating temperature; thermal cycling between 0 °C and 55 °C to screen infant-mortality failures.
- Documentation Package Assembly: Serial number recorded, test report generated, and packaging sealed with tamper-evident label before shipment.
Available Documentation: Test report, firmware version certificate, photos of physical unit (all four sides), chain-of-custody declaration, and commercial invoice with HS code 8537.10 for customs clearance.
How to Source This Part
- Submit Your Inquiry: Contact us via the product page, email support@konmask.com, or WhatsApp +0086 19859288691 with your required quantity, delivery timeline, and destination country. Include your project application if you need application engineering support.
- Receive Quote & Availability Confirmation: Our team responds within 24 hours with stock status, unit price (HKD/USD), lead time, and shipping options (DHL Express, FedEx International Priority, or sea freight for bulk orders). Export documentation for CN, US, EU, AU, and ASEAN destinations is prepared in-house.
- Order Confirmation & Global Dispatch: Upon payment confirmation, units are inspected, documented, and dispatched within 1–3 business days. Real-time tracking is provided. We ship to 60+ countries with full commercial invoice, packing list, and certificate of origin for customs clearance.
Application-Specific FAQ
Q: Can the 1756-L55M22 replace a 1756-L55M12 in an existing continuous process control application without reprogramming?
A: Yes. The 1756-L55M22 (1.5MB) is a direct memory upgrade from the 1756-L55M12 (1MB) and is fully backward compatible within the Logix5555 family. The existing program, I/O configuration, and ControlNet/EtherNet/IP communication settings transfer without modification. The additional 512KB of user memory is immediately available for expanded tag databases, historian buffering, or additional PID loop instances — no firmware change or I/O remapping required.
Q: Is the 1756-L55M22 suitable for SIL 2 safety instrumented system (SIS) applications in oil & gas or chemical plants?
A: The 1756-L55M22 is a standard (non-SIL-certified) ControlLogix processor. For IEC 61511 SIL 2 SIS applications, Rockwell Automation’s certified solution is the 1756-L7xS GuardLogix Safety Controller. However, the 1756-L55M22 is widely used for Basic Process Control System (BPCS) functions in SIL-rated plants, where it handles regulatory control loops while a separate SIS handles safety functions. Consult your functional safety engineer for layer-of-protection analysis (LOPA) and SIL verification documentation.
Q: What is the recommended migration path from a legacy PLC-5 continuous process control system to the 1756-L55M22 ControlLogix platform?
A: Rockwell Automation’s recommended migration path uses the 1756-DHRIO module to bridge the existing DH+ network, allowing the new 1756-L55M22 chassis to communicate with legacy PLC-5 I/O and HMI panels during a phased cutover. The Migration Conversion Tool (MCT) in Studio 5000 automates ladder rung conversion from PLC-5 instruction set to Logix5555 equivalents, typically achieving 70–85% automatic conversion rates. Remaining manual conversion focuses on PID block parameter mapping and integer-to-DINT data type alignment. Most process plants complete phased migration during scheduled turnarounds without full production shutdown.
