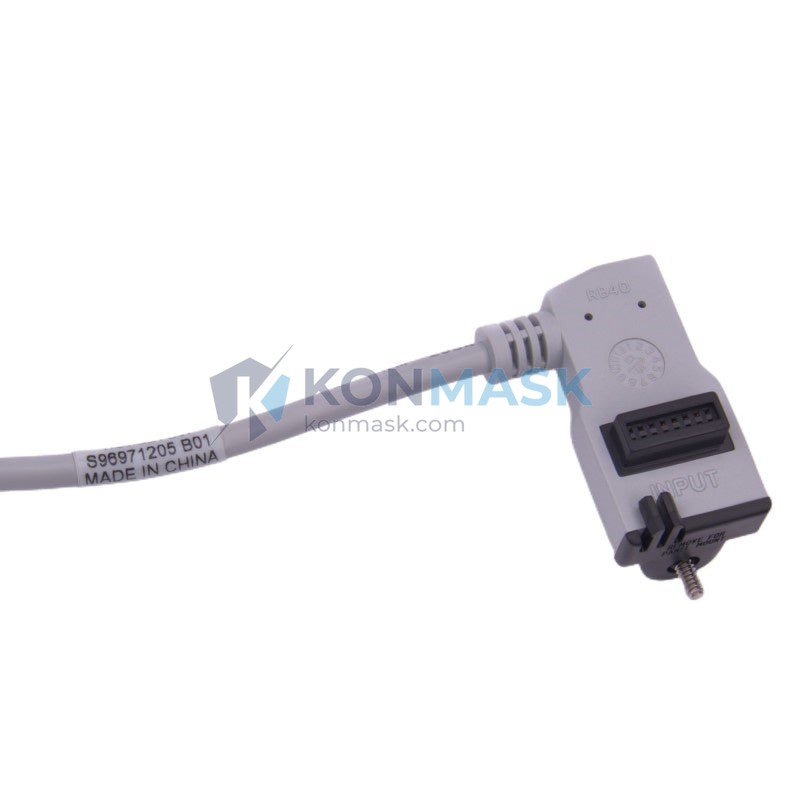

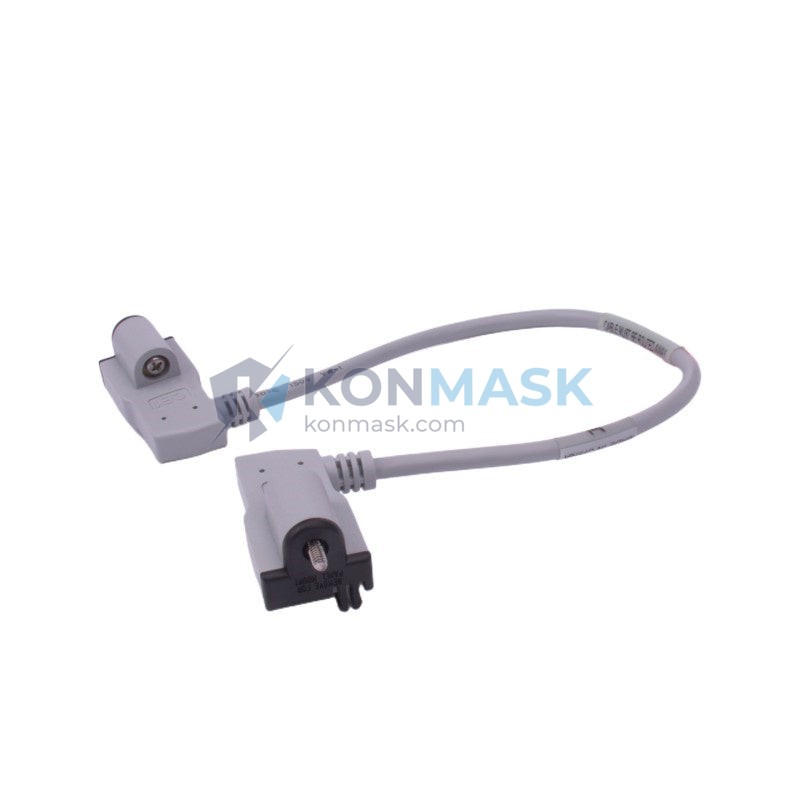

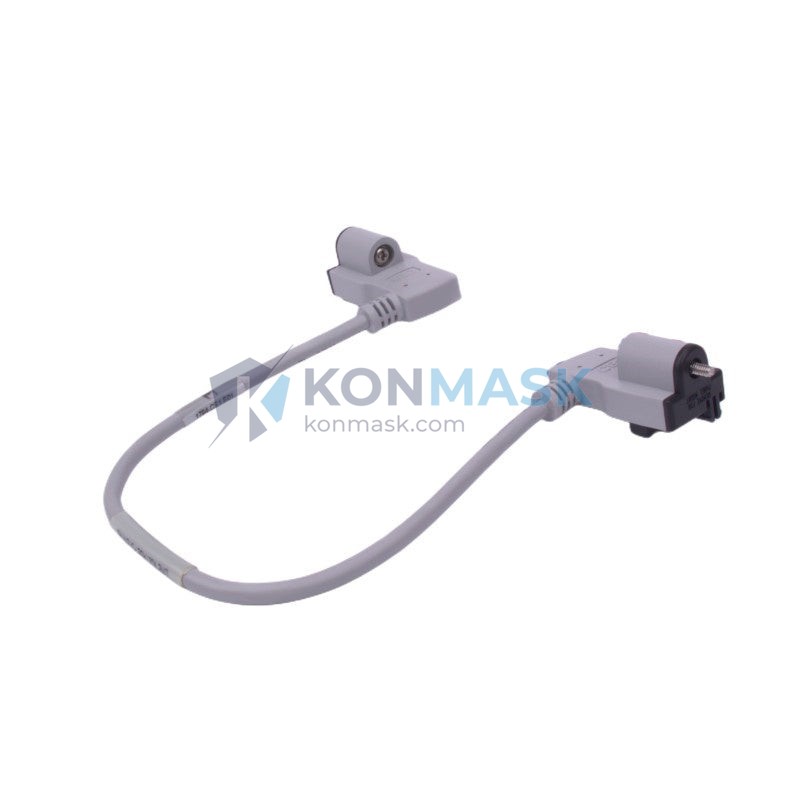

FLEX I/O Expansion Solution — Allen-Bradley 1794-CE1 | Extender Cable
Where This Product Is Used
The Allen-Bradley 1794-CE1 Extender Cable is a critical interconnect component within the Rockwell Automation FLEX I/O platform. It is deployed wherever engineers need to physically extend or reposition I/O adapter modules relative to their terminal base assemblies — enabling flexible panel layouts without compromising signal integrity.
Typical deployment environments include:
- Automotive assembly lines — body-in-white welding cells, paint shop conveyors, and powertrain test stands where compact panel space demands creative I/O routing
- Food & beverage processing — washdown-rated enclosures where module separation is required for hygiene compliance
- Pharmaceutical manufacturing — GMP-compliant control panels with strict cable management requirements
- Water & wastewater treatment — remote I/O drops in pump stations and lift stations using FLEX I/O distributed architecture
- Oil & gas upstream/midstream — wellhead control panels and pipeline SCADA RTU enclosures
- Material handling & logistics — sorter systems and conveyor junction boxes with limited DIN rail space
Technical Specifications
| Part Number | 1794-CE1 |
| Series | FLEX I/O |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Component Type | Extender Cable |
| Compatible Platform | 1794 FLEX I/O System |
| Function | Extends adapter module away from terminal base |
| Weight | 300 g (approx.) |
| Shipping Weight | 300 g |
| Condition | New / Surplus New |
Why Engineers Specify This Model
- Platform continuity — Designed exclusively for the 1794 FLEX I/O ecosystem; no adapter or converter required
- Panel layout flexibility — Allows adapter modules to be offset from terminal bases, solving tight enclosure constraints without redesigning the backplane
- Signal integrity — Factory-terminated connectors maintain the electrical characteristics of the FLEX I/O backplane bus
- Reduced downtime risk — OEM-spec cable eliminates field-fabrication errors that cause intermittent faults
- Long product lifecycle — 1794 FLEX I/O remains an active Rockwell platform with broad installed base, ensuring long-term spare parts availability
Complete System Bill of Materials
The 1794-CE1 is typically ordered alongside the following FLEX I/O components:
- 1794-AENT / 1794-AENTR — EtherNet/IP Adapter
- 1794-ADN — DeviceNet Adapter
- 1794-TB3 / 1794-TB3S — Terminal Base (3-wire / Spring Clamp)
- 1794-IB16 — 16-Point 24VDC Digital Input Module
- 1794-OB16 — 16-Point 24VDC Digital Output Module
- 1794-IE8 — 8-Channel Analog Input Module
- 1794-OE4 — 4-Channel Analog Output Module
- 1794-PS13 — Power Supply, 24VDC
Contact support@konmask.com for bundle pricing on complete FLEX I/O system builds.
Compliance & Industry Standards
- Manufactured under Rockwell Automation ISO 9001-certified quality management system
- CE Marked — compliant with EU Low Voltage Directive and EMC Directive
- UL Listed — suitable for use in UL 508A industrial control panel applications
- RoHS compliant — meets EU Directive 2011/65/EU on restriction of hazardous substances
- Compatible with IEC 61131-2 programmable controller interface standards
Quality Assurance & Sourcing
Konmask.com sources the 1794-CE1 exclusively through authorized distribution channels and verified surplus inventory networks. Every unit undergoes the following before dispatch:
- Visual inspection for connector damage, label integrity, and packaging condition
- Cross-reference verification against Rockwell Automation part number database
- Anti-static packaging with humidity indicator card for long-haul shipping
- Lot traceability documentation available upon request for regulated industries
Counterfeit components are a known risk in the industrial automation aftermarket. We maintain a zero-tolerance policy and provide documentation to support your incoming inspection process.
How to Source This Part
- Add to cart — Click the purchase button above to place an order directly online
- Request a quote — Email support@konmask.com with your required quantity and delivery timeline for volume pricing
- Urgent requirement — Call or WhatsApp +0086 19859288691 for same-day response on critical spares
- BOM sourcing — Share your full bill of materials and we will consolidate sourcing across multiple line items
Application-Specific FAQ
Q: Is the 1794-CE1 compatible with all 1794 FLEX I/O adapters?
A: The 1794-CE1 is designed for use within the 1794 FLEX I/O platform. Verify compatibility with your specific adapter model in the Rockwell Automation 1794 FLEX I/O Selection Guide (Publication 1794-SG001).
Q: Can I use multiple extender cables in series?
A: Rockwell Automation does not recommend daisy-chaining extender cables as this may degrade backplane bus signal integrity. Consult your Rockwell distributor or system integrator for alternative panel layout solutions.
Q: What is the lead time for the 1794-CE1?
A: In-stock units ship within 1–3 business days. For large quantities or specific date requirements, contact us for a confirmed delivery schedule.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 12-month warranty against manufacturing defects on all new components. Surplus-new units carry a 90-day functional warranty.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. CoC and traceability documentation are available upon request. Please specify your requirement at the time of order.
