Multi-Axis Servo Motion Control Solution – Allen-Bradley 2094-BM03-S | Kinetix 6000
Where This Product Is Used

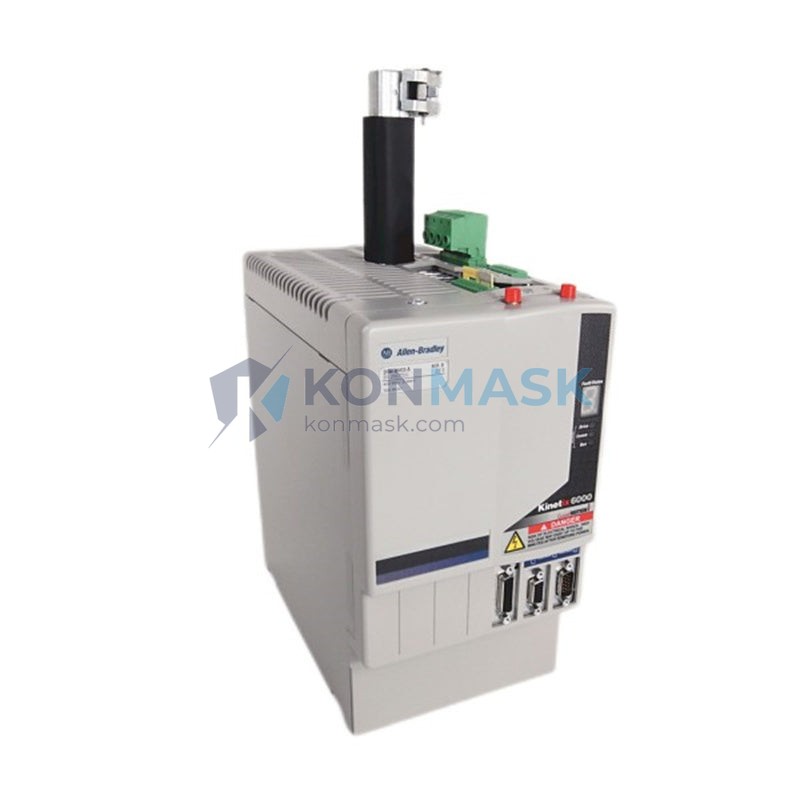

The Allen-Bradley 2094-BM03-S is a Kinetix 6000 Axis Module designed for high-performance, multi-axis servo motion control applications. It is widely deployed across demanding industrial environments where precise, synchronized motion is critical:
- CNC Machining Centers – Provides coordinated multi-axis control for milling, turning, and grinding operations requiring sub-millimeter repeatability.
- Packaging Machinery – Synchronizes servo axes for form-fill-seal, cartoning, and pick-and-place systems at high throughput rates.
- Printing & Converting Equipment – Maintains precise web tension and registration across multiple driven axes.
- Semiconductor & Electronics Assembly – Supports ultra-precise positioning in wafer handling, PCB drilling, and SMT placement equipment.
- Robotics & Gantry Systems – Enables coordinated motion for Cartesian, SCARA, and custom gantry robot architectures.
- Material Handling & Conveyors – Drives synchronized conveyor zones and sortation systems in distribution and logistics facilities.
- Plastics & Extrusion Lines – Controls extruder feed rates and downstream haul-off axes with tight speed regulation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2094-BM03-S |
| Series | Kinetix 6000 |
| Module Type | Axis Module (AM) |
| Continuous Output Current | 3 A RMS |
| Peak Output Current | 9 A RMS |
| DC Bus Voltage | Shared from IAM (Integrated Axis Module) |
| Feedback Supported | Incremental Encoder, Absolute Encoder, Resolver |
| Communication Interface | SERCOS II (fiber optic ring) |
| Compatible Controller | Logix5000 (ControlLogix, CompactLogix) |
| Mounting | Bulletin 2094 Power Rail |
| Enclosure Rating | IP20 (panel mount) |
| Weight | 5.4 kg |
| Certifications | UL, CE, cUL |
Why Engineers Specify This Model
- Shared DC Bus Architecture – The 2094-BM03-S operates on a shared DC bus with the IAM, enabling regenerative energy sharing between axes and reducing overall panel power consumption.
- SERCOS II Motion Network – Deterministic fiber-optic communication ensures synchronized, jitter-free motion across all axes in the ring — critical for coordinated multi-axis profiles.
- Compact Axis Module Form Factor – Slim plug-in design on the 2094 Power Rail minimizes cabinet footprint while allowing easy axis count expansion.
- Safe-Off (SO) Functionality – The “-S” suffix denotes integrated Safe-Off capability, meeting SIL 2 / PLd safety requirements without external safety relays on the drive output.
- Seamless Logix Integration – Native integration with Studio 5000 Logix Designer and the Motion Analyzer tool simplifies commissioning, tuning, and diagnostics.
- Wide Feedback Compatibility – Supports incremental, absolute, and resolver feedback devices, providing flexibility across motor and encoder selections.
Complete System Bill of Materials
The 2094-BM03-S Axis Module operates as part of a complete Kinetix 6000 drive system. A typical multi-axis configuration requires:
| Component | Catalog Number | Description |
|---|---|---|
| Integrated Axis Module (IAM) | 2094-BC01-MP5-S / 2094-BC02-M02-S | Provides AC input rectification, shared DC bus, and first servo axis |
| Power Rail | 2094-PRF / 2094-PRS2 / 2094-PRS5 | Mechanical and electrical bus interconnect for IAM + AM modules |
| Axis Module (this unit) | 2094-BM03-S | Additional servo axis, 3 A continuous |
| Servo Motor | MPL-B310P / MPL-B420P (example) | Rockwell Automation Kinetix-compatible servo motor |
| Feedback Cable | 2090-XXNFMF-Sxx | Motor feedback cable, length per application |
| Power Cable | 2090-CPWM7DF-16AAxx | Motor power cable, length per application |
| ControlLogix Controller | 1756-L7x / 1756-L8x | Logix5000 motion controller |
| SERCOS Interface Card | 1756-M08SE / 1756-M16SE | SERCOS II motion interface for ControlLogix chassis |
Compliance & Industry Standards
- UL 508C – Power Conversion Equipment (North America)
- CE Marking – Low Voltage Directive (LVD) 2014/35/EU; EMC Directive 2014/30/EU
- cUL – Canadian certification per CSA standards
- IEC 61800-5-2 – Functional safety for adjustable speed electrical power drive systems (Safe-Off / STO)
- EN ISO 13849-1 PLd / IEC 62061 SIL 2 – Safety integrity level for the integrated Safe-Off function
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask.com specializes in sourcing Allen-Bradley / Rockwell Automation automation components for industrial OEMs, system integrators, and MRO procurement teams globally.
- Each unit undergoes visual inspection and functional verification prior to shipment.
- Products are sourced from authorized distributors, certified resellers, or verified surplus channels with full traceability documentation available on request.
- Original manufacturer packaging preserved where available; repackaged units are clearly identified.
- Warranty and return policy available — contact our team for project-specific terms.
How to Source This Part
- Add to Cart – Place your order directly on Konmask.com for immediate processing.
- Request a Quote – For volume orders, project BOMs, or lead-time inquiries, email support@konmask.com with your quantity and delivery requirements.
- Provide Your PO – We accept purchase orders from qualified industrial buyers. Net payment terms available for approved accounts.
- Expedited Shipping – DHL, FedEx, and UPS express options available for urgent production line requirements.
- Export Documentation – We provide commercial invoices, packing lists, and certificates of origin for international shipments.
Application-Specific FAQ
Q: Can the 2094-BM03-S operate as a standalone drive without an IAM?
A: No. The AM module requires a shared DC bus supplied by a 2094 Integrated Axis Module (IAM) on the same power rail. It cannot be powered independently.
Q: What is the maximum number of AM modules per IAM?
A: The number of axis modules per power rail depends on the IAM model and power rail size. Typical configurations support 2–7 AM modules per IAM. Refer to Rockwell publication 2094-UM001 for rail sizing guidelines.
Q: What does the “-S” suffix indicate?
A: The “-S” suffix designates the Safe-Off (SO) option, which provides a hardwired safety function that removes power from the motor output without removing control power from the drive — enabling SIL 2 / PLd safety architectures.
Q: Is this module compatible with iTRAK or MagneMotion systems?
A: No. The Kinetix 6000 series uses SERCOS II and is not compatible with iTRAK or MagneMotion linear motor systems, which require Kinetix 5700 or dedicated iTRAK power supplies.
Q: Can I replace a 2094-BM03-S with a 2094-BM05-S for more current?
A: Yes, provided the IAM and power rail have sufficient capacity. The 2094-BM05-S provides 5 A continuous / 15 A peak and is a direct form-factor replacement on the same power rail slot.
Q: What firmware version is required on the ControlLogix controller?
A: Kinetix 6000 drives require Logix5000 firmware v16 or later for full motion instruction support. Studio 5000 Logix Designer v21 or later is recommended for current AOP (Add-On Profile) compatibility.
