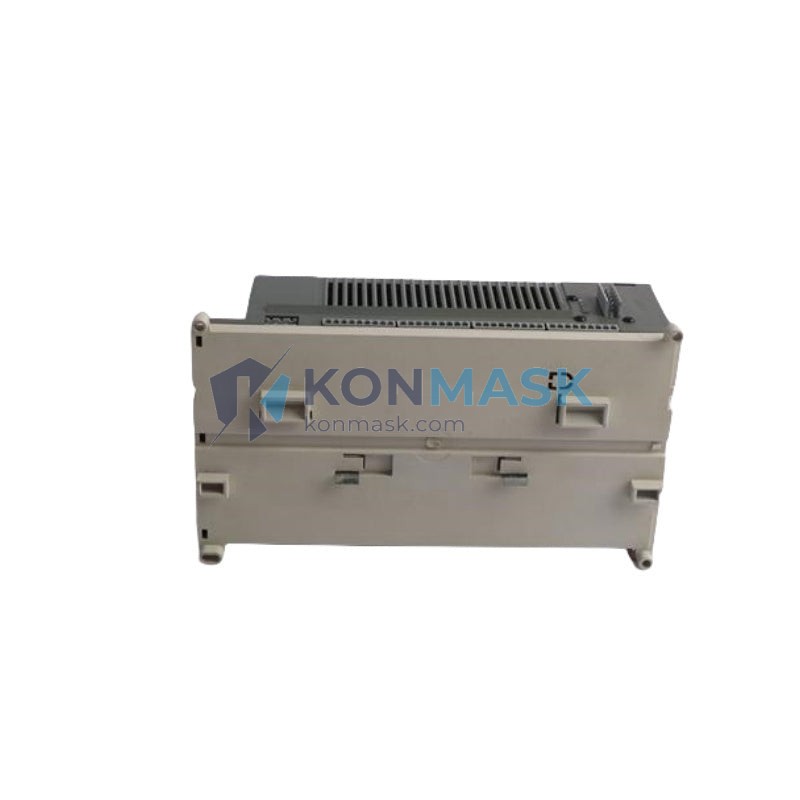

Process Automation Solution — ABB 07KT98 GJR5253100R0270 | Advant Controller 31 Series
Where This Product Is Used
The ABB 07KT98 (GJR5253100R0270) Advant Controller 31 Basic Unit is deployed across demanding industrial environments where deterministic control, high availability, and seamless integration with ABB’s AC 31 ecosystem are non-negotiable. Typical application sites include:
- Oil & Gas Processing Plants — pipeline pressure regulation, compressor sequencing, and emergency shutdown (ESD) logic
- Pulp & Paper Mills — coordinated drive control, stock preparation, and web tension management
- Water & Wastewater Treatment — pump station automation, dosing control, and SCADA integration
- Power Generation & Utilities — turbine auxiliary control, switchgear interlocking, and load management
- Chemical & Petrochemical Facilities — batch reactor sequencing, temperature loop control, and safety interlock systems
- Automotive & General Manufacturing — conveyor synchronization, robotic cell coordination, and quality inspection lines
Engineers specify the AC 31 platform when they need a proven, IEC 61131-3 compliant controller that integrates natively with ABB’s ADVANT fieldbus architecture and supports long-term spare-part availability for brownfield upgrades.
Technical Specifications
- Part Number: 07KT98 / GJR5253100R0270
- Series: Advant Controller 31 (AC 31)
- Manufacturer: ABB (ASEA Brown Boveri)
- Unit Type: Basic CPU Unit
- Programming Standard: IEC 61131-3 (LD, FBD, IL, ST, SFC)
- Communication: ARCNET / CS31 fieldbus; optional PROFIBUS-DP, Modbus RTU
- I/O Expansion: Supports distributed I/O via CS31 bus (up to 31 nodes)
- Memory: Flash-based program memory with battery-backed RAM for data retention
- Power Supply: 24 V DC nominal (18–30 V DC operating range)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −25 °C to +70 °C
- Humidity: 5–95 % RH, non-condensing
- Protection Class: IP20 (panel-mount installation)
- Dimensions (W × H × D): Refer to ABB datasheet GJR5253100R0270
- Weight: Approx. 1,500 g
- Certifications: CE, UL, cUL
Why Engineers Specify This Model
- Proven AC 31 Platform Longevity — The Advant Controller 31 has accumulated decades of field hours in critical infrastructure; replacement units are specified by asset managers who cannot afford unvalidated alternatives.
- Native CS31 Fieldbus Integration — Eliminates gateway hardware when expanding existing AC 31 networks, reducing BOM cost and latency.
- IEC 61131-3 Multi-Language Support — Allows control engineers to reuse existing ladder logic or migrate to structured text without retraining.
- Deterministic Scan Cycle — Consistent cycle times are critical for closed-loop PID and safety interlock applications.
- Battery-Backed Data Retention — Process setpoints and counters survive power interruptions without operator intervention.
- Broad Third-Party SCADA Compatibility — Modbus RTU and optional PROFIBUS-DP enable integration with Wonderware, Ignition, WinCC, and other HMI/SCADA platforms.
Complete System Bill of Materials
For a fully operational AC 31 control panel, engineers typically source the following alongside the 07KT98 CPU:
- Power Supply Module — ABB 07DC91 or equivalent 24 V DC DIN-rail PSU
- Digital Input Module — ABB 07DI92 (16 × 24 V DC DI)
- Digital Output Module — ABB 07DO91 (16 × 24 V DC DO, transistor)
- Analog Input Module — ABB 07AI91 (8 × 4–20 mA / 0–10 V AI)
- Analog Output Module — ABB 07AO91 (4 × 4–20 mA AO)
- CS31 Bus Cable — Shielded twisted-pair, per ABB CS31 wiring specification
- Programming Cable / Adapter — ABB TK501 or USB-to-serial adapter with 907 PC 331 software
- Battery (RAM Backup) — 3.6 V lithium, per ABB maintenance schedule
Contact [email protected] to request a complete BOM quotation for your project.
Compliance & Industry Standards
- IEC 61131-3 — Programmable controller software standard
- IEC 61000-4 — EMC immunity (ESD, EFT, surge, conducted RF)
- EN 61010-1 — Safety requirements for electrical equipment for measurement and control
- CE Marking — Compliant with EU Low Voltage and EMC Directives
- UL / cUL Listed — North American safety certification
- RoHS — Restriction of Hazardous Substances (verify revision with ABB datasheet)
Quality Assurance & Sourcing
Every ABB 07KT98 unit shipped from Konmask.com undergoes the following verification process before dispatch:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and date-code authentication against ABB factory markings
- Power-on functional test where test equipment is available
- Anti-static packaging with humidity indicator card
- Traceable documentation: packing list, inspection record, and certificate of conformance on request
Units are sourced from authorized distributors, OEM decommissions, and verified surplus channels. Konmask does not sell grey-market or remarked components.
How to Source This Part
- Add to Cart — Click Buy It Now or Add to Cart for immediate checkout.
- Request a Quote — For quantities ≥ 2 units or project BOM pricing, email [email protected] with your project details and required delivery date.
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock units: contact us for sourcing lead time (typically 5–15 business days).
- Export & Customs — We handle export documentation (commercial invoice, packing list, HS code 8537.10) for international shipments. DDP and DAP Incoterms available on request.
- Payment — T/T bank transfer, PayPal, and major credit cards accepted. Net-30 terms available for approved accounts.
Application-Specific FAQ
Q: Is the 07KT98 compatible with the ABB 07KT97 or 07KT99?
A: The AC 31 family shares the CS31 bus architecture, but CPU firmware and I/O addressing differ between revisions. Verify compatibility with your existing rack configuration before substitution. Contact us for cross-reference support.
Q: Can this unit be programmed with 907 PC 331 software on Windows 10/11?
A: Yes, with a USB-to-serial adapter and compatibility mode settings. ABB’s 907 PC 331 v6.x supports Windows 10. Contact ABB or our technical team for driver guidance.
Q: What is the battery replacement interval?
A: ABB recommends replacing the RAM backup battery every 3–5 years under normal operating conditions. Battery low indication is flagged via the CPU status LED.
Q: Do you offer a warranty?
A: Yes — 12-month warranty against defects in materials and workmanship. DOA units are replaced or refunded within 30 days of delivery.
Q: Can Konmask assist with system integration or commissioning?
A: We specialize in parts supply. For on-site commissioning, we can refer you to certified ABB system integrators in your region.
