ABB 1MRB178009R0002 (500PBIO01-TTL) – Binary I/O Control Board | PROCONTROL P13/P14 Platform
Engineering Background: The ABB PROCONTROL P13/P14 distributed control system (DCS) has been a cornerstone of power generation and heavy industrial process automation since the 1980s. Designed for long-lifecycle plant environments, the platform demands hardware that delivers deterministic I/O performance, robust signal isolation, and field-proven reliability across decades of continuous operation.

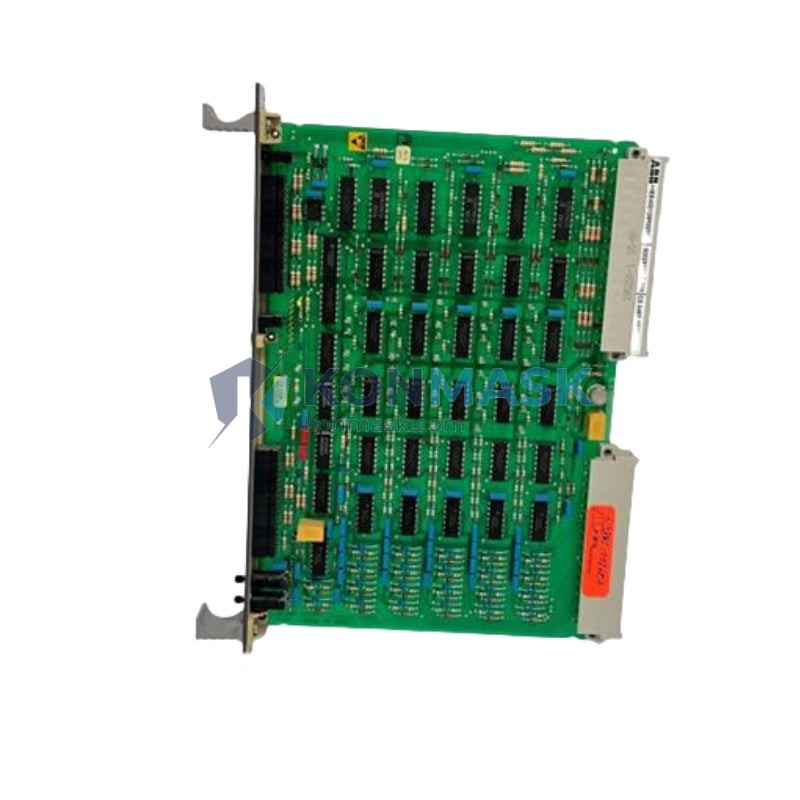

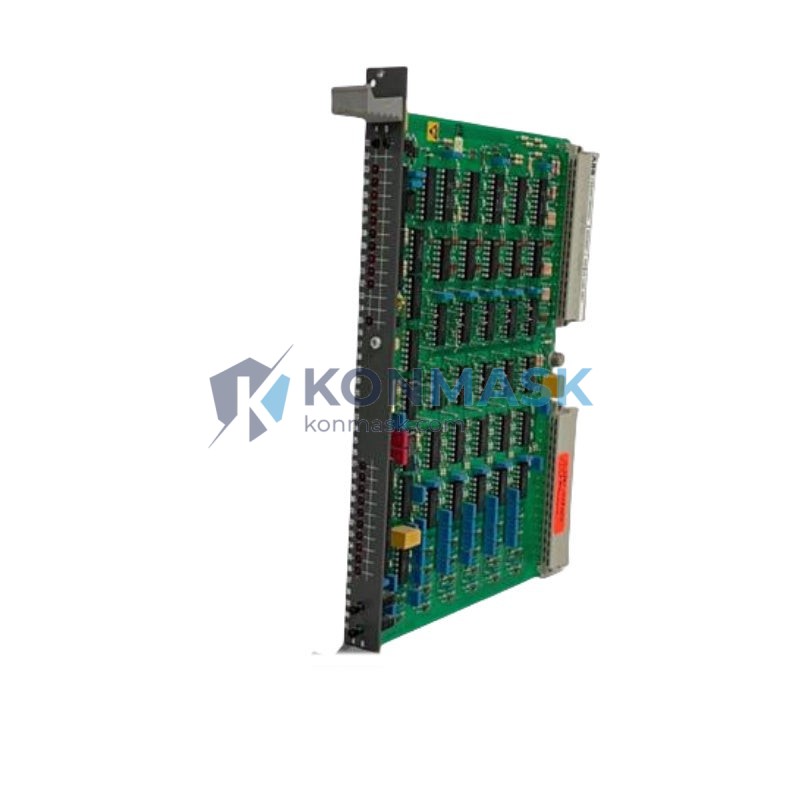

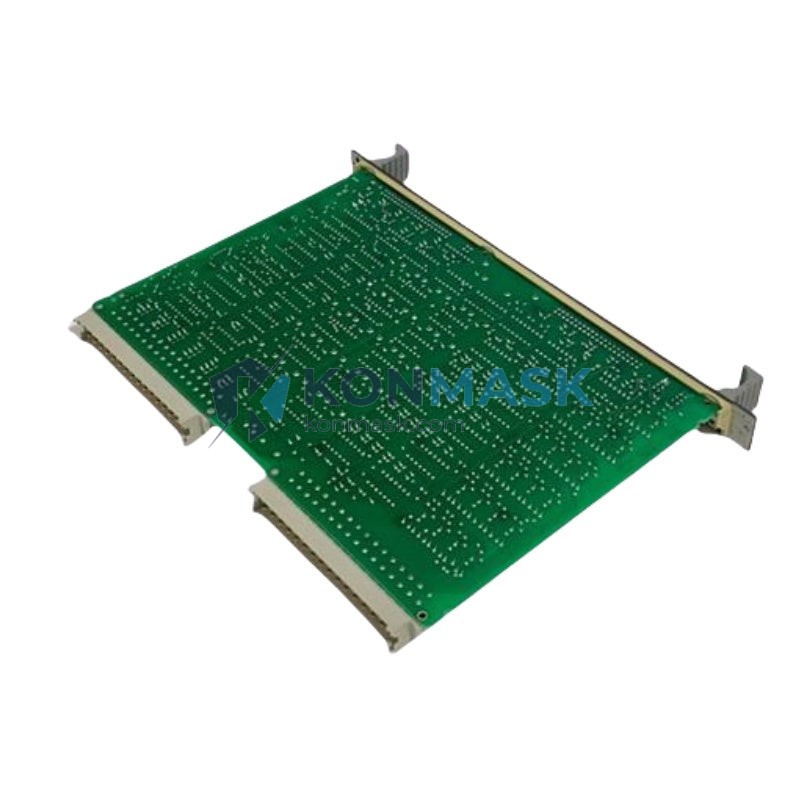

Product Positioning: The 1MRB178009R0002 (500PBIO01-TTL) is a binary input/output control board engineered specifically for the PROCONTROL P13/P14 backplane architecture. It handles TTL-level discrete signal acquisition and command output, serving as the critical interface between the DCS controller and field instrumentation in power plants, refineries, and large-scale process facilities. Konmask.com supplies this board as a tested, verified spare — enabling rapid replacement without extended lead times from OEM channels.
Complete Technical Specifications
| Part Number | 1MRB178009R0002 |
| Module Reference | 500PBIO01-TTL |
| Manufacturer | ABB (Asea Brown Boveri) |
| Platform / Series | PROCONTROL P13 / P14 DCS |
| Module Type | Binary I/O Control Board (TTL Logic Level) |
| Signal Type | TTL (Transistor-Transistor Logic), discrete binary |
| Form Factor | Eurocard PCB, rack-mount backplane insertion |
| Operating Temperature | 0°C to +55°C (ambient, forced-air cooled rack) |
| Storage Temperature | -25°C to +70°C |
| Power Supply | Via PROCONTROL P13/P14 backplane bus |
| Approx. Weight | 500 g |
| HS Code | 8537.10 |
| Country of Origin | Germany |
| Condition | Used / Refurbished – Fully Tested |
| Warranty | 90-Day Functional Warranty |
Proven Application Environments
- Thermal & Combined-Cycle Power Plants – turbine control, boiler I/O sequencing, and auxiliary system monitoring
- Hydroelectric Generation – gate control logic and protection relay interfacing
- Oil & Gas Refineries – process unit binary status acquisition and ESD system integration
- Chemical & Petrochemical Plants – reactor interlock logic and valve position feedback
- Pulp & Paper Mills – drive sequencing and process line binary I/O
- Water Treatment Facilities – pump station control and alarm management
Engineering Advantages
- Direct OEM Compatibility – plug-and-play replacement for existing PROCONTROL P13/P14 racks; no firmware reconfiguration required
- TTL Signal Integrity – low-noise TTL logic ensures reliable discrete signal acquisition in electrically noisy industrial environments
- Long-Lifecycle Support – critical spare for plants operating legacy ABB DCS beyond OEM production end-of-life
- Tested Before Shipment – each board undergoes functional power-on and I/O channel verification prior to dispatch
- Rapid Deployment – reduces unplanned downtime; board-swap replacement minimizes MTTR (Mean Time To Repair)
- Traceable Documentation – supplied with inspection record and part number verification sheet
System Architecture & Signal Flow
Within the PROCONTROL P13/P14 architecture, the 500PBIO01-TTL board occupies a dedicated I/O slot on the system backplane. Field binary signals (contact closures, relay outputs, TTL-level logic) are routed through the front-panel connector to the board’s input conditioning circuitry. The board performs signal debouncing, level conversion, and status latching before presenting data to the backplane communication bus. Output channels drive TTL-compatible field devices or relay driver cards downstream. The board communicates with the central processor module via the proprietary PROCONTROL parallel bus, ensuring deterministic scan-cycle performance consistent with the platform’s real-time control requirements.
Sourcing & Quality Verification
Konmask.com sources ABB PROCONTROL spare boards through verified industrial decommissioning projects, authorized surplus channels, and long-term supplier partnerships. Every unit received undergoes a multi-stage incoming inspection:
- Visual inspection – PCB condition, component integrity, connector pin check
- Part number and revision label verification against ABB documentation
- Power-on functional test with backplane simulator
- I/O channel continuity and logic-level verification
- ESD-safe packaging and anti-static bag sealing prior to shipment
Procurement Process
To place an order or request a formal quotation for the ABB 1MRB178009R0002 (500PBIO01-TTL):
- Add to cart and proceed to checkout, or
- Contact our engineering sales team directly for volume pricing, lead time confirmation, or technical pre-sales consultation
- Provide your plant name, DCS rack configuration, and required quantity for expedited processing
- Export documentation (commercial invoice, packing list, COO certificate) available upon request for international shipments
Lead Time: In-stock units ship within 1–3 business days. EXW Xiamen, China. DDP/DAP available for select destinations.
Technical FAQ
Q: Is this board compatible with both PROCONTROL P13 and P14?
A: Yes. The 500PBIO01-TTL module is designed for the shared backplane architecture used across both P13 and P14 variants. Confirm your rack slot assignment with your DCS documentation before installation.
Q: What is the difference between the TTL and non-TTL variants of the 500PBIO01?
A: The TTL suffix designates boards configured for TTL-level (0–5V logic) discrete I/O. Non-TTL variants may support 24VDC or other field voltage levels. Ensure your field wiring and termination cards match the board’s signal level specification.
Q: Can Konmask provide a test report or inspection certificate?
A: Yes. A functional test record is available upon request. For critical plant applications, we recommend requesting this documentation at the time of order.
Q: Do you offer exchange or repair services?
A: Exchange programs are available for qualifying boards. Contact our technical team with your defective unit’s part number and failure description for evaluation.
Q: What warranty is provided?
A: All boards carry a 90-day functional warranty covering verified defects under normal operating conditions. Warranty claims require return of the defective unit for inspection.
