ABB 3HAC029903-003 – Expansion Memory Board | IRB360 / DSQC330 / DSQC323 Platform

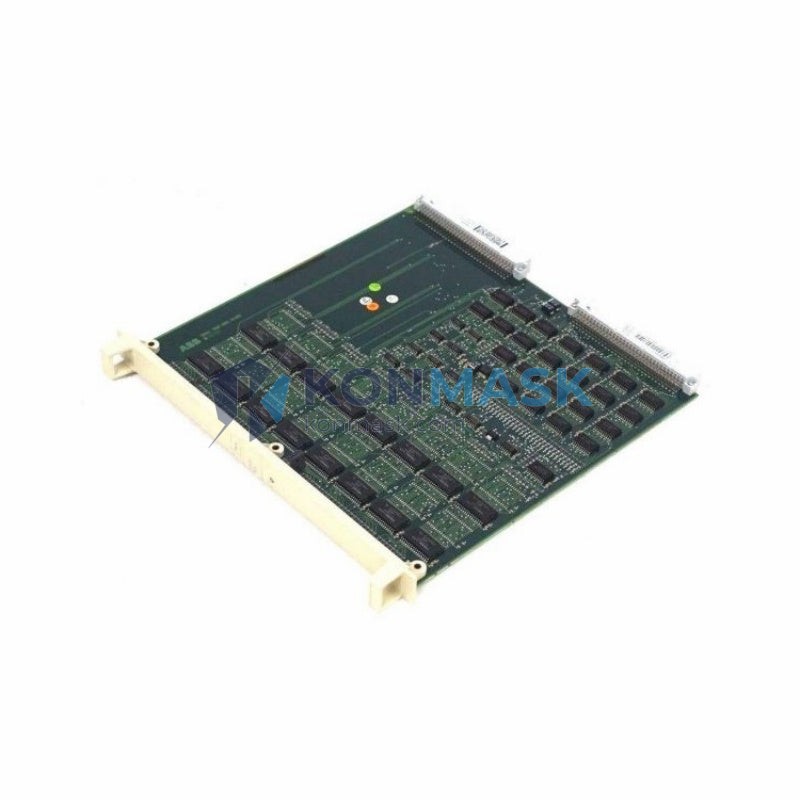

Engineering Background: The ABB 3HAC029903-003 is an OEM Expansion Memory Board designed for ABB’s IRC5 and S4C+ controller families, specifically validated for use in the IRB360 FlexPicker delta robot series. It extends the memory capacity of the robot controller, enabling complex program storage, extended I/O mapping, and multi-task execution in high-throughput pick-and-place environments.
Product Positioning: This board serves as a critical upgrade and replacement component for systems running DSQC330 (3HAB6372-1) and DSQC323 (3HAB5956-1) controller modules. It is the preferred sourcing choice for maintenance engineers seeking OEM-grade reliability without full controller replacement. Konmask.com supplies verified, tested units with full traceability.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3HAC029903-003 |
| Manufacturer | ABB Robotics |
| Component Type | Expansion Memory Board (PCB) |
| Compatible Controller | DSQC330 (3HAB6372-1), DSQC323 (3HAB5956-1) |
| Target Robot Series | IRB360 FlexPicker (all variants) |
| Platform | ABB IRC5 / S4C+ |
| Function | Program memory expansion, I/O table extension, multi-task support |
| Form Factor | Plug-in PCB module |
| Weight (approx.) | 600 g (packaged) |
| Condition | New OEM / Refurbished (specify on inquiry) |
| Warranty | 12 months |
| HS Code | 8537.10 (programmable controller boards) |
Proven Application Environments
- Food & Beverage Packaging: IRB360 FlexPicker lines requiring extended recipe storage and multi-SKU program libraries.
- Pharmaceutical Pick-and-Place: High-speed blister pack and vial handling with complex motion profiles stored on expanded memory.
- Electronics Assembly: SMT and PCB handling robots needing large I/O maps for vision-guided placement.
- Consumer Goods Sorting: Multi-lane conveyor sorting systems with dynamic product routing logic.
- Automotive Sub-Assembly: Lightweight component handling integrated into IRC5 multi-robot cells.
Engineering Advantages
- OEM Compatibility: Direct plug-in replacement — no firmware modification or re-parameterization required for DSQC330/DSQC323 hosts.
- Extended Program Capacity: Increases available RAPID program storage, reducing the need for external program loading during production shifts.
- Stable I/O Mapping: Supports expanded I/O table configurations critical for vision systems and conveyor tracking.
- Reduced Downtime: Drop-in replacement minimizes controller offline time versus full board swap or controller replacement.
- Verified Traceability: Each unit supplied by Konmask.com is inspected and logged with serial number documentation.
System Architecture & Signal Flow
The 3HAC029903-003 interfaces directly with the DSQC330 or DSQC323 main computer board via the internal memory bus. Upon installation, the IRC5/S4C+ controller automatically detects the expanded memory pool during boot diagnostics (RAPID system check). Signal flow:
- Controller power-on → BIOS memory scan detects 3HAC029903-003 module.
- RAPID runtime allocates extended memory segments for program tasks and I/O tables.
- FlexPendant / RobotStudio reflects updated memory map — no manual configuration needed.
- Production programs load into expanded memory; controller operates at full cycle speed.
No additional cabling or external power supply is required. The board is fully bus-powered through the host controller slot.
Sourcing & Quality Verification
- Source: Authorized distribution channels and verified OEM surplus stock.
- Inspection: 100% visual inspection + functional power-on test before shipment.
- Documentation: Certificate of conformity, serial number log, and test report available on request.
- Packaging: Anti-static ESD bag + foam-lined carton for international transit.
- Lead Time: In-stock units ship within 1–3 business days; sourced units 7–15 business days.
Procurement Process
- Submit your inquiry via support@konmask.com with your robot serial number and controller type.
- Receive a formal quotation with unit price, lead time, and shipping options within 24 hours.
- Confirm purchase order — payment via T/T, PayPal, or credit card accepted.
- Unit dispatched with tracking number and shipping documents (commercial invoice, packing list).
- Post-delivery technical support available for installation verification.
Technical FAQ
Q: Is 3HAC029903-003 compatible with both DSQC330 and DSQC323?
A: Yes. It is validated for both 3HAB6372-1 (DSQC330) and 3HAB5956-1 (DSQC323) host boards within the IRB360 controller family.
Q: Does installation require an ABB service engineer?
A: The board is a plug-in module. Qualified maintenance engineers familiar with IRC5/S4C+ hardware can install it. ABB service is recommended if the controller is under active warranty.
Q: Can this board be used in IRC5 controllers outside the IRB360 series?
A: Compatibility depends on the specific IRC5 variant and DSQC board revision. Contact Konmask.com with your full controller part number for confirmation.
Q: What is the warranty period?
A: 12 months from shipment date, covering manufacturing defects and functional failure under normal operating conditions.
Q: Do you provide a test report?
A: Yes. A functional test report is available upon request at no additional charge.
