ABB IRB1600ID 3HS1170-01 / 3HS0864-01 Bell Cup Assembly – IRB1600ID Integrated Dressing Spray Robot
When a bell cup assembly fails mid-production on an automotive painting line, the consequences are immediate and costly: uneven atomization, paint defects, unplanned downtime, and scrapped body panels. The bell cup is the heart of the rotary atomizer — without a precision-matched replacement, the entire spray process is compromised. Every hour of downtime on a high-throughput paint shop can translate to tens of thousands of dollars in lost output.

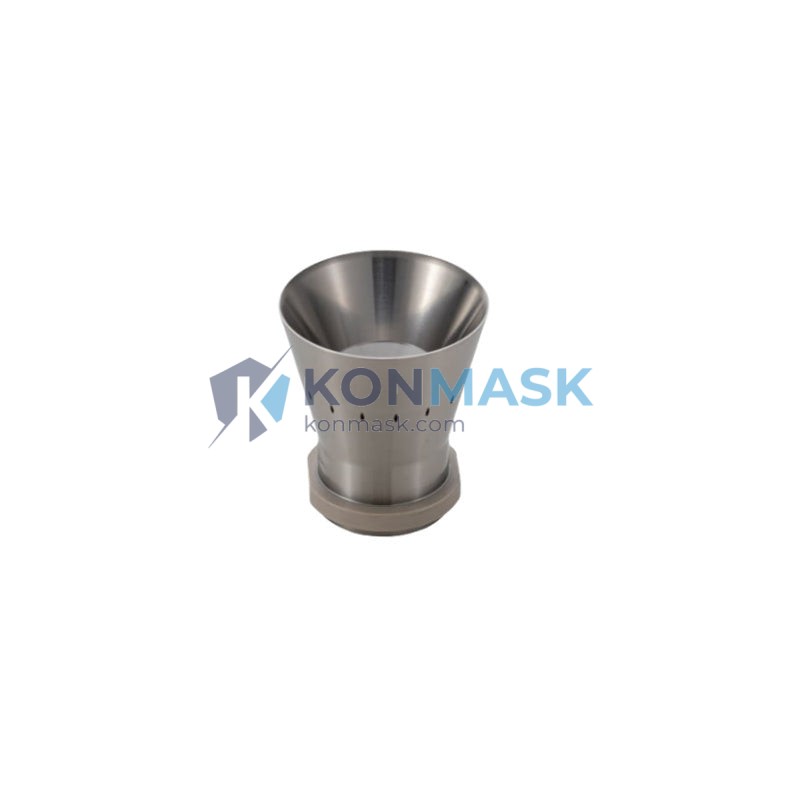

The ABB IRB1600ID Bell Cup Assembly (Part Numbers: 3HS1170-01 / 3HS0864-01) is the OEM-specified rotary atomizer component for the ABB IRB1600ID Integrated Dressing robot series — one of the most widely deployed compact painting robots in global automotive and general industry. Engineered for high-speed rotation and consistent atomization, this assembly maintains the coating quality standards demanded by Tier 1 automotive suppliers and industrial OEMs worldwide.
Technical Specifications
- Manufacturer: ABB Robotics
- Part Numbers: 3HS1170-01 / 3HS0864-01
- Compatible Robot: ABB IRB1600ID (Integrated Dressing)
- Component Type: Bell Cup Assembly (Rotary Atomizer)
- Application: Electrostatic spray painting / rotary atomization
- Series: IRB1600ID — 6-axis compact painting robot with integrated process cabling
- Weight: Approx. 100 g
- Condition: New / Surplus / Refurbished (specify on inquiry)
Key Features & Benefits
- OEM Precision: Manufactured to ABB’s exact tolerances for the IRB1600ID atomizer head, ensuring drop-in compatibility without modification.
- Consistent Atomization: Maintains uniform paint particle size distribution for high-quality finish across automotive body panels, plastic components, and metal surfaces.
- Rapid Downtime Recovery: Stocking this assembly enables fast swap-out, minimizing production interruption on painting lines.
- Dual Part Number Coverage: Covers both 3HS1170-01 and 3HS0864-01 references, accommodating different IRB1600ID build revisions.
- Corrosion-Resistant Materials: Designed to withstand solvent-based and waterborne paint environments.
Industry & Equipment Applications
- Automotive body painting lines (OEM and Tier 1 suppliers)
- Plastic component coating (bumpers, dashboards, interior trim)
- General industrial spray finishing (metal fabrication, appliances)
- Aerospace surface treatment lines
- Any facility operating ABB IRB1600ID painting robots
System Integration & Compatible Parts
The 3HS1170-01 / 3HS0864-01 Bell Cup Assembly is designed for use within the ABB IRB1600ID rotary atomizer system. Compatible and frequently co-ordered parts include:
- ABB IRB1600ID Turbine Unit
- ABB IRB1600ID Paint Hose Assembly
- ABB IRB1600ID Shaping Air Ring
- ABB IRC5 Paint Controller modules
Contact our technical team to confirm cross-compatibility with your specific robot serial number and software version.
Our Quality Assurance Process
- Source Verification: All parts are sourced from authorized ABB distributors or directly from decommissioned OEM production lines.
- Visual & Dimensional Inspection: Each assembly is inspected for surface integrity, thread condition, and dimensional conformance before dispatch.
- Traceability: Part numbers and batch references are documented for full supply chain traceability.
- Secure Packaging: Anti-static, moisture-proof packaging to prevent transit damage.
How to Order
- Submit an inquiry via the Contact Us form or email support@konmask.com.
- Provide your robot serial number and current part number (3HS1170-01 or 3HS0864-01) for confirmation.
- Receive a formal quotation with lead time and shipping options within 24 business hours.
- Confirm order and arrange payment via T/T, L/C, or other agreed terms.
- Parts dispatched with full documentation (packing list, inspection report, commercial invoice).
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, robot, and automation spare parts — not a general marketplace.
- Global B2B Supply: Serving maintenance engineers, procurement teams, and system integrators across 30+ countries.
- Fast Response: Dedicated technical sales team responds to all inquiries within 24 hours.
- Competitive Pricing: Direct sourcing relationships enable competitive pricing without compromising authenticity.
- Reliable Logistics: DHL, FedEx, UPS, and sea freight options with full export documentation support.
Frequently Asked Questions
- Q: Are 3HS1170-01 and 3HS0864-01 interchangeable?
- A: They are both Bell Cup Assembly references for the ABB IRB1600ID. Please provide your robot serial number so our team can confirm the exact applicable part for your build revision.
- Q: Do you supply new or refurbished units?
- A: We can supply new, surplus-new, and professionally refurbished units depending on availability. Condition is clearly stated in the quotation.
- Q: What is the typical lead time?
- A: In-stock items ship within 3–5 business days. Out-of-stock items typically have a 2–4 week lead time. Contact us for current stock status.
- Q: Can you provide an export certificate or country of origin documentation?
- A: Yes. We provide full export documentation including commercial invoice, packing list, and certificate of origin upon request.
- Q: What warranty is provided?
- A: We offer a 90-day warranty against manufacturing defects on all new parts. Terms for refurbished units are specified per order.
