Industrial Robot Reducer Solution – ABB 3HAC066785-001 / 3HAC037638-001 | RV 40E-81 Assembly

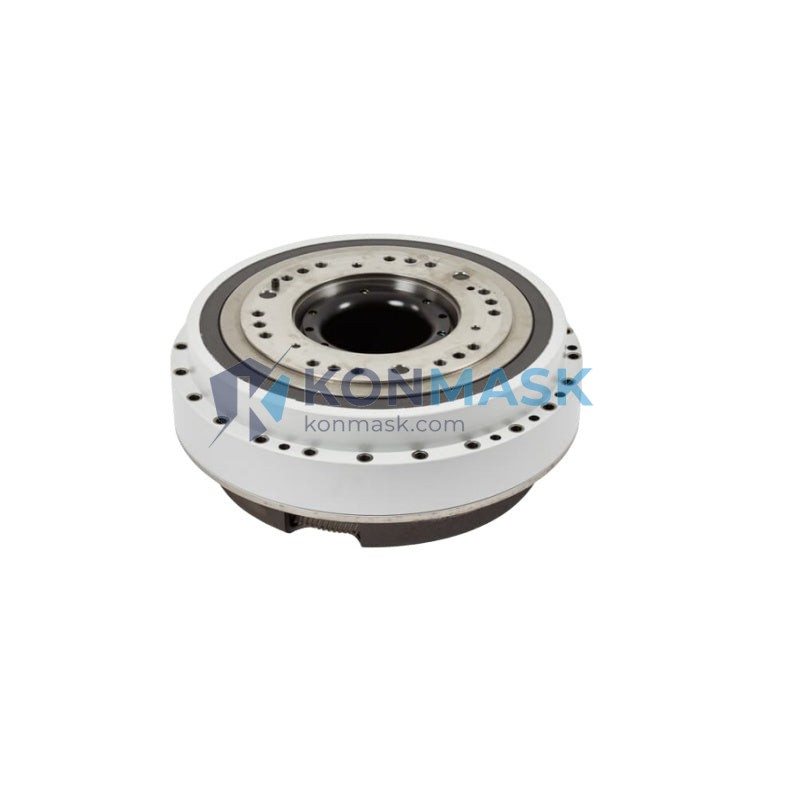

The ABB 3HAC066785-001 (supersedes 3HAC037638-001 / -002 / -003 / -004 / -005) is the OEM-specified RV 40E-81 cycloidal reducer assembly engineered for the wrist/axis joints of ABB IRB7600 and IRB6650S heavy-payload industrial robots. Sourced through verified supply channels and inspected before dispatch, this assembly restores full kinematic accuracy and torque capacity to your robot cell.
Where This Product Is Used
- Automotive Body-in-White (BIW) Welding Lines — IRB7600 robots performing spot-welding and MIG/MAG welding on chassis frames; reducer wear causes positional drift and weld-quality failures.
- Heavy Press-Tending & Stamping Cells — IRB6650S handling steel blanks up to 200 kg; cycloidal reducer fatigue is the primary maintenance interval driver.
- Foundry & Die-Casting Extraction — High-temperature, high-vibration environments accelerate grease degradation inside the RV unit; scheduled replacement prevents unplanned downtime.
- Palletizing & Material Handling — High-cycle, continuous-duty applications where backlash growth beyond 0.05° triggers product mis-placement alarms.
- Aerospace Structural Assembly Jigs — Precision drilling and riveting fixtures requiring sub-0.1 mm TCP repeatability.
Technical Specifications
- ABB Part Numbers: 3HAC066785-001 (current) | 3HAC037638-001 / -002 / -003 / -004 / -005 (superseded)
- Reducer Type: RV (Rotary Vector) Cycloidal — Model RV 40E-81
- Reduction Ratio: 81:1
- Compatible Robots: ABB IRB7600 series, ABB IRB6650S series
- Axis Application: Wrist / Axis 4–6 joint (verify axis position with your robot BOM)
- Rated Torque: Per Nabtesco RV-40E specification (~392 N·m continuous)
- Backlash (new): ≤ 1 arc-min
- Lubrication: Pre-filled with Nabtesco-approved grease (Vigo Grease RE No.0)
- Weight: ~400 g (assembly only, excluding mounting hardware)
- Country of Origin: Japan (Nabtesco OEM core) / assembled component
Why Engineers Specify This Model
- Direct OEM Cross-Reference: 3HAC066785-001 is ABB’s current active part number; all superseded -001 through -005 variants are fully interchangeable.
- Zero Backlash Growth at Delivery: Each unit is tested for backlash ≤ 1 arc-min before shipment — critical for TCP accuracy in welding and assembly applications.
- Grease Pre-Filled & Sealed: Eliminates field-filling errors that cause premature bearing failure.
- Drop-In Replacement: Matches OEM bolt pattern, shaft interface, and encoder coupling geometry — no machining required.
- Traceability Documentation: Batch records and inspection reports available on request for ISO 9001 / IATF 16949 audit compliance.
Complete System Bill of Materials
When replacing the RV 40E-81 assembly, engineers typically source the following companion parts:
- Axis motor (ABB 3HAC028284-001 or equivalent servo motor for IRB7600 axis)
- Motor coupling / flange gasket set
- Nabtesco Vigo Grease RE No.0 (500 g cartridge) — top-up after installation
- Mounting bolt kit (M8 / M10 class 12.9, torque per ABB Product Manual)
- Oil seal / O-ring replacement set
- ABB IRB7600 / IRB6650S Product Manual (3HAC028284-001 series) for torque specs
Contact Konmask.com for bundled BOM sourcing — we can consolidate multi-line orders into a single shipment.
Compliance & Industry Standards
- ISO 9283 — Manipulating Industrial Robots: Performance Criteria (backlash & repeatability)
- ISO 10218-1 — Safety Requirements for Industrial Robots
- IATF 16949 — Automotive Quality Management (traceability records available)
- RoHS Compliant — No restricted hazardous substances in reducer materials
- CE Marking — Component supplied as OEM spare; CE declaration per ABB robot system documentation
Quality Assurance & Sourcing
- ✅ Verified Supply Chain: Sourced from ABB-authorized distributors and certified industrial surplus channels.
- ✅ Pre-Shipment Inspection: Visual, dimensional, and backlash check on every unit.
- ✅ Authentic Packaging: Ships in OEM or equivalent protective packaging with part label intact.
- ✅ Warranty: 90-day defect warranty; DOA replacement within 7 business days.
- ✅ Stock Transparency: Real-time availability confirmed before order acceptance — no phantom stock.
How to Source This Part
- Confirm your part number — Cross-reference 3HAC066785-001 or any 3HAC037638-00X against your robot’s axis BOM or ABB spare parts catalog.
- Submit a quote request — Email support@konmask.com with your robot serial number and required quantity.
- Receive availability & lead time — Typical response within 24 business hours; expedited sourcing available for AOG (Aircraft/Asset on Ground) situations.
- Order & ship — DHL Express / FedEx International Priority; export documentation (commercial invoice, packing list, COO) included.
Application-Specific FAQ
Q: Is 3HAC066785-001 a direct replacement for 3HAC037638-001?
A: Yes. ABB issued 3HAC066785-001 as the consolidated current part number superseding all 3HAC037638-001 through -005 variants. They are mechanically identical and fully interchangeable.
Q: Which axis does this reducer serve on the IRB7600?
A: Typically Axis 4 or 5 depending on robot configuration. Always verify against your specific robot’s spare parts list (SPL) using the robot serial number on ABB’s myABB portal.
Q: Can I install this without an ABB service engineer?
A: ABB recommends certified service personnel for reducer replacement due to torque calibration requirements post-installation. Konmask can connect you with regional ABB service partners if needed.
Q: What is the typical replacement interval?
A: ABB recommends reducer inspection at 20,000 operating hours or 4 years (whichever comes first) under standard duty cycles. High-cycle or high-temperature environments may require earlier replacement.
Q: Do you supply the grease separately?
A: Yes. Nabtesco Vigo Grease RE No.0 is available as a separate line item. Request it with your reducer order for a consolidated shipment.
