ABB 3HNA013638-001 / 3HNE08898-1 – Robot Cable Harness | MH24 Series Platform

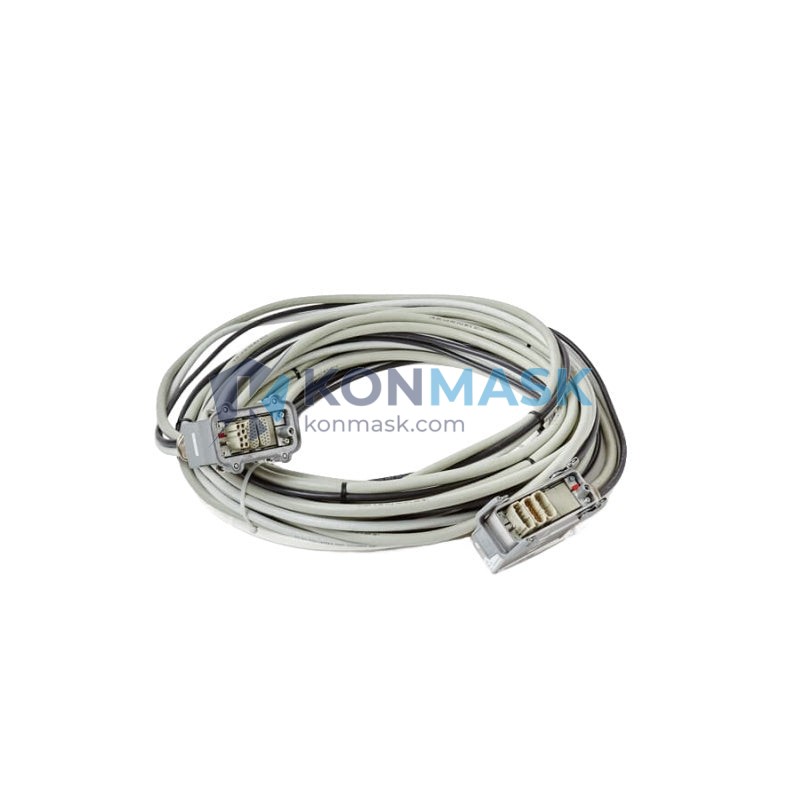

The ABB 3HNA013638-001 (cross-reference: 3HNE08898-1, MH24.4-5, MBL60S5M750, 3HAC9038-1) is a factory-grade robot cable harness engineered for ABB’s IRB industrial robot series. Designed to withstand the mechanical stress, torsion, and EMI exposure inherent in high-cycle robotic arms, this harness is a critical signal and power conduit between the robot controller and end-effector axes.
Konmask.com supplies this component to maintenance engineers, OEM integrators, and automation procurement teams requiring verified, traceable parts with fast international logistics.
Complete Technical Specifications
- Primary Part Number: 3HNA013638-001
- Cross-Reference / Alternate SKUs: 3HNE08898-1 | MH24.4-5 | MBL60S5M750 | 3HAC9038-1
- Manufacturer: ABB Robotics
- Product Family: MH24 Robot Cable Harness Series
- Compatible Platforms: ABB IRB 6640, IRB 6650, IRB 6660, IRB 7600 (verify axis config with your robot serial)
- Cable Type: Multi-conductor robot flex cable harness (power + signal)
- Cable Length: MBL60S5M750 designation indicates 750 mm nominal routing length
- Connector Standard: ABB proprietary multi-pin locking connectors (both ends pre-terminated)
- Insulation Rating: Suitable for continuous flex, oil-resistant outer jacket
- Weight: Approx. 420 g
- Country of Origin: Sweden / China (ABB dual-source manufacturing)
- Condition: New (OEM) / Tested Surplus (specify at inquiry)
Proven Application Environments
- Automotive body welding and spot-weld robot cells (IRB 6640/6650 lines)
- Heavy-payload palletizing and material handling (IRB 7600 configurations)
- Foundry and press-tending robots requiring oil/coolant-resistant cabling
- Aerospace component assembly with high-cycle, precision motion requirements
- Preventive maintenance replacement in 24/7 production environments
- OEM machine builders integrating ABB robots into custom automation cells
Engineering Advantages
- OEM-matched geometry: Pre-routed and terminated to ABB factory specifications — no field splicing required
- Flex-rated conductors: Designed for millions of flex cycles without conductor fatigue or insulation cracking
- EMI shielding: Braided shield on signal conductors prevents encoder noise and axis faults
- Plug-and-play replacement: Direct swap with no controller reconfiguration needed
- Multi-SKU traceability: All cross-reference numbers (3HNE08898-1, MH24.4-5, MBL60S5M750, 3HAC9038-1) verified against ABB spare parts database
System Architecture & Signal Flow
This harness routes from the IRC5 / IRC5 Compact controller cabinet through the robot base and upper arm to the wrist/axis 6 connector block. It carries:
- Motor power conductors (axes 4–6 depending on configuration)
- Resolver / encoder signal pairs for position feedback
- Brake release signals for axis holding brakes
- Customer I/O conductors (tool signal lines, MH24 designation)
Failure modes addressed by replacement: intermittent axis faults (ERR_AXIS_COMM), encoder signal dropout, brake release errors, and tool I/O loss.
Sourcing & Quality Verification
- All units inspected against ABB part number label and connector pin-out before dispatch
- Packaging includes original ABB part label or Konmask inspection tag with cross-reference confirmation
- Surplus units tested for continuity and insulation resistance (IR > 100 MΩ @ 500 VDC)
- Batch traceability records available on request for ISO-audited facilities
- Export-compliant documentation (commercial invoice, packing list, COO) provided for all international shipments
Procurement Process
- Step 1: Confirm your robot serial number and axis configuration matches the MH24.4-5 harness routing
- Step 2: Add to cart or contact support@konmask.com for volume pricing and lead time
- Step 3: Receive order confirmation with estimated dispatch (typically 1–3 business days for in-stock units)
- Step 4: International shipping via DHL / FedEx with full tracking; customs documentation included
- Step 5: Installation support available via email — reference your robot model and fault code
Technical FAQ
Q: Is 3HNA013638-001 the same as 3HNE08898-1?
A: Yes. ABB uses multiple part number formats across product generations and regional catalogs. Both numbers refer to the same physical harness assembly. MH24.4-5, MBL60S5M750, and 3HAC9038-1 are additional cross-references for the same unit.
Q: Which robot models use this cable harness?
A: Primarily ABB IRB 6640, IRB 6650, and IRB 6660 variants with MH24 upper arm configuration. Verify against your robot’s spare parts manual (3HAC XXXXX-001) before ordering.
Q: Can this harness be repaired instead of replaced?
A: ABB does not recommend field repair of robot cable harnesses due to flex-cycle integrity requirements. Full replacement is the validated maintenance procedure.
Q: Do you offer expedited shipping for production-down situations?
A: Yes. Contact support@konmask.com or call +0086 19859288691 for emergency dispatch options.
Q: Is a warranty provided?
A: New OEM units carry standard ABB warranty terms. Tested surplus units carry a 90-day Konmask functional warranty.
