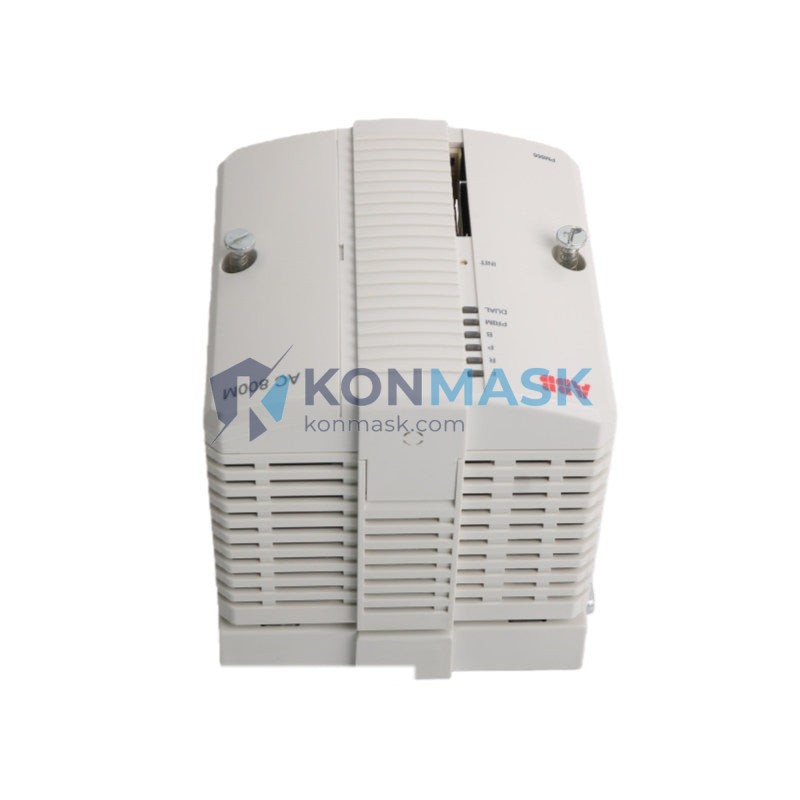

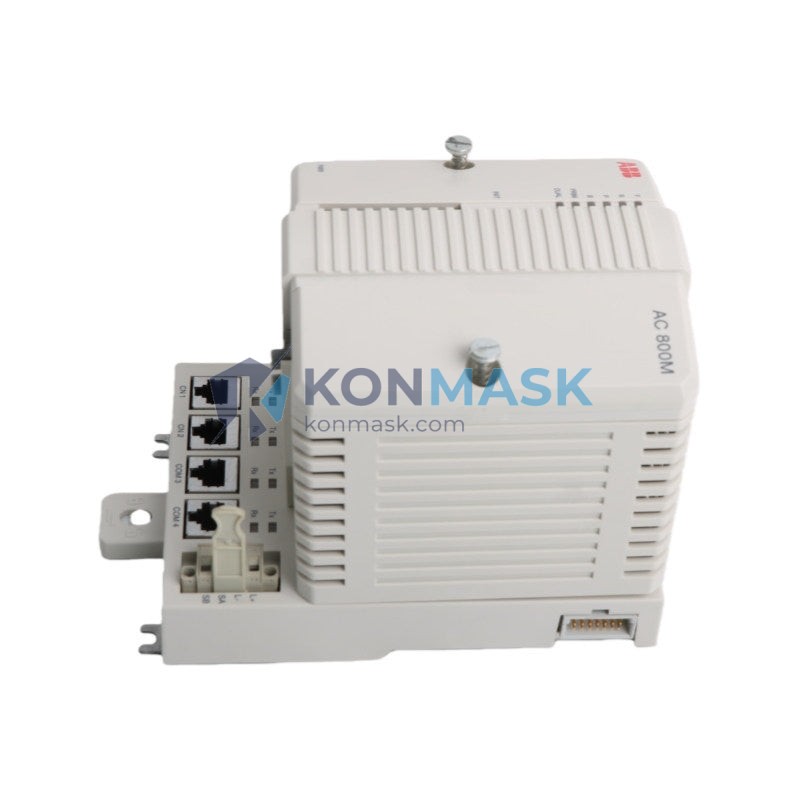

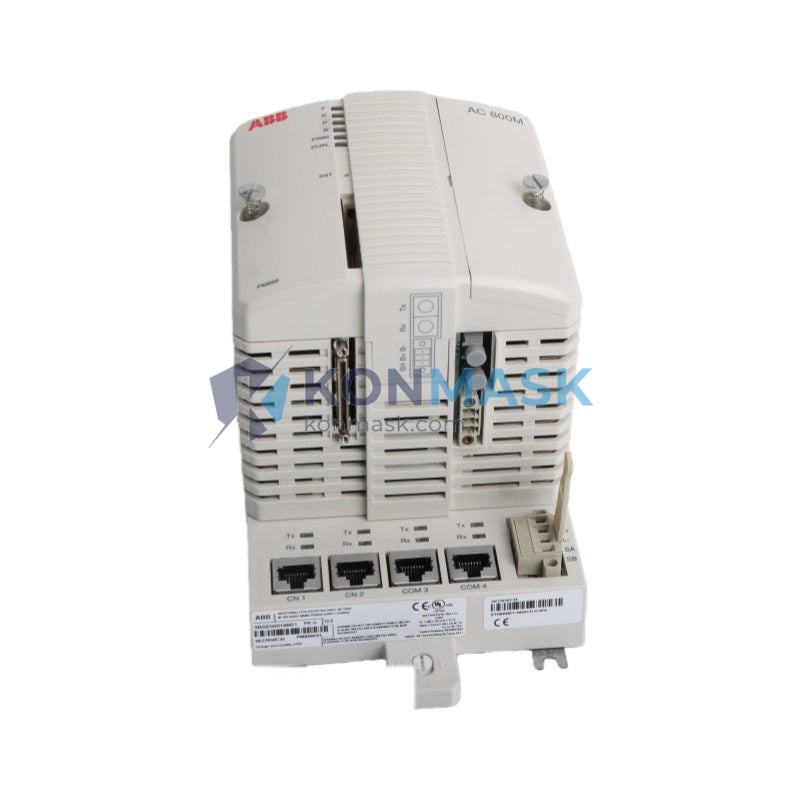

Genuine ABB PM866K01 3BSE050198R1 CPU Processor Unit | AC800M Series — Verified Source
Konmask.com is a specialized distributor of industrial automation components. This listing covers the ABB AC800M PM866K01 (Part No. 3BSE050198R1) — a high-performance CPU processor module designed for ABB’s AC800M Distributed Control System (DCS) platform. Every unit we supply undergoes a documented 4-step verification process before dispatch.
Technical Specifications
- Manufacturer: ABB Ltd.
- Part Number / SKU: PM866K01 / 3BSE050198R1
- Series: AC800M (Medium Controller)
- Module Type: CPU / Processor Unit
- Processor Architecture: 32-bit RISC
- Program Memory: Up to 64 MB Flash
- Communication Ports: Ethernet (CEX-Bus), RS-232, USB
- Supported Protocols: PROFIBUS, FOUNDATION Fieldbus, Modbus, OPC
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −40 °C to +70 °C
- Humidity: 5–95% RH (non-condensing)
- Power Supply: 24 V DC (via backplane)
- Weight: approx. 980 g
- Certifications: CE, UL, cUL, ATEX (Zone 2)
- Firmware Compatibility: AC800M Controller Software V5.x / V6.x
Our 4-Step Quality Verification Process
- Source Authentication — All units are procured directly from ABB-authorized channels or verified OEM surplus inventories. Supplier credentials are documented on file.
- Physical Inspection — Each module is inspected for label integrity, connector condition, housing damage, and counterfeit indicators (hologram seals, PCB markings, firmware version stamps).
- Functional Bench Test — Where applicable, modules are powered up and tested for boot sequence, LED diagnostics, and communication handshake with a reference AC800M rack.
- Packaging & Documentation — Units are packed in anti-static ESD bags, placed in foam-lined boxes, and shipped with a Konmask inspection checklist and traceability record.
Key Features & Benefits
- ✅ Genuine ABB hardware — not refurbished clones or grey-market substitutes
- ✅ Hot-swap capable — supports redundant CPU configurations for zero-downtime replacement
- ✅ Scalable I/O — connects to S800 I/O modules via CEX-Bus for flexible system expansion
- ✅ Integrated diagnostics — onboard LED status indicators for rapid fault isolation
- ✅ Long lifecycle support — compatible with legacy AC800M installations still in active service
- ✅ B2B pricing available — volume discounts and blanket PO arrangements on request
Typical Applications
- Oil & Gas — upstream/downstream process control and safety instrumented systems
- Power Generation — turbine control, boiler management, and grid synchronization
- Pulp & Paper — continuous process automation and quality control loops
- Chemical & Petrochemical — batch processing and reactor management
- Water & Wastewater — SCADA-integrated pump and valve control
- Marine & Offshore — vessel automation and dynamic positioning systems
Compatible System Components
- Racks: TB820V2, TB840A (AC800M backplane racks)
- I/O Modules: AI810, AO810V2, DI810, DO810 (S800 I/O family)
- Communication Modules: CI854B (PROFIBUS DP), CI857K01 (FF HSE), CI858K01 (DeviceNet)
- Power Supply: SD821, SD822, SD823
- Redundancy Module: PM866K02 (paired redundant CPU)
- Engineering Tool: ABB Control Builder M (Professional / Plus)
Global Sourcing & Shipping Capabilities
Konmask.com ships worldwide from our warehouse in Fujian, China. We support the following logistics options:
- Express (DHL / FedEx / UPS): 3–7 business days to most destinations
- Air Freight: suitable for urgent large-quantity orders
- Sea Freight: cost-effective for bulk pallet shipments
- Export Documentation: commercial invoice, packing list, certificate of origin, and ESD compliance declaration provided as standard
- Customs Support: HS Code 8537.10 — we assist with import documentation upon request
Certifications & Compliance Statement
This product is manufactured by ABB Ltd. and carries the following certifications as issued by the OEM:
- CE Marking (EU Machinery Directive & EMC Directive)
- UL / cUL Listed (North American safety standards)
- ATEX Category 3G (Zone 2 hazardous area use)
- IEC 61131-2 compliant programmable controller hardware
- RoHS compliant
Konmask.com does not modify, re-label, or alter OEM hardware. All certifications remain as issued by ABB Ltd.
How to Order
- Add to Cart — click the purchase button above for standard single-unit orders.
- Request a Quote — for quantities >1, OEM pricing, or lead-time confirmation, email support@konmask.com with your PO requirements.
- Provide Your Specs — include firmware version requirements, redundancy configuration, or any special packaging needs in your inquiry.
- Payment & Dispatch — we accept T/T bank transfer, PayPal, and major credit cards. Orders confirmed before 14:00 CST ship same business day.
Authenticity & Trust FAQ
Q: How do I know this is a genuine ABB module?
A: Every unit ships with a Konmask traceability document. You can verify the part number and serial number against ABB’s official product database or contact ABB technical support directly.
Q: Do you offer a warranty?
A: Yes — we provide a 12-month warranty against manufacturing defects. DOA (Dead on Arrival) units are replaced or refunded within 7 business days of confirmed receipt.
Q: Can I return the product if it doesn’t fit my system?
A: We accept returns within 30 days for unused, unopened units in original packaging. Please contact us before initiating a return.
Q: Is this a new or refurbished unit?
A: Stock condition is specified in the listing (New / Tested Surplus / Refurbished). If not stated, please confirm with us before ordering.
Q: Do you support urgent/emergency orders?
A: Yes. Contact us via WhatsApp or email for same-day processing on in-stock items. Emergency air freight is available to most countries within 48 hours.
