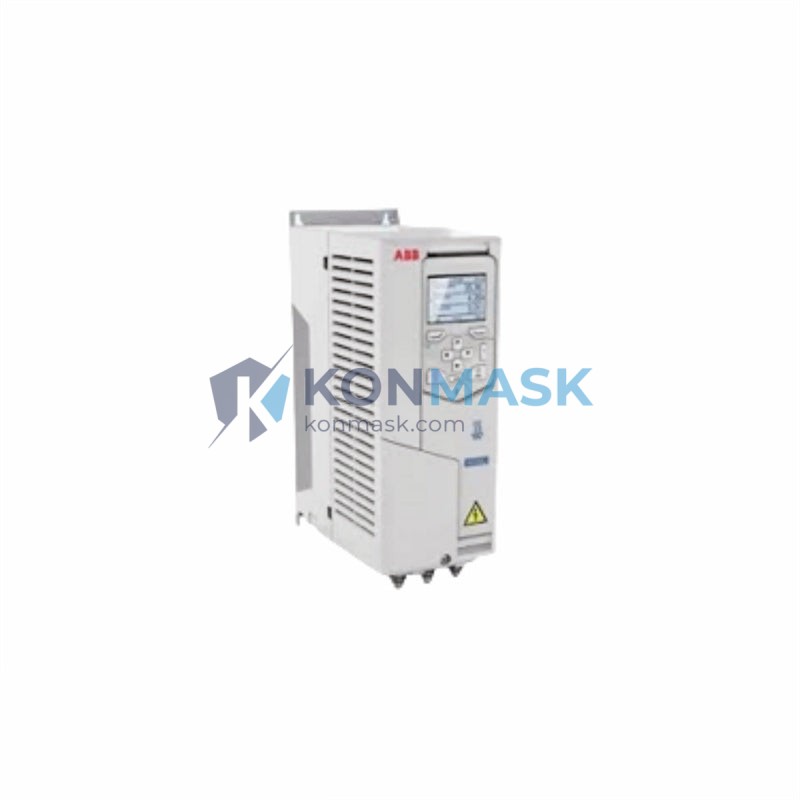

ABB ACH580-BCR-062A-6J429K475 – General Purpose AC Variable Frequency Drive | ACH580 Series
Engineering Background
The ACH580 series represents ABB’s flagship general-purpose drive platform engineered for HVAC, water/wastewater, and industrial process applications. Designed to IEC 61800-5-1 safety standards and compliant with EN 61800-3 EMC requirements, the ACH580 integrates ABB’s Direct Torque Control (DTC) technology with a built-in PID controller, energy optimizer, and comprehensive fieldbus support — delivering precision motor control without external components.
Product Positioning
The ACH580-BCR-062A-6J429K475 is the R8 frame, 62A / 30kW variant configured for 380–480V three-phase input. The BCR designation indicates the R8 IP21 chassis format; 6 denotes the 380–480V voltage class; option codes J429 and K475 specify factory-fitted options including EMC filter and fieldbus interface. This unit is the preferred choice for procurement engineers specifying drives for centrifugal pumps, fans, compressors, and conveyor systems requiring reliable, energy-efficient speed control.
Complete Technical Specifications
| Part Number | ACH580-BCR-062A-6J429K475 |
| Brand / Manufacturer | ABB |
| Series / Platform | ACH580 General Purpose Drive |
| Frame Size | R8 (BCR) |
| Output Current (Nominal) | 62 A |
| Motor Power (Nominal, 400V) | 30 kW / 40 HP |
| Input Voltage | 380–480 V AC, 3-phase (±10%) |
| Input Frequency | 48–63 Hz |
| Output Voltage | 0–480 V AC, 3-phase |
| Output Frequency Range | 0–500 Hz |
| Control Method | Direct Torque Control (DTC) / Scalar (V/Hz) |
| Enclosure Rating | IP21 (UL Type 1) |
| Ambient Temperature | -15°C to +50°C (operating); -40°C to +70°C (storage) |
| Altitude | Up to 1000 m without derating |
| Humidity | 5–95% RH, non-condensing |
| EMC Filter | Built-in (Option J429) |
| Fieldbus Interface | Embedded EtherNet/IP + Modbus TCP (Option K475) |
| Built-in PID Controller | Yes (dual-channel) |
| Energy Optimizer | Yes (ABB Energy Optimizer) |
| Braking Chopper | Internal (BCR frame) |
| Standards Compliance | IEC 61800-5-1, EN 61800-3 C2, UL 508C, CE, RoHS |
| Weight | ~19.8 kg |
| Country of Origin | China (ABB manufacturing) |
| HS Code | 8537.10 / 8504.40 |
Proven Application Environments
- HVAC Systems: Air handling units, chiller pumps, cooling tower fans — leveraging built-in HVAC application macros and energy optimizer for measurable kWh savings.
- Water & Wastewater: Booster pump stations, sewage lift stations — PID control with sleep/wake function eliminates pressure transients.
- Industrial Conveyors & Compressors: DTC provides full torque at zero speed for reliable starting under load.
- Building Automation: BACnet MS/TP and Modbus TCP integration via K475 option enables direct BMS connectivity without gateway hardware.
- Process Manufacturing: Mixer drives, extruder feeds — scalar V/Hz mode for multi-motor configurations.
Engineering Advantages
- Direct Torque Control (DTC): ABB’s proprietary algorithm delivers ±0.5% speed accuracy without encoder feedback — reducing BOM cost and mechanical complexity.
- Integrated EMC Filter (J429): Meets EN 61800-3 Category C2 limits out of the box; eliminates external filter procurement and panel space.
- Embedded Dual Ethernet (K475): EtherNet/IP + Modbus TCP on a single RJ45 port; supports SCADA, DCS, and PLC integration without additional fieldbus modules.
- Energy Optimizer: Automatically minimizes motor flux at partial loads — typical energy savings of 10–30% on centrifugal loads vs. fixed-speed operation.
- Safe Torque Off (STO): SIL 2 / PLd certified STO function integrated; satisfies IEC 62061 and ISO 13849-1 machinery safety requirements without external safety relay.
- Adaptive Programming: ABB Drive Composer PC tool + panel-based assistant macros reduce commissioning time to under 30 minutes for standard HVAC applications.
System Architecture & Signal Flow
The ACH580-BCR-062A-6J429K475 operates as a standalone drive or as a networked node within a distributed control architecture:
- Power Stage: 3-phase 380–480V AC input → rectifier bridge → DC bus → IGBT inverter → 3-phase motor output (0–480V, 0–500Hz).
- Control Layer: Onboard microprocessor executes DTC algorithm at 40 µs cycle time; analog I/O (2×AI, 2×AO), digital I/O (6×DI, 3×DO, 1×RO) for field signal integration.
- Communication Layer: K475 embedded EtherNet/IP + Modbus TCP connects to PLC/DCS/SCADA; supports CIP messaging and explicit/implicit I/O.
- Safety Layer: STO input (24V DC) directly disables IGBT gate signals; certified to SIL 2 / PLd without additional hardware.
- Braking: Internal braking chopper (BCR frame) connects to external braking resistor for dynamic braking on high-inertia loads.
Sourcing & Quality Verification
- Origin: Genuine ABB product, manufactured in ABB-certified facilities; each unit carries ABB holographic serial label traceable via ABB’s online verification portal.
- Inspection: Pre-shipment functional test — power-on, parameter read-back, I/O continuity, and communication link verification.
- Packaging: Original ABB export carton with anti-static foam insert; humidity indicator card included.
- Documentation: ABB factory test certificate, CE declaration of conformity, and operation manual (EN/ZH) supplied with each unit.
- Warranty: 12-month Konmask warranty; ABB standard warranty terms apply for OEM-sourced units.
Procurement Process
- Submit RFQ with quantity and required delivery date via support@konmask.com or WhatsApp +0086 19859288691.
- Receive formal quotation with lead time, Incoterms (EXW/FOB Xiamen), and payment terms within 24 hours.
- Issue PO; Konmask confirms stock availability and initiates pre-shipment inspection.
- Shipment via DHL Express / FedEx International Priority with full tracking; customs documentation (commercial invoice, packing list, CO) provided.
- Post-delivery technical support available via email and video call for commissioning assistance.
Technical FAQ
Q: Is the ACH580-BCR-062A-6J429K475 suitable for use with permanent magnet (PM) motors?
A: Yes. The ACH580 supports both induction (IM) and permanent magnet (PM) motor control modes, selectable via parameter 99.03.
Q: What is the difference between ACH580-BCR and ACH580-01?
A: The BCR frame (R8) is the larger chassis variant with an integrated braking chopper and higher power ratings (18.5–90 kW at 400V). The -01 series covers R1–R5 frames (0.75–18.5 kW).
Q: Can this drive be used on a 460V / 60Hz North American supply?
A: Yes. The 380–480V voltage class accommodates 460V/60Hz input; parameter 99.06 (nominal frequency) must be set to 60 Hz during commissioning.
Q: Does the K475 option support PROFINET?
A: No. K475 provides EtherNet/IP + Modbus TCP. For PROFINET, specify option K458 (FPNO-21 module) at time of order.
Q: What external braking resistor is recommended for this frame?
A: ABB recommends the SACE OVR series or equivalent; minimum resistance for R8 frame at 400V is 6.8 Ω. Contact Konmask for matched resistor sourcing.
