ABB AI880A 3BSE039293R1 Analog Input Module | Replacement, Equivalent & Selection Guide

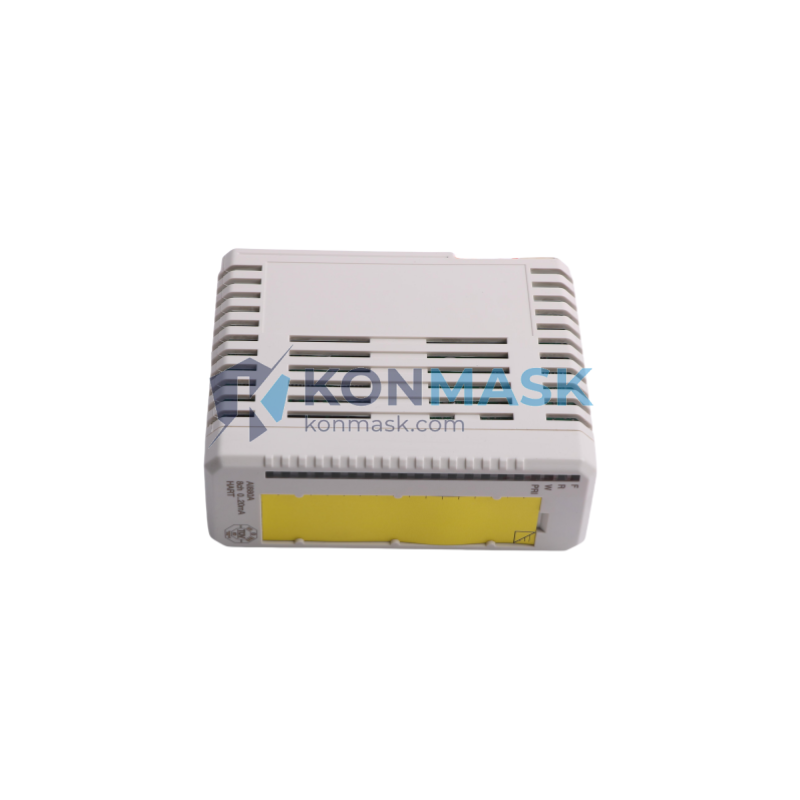

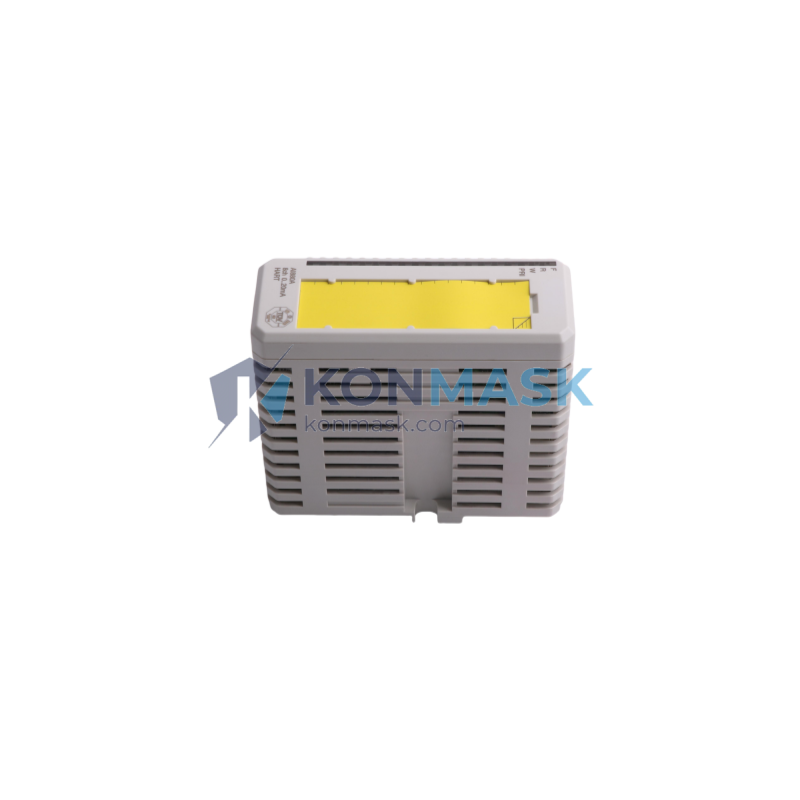

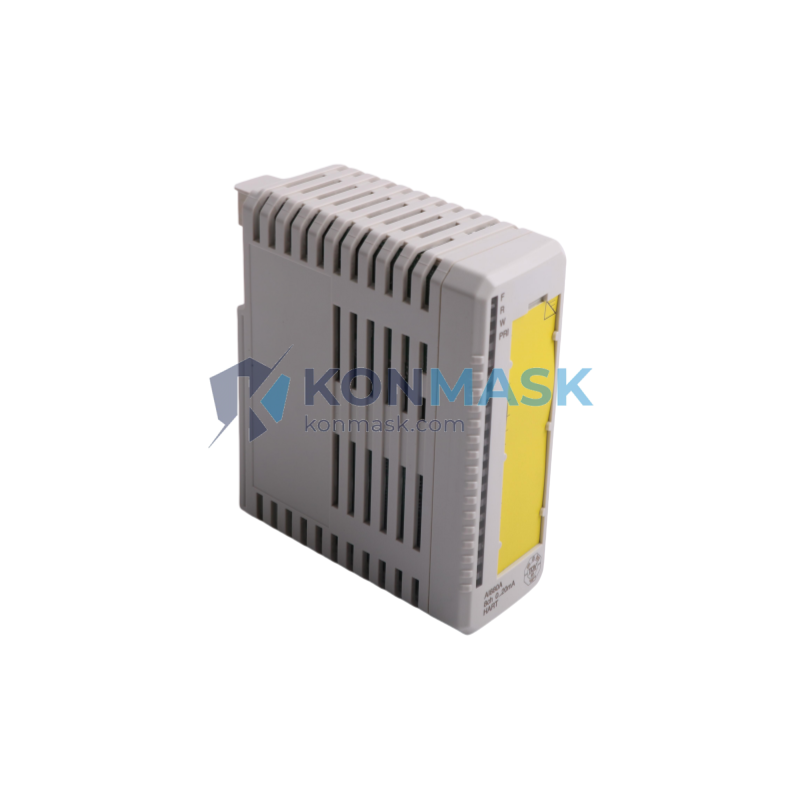

The ABB AI880A (Part No. 3BSE039293R1) is an 8-channel analog input module designed for the ABB AC800M Distributed Control System (DCS). It accepts standard 4–20 mA current signals and supports HART communication, making it a core I/O component in process automation environments including oil & gas, power generation, and chemical processing. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Part Number: AI880A / 3BSE039293R1
- Manufacturer: ABB
- Series: S800 I/O for AC800M
- Module Type: Analog Input (AI)
- Number of Channels: 8
- Input Signal Range: 4–20 mA (HART-compatible)
- Resolution: 16-bit
- Communication Bus: ModuleBus (via S800 I/O station)
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Supply: Supplied via I/O station backplane
- Operating Temperature: 0°C to +55°C
- Dimensions (W × H × D): Approx. 30 × 130 × 100 mm
- Weight: ~180 g
- Certifications: CE, UL, ATEX (zone 2 with appropriate barrier)
- Firmware: Configurable via Control Builder M
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the ABB AI880A 3BSE039293R1 in AC800M-based systems:
- ABB AI880 (3BSE020512R1) — Previous generation, 8-ch AI, non-HART; drop-in mechanical fit, requires firmware check
- ABB AI810 (3BSE008516R1) — 8-ch AI, 4–20 mA, no HART; suitable for non-HART applications on same backplane
- ABB AI820 (3BSE008544R1) — 8-ch AI with voltage input option (0–10 V / 4–20 mA); select when voltage sensors are used
- ABB AI830A (3BSE040662R1) — RTD/thermocouple input; select when temperature sensors replace transmitters
- Yokogawa AAI141-S00 — Third-party 8-ch AI HART module; compatible in mixed-vendor migration projects with gateway
- Siemens 6ES7331-7KF02-0AB0 — S7-300 AI module; applicable only in full system migration scenarios
⚠ Always verify firmware version, backplane compatibility, and Control Builder M configuration before substituting modules in live systems.
Why Choose the Original ABB AI880A 3BSE039293R1
- ✅ Native HART pass-through — enables asset management and diagnostics via ABB Asset Vision or third-party HART tools without additional hardware
- ✅ Seamless AC800M integration — zero configuration overhead when replacing like-for-like; recognized automatically by Control Builder M
- ✅ 16-bit resolution — superior measurement accuracy vs. 12-bit alternatives in precision process control loops
- ✅ Proven field reliability — widely deployed in SIL-rated and non-SIL process plants globally
- ✅ Long-term ABB support — active product lifecycle with spare parts availability and firmware updates
Typical Applications
- Flow, pressure, level, and temperature transmitter signal acquisition in DCS loops
- HART device diagnostics and predictive maintenance integration
- Analog process variable monitoring in oil & gas upstream/downstream facilities
- Power plant boiler and turbine control systems
- Chemical and pharmaceutical batch process automation
- Water treatment and utilities SCADA/DCS hybrid architectures
System Compatibility
- Controller: ABB AC800M (PM851, PM856, PM860, PM861, PM864, PM866, PM891)
- I/O Station: S800 I/O — TB820V2, TB840A, TB842, TB845, TB851
- Engineering Tool: ABB Control Builder M (CBM) Professional / Basic
- Asset Management: ABB Asset Vision Professional, PACTware with ABB DTM
- Fieldbus: ModuleBus (internal); HART on field side (channels 1–8)
- Not compatible with: AC800F, AC800PEC, Freelance DCS, or third-party S800-form-factor backplanes
Selection Guide
Use the decision matrix below to select the correct analog input module for your AC800M system:
- Need HART communication on 4–20 mA channels? → Select AI880A (3BSE039293R1) ✓
- 4–20 mA only, no HART required, cost-sensitive? → Consider AI810 (3BSE008516R1)
- Voltage input (0–10 V) required? → Consider AI820 (3BSE008544R1)
- RTD or thermocouple sensors? → Select AI830A (3BSE040662R1)
- Replacing AI880 (non-A suffix)? → AI880A is the recommended upgrade; verify CBM project compatibility
- SIL 2 loop requirement? → Consult ABB for AI880A SIL certification documentation and safety manual
Quality Assurance & Sourcing
All ABB modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes:
- Visual and label inspection against ABB factory markings
- Functional power-on verification where applicable
- Anti-static packaging with humidity indicator card
- Traceability documentation available on request
We supply new original, factory-refurbished, and tested used units — clearly labeled at time of quotation. Lead times and stock levels are confirmed prior to order acceptance.
How to Order
- Add to cart directly, or contact us for volume pricing and lead time confirmation.
- Provide your AC800M controller model and CBM project version if requesting compatibility verification.
- Specify condition preference: New Original / Refurbished / Tested Used.
- For urgent requirements, email support@konmask.com with subject line: AI880A 3BSE039293R1 – Urgent Inquiry.
- International shipping available; export documentation (CO, packing list, commercial invoice) provided.
Replacement & Compatibility FAQ
Q: Can AI880A replace AI880 (3BSE020512R1) directly?
A: Mechanically yes. However, the AI880A adds HART support and may require a CBM project update. Test in a non-production environment first.
Q: Is AI880A compatible with TB820 (non-V2) terminal bases?
A: ABB recommends TB820V2 or later. Compatibility with original TB820 should be verified against your system’s hardware revision.
Q: Does AI880A support SIL 2 applications?
A: The AI880A can be used in SIL-rated systems with appropriate engineering and ABB safety documentation. Contact us for the relevant safety manual.
Q: What is the difference between AI880A and AI880B?
A: The AI880B (if applicable in your region) may carry updated firmware or regional certifications. Confirm the exact part number with your ABB representative or our team.
Q: Can I use AI880A in a Freelance DCS system?
A: No. AI880A is exclusively designed for the AC800M / S800 I/O architecture and is not compatible with ABB Freelance or other DCS platforms.
