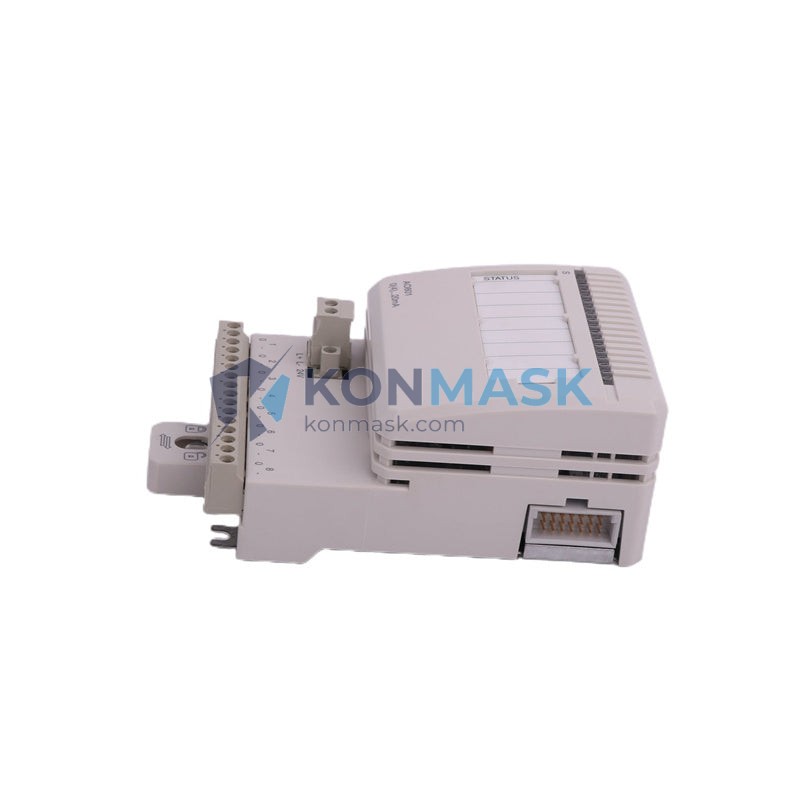

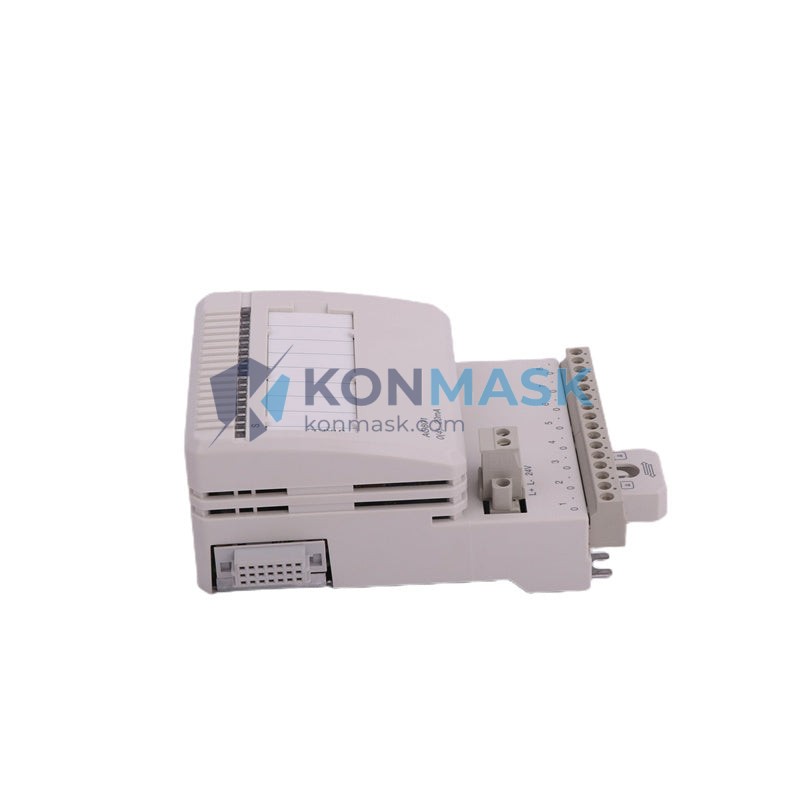

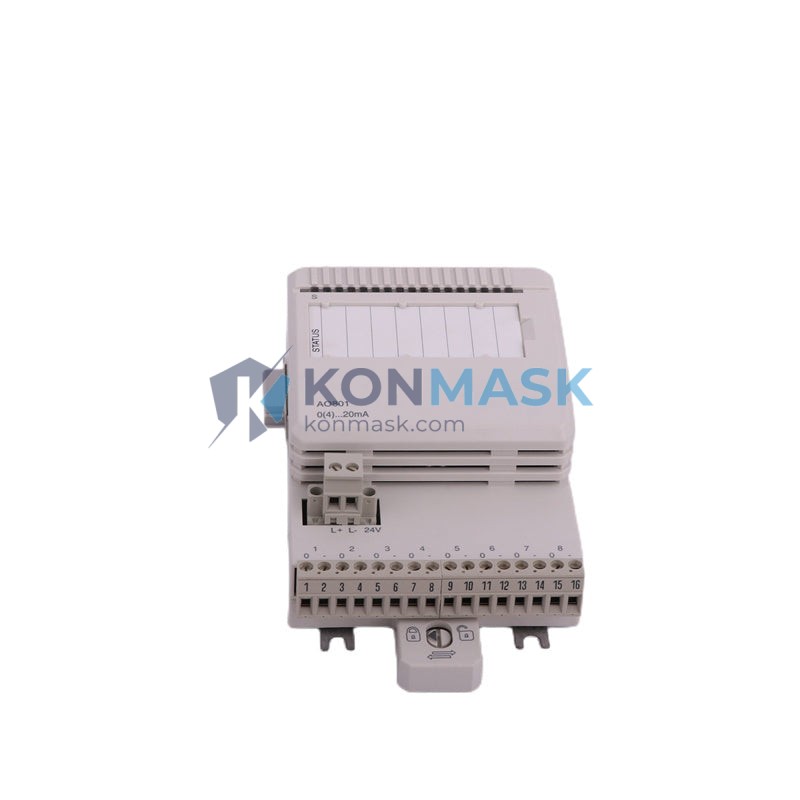

ABB AO801 3BSE020514R1 Analog Output Module – AC800M Series
Imagine a continuous process plant — a refinery, a pulp mill, a power generation facility — where the control system loses its ability to command field actuators. Valves freeze in position. Flow rates drift. Temperature loops open. Within minutes, the process moves outside safe operating limits, triggering emergency shutdowns, product loss, and potential safety incidents. The ABB AO801 Analog Output Module is the critical link between the AC800M controller’s digital intelligence and the physical world of 4–20 mA and 0–10 V field devices. Without it, the controller is blind and mute to the process.
The AO801 (catalog reference 3BSE020514R1) occupies a well-defined position within ABB’s AC800M Distributed Control System architecture — the industry-standard platform for process automation in oil & gas, power, pulp & paper, and chemical industries worldwide. As an 8-channel analog output module designed for the S800 I/O family, it delivers the signal fidelity and channel density that large-scale DCS installations demand. ABB’s AC800M platform is deployed in tens of thousands of installations globally, and the AO801 remains one of its most widely specified output modules, ensuring long-term availability of spare parts and engineering support.
Technical Specifications
- Part Number: AO801 / 3BSE020514R1
- Manufacturer: ABB
- Series: S800 I/O for AC800M DCS
- Number of Channels: 8 analog output channels
- Output Signal Types: 4–20 mA (current) / 0–10 V (voltage), software-selectable per channel
- Resolution: 12-bit D/A conversion
- Communication: ModuleBus (optical or electrical) to AC800M controller
- Isolation: Channel-to-bus galvanic isolation
- Power Supply: Supplied via S800 I/O bus
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Mounting: S800 I/O baseplate (TB820 or equivalent)
- Weight: Approx. 250 g
- Certifications: CE, UL, ATEX (zone 2 when used with appropriate barriers)
Note: All specifications are based on ABB published datasheets. Konmask.com does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- 8-Channel Density: Maximizes I/O per baseplate slot, reducing cabinet footprint and wiring costs in large DCS installations.
- Dual Output Mode: Software-configurable current (4–20 mA) or voltage (0–10 V) per channel eliminates the need for separate module types for different field devices.
- High Resolution 12-bit DAC: Delivers smooth, precise analog commands to control valves, variable-speed drives, and positioners — critical for tight PID loop performance.
- Galvanic Isolation: Protects the controller backplane from field-side ground loops and transient surges common in industrial environments.
- Hot-Swap Capability: Modules can be replaced under power on supported baseplates, minimizing process downtime during maintenance.
- Seamless AC800M Integration: Plug-and-play recognition within ABB’s Control Builder M engineering environment — no manual address configuration required.
- Proven Reliability: Designed to IEC 61131-2 standards with MTBF ratings suitable for continuous 24/7 process operation.
Industry & Equipment Applications
- Oil & Gas: Wellhead control, pipeline pressure regulation, compressor anti-surge control
- Power Generation: Boiler combustion control, turbine governor output, feedwater flow control
- Pulp & Paper: Digester pressure control, stock flow regulation, dryer section speed control
- Chemical & Petrochemical: Reactor temperature control, distillation column reflux ratio, pump speed commands
- Water & Wastewater: Dosing pump control, aeration blower speed, valve positioning
- Mining & Minerals: Conveyor speed control, flotation cell level, crusher feed rate
System Integration & Compatible Parts
The AO801 is designed to operate within the ABB S800 I/O ecosystem. Compatible and commonly paired components include:
- Baseplates: TB820V2 (ModuleBus optical), TB840A (redundant ModuleBus)
- Controllers: PM861A, PM864A, PM866A, PM891 (AC800M family)
- Communication Interface: CI854A (PROFIBUS DP), CI858 (DNP3), CI860 (IEC 61850)
- Analog Input Counterpart: AI810, AI820, AI830A
- Digital I/O Modules: DO810, DO820, DI810, DI820
- Power Supply: SD821, SD822, SD823
If you need assistance confirming compatibility with your existing AC800M configuration, contact our technical team at support@konmask.com.
Our Quality Assurance Process
Every ABB AO801 3BSE020514R1 module sourced and supplied by Konmask.com undergoes a structured verification process before shipment:
- Authenticity Verification: Visual inspection of ABB labeling, holographic seals, and date codes against known-genuine references.
- Physical Condition Check: Inspection for connector pin integrity, PCB condition, and absence of repair or rework marks.
- Functional Test (where applicable): Bench-level power-on and communication verification using ABB-compatible test equipment.
- ESD-Safe Packaging: All modules are packed in anti-static bags with foam cushioning and clearly labeled outer cartons.
- Documentation: Shipment includes packing list, test record, and available factory documentation upon request.
How to Order
- Submit an inquiry via our website contact form or email support@konmask.com
- Provide your required quantity, delivery timeline, and destination country
- Receive a formal quotation with lead time and shipping options within 24 business hours
- Confirm order and complete payment via agreed terms (T/T, L/C, or other)
- Track your shipment with provided AWB/tracking number
For urgent requirements or large-volume orders, call or WhatsApp: +0086 19859288691
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and industrial control components — not a general electronics marketplace.
- Global Sourcing Network: Access to both new and refurbished ABB modules from verified supply channels worldwide.
- Technical Pre-Sales Support: Our team includes engineers with hands-on AC800M experience who can advise on compatibility and configuration.
- Fast Response: Quotations within 24 hours; expedited shipping available for critical plant shutdowns.
- Transparent Documentation: Full traceability records available on request.
Frequently Asked Questions
Q: Is the AO801 compatible with the AC800M PM851 controller?
A: Yes, the AO801 is compatible with all AC800M controllers including PM851, PM856, PM861A, PM864A, PM866A, and PM891, provided the correct baseplate and ModuleBus configuration is used.
Q: Can the AO801 be used in ATEX Zone 1 hazardous areas?
A: The AO801 itself is rated for Zone 2 when used with appropriate certified barriers or isolators. For Zone 1 applications, consult ABB’s certified intrinsic safety documentation and use approved Zener barriers or galvanic isolators.
Q: Do you supply new or refurbished AO801 modules?
A: We supply both new (factory-sealed) and professionally refurbished units. The condition is clearly stated in the quotation. All units pass our QA process regardless of condition grade.
Q: What is the typical lead time for AO801 3BSE020514R1?
A: For in-stock units, we typically ship within 3–5 business days. Lead time for sourced units is 2–4 weeks depending on origin. Contact us for current stock status.
Q: Can you provide an ABB factory warranty?
A: New factory-sealed units carry ABB’s standard warranty. Refurbished units carry Konmask.com’s own 90-day functional warranty. Details are provided in the quotation.
