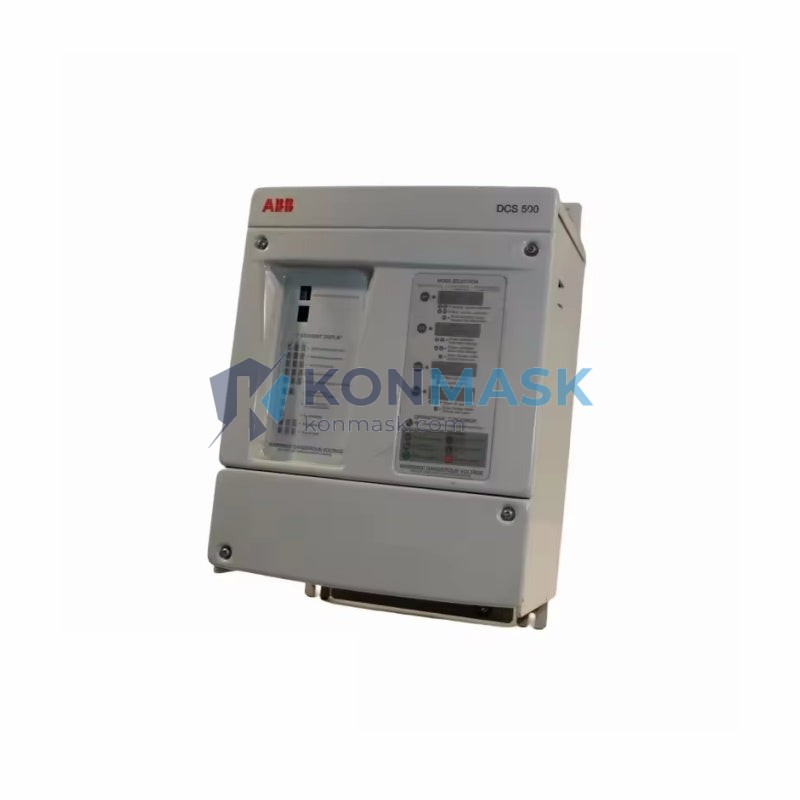

ABB DCS501B0140-41-2100000-000000000 – Four-Quadrant DC Armature Drive | DCS500 Platform
Engineering Background
The DCS500 series represents ABB’s flagship DC drive platform, engineered for demanding industrial applications where precise torque and speed control of DC motors is critical. Introduced as a successor to the SDCS control board architecture, the DCS500 line delivers field-proven reliability across steel mills, paper machines, extruders, and heavy-duty winding systems worldwide.
Product Positioning
The DCS501B0140-41-2100000-000000000 is a single-drive, four-quadrant armature converter rated at 140 A continuous armature current. It is designed for regenerative DC motor control in applications requiring both motoring and braking in both directions of rotation. This unit targets procurement engineers sourcing a direct OEM-equivalent replacement or a new installation within the DCS500 ecosystem.
Complete Technical Specifications
| Part Number | DCS501B0140-41-2100000-000000000 |
| Brand | ABB |
| Series | DCS500 / DCS501B |
| Drive Type | DC Armature Converter (Four-Quadrant) |
| Continuous Armature Current | 140 A |
| Supply Voltage | 3-phase AC, 400–500 V (code: 41) |
| Field Supply | Integrated field exciter (code: 21) |
| Control Board | SDCS-CON-2 / SDCS-CON-4 compatible |
| Communication | Fieldbus-ready (PROFIBUS, DeviceNet, Modbus via optional adapter) |
| Cooling | Forced air (internal fan) |
| Protection Class | IP00 (panel-mount) |
| Ambient Temperature | 0 °C to +40 °C (operating) |
| Altitude | Up to 1000 m without derating |
| Weight | Approx. 700 g (control module) |
| Standards | CE, UL, IEC 61800-2 |
| Country of Origin | Finland / Germany (ABB manufacturing) |
Proven Application Environments
- Steel & Metal Processing: Rolling mills, coilers, and uncoilers requiring regenerative braking and precise tension control.
- Paper & Pulp: Winders, rewinders, and calender drives with high dynamic torque demands.
- Plastics & Rubber: Extruder main drives and haul-off units needing smooth speed regulation.
- Marine & Offshore: Winch and crane drives where four-quadrant operation is mandatory.
- Mining: Conveyor and hoist drives with heavy cyclic loads.
- General Industrial: Any legacy DC motor retrofit or modernization project within the DCS500 platform.
Engineering Advantages
- Four-Quadrant Operation: Full motoring and regenerative braking in both rotational directions — eliminates the need for external braking resistors in most applications.
- Adaptive Motor Control (AMC): ABB’s proprietary algorithm continuously optimizes flux and torque response, reducing motor heating and improving efficiency.
- Modular Architecture: SDCS control board separates from the power section, enabling rapid field replacement without full drive swap.
- Wide Fieldbus Compatibility: Optional adapter modules support PROFIBUS-DP, DeviceNet, Modbus RTU/TCP, and CANopen — integrates seamlessly into existing PLC/DCS architectures.
- Comprehensive Diagnostics: Onboard fault logging with timestamped event history accelerates root-cause analysis and minimizes unplanned downtime.
- Long Service Life: Designed for 24/7 continuous duty; mean time between failures (MTBF) exceeds 100,000 hours under rated conditions.
System Architecture & Signal Flow
The DCS501B0140 operates within ABB’s DCS500 closed-loop DC drive architecture:
- AC Supply Input → Three-phase thyristor bridge rectifier converts AC to controlled DC armature voltage.
- SDCS Control Board → Processes speed/torque reference signals from PLC or operator panel; executes AMC algorithm.
- Field Exciter → Integrated field converter supplies regulated DC field current to the motor field winding.
- Feedback Loop → Tachogenerator or encoder feedback closes the speed loop; current transducers close the inner current loop.
- Fieldbus Interface → Optional RDCO/RDNA adapter bridges the drive to plant-level SCADA or DCS via standard industrial protocols.
Sourcing & Quality Verification
- Source: Konmask.com sources DCS500 series units from authorized ABB distributors and certified industrial surplus channels.
- Inspection: Every unit undergoes visual inspection, firmware version verification, and functional power-on test prior to shipment.
- Authenticity: Serial number and date code are verified against ABB’s product traceability database where applicable.
- Packaging: Anti-static ESD packaging with desiccant; double-boxed for international freight.
- Documentation: Original ABB datasheet, test report, and certificate of conformity available upon request.
Procurement Process
- Submit RFQ: Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Quotation: Receive a formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Issue a purchase order; payment via T/T, PayPal, or credit card accepted.
- Quality Hold: Unit reserved and re-inspected against your PO specifications before dispatch.
- Shipment: DHL / FedEx / UPS express with full tracking; EXW Xiamen or CIF destination available.
- After-Sales: 12-month warranty against manufacturing defects; technical support from our automation engineers.
Technical FAQ
Q: Is this unit new or refurbished?
A: Stock condition (new surplus, refurbished, or used-tested) is confirmed at time of quotation. All conditions are clearly disclosed and priced accordingly.
Q: Can this drive replace an older DCS500 unit with a different current rating?
A: Only if the motor nameplate armature current ≤ 140 A. Upsizing is permissible; downsizing is not recommended without a full load study.
Q: Which SDCS control board is compatible?
A: SDCS-CON-2 and SDCS-CON-4 are both compatible. SDCS-CON-4 is recommended for new installations due to enhanced diagnostics and fieldbus support.
Q: Is the integrated field exciter sufficient for all DC motors?
A: The onboard field exciter covers the majority of standard DC motor field ratings. For motors with unusually high field current requirements, an external field converter (e.g., DCF504) may be needed.
Q: What is the lead time?
A: Ex-stock units ship within 3–5 business days. Non-stock items typically require 4–8 weeks depending on ABB’s production schedule.
