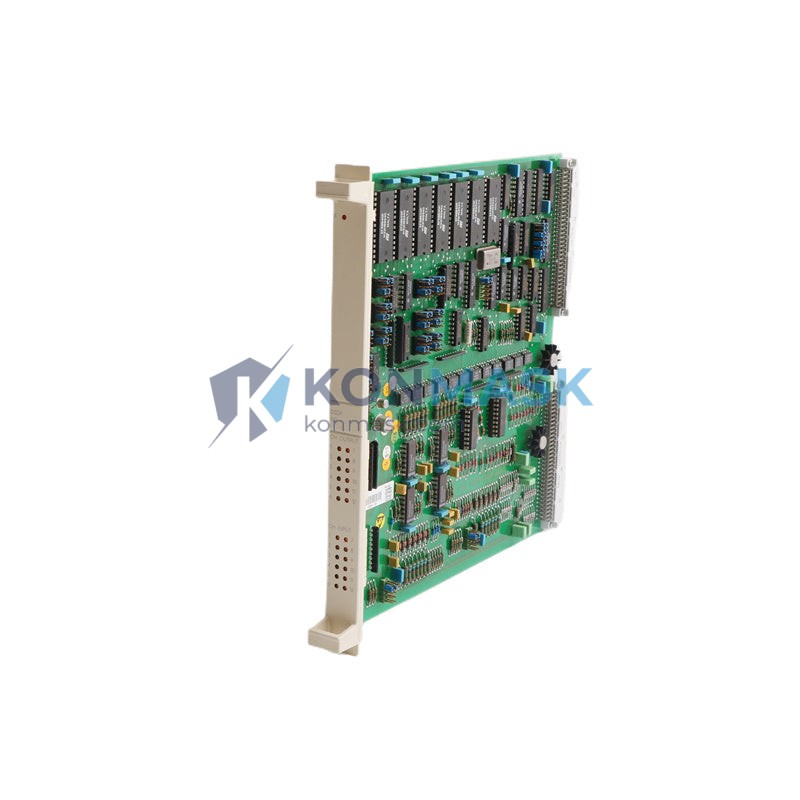

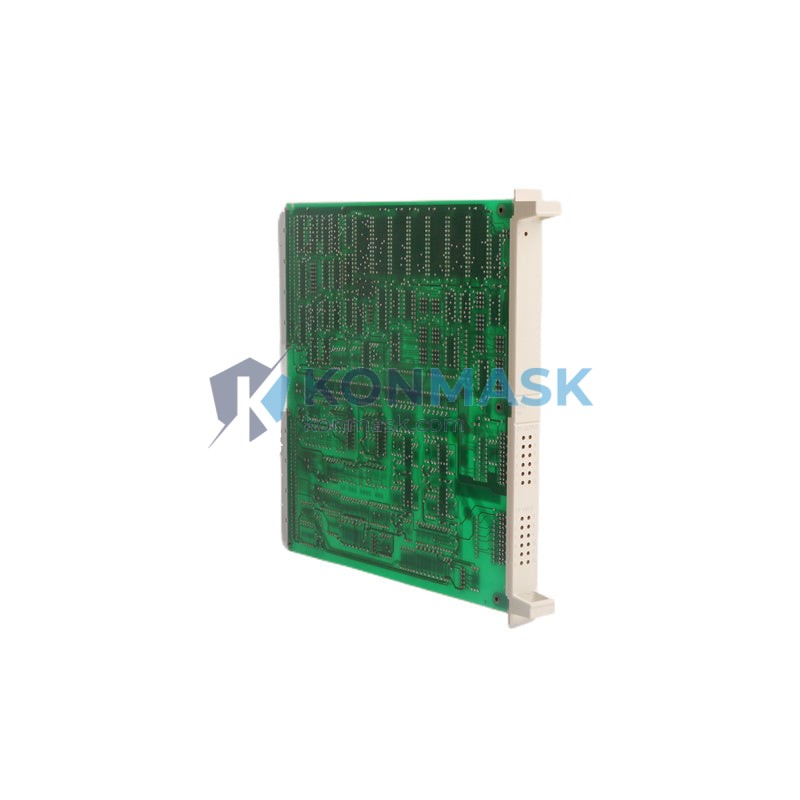

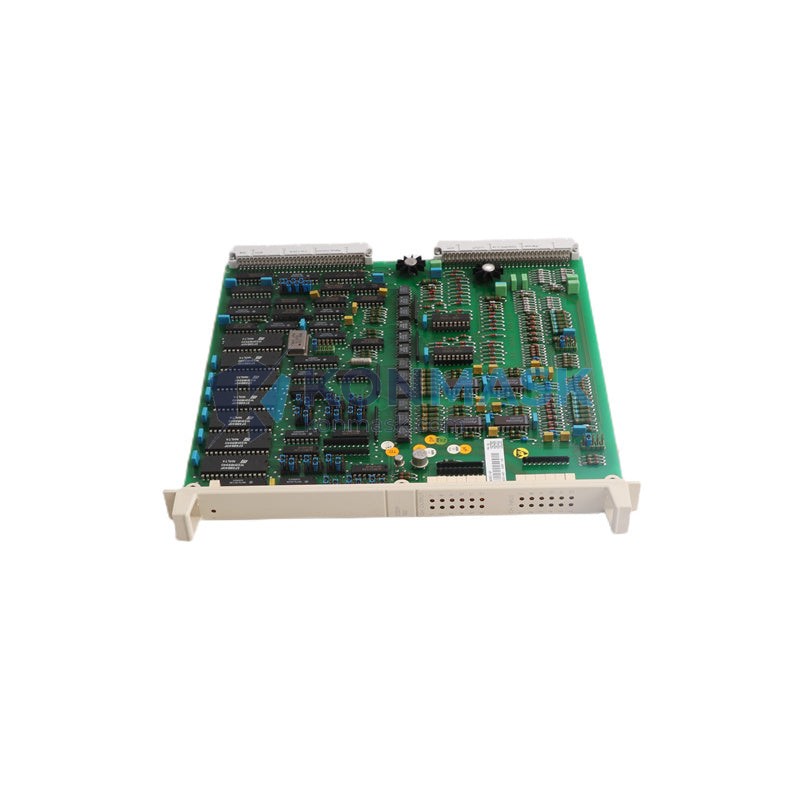

ABB DSDP150 57160001-GF – Pulse Counting & Positioning Module | DSCS09 Platform
Engineering Background
The DSDP150 (order reference 57160001-GF) is a dedicated pulse counting and shaft-positioning module developed by ABB for integration within the DSCS09 distributed control system architecture. Designed to meet the demanding signal-integrity requirements of continuous-process industries, this module provides deterministic pulse acquisition and closed-loop position feedback without burdening the main CPU bus.
Product Positioning
Procurement engineers specifying encoder feedback, turbine speed monitoring, or precision actuator positioning within an ABB DSCS09 environment will find the DSDP150 the OEM-recommended solution. Konmask supplies verified surplus and new-surplus units with full traceability, enabling drop-in replacement without re-engineering the control loop.
Complete Technical Specifications
- Manufacturer: ABB (Asea Brown Boveri)
- Part Number: DSDP150
- Order Code: 57160001-GF
- Module Function: Pulse Counting & Shaft Positioning
- Compatible Platform: ABB DSCS09 Distributed Control System
- Input Type: Incremental encoder / pulse train signals
- Counting Resolution: High-speed pulse acquisition with hardware latch
- Output: Position value register accessible via DSCS09 backplane bus
- Power Supply: Supplied via DSCS09 rack backplane (24 VDC nominal)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: −25 °C to +70 °C
- Relative Humidity: 5 % – 95 % RH, non-condensing
- Module Weight: 380 g
- Form Factor: Single-slot DSCS09 plug-in card
- Certifications: CE (as part of DSCS09 system)
Proven Application Environments
- Turbine speed and overspeed monitoring in power generation plants
- Shaft encoder feedback for large rotating machinery (compressors, fans, pumps)
- Precision actuator positioning in chemical and petrochemical process units
- Paper machine drive coordination requiring synchronised position data
- Steel rolling mill speed reference and position tracking
- Water treatment pump station flow-pulse totalisation
Engineering Advantages
- Hardware-latched counting — eliminates software scan-cycle jitter for deterministic position data
- Direct backplane integration — no external signal conditioner required; reduces panel footprint and wiring complexity
- OEM module — fully compatible with existing DSCS09 configuration tools; no firmware re-flashing needed
- Isolated signal inputs — protects the control bus from field-side transients and ground loops
- Hot-swap capable (rack-dependent) — minimises process downtime during module replacement
- Wide temperature tolerance — suitable for both air-conditioned control rooms and semi-industrial enclosures
System Architecture & Signal Flow
The DSDP150 occupies a single slot in the DSCS09 I/O rack. Field encoder signals (A/B quadrature or single-pulse) are wired to the module’s front-panel terminal block. The on-board counter ASIC latches pulse edges at hardware speed, accumulates the position register, and makes the value available to the DSCS09 controller via the high-speed backplane bus on each scan cycle. The controller can reset the counter, read absolute position, or configure direction logic through standard DSCS09 function-block programming — no custom driver code is required.
Sourcing & Quality Verification
- Stock condition: New-surplus or tested-serviceable; each unit inspected before dispatch
- Traceability: Original ABB labelling and part markings retained; batch documentation available on request
- Testing: Power-on functional check and visual inspection performed by Konmask technical staff
- Packaging: Anti-static bag + foam-lined carton; compliant with IEC 61340-5-1 ESD handling
- Lead time: In-stock units ship within 1–3 business days; contact us for volume availability
Procurement Process
- Confirm part number DSDP150 / 57160001-GF against your DSCS09 rack configuration drawing
- Add to cart or submit an RFQ via support@konmask.com for volume pricing
- Receive proforma invoice with lead time and shipping options (DHL / FedEx / sea freight)
- Payment processed; unit dispatched with commercial invoice and packing list
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is the DSDP150 compatible with DSCS09 racks running older firmware?
A: Yes. The DSDP150 uses the standard DSCS09 backplane protocol and does not require firmware updates on the controller side. Verify rack slot assignment in your system configuration file.
Q: Can the module accept differential (RS-422) encoder signals?
A: The DSDP150 is designed for the signal levels specified in the DSCS09 I/O documentation. Consult the ABB DSCS09 hardware manual (document 3BSE000435) for exact input voltage and impedance specifications before wiring.
Q: What is the maximum pulse frequency the module can count?
A: Refer to ABB application note for DSDP150 for the rated maximum input frequency. Konmask’s technical team can provide the datasheet extract upon request.
Q: Do you offer a warranty?
A: All units carry a 90-day functional warranty from date of shipment. Extended warranty and exchange programmes are available — contact us for details.
Q: Can I return the module if it does not fit my rack?
A: Yes, subject to our standard returns policy (unit must be unused and in original packaging). Contact support@konmask.com within 14 days of receipt.
