ABB 3BHE006373R0101 Interface Board | Replacement, Equivalent & Selection Guide

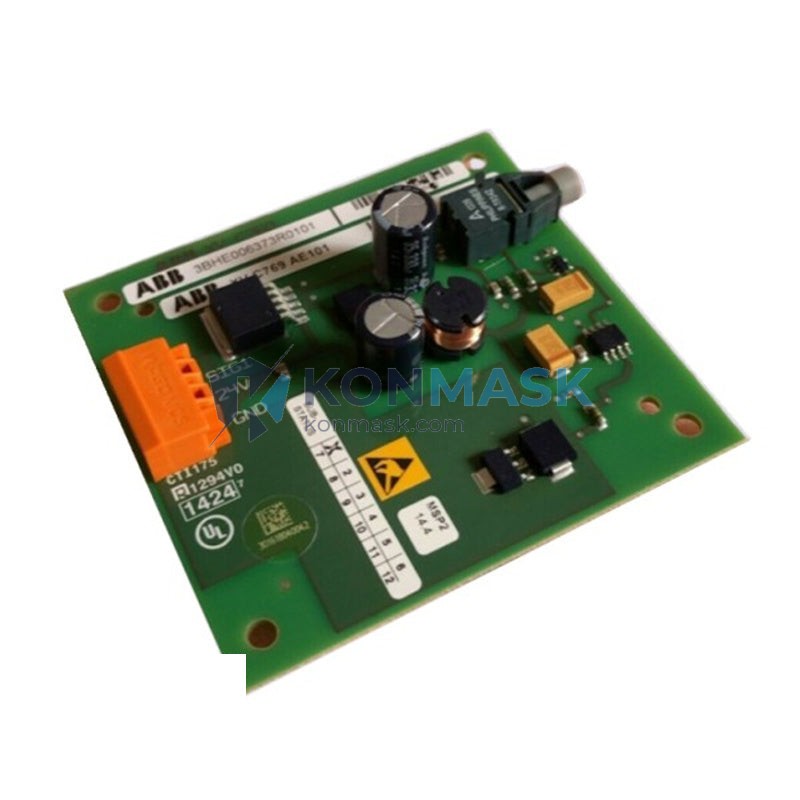

The ABB 3BHE006373R0101 is a high-reliability interface board designed for ABB’s AC800M / ACS series control systems. It serves as a critical communication and signal-conditioning bridge between the controller backplane and field I/O or drive systems. This page provides full technical specifications, verified compatible replacements, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BHE006373R0101 |
| Manufacturer | ABB |
| Product Family | ACS / AC800M Series |
| Module Type | Interface Board |
| Form Factor | PCB / Plug-in Card |
| Weight | 220 g (approx.) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Compliance | CE, RoHS |
| Condition Available | New / Refurbished / Tested |
Note: Specifications are based on ABB documentation and verified supplier data. Contact us to confirm exact revision details before ordering.
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the 3BHE006373R0101 in most ABB drive and control system configurations. Always verify firmware revision and backplane slot compatibility before substitution.
- 3BHE006373R0102 — Revised hardware revision; pin-compatible, updated EMC shielding
- 3BHE006373R0001 — Earlier revision; functionally equivalent in most ACS800 applications
- 3BHE024577R0100 — Upgraded interface board for AC800M; expanded I/O mapping
- APBU-44C / APBU-44ELCO — Branching unit interface; compatible in multi-drive configurations
- RDCO-03C — DriveWindow communication module; alternative for PC-to-drive interface needs
⚠ Substitution Notice: Replacement compatibility depends on drive firmware version, rack slot assignment, and system topology. Konmask engineers can verify compatibility for your specific installation — contact us before ordering a substitute.
Why Choose the Original Model
- Guaranteed OEM Compatibility: The 3BHE006373R0101 is factory-validated for ABB ACS and AC800M platforms — no firmware patching or parameter remapping required.
- Stable Signal Integrity: Original ABB interface boards maintain certified EMC performance and signal isolation levels that third-party alternatives may not replicate.
- Lifecycle Support: ABB spare parts are traceable through ABB’s global service network, simplifying warranty claims and audit documentation.
- Reduced Commissioning Risk: Drop-in replacement with no re-engineering — critical for minimizing downtime in production environments.
Typical Applications
- ABB ACS800 / ACS880 variable frequency drive (VFD) systems
- AC800M distributed control system (DCS) backplane communication
- Industrial motor control centers (MCC) with ABB drive integration
- Power generation and utilities automation (turbine, compressor control)
- Oil & gas, petrochemical, and mining process control systems
- Pulp & paper, cement, and metals manufacturing automation
System Compatibility
| Compatible Platform | Notes |
|---|---|
| ABB ACS800 Series | Primary target platform; slot-compatible |
| ABB ACS880 Series | Verify firmware version ≥ 2.x before use |
| ABB AC800M Controller | Compatible with PM851 / PM856 processor modules |
| ABB Advant OCS | Legacy integration; confirm rack revision |
| Third-Party DCS via PROFIBUS | Requires PROFIBUS DP gateway configuration |
Selection Guide
Use the following decision framework to select the correct interface board for your application:
- Identify your drive/controller model — Confirm the exact ABB platform (ACS800, ACS880, AC800M, etc.) and firmware version from the nameplate or commissioning report.
- Check slot assignment — Interface boards are slot-specific on ABB backplanes. Confirm the target slot number and its supported module types.
- Determine communication protocol — If DDCS, PROFIBUS, or Ethernet/IP is required, select the board variant that supports the target fieldbus.
- Assess condition requirement — For critical production lines, specify New OEM. For maintenance spares or testing, Refurbished/Tested units offer cost savings.
- Confirm revision compatibility — R0101 vs. R0102 revisions may have different PCB layouts. Match to your existing system revision where possible.
Not sure which model fits your system? Send us your drive nameplate data and we’ll confirm the correct part number within 1 business day.
Quality Assurance & Sourcing
- Source: Authorized distributors, ABB-certified service partners, and verified surplus channels
- Testing: All refurbished units undergo functional bench testing and visual inspection before shipment
- Traceability: Serial number and revision documentation provided upon request
- Packaging: Anti-static ESD packaging with moisture barrier for international shipping
- Warranty: 12-month warranty on new units; 90-day warranty on refurbished/tested units
How to Order
- Add the item to your cart and proceed to checkout, or
- Email support@konmask.com with your PO or RFQ
- For bulk orders (>5 units) or urgent requirements, call +0086 19859288691 for priority handling
- Lead time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
- Payment: T/T, PayPal, credit card, and trade assurance accepted
Replacement & Compatibility FAQ
Q: Can I use 3BHE006373R0102 as a direct replacement for R0101?
A: In most cases yes — R0102 is a hardware revision with the same functional footprint. However, confirm with your ABB service engineer if the system is under warranty or SLA.
Q: Is this board compatible with non-ABB DCS systems?
A: The board is designed for ABB platforms. Integration with third-party DCS is possible via PROFIBUS or Modbus gateways but requires additional configuration.
Q: Do you supply new or refurbished units?
A: Both. Specify your preference at checkout or in your RFQ. All units are tested and documented.
Q: What is the lead time for out-of-stock units?
A: Typically 5–15 business days depending on sourcing channel. Contact us for urgent requirements.
Q: Can you provide a certificate of conformance (CoC)?
A: Yes, CoC and test reports are available upon request for new OEM units.
