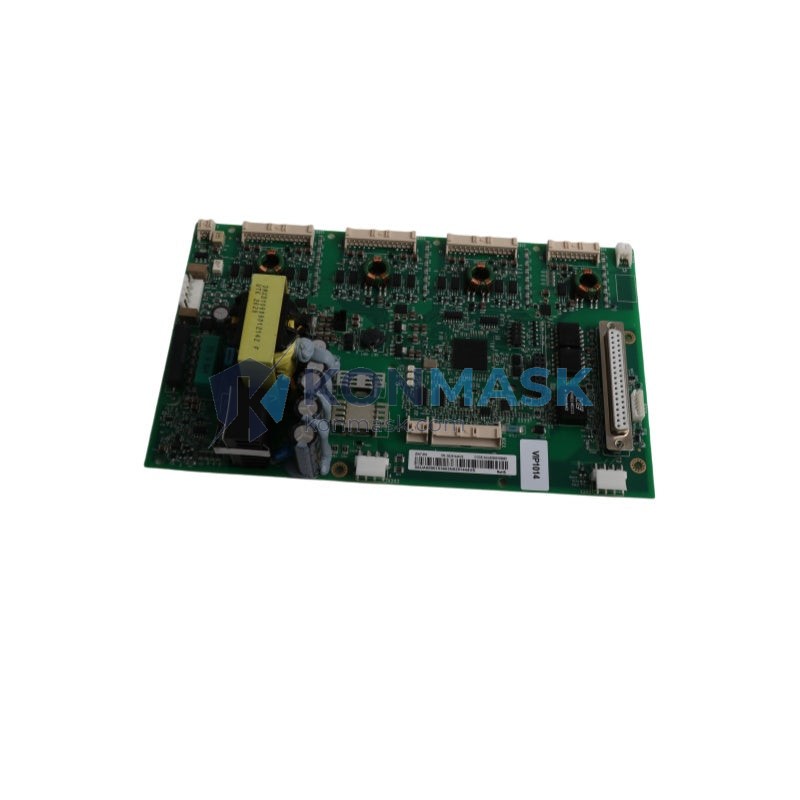

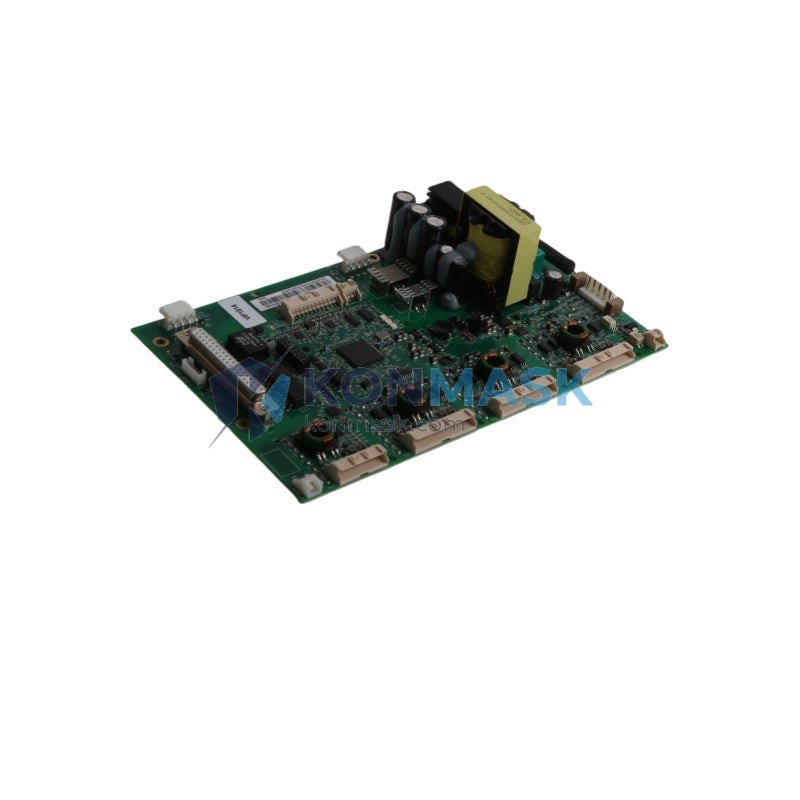

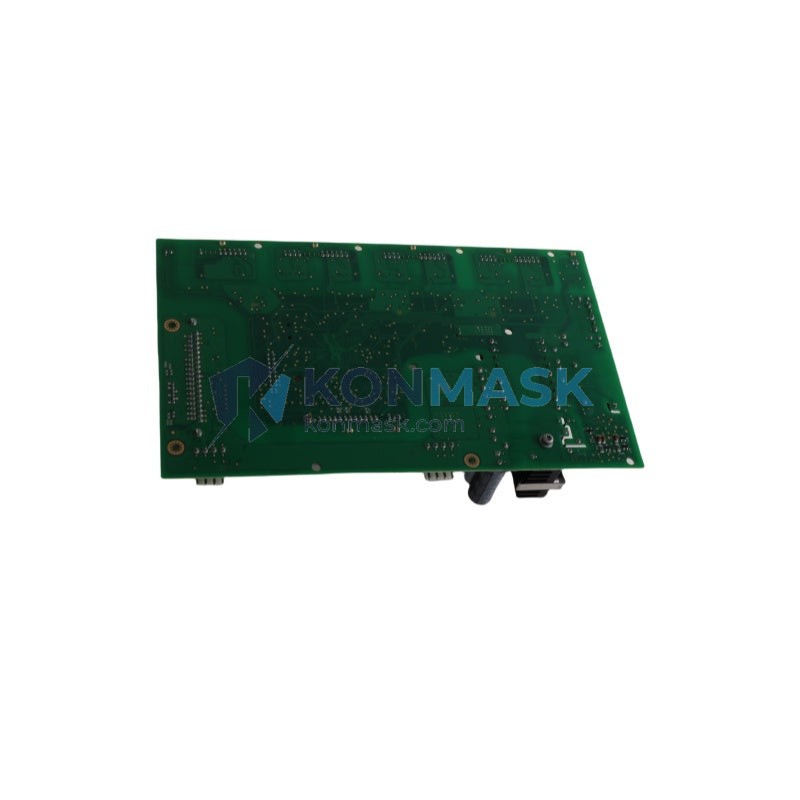

ABB ZINT-592 – PROFIBUS DP Communication Interface Module | ACS800 Drive Platform
Engineering Background: In modern industrial automation, seamless communication between variable speed drives and PLC/DCS control systems is mission-critical. The ABB ZINT-592 (part number 3AUA0000103603) is a dedicated PROFIBUS DP fieldbus adapter module engineered specifically for the ABB ACS800 series of industrial drives. It enables high-speed, deterministic data exchange between the drive and the plant-level control network, eliminating the need for analog signal wiring and reducing commissioning complexity.
Product Positioning: The ZINT-592 is the preferred fieldbus solution for engineers integrating ACS800 drives into PROFIBUS DP networks in process industries, material handling, and heavy manufacturing. It slots directly into the drive’s option slot, providing a plug-and-play communication bridge that supports full parameter read/write, process data exchange, and drive control via the PROFIBUS master.
Complete Technical Specifications
- Manufacturer: ABB
- Part Number / SKU: 3AUA0000103603
- Model: ZINT-592
- Series / Platform: ACS800 Drive Option Module
- Function: PROFIBUS DP Fieldbus Communication Interface
- Fieldbus Protocol: PROFIBUS DP (EN 50170 / IEC 61158)
- Baud Rate: Up to 12 Mbit/s (auto-detected)
- Process Data: Up to 10 words input / 10 words output (PPO types 1–5)
- Parameter Access: Full read/write via acyclic PROFIBUS DP-V1 services
- Connector: 9-pin D-Sub (DB9) female, standard PROFIBUS pinout
- Compatible Drives: ABB ACS800 series (all frame sizes with option slot)
- Installation: Plug-in option slot (no tools required)
- Power Supply: Powered from drive option slot (no external supply needed)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -40°C to +70°C
- Humidity: 5–95% RH, non-condensing
- Weight: Approx. 400 g
- Certifications: CE, UL, cUL
- Country of Origin: Finland
Proven Application Environments
- Pulp & Paper Mills: Integrating ACS800 drives on winder, refiner, and pump sections into Siemens S7 or ABB AC500 PROFIBUS networks for coordinated speed control.
- Water & Wastewater Treatment: Connecting pump and blower drives to SCADA systems via PROFIBUS DP for remote start/stop, speed reference, and fault monitoring.
- Cement & Mining: Kiln drive and conveyor belt ACS800 units communicating with plant DCS over PROFIBUS for process synchronization.
- Automotive Manufacturing: Body shop conveyor and press line drives integrated into PROFIBUS DP segments for cycle-accurate motion coordination.
- Marine & Offshore: Thruster and pump drives on vessels using PROFIBUS DP for bridge control system integration.
- HVAC & Building Automation: Large fan and chiller drives connected to BMS via PROFIBUS gateway for energy management.
Engineering Advantages
- Zero Wiring Overhead: Eliminates analog 4–20 mA or digital I/O wiring for speed reference and status feedback — all data travels over the PROFIBUS cable.
- Deterministic Latency: PROFIBUS DP cyclic polling ensures predictable, sub-millisecond process data updates critical for synchronized multi-drive applications.
- Full Drive Transparency: Exposes all ACS800 parameters and fault codes to the PROFIBUS master, enabling remote diagnostics without local HMI access.
- GSD File Support: Standard GSD (General Station Description) file available from ABB for seamless integration into any PROFIBUS configurator (STEP 7, TIA Portal, etc.).
- Hot-Swap Capable: Module can be replaced without drive disassembly, minimizing maintenance downtime.
- Backward Compatible: Supports both DP-V0 (cyclic) and DP-V1 (acyclic) services for compatibility with legacy and modern PROFIBUS masters.
System Architecture & Signal Flow
The ZINT-592 installs into the ACS800 option slot 1 or 2. On power-up, the module auto-detects the PROFIBUS baud rate and establishes communication with the DP master. Process data (speed reference, torque limit, control word) flows cyclically from master to drive; status word, actual speed, and current feedback flow from drive to master. Acyclic DP-V1 channels handle parameter read/write requests from the engineering station or SCADA. The module presents itself as a standard PROFIBUS DP slave with a unique node address set via rotary switches on the module face.
Typical Signal Flow: PLC/DCS Master → PROFIBUS DP Cable → ZINT-592 → ACS800 Internal Bus → Drive Control Board (RMIO) → Motor Output
Sourcing & Quality Verification
- All units sourced from authorized ABB distribution channels or verified industrial surplus with full traceability.
- Each module inspected for physical integrity: connector pins, PCB condition, label legibility, and firmware version confirmation.
- Functional bench test performed: PROFIBUS communication established, parameter read/write verified, process data exchange confirmed.
- Original ABB packaging and documentation supplied where available.
- 12-month warranty against manufacturing defects.
Procurement Process
- Submit your inquiry via support@konmask.com with your ACS800 drive type code and PROFIBUS master PLC model.
- Receive stock confirmation, lead time, and formal quotation within 24 hours.
- Place order — payment via T/T, PayPal, or trade terms for qualified accounts.
- Module ships with inspection report, GSD file reference, and installation guide.
- Post-delivery technical support available for commissioning assistance.
Technical FAQ
Q: Is the ZINT-592 compatible with ACS800-04 and ACS800-07 variants?
A: Yes. The ZINT-592 is compatible with all ACS800 drive variants that feature an option slot, including -01, -04, -07, -11, and -17 frame types.
Q: Can I use two ZINT-592 modules simultaneously in one drive?
A: No. Only one PROFIBUS adapter can be active per drive. However, you can combine ZINT-592 with other option modules (e.g., I/O extension) in the second slot.
Q: What GSD file version is required for TIA Portal integration?
A: ABB provides the GSD file (ABB_0B5E.GSD) for ZINT-592. Download from ABB’s document library or request from Konmask support.
Q: Does the module support PROFISAFE for functional safety applications?
A: No. ZINT-592 supports standard PROFIBUS DP only. For functional safety, ABB’s FSO-12 or FSPS-21 modules are required.
Q: What is the maximum cable length for PROFIBUS DP at 12 Mbit/s?
A: At 12 Mbit/s, maximum segment length is 100 m. Use PROFIBUS-compliant cable (Type A) and proper termination resistors at both ends of the segment.
