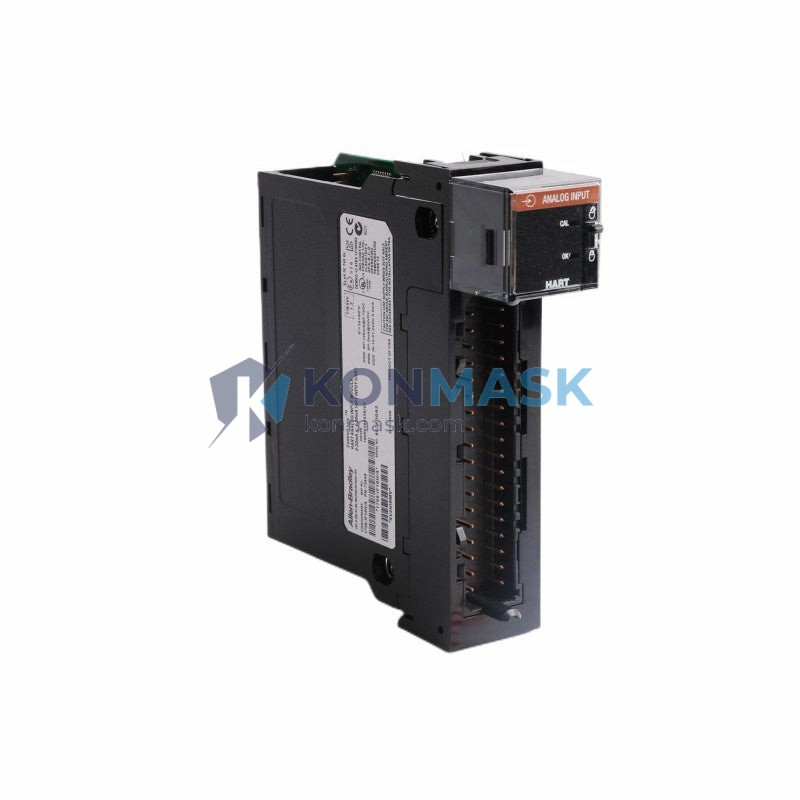

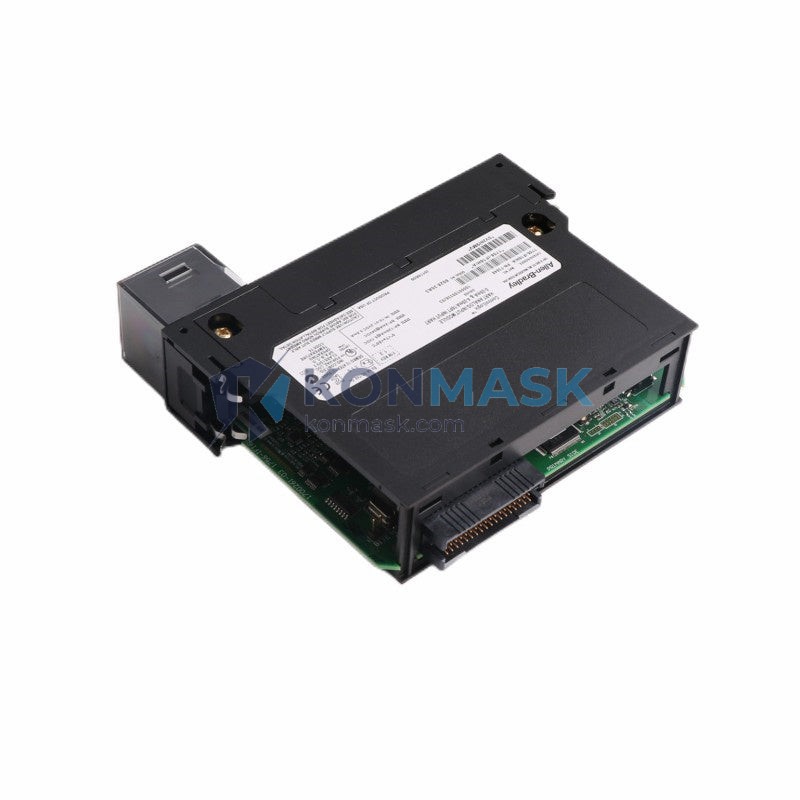

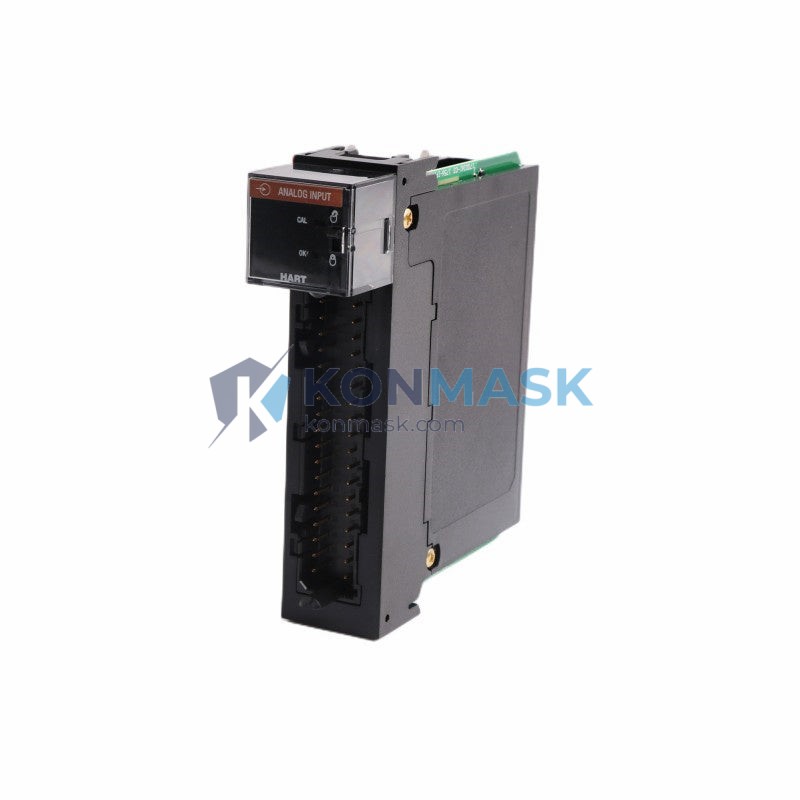

Allen-Bradley 1756-IF16H/A — 16-Channel Analog Input HART Module | ControlLogix Platform
Engineering Background
The 1756-IF16H/A is a high-density analog input module designed for Rockwell Automation’s ControlLogix chassis-based control architecture. It integrates HART (Highway Addressable Remote Transducer) protocol support directly at the I/O level, enabling field device diagnostics, configuration, and secondary variable access without additional infrastructure. This module is widely deployed in process-intensive industries where instrument health monitoring and regulatory compliance are non-negotiable.
Product Positioning
Engineered for process automation engineers who require simultaneous high-channel-count analog acquisition and HART pass-through in a single 1756 slot. The 1756-IF16H/A eliminates the need for separate HART multiplexers, reducing panel footprint, wiring complexity, and commissioning time in DCS-adjacent ControlLogix architectures.
Complete Technical Specifications
| Catalog Number | 1756-IF16H/A |
| Series | A |
| Platform | ControlLogix (1756 Chassis) |
| Number of Channels | 16 single-ended analog inputs |
| Input Signal Range | 4–20 mA (current loop) |
| HART Protocol | HART 5 / HART 6 / HART 7 compatible |
| Resolution | 16-bit |
| Update Rate | Configurable per channel; typical RPI ≥ 5 ms |
| Input Impedance | 250 Ω (internal loop resistor per channel) |
| Isolation | Channel-to-backplane isolation; no channel-to-channel isolation |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Power Consumption | 4.5 W (from 1756 chassis backplane) |
| Backplane Current (5 VDC) | 900 mA |
| Module Weight | Approx. 220 g |
| Certifications | UL, CE, C-Tick, ATEX (zone 2 with appropriate barriers) |
| Firmware | Upgradeable via ControlFlash |
| Programming Software | Studio 5000 Logix Designer v21+ |
| EDS File | Available from Rockwell Automation Product Compatibility Download Center (PCDC) |
Proven Application Environments
- Oil & Gas: Pipeline pressure/flow monitoring with HART-enabled transmitters (Rosemount, Endress+Hauser, Yokogawa)
- Chemical Processing: Multi-loop temperature and level acquisition with instrument diagnostics via HART secondary variables
- Water & Wastewater: Plant-wide analog I/O consolidation in ControlLogix-based SCADA architectures
- Pharmaceutical: 21 CFR Part 11-adjacent process monitoring with audit-trail-capable field device data
- Power Generation: Turbine and boiler analog signal acquisition with predictive maintenance via HART device status
- Mining & Minerals: High-channel-density analog input in harsh-environment ControlLogix panels
Engineering Advantages
- 16 HART channels in one slot — maximizes chassis density vs. 8-channel alternatives (1756-IF8H)
- Integrated HART pass-through — eliminates external HART multiplexers; reduces BOM and panel space
- Secondary variable access — read up to 4 HART variables per device (PV, SV, TV, QV) directly in the controller tag database
- Device diagnostics in real time — HART status bits surfaced as controller tags for alarm management and predictive maintenance
- Studio 5000 native integration — Add-On Instructions (AOI) and faceplates available via Rockwell’s Library of Process Objects
- Hot-swap capable — module can be replaced under power in a redundant ControlLogix system without process interruption
- Configurable channel scaling — engineering unit conversion and clamping configured per channel in Logix Designer
System Architecture & Signal Flow
Each of the 16 input channels accepts a 4–20 mA current loop signal from a 2-wire or 4-wire HART-enabled field transmitter. The module’s internal 250 Ω resistor converts the current signal to a voltage for A/D conversion (16-bit resolution). Simultaneously, the HART modem on each channel demodulates the FSK signal superimposed on the 4–20 mA loop, enabling bidirectional digital communication with the field device at 1200 baud.
HART data is passed to the ControlLogix controller via the 1756 backplane using the module’s input/output tag structure. The controller can issue HART commands (read device variables, write configuration, trigger self-test) through the module’s MSG instruction interface in Logix Designer. All 16 channels operate independently with no shared HART modem resource contention.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels with documented chain of custody
- Pre-shipment inspection includes: visual inspection, label/firmware version verification, functional power-on test where applicable
- Catalog number, series letter, and firmware revision confirmed against Rockwell Automation PCDC records prior to dispatch
- Packaging integrity checked; original Rockwell anti-static packaging preserved where available
- Counterfeit risk mitigation: holographic label verification, PCB marking cross-check, and supplier audit trail maintained
Procurement Process
- Inquiry: Submit your requirement via the contact form or email support@konmask.com with quantity, required delivery date, and destination
- Quotation: Receive a formal quotation within 1 business day including unit price (HKD/USD), lead time, and shipping options
- Order Confirmation: Purchase order or proforma invoice issued; payment terms confirmed
- Quality Check: Pre-shipment inspection completed and inspection report provided on request
- Shipment: Dispatched via DHL / FedEx / SF Express with full tracking; export documentation (commercial invoice, packing list, COO) included
- After-Sales: Technical support available post-delivery; warranty claims handled within 7 business days
Technical FAQ
Q: Is the 1756-IF16H/A compatible with all ControlLogix chassis?
A: Yes. It is compatible with all 1756 chassis (4, 7, 10, 13, 17 slot) and both standard and redundant ControlLogix controller configurations.
Q: Can I use this module with a CompactLogix or GuardLogix controller?
A: No. The 1756-IF16H/A is a 1756-series module and requires a ControlLogix or GuardLogix 1756 chassis. It is not compatible with CompactLogix (1769) or MicroLogix platforms.
Q: What HART commands are supported?
A: Universal commands (0–3), common practice commands, and device-specific commands are all accessible via MSG instructions in Logix Designer. Refer to Rockwell publication 1756-UM533 for the full HART command map.
Q: Does the module support HART 7 multi-drop mode?
A: HART multi-drop (multiple devices on one loop) is not supported. Each channel is dedicated to a single HART device in point-to-point mode.
Q: What is the difference between 1756-IF16H/A and 1756-IF16H/B?
A: Series B introduced minor firmware enhancements and updated certifications. Functionally, both series are equivalent for most applications. Confirm compatibility with your Studio 5000 version via the PCDC tool.
Q: Can Konmask provide the EDS file and AOI for this module?
A: EDS files are available directly from Rockwell’s PCDC. AOIs and faceplates are available via Rockwell’s Process Library. Konmask can assist with sourcing documentation upon request.
