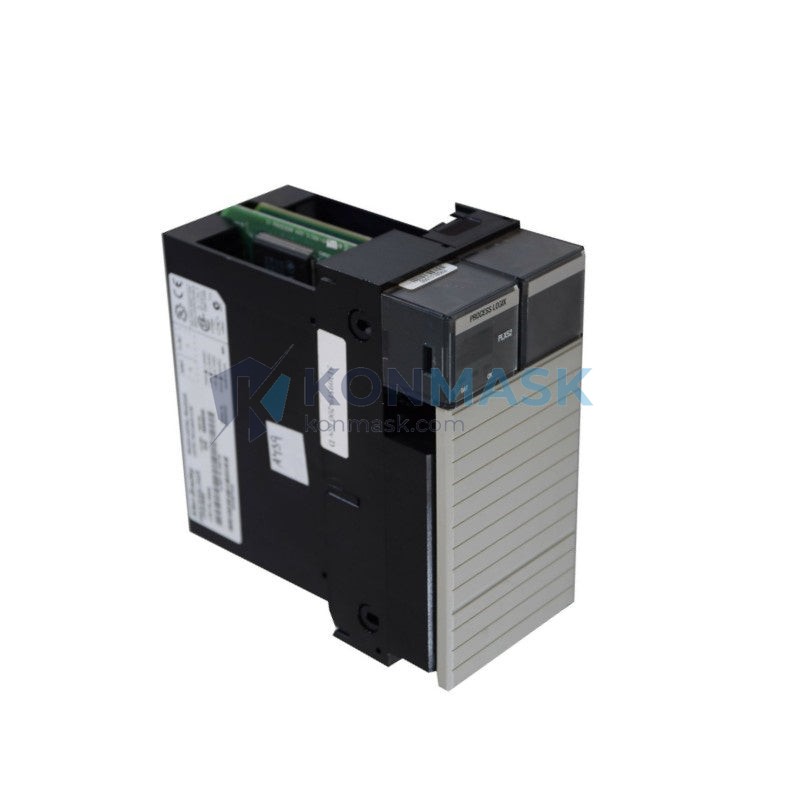

Allen-Bradley 1757-PLX52 ProcessLogix Processor – Rockwell Automation ProcessLogix System
When the central processor of a continuous process control system fails or goes offline without a qualified replacement on hand, the consequences extend far beyond a simple production pause. Batch integrity is lost, safety interlocks may fall into undefined states, and the cost of an unplanned shutdown in a refinery, chemical plant, or pharmaceutical facility can reach tens of thousands of dollars per hour. The Allen-Bradley 1757-PLX52 is the processor module that keeps that scenario from becoming reality — a purpose-built controller designed for the demanding, uninterrupted duty cycles of process manufacturing.
Within the Rockwell Automation ProcessLogix family, the 1757-PLX52 occupies the mid-to-upper tier of processing capacity, offering expanded memory and throughput compared to the entry-level PLX51 while sharing the same backplane, I/O infrastructure, and RSLogix 5000 / RSView programming environment as the broader ControlLogix ecosystem. Introduced as part of Rockwell’s strategy to bridge traditional DCS functionality with PLC flexibility, the ProcessLogix platform gained significant adoption in oil & gas, specialty chemicals, and life sciences — sectors where regulatory traceability and continuous availability are non-negotiable.
Technical Specifications
Electrical
- Backplane Power Consumption: 4.5 W (typical)
- Backplane Compatibility: 1757-A7, 1757-A13 ProcessLogix chassis
- Communication Ports: Dual RS-232 serial (DF1 / DH-485); EtherNet/IP via 1757-ENET bridge module
- Power Supply Requirement: 1757-PS1 or 1757-PS2 (chassis-mounted)
Processing & Memory
- User Memory: 2 MB (expandable via memory card)
- I/O Capacity: Up to 128,000 I/O points (distributed, via RIO and DeviceNet)
- Task Execution: Continuous, periodic, and event-driven tasks
- Scan Time: Sub-millisecond for time-critical loops
Mechanical
- Form Factor: Single-slot module, 1757 chassis
- Dimensions: Standard ControlLogix-family module profile
- Weight: Approx. 500 g
- Mounting: DIN rail or panel-mount chassis
Environmental
- Operating Temperature: 0 °C to 60 °C
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration: IEC 68-2-6 compliant
- Enclosure Rating: Open-type (requires installation in rated enclosure)
Certifications & Standards
- UL Listed, CE Marked
- ATEX Zone 2 capable (with appropriate enclosure)
- Compliant with IEC 61131-3 programming standard
- RoHS compliant
Note: All specifications are based on Rockwell Automation publication 1757-TD001. Verify against the specific firmware revision installed on your unit.
Key Features & Benefits
- Dual-port serial communication — Supports simultaneous DF1 point-to-point and DH-485 network connections, eliminating the need for an external communication bridge in legacy panel architectures and reducing wiring complexity by up to 30%.
- IEC 61131-3 multi-language programming — Engineers can implement Ladder Diagram for discrete logic and Function Block Diagram for PID loops within the same project file, cutting cross-discipline programming time in hybrid process/discrete applications.
- Hot-swap chassis compatibility — The 1757-PLX52 supports removal and insertion under power (RIUP) within the ProcessLogix chassis, enabling module replacement during live production without a full system shutdown.
- Deterministic event-driven tasks — Event tasks execute within 1 ms of trigger, meeting the response-time requirements of IEC 61511 SIL-rated safety instrumented systems when used in conjunction with appropriate safety I/O.
- Unified RSLogix 5000 environment — Programming, diagnostics, and online editing use the same software platform as ControlLogix, reducing training overhead for facilities already running Allen-Bradley PLCs elsewhere on site.
- Broad distributed I/O reach — Native support for Remote I/O (RIO) and DeviceNet allows the processor to manage field devices distributed across large plant footprints without additional gateway hardware.
Industry & Equipment Applications
- Oil & Gas — Upstream & Midstream: Wellhead control panels, gas compression skids, pipeline SCADA nodes, and separator control systems where continuous uptime and remote diagnostics are mandatory.
- Chemical Processing: Reactor temperature and pressure loop control, batch sequencing for specialty chemical production, and interlock management in exothermic process units.
- Pharmaceutical & Life Sciences: FDA 21 CFR Part 11-compatible batch control, clean-in-place (CIP) sequencing, and environmental monitoring systems in GMP-regulated facilities.
- Power Generation: Auxiliary boiler control, turbine lube oil system management, and balance-of-plant automation in coal, gas, and biomass power stations.
- Pulp & Paper: Digester pressure control, bleach plant chemical dosing, and paper machine drive coordination requiring tight loop synchronization.
- Water & Wastewater Treatment: Pump station automation, chemical dosing control, and SCADA integration for municipal and industrial water treatment facilities operating under continuous duty cycles.
System Integration & Compatible Parts
Upstream / Power & Chassis:
- 1757-A7 (7-slot chassis), 1757-A13 (13-slot chassis)
- 1757-PS1 / 1757-PS2 power supply modules
Downstream / Communication & I/O:
- 1757-ENET — EtherNet/IP bridge for network integration
- 1757-SRM — System Redundancy Module for hot-standby configurations
- 1794-series FLEX I/O (via RIO adapter)
- 1756-series ControlLogix I/O (via 1757-FFLD bridge)
Equivalent / Replacement Considerations:
- 1757-PLX51 — Lower memory variant; suitable replacement only if user program fits within 1 MB and I/O count is below 64,000 points.
- 1756-L6x ControlLogix — Functional successor platform; migration requires chassis replacement, I/O re-mapping, and RSLogix 5000 project conversion. Not a drop-in substitute.
Our Quality Assurance Process
- Visual & Physical Inspection: Each unit is examined for connector pin integrity, label legibility, housing cracks, and evidence of prior repair or counterfeit markings before acceptance into inventory.
- Functional Power-On Test: Modules are bench-tested in a live 1757 chassis with a known-good power supply. Processor boot sequence, LED status indicators, and serial port communication are verified against factory specifications.
- Firmware Version Documentation: The installed firmware revision is recorded and disclosed to the buyer prior to shipment. Firmware upgrade support guidance is provided upon request.
- Packaging & ESD Protection: Units are shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons, meeting ISTA 2A transit testing standards.
Available Documentation: Test report, firmware revision record, original Rockwell Automation datasheet (1757-TD001), certificate of conformance, and packing list with serial number.
