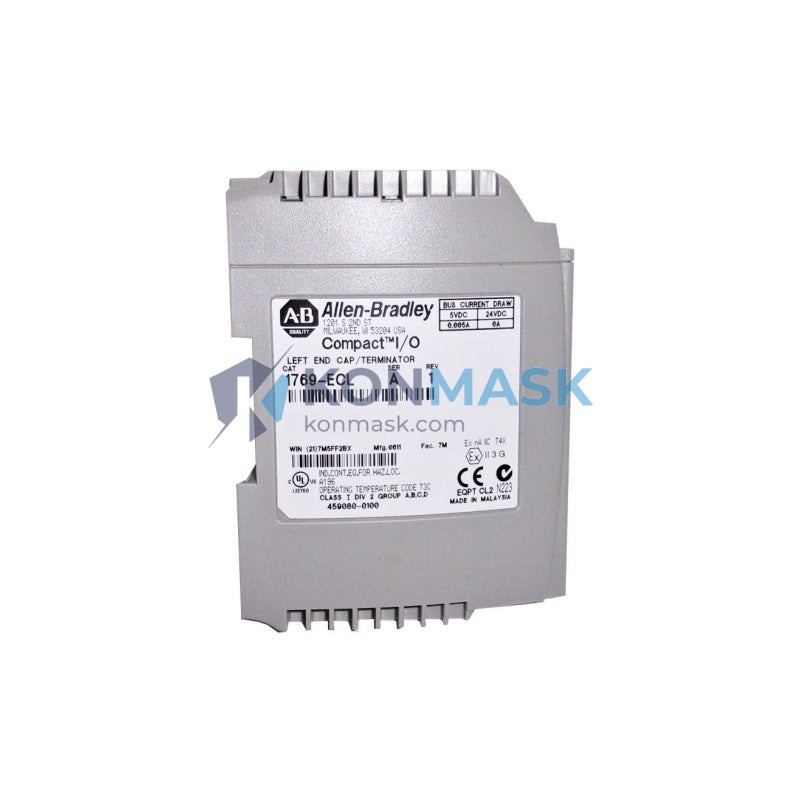

Allen-Bradley 1769-ECL Bus Terminator – CompactLogix 1769 Series
Imagine a CompactLogix control system powering a high-speed packaging line — conveyors running, servo axes synchronized, safety interlocks active. Now picture the bus left open at the end of the I/O expansion rail. Without a proper terminator, reflected signals corrupt data frames, I/O modules report spurious faults, and the controller trips offline. Production halts. The root cause? A missing end-cap terminator. The Allen-Bradley 1769-ECL exists precisely to prevent this scenario — it is the last line of defense that seals the 1769 backplane bus and guarantees signal integrity across the entire I/O assembly.
Within the CompactLogix 1769 ecosystem, the 1769-ECL serves as the left-end bus terminator, designed to cap the left side of a 1769 I/O bank when the controller is mounted to the right. Its counterpart, the 1769-ECR, handles the right-end configuration. Together, these terminators are mandatory components in any multi-bank 1769 expansion architecture. Rockwell Automation has shipped millions of 1769-series modules globally, making this terminator one of the most widely deployed bus accessories in discrete and process manufacturing worldwide.
Technical Specifications
- Catalog Number: 1769-ECL
- Series: CompactLogix 1769
- Function: Left-end bus terminator for 1769 I/O expansion bank
- Manufacturer: Allen-Bradley / Rockwell Automation
- Compatible Bus: 1769 serial backplane bus
- Mounting: Snap-on to left end of 1769 I/O bank
- Weight: Approx. 40 g
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Certifications: UL, CE, RCM (refer to Rockwell Automation product certifications page for current listings)
Note: All specifications are sourced from Rockwell Automation official documentation. Konmask.com does not fabricate or alter manufacturer specifications.
Key Features & Benefits
- Signal Integrity: Terminates the 1769 backplane bus to eliminate signal reflections that cause I/O communication errors.
- Mandatory for Multi-Bank Expansion: Required by Rockwell Automation design rules whenever a 1769 I/O bank is extended beyond the controller.
- Tool-Free Installation: Snap-fit design allows fast, tool-free mounting directly onto the left end of the I/O rail.
- Compact Form Factor: Minimal footprint preserves panel space in tight enclosures.
- Long Service Life: Robust thermoplastic housing rated for industrial environments with wide temperature tolerance.
- Genuine OEM Part: Sourced from authorized channels, ensuring full compatibility and warranty compliance.
Industry & Equipment Applications
- Automotive Manufacturing: Body welding lines, paint shop conveyors, and assembly robots using CompactLogix controllers.
- Food & Beverage: Filling, capping, and labeling machines requiring hygienic, reliable I/O expansion.
- Packaging: High-speed case packers and palletizers with multi-bank 1769 I/O architectures.
- Water & Wastewater: Pump station control panels with distributed I/O expansion banks.
- Oil & Gas: Wellhead and pipeline monitoring panels using CompactLogix as the primary controller.
- Material Handling: Sortation systems and warehouse automation with extended 1769 I/O racks.
System Integration & Compatible Parts
The 1769-ECL is designed to work within the broader Allen-Bradley CompactLogix 1769 ecosystem. Key compatible components include:
- 1769-ECR — Right-end bus terminator (used when controller is on the left)
- 1769-CRL / 1769-CRR — Left and right expansion cable connectors for remote I/O banks
- 1769-L16ER / L18ER / L24ER / L30ER / L33ER / L36ERM — CompactLogix controllers compatible with 1769 I/O
- 1769-IQ16 / OQ16 / IF4 / OF2 — Typical 1769 digital and analog I/O modules used in the same bank
- 1769-PA2 / PB2 — 1769 power supplies that share the same bus rail
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley component undergoes a structured verification process before shipment:
- Source Verification: Parts are procured from authorized distributors or traceable secondary-market channels with documented provenance.
- Visual Inspection: Housing, label, date code, and connector integrity are checked against OEM reference standards.
- Functional Check: Where applicable, modules are bench-tested for basic electrical continuity and bus connector fit.
- Packaging: Anti-static packaging with moisture barrier for safe international transit.
- Documentation: Certificate of conformity and packing list provided with every shipment.
How to Order
- Submit an RFQ (Request for Quotation) via the inquiry form on this page or email support@konmask.com.
- Include your required quantity, delivery timeline, and destination country.
- Our team will respond within 1 business day with pricing, lead time, and shipping options.
- Upon order confirmation, we issue a proforma invoice and arrange secure payment.
- Parts are shipped with full tracking and export documentation.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and automation hardware — not a generalist marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO teams across Asia, Europe, the Middle East, and the Americas.
- Fast Inquiry Response: Dedicated technical sales team responds to RFQs within 1 business day.
- Competitive Pricing: Direct sourcing relationships enable competitive pricing on both new and refurbished stock.
- Reliable Logistics: DHL, FedEx, and UPS express options with full export documentation and customs support.
- After-Sales Support: Technical assistance available for integration questions and compatibility verification.
Frequently Asked Questions
Q: What is the difference between the 1769-ECL and 1769-ECR?
A: The 1769-ECL is the left-end terminator, used when the CompactLogix controller is mounted on the right side of the I/O bank. The 1769-ECR is the right-end terminator, used when the controller is on the left. Both are required to properly terminate the 1769 backplane bus — only the orientation differs.
Q: Is the 1769-ECL required even for a single-bank I/O configuration?
A: Yes. Rockwell Automation’s design guidelines require bus terminators on both ends of every 1769 I/O bank, regardless of the number of modules installed. Omitting the terminator can cause intermittent communication faults.
Q: Can I use the 1769-ECL with all CompactLogix controllers?
A: The 1769-ECL is compatible with all controllers that support the 1769 I/O bus, including the 1769-L1x, L2x, L3x, and L36ERM families. Always verify compatibility with your specific controller firmware revision in the Rockwell Automation product compatibility matrix.
Q: Do you supply both new and refurbished 1769-ECL units?
A: Yes. Konmask.com can supply new (factory-sealed) and professionally refurbished units depending on availability and your budget requirements. All refurbished units are tested and include a warranty.
Q: What is the typical lead time for the 1769-ECL?
A: Lead time depends on current stock levels. In-stock units typically ship within 2–3 business days. For out-of-stock items, lead time is quoted at the time of RFQ. Contact us for real-time availability.
Q: How do I verify the authenticity of the part I receive?
A: Every shipment includes a certificate of conformity. The part label, date code, and housing markings can be cross-referenced against Rockwell Automation’s official catalog. We welcome third-party inspection arrangements for large orders.
