Pump & Fan Control Solution — Allen-Bradley PowerFlex 753 20F11NC060JA0NNNNN | PowerFlex 750 Series
Where This Product Is Used

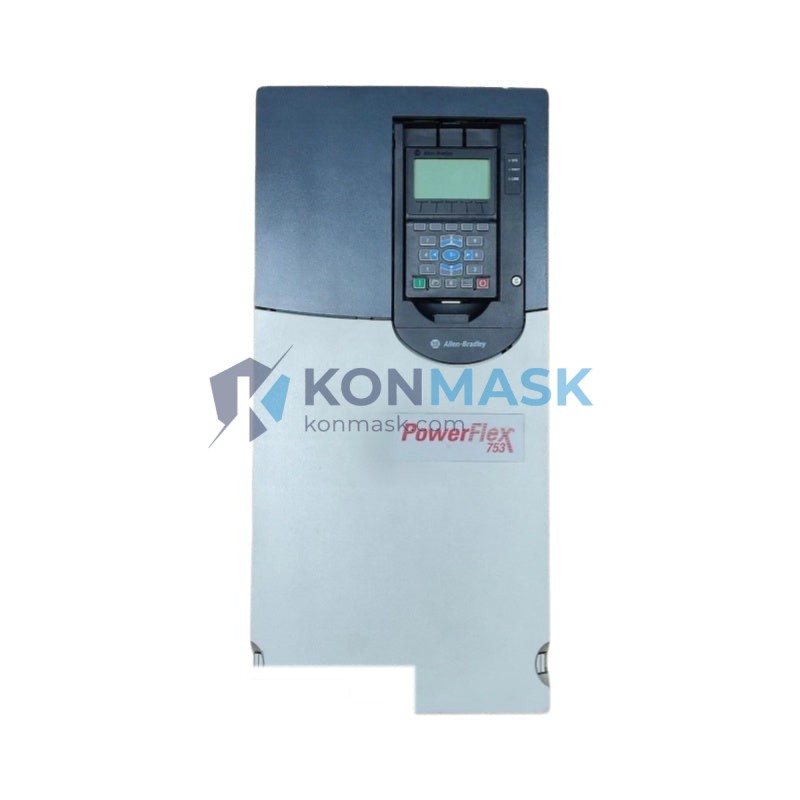

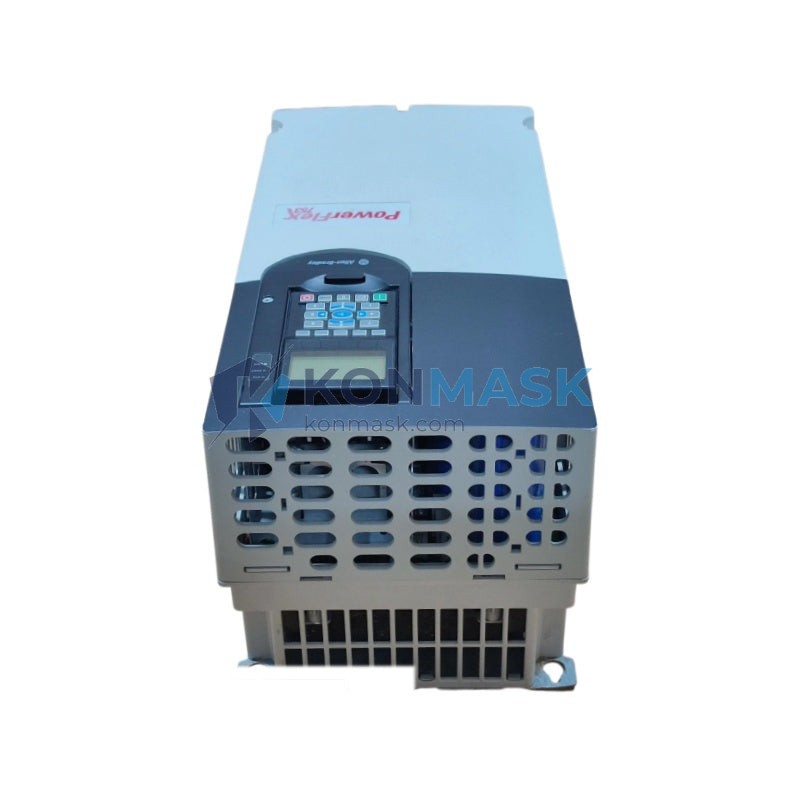

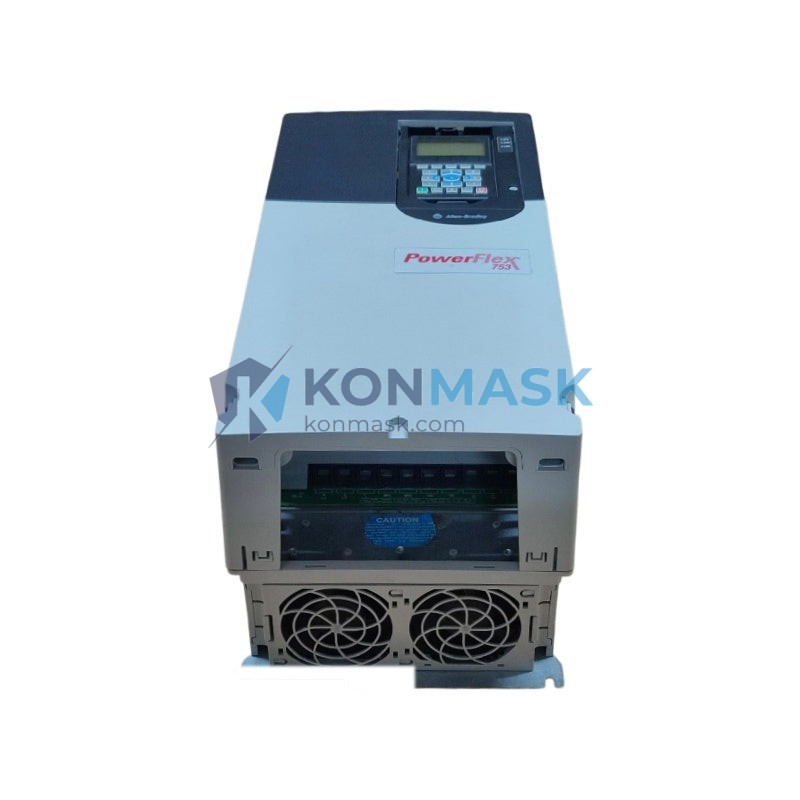

The Allen-Bradley PowerFlex 753 (Catalog No. 20F11NC060JA0NNNNN) is a general-purpose AC variable frequency drive engineered for demanding industrial environments. Engineers and system integrators specify this drive across a wide range of applications:
- Pump Systems — Municipal water treatment, HVAC chilled-water pumps, booster pump stations, and irrigation systems requiring precise flow control and energy savings.
- Fan & Blower Control — Industrial exhaust fans, cooling tower fans, air handling units (AHU), and combustion air blowers in power generation and process plants.
- Conveyor & Material Handling — Package sorting lines, aggregate conveyor belts, and automotive assembly transfer systems where smooth acceleration and deceleration are critical.
- Compressor Drives — Screw and centrifugal compressors in oil & gas, petrochemical, and refrigeration plants.
- Mixer & Agitator Drives — Chemical processing, food & beverage blending, and wastewater treatment agitators.
- Machine Tool & OEM Equipment — Spindle drives, winding/unwinding machines, and test stands requiring tight speed regulation.
Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 20F11NC060JA0NNNNN |
| Series | PowerFlex 753 |
| Frame Size | Frame 5 |
| Input Voltage | 600V AC, 3-Phase |
| Output Current (ND) | 60 A |
| Enclosure | IP20 / Open Type (NEMA Type 1 with optional kit) |
| Control Mode | Sensorless Vector (SVC), V/Hz, Flux Vector (with encoder option) |
| Communication | Embedded EtherNet/IP (Port 1) |
| I/O | Standard I/O + option card slots (Ports 4–5) |
| Brake Transistor | Built-in |
| Ambient Temperature | 0°C to +50°C (derating above 40°C) |
| Weight | Approx. 6.56 kg |
| Standards | UL, cUL, CE, RCM |
Why Engineers Specify This Model
- Embedded EtherNet/IP — Native integration with Rockwell Automation Studio 5000 / RSLogix 5000 PLC platforms without additional communication cards.
- Modular Option Card Architecture — Ports 4 and 5 accept I/O expansion, encoder feedback, safety (STO), and additional fieldbus cards, enabling a single drive platform across multiple machine variants.
- Safe Torque Off (STO) — Meets SIL 2 / PLd safety requirements when equipped with the 20-750-S safety option, reducing external safety relay costs.
- Energy Savings Mode — Automatic energy optimization algorithm reduces motor losses during light-load operation — critical for pump and fan applications targeting IE3/IE4 efficiency targets.
- DriveGuard® Safety — Integrated safety functions reduce panel wiring complexity and meet IEC 61508 requirements.
- Wide Voltage Tolerance — Operates reliably across ±10% input voltage variation, suitable for sites with unstable grid supply.
Complete System Bill of Materials
For a fully functional PowerFlex 753 drive system, engineers typically specify the following companion components:
- 20-750-ENETR — Dual-port EtherNet/IP option card (for Device Level Ring / DLR topology)
- 20-750-S — Safe Torque Off (STO) safety option card
- 20-750-2262C-2R — I/O expansion option card (2 analog in, 2 relay out)
- 20-750-DNET1 — DeviceNet communication option card
- 1321-3R60-C — Line reactor, 60A, 600V (input harmonic mitigation)
- 1321-M060 — EMC filter for CE compliance
- 20-HIM-A6 — Remote HIM (Human Interface Module) with LCD display
- 1203-USB — USB-to-DPI communication adapter for PC programming
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment
- cUL (Canadian UL) Listed
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RCM (Australia/New Zealand)
- IEC 61800-5-1 — Adjustable Speed Electrical Power Drive Systems
- IEC 61508 / IEC 62061 — Functional Safety (STO option)
- NFPA 70 (NEC) compliant installation
Quality Assurance & Sourcing
At Konmask.com, every Allen-Bradley PowerFlex 753 unit undergoes a rigorous incoming inspection process:
- Catalog number and date code verification against manufacturer documentation
- Physical inspection for transit damage, counterfeit indicators, and label authenticity
- Functional power-on test where applicable
- Secure anti-static packaging with tamper-evident sealing
- Full traceability records maintained for B2B and OEM customers
We source from authorized distribution channels and verified industrial surplus networks. All units are sold with a 90-day replacement warranty against defects in materials and workmanship.
How to Source This Part
Ready to order the Allen-Bradley 20F11NC060JA0NNNNN? Here’s how to get started:
- Add to Cart — Immediate checkout for stocked units with same-day or next-day dispatch.
- Request a Quote — For volume orders (5+ units), OEM projects, or blanket PO arrangements, contact our sales team for preferential pricing.
- Technical Pre-Sales Support — Our engineers can assist with drive sizing, system compatibility checks, and option card selection.
- Email: support@konmask.com
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; ex-stock orders within 7–14 business days.
Application-Specific FAQ
Q: Is the 20F11NC060JA0NNNNN compatible with a 575V supply?
A: Yes. The “F” in the catalog number denotes the 600V input voltage class, which covers 575V and 600V 3-phase supplies within the ±10% tolerance band.
Q: Can this drive be used for pump control with PID feedback?
A: Yes. The PowerFlex 753 includes a built-in PID controller that accepts a 4–20 mA or 0–10V process feedback signal, enabling closed-loop pressure or flow control without an external PLC.
Q: Does this model include a built-in brake chopper?
A: Yes. Frame 5 units include an internal brake transistor. An external brake resistor (catalog: AK-R2-091P300) must be added for dynamic braking applications.
Q: What is the difference between PowerFlex 753 and PowerFlex 755?
A: The PowerFlex 755 adds closed-loop flux vector control with encoder feedback, integrated safety (STO standard), and higher performance for servo-like applications. The 753 is optimized for general-purpose pump, fan, and conveyor applications at a lower cost point.
Q: Is this drive suitable for hazardous locations?
A: The standard IP20 enclosure is not rated for hazardous locations. For Zone 2 / Class I Div 2 installations, the drive must be installed in a certified enclosure or use the PowerFlex 753 ATEX-rated variant.
