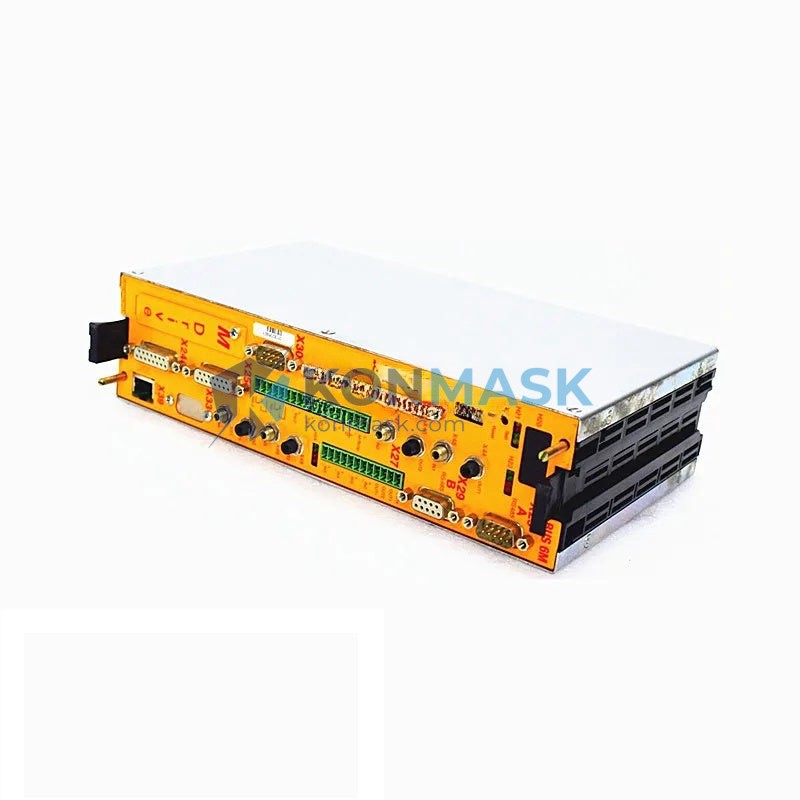

BAUMULLER BUS622-15/22-54-M-005 – Multi-Protocol Bus Controller | b maXX Drive System Platform
Engineering Background
Baumüller (BAUMULLER) is a German precision drive and automation manufacturer headquartered in Nuremberg, Germany, with over 75 years of engineering heritage. The company specializes in servo drive systems, motion controllers, and fieldbus communication modules for demanding industrial environments including machine tools, printing presses, plastics machinery, and packaging lines.
Product Positioning
The BUS622-15/22-54-M-005 is a dedicated bus controller module designed for integration within the Baumüller b maXX modular drive platform. It serves as the communication backbone between the drive system and higher-level PLC or DCS controllers, enabling deterministic, high-speed fieldbus data exchange. This module is the preferred choice for procurement engineers who require a drop-in replacement or system expansion component with full OEM compatibility.
Complete Technical Specifications
| Manufacturer | BAUMULLER (Baumüller Nürnberg GmbH) |
| Part Number / SKU | BUS622-15/22-54-M-005 |
| Product Series | b maXX Drive System – BUS6xx Communication Module Series |
| Module Function | Bus Controller / Fieldbus Communication Interface |
| Country of Origin | Germany (DE) |
| Weight | 1,250 g (approx.) |
| Compatible Platform | Baumüller b maXX 4000 / 5000 series drive systems |
| Communication Role | Master/Slave fieldbus interface for drive-to-controller communication |
| Mounting | DIN rail / panel-mount per b maXX system housing standard |
| Operating Temperature | 0 °C to +55 °C (storage: -25 °C to +70 °C) |
| Protection Class | IP20 (module-level) |
| Power Supply | Supplied via b maXX backplane bus |
| Certifications | CE, UL (per b maXX platform certification) |
| HS Code Reference | 8537.10 (Programmable Controllers / Communication Modules) |
Proven Application Environments
- Machine Tool Industry: CNC machining centers requiring high-speed, deterministic drive communication via PROFIBUS or SERCOS
- Printing & Packaging Machinery: Multi-axis synchronized drive systems where bus latency directly impacts print registration accuracy
- Plastics & Injection Molding: Closed-loop servo drive control with real-time feedback via fieldbus to PLC
- Textile Machinery: High-cycle, multi-drive coordination requiring reliable bus arbitration
- Automotive Assembly Lines: Integration with Siemens S7 / Beckhoff TwinCAT PLC environments via standardized fieldbus protocols
- Crane & Hoist Systems: Safety-critical drive communication with redundant bus monitoring
Engineering Advantages
- OEM-Grade Compatibility: Direct plug-in replacement for existing b maXX 4000/5000 installations — no firmware re-parameterization required in most configurations
- Deterministic Communication: Supports real-time fieldbus protocols ensuring cycle-accurate data exchange between drive and controller
- Modular Architecture: Hot-swap capable within the b maXX system frame, minimizing planned downtime during maintenance windows
- Robust German Engineering: Designed to IEC 61800-3 EMC standards for industrial electromagnetic environments
- Long Service Life: Industrial-grade components rated for continuous 24/7 operation in demanding factory environments
- Broad PLC Interoperability: Compatible with major PLC platforms including Siemens SIMATIC, Beckhoff, Schneider Modicon, and Rockwell Allen-Bradley via standard fieldbus protocols
System Architecture & Signal Flow
The BUS622-15/22-54-M-005 integrates directly into the b maXX drive system backplane. The signal flow is as follows:
- Higher-Level Controller (PLC/DCS) → issues motion/control commands via fieldbus network
- BUS622-15/22-54-M-005 Bus Controller → receives, decodes, and arbitrates fieldbus telegrams; translates to internal b maXX drive commands
- b maXX Drive Power Stage → executes torque/speed/position commands in real time
- Encoder/Feedback Loop → actual values returned upstream via the same bus controller for closed-loop control
This architecture ensures sub-millisecond command latency and deterministic cycle times critical for precision motion control applications.
Sourcing & Quality Verification
- Source: Konmask.com sources BAUMULLER modules through verified industrial surplus and authorized distribution channels
- Inspection: Each unit undergoes visual inspection, connector integrity check, and label/serial number verification prior to dispatch
- Authenticity: All modules are original BAUMULLER-manufactured parts — no third-party remanufactured or counterfeit components
- Condition: New surplus or refurbished units clearly indicated in order confirmation; condition grade available on request
- Documentation: Original BAUMULLER part labels and traceability documentation provided where available
Procurement Process
- Confirm Compatibility: Verify your b maXX drive system model and existing bus controller slot configuration against BUS622-15/22-54-M-005 specifications
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place Order: Secure checkout via Konmask.com with HKD/USD/EUR payment options; B2B invoicing available
- Shipping: Global express shipping (DHL / FedEx / UPS) with full tracking; export documentation and commercial invoice provided for customs clearance
- After-Sales Support: Technical support available for installation guidance and system integration questions
Technical FAQ
Q: Is the BUS622-15/22-54-M-005 compatible with b maXX 4000 and 5000 series drives?
A: Yes. The BUS6xx module series is designed for the b maXX modular drive platform. Confirm your specific drive firmware version with our technical team for guaranteed compatibility.
Q: What fieldbus protocols does this module support?
A: The BUS622 series supports standard industrial fieldbus protocols per the b maXX platform specification. Contact us with your PLC brand and protocol requirement for confirmation.
Q: Can this module be used as a direct replacement for a failed unit?
A: In most cases, yes — the module is a plug-in replacement. Drive re-parameterization may be required depending on firmware version. Our technical team can advise.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a standard warranty on all modules. Warranty terms are provided at time of purchase. Extended warranty options available for volume orders.
Q: What is the lead time for this part?
A: Lead time varies by stock availability. Contact support@konmask.com for real-time availability and estimated delivery.
