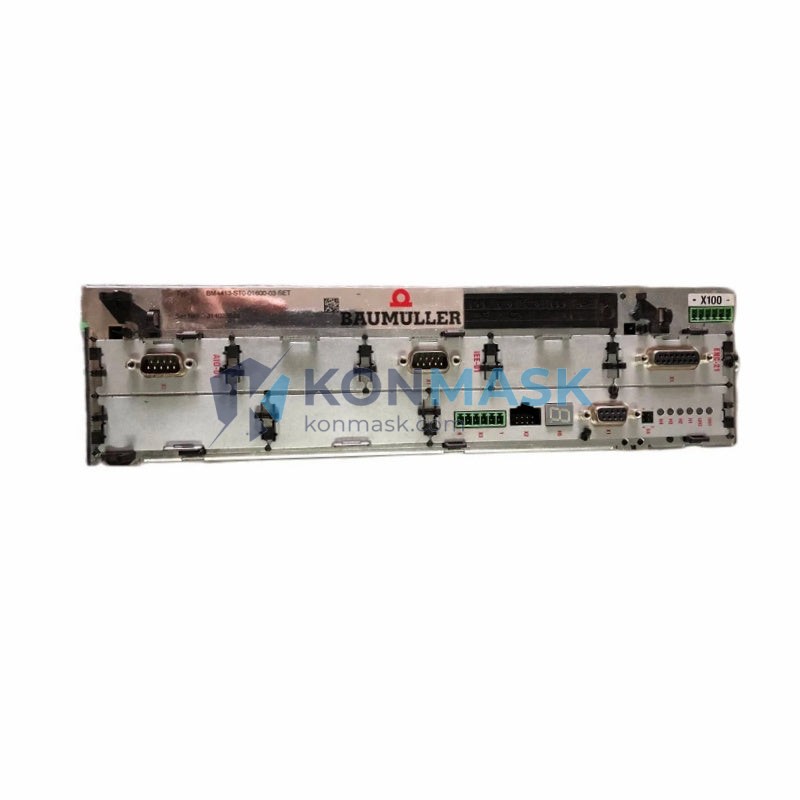

BAUMULLER BM4413-ST0-01600-03-SET Servo Controller Drive | Replacement, Equivalent & Selection Guide
The BAUMULLER BM4413-ST0-01600-03-SET is a high-performance AC servo controller drive from Baumüller’s BM44 series, engineered for precision motion control in demanding industrial automation environments. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: BAUMULLER (Baumüller Nürnberg GmbH)
- Part Number / SKU: BM4413-ST0-01600-03-SET
- Series: BM44 AC Servo Drive Series
- Type: AC Servo Controller Drive
- Rated Output Current: 16 A (continuous)
- Supply Voltage: 3-phase AC 400 V / 480 V (±10%)
- Frequency: 50/60 Hz
- Control Mode: Speed / Torque / Position (closed-loop)
- Communication Interface: PROFIBUS-DP / CANopen (model-dependent)
- Encoder Interface: Resolver, SinCos, EnDat 2.1/2.2
- Protection Class: IP20
- Cooling: Forced air cooling (internal fan)
- Weight: Approx. 3.5 kg
- Compliance: CE, UL (refer to datasheet for regional certifications)
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the BM4413-ST0-01600-03-SET. Always verify electrical and mechanical compatibility before substitution:
- BAUMULLER BM4413-ST0-01200-03-SET — Same series, 12 A rated output; suitable for lower-current applications
- BAUMULLER BM4413-ST0-02400-03-SET — Same series, 24 A rated output; for higher-load requirements
- BAUMULLER BM4412-ST0-01600-03-SET — Previous generation BM44 series; check firmware compatibility
- Siemens SINAMICS S120 — Industry-standard alternative; requires re-parameterization and mechanical adaptation
- Lenze i700 — Comparable servo inverter; evaluate bus protocol and encoder interface compatibility
- SEW-EURODRIVE MOVIDRIVE B — Alternative for multi-axis applications; different wiring topology
Note: Third-party replacements may require parameter reconfiguration, mechanical bracket adaptation, and re-commissioning. Contact Konmask.com for sourcing the original OEM part.
Why Choose the Original Model
- Drop-in compatibility: No re-wiring or re-parameterization required when replacing like-for-like
- Validated performance: Factory-tested to Baumüller’s motion control specifications
- Firmware continuity: Maintains existing PLC/HMI program compatibility without code changes
- Warranty & traceability: Full OEM traceability for regulated industries (food, pharma, automotive)
- Reduced commissioning risk: Eliminates integration risk associated with third-party substitutes
Typical Applications
- CNC machine tool spindle and axis drives
- Printing and packaging machinery
- Textile and winding machines
- Injection molding and extrusion lines
- Robotics and multi-axis servo systems
- Conveyor and material handling automation
System Compatibility
The BM4413-ST0-01600-03-SET is designed to integrate with Baumüller’s broader automation ecosystem:
- PLC: Compatible with Baumüller b maXX controller series; also integrable with Siemens S7, Beckhoff TwinCAT via fieldbus
- HMI: Works with Baumüller ProMaster and third-party HMI panels via PROFIBUS/CANopen
- Motors: Optimized for Baumüller DST/DSC servo motor series; verify encoder type before pairing
- Software: Configurable via Baumüller ProDrive commissioning software
Selection Guide
Use the following criteria to confirm the BM4413-ST0-01600-03-SET is the correct model for your application:
- Step 1 — Current rating: Confirm motor rated current ≤ 16 A continuous. If higher, select BM4413-ST0-02400-03-SET (24 A).
- Step 2 — Supply voltage: Verify 3-phase 400 V / 480 V AC supply availability at the cabinet.
- Step 3 — Control mode: Confirm required control mode (speed / torque / position) matches application.
- Step 4 — Encoder interface: Match encoder type on existing motor (Resolver / SinCos / EnDat) to drive specification.
- Step 5 — Fieldbus protocol: Confirm PLC fieldbus (PROFIBUS-DP or CANopen) matches drive option code.
- Step 6 — Mounting space: Verify cabinet DIN rail or panel mounting space matches BM44 series dimensions.
Not sure which model fits? Contact our selection team with your motor nameplate data and we will recommend the correct drive.
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus stock
- Pre-shipment inspection: visual, functional power-on test where applicable
- Anti-static packaging with humidity indicator cards for sensitive electronics
- Counterfeit prevention: serial number and label verification against manufacturer records
- Warranty: 12 months from date of shipment (see full terms at Konmask.com)
How to Order
- Add the BM4413-ST0-01600-03-SET to cart and proceed to checkout, or
- Email [email protected] with your PO or RFQ, or
- Call / WhatsApp: +0086 19859288691 for urgent requirements
Lead time: In-stock units ship within 1–3 business days. Ex-stock lead time varies — contact us for availability confirmation.
Replacement & Compatibility FAQ
Q: Can I replace BM4413-ST0-01600-03-SET with a Siemens SINAMICS S120?
A: Technically possible but requires full re-parameterization, different wiring, and possible motor re-tuning. Not recommended for production-critical machines without engineering review.
Q: Is the BM4413-ST0-01600-03-SET compatible with non-Baumüller motors?
A: Yes, with compatible encoder interfaces (Resolver, SinCos, EnDat). Motor parameters must be entered manually via ProDrive software.
Q: What is the difference between BM4413-ST0-01600-03-SET and BM4413-ST0-01200-03-SET?
A: The primary difference is rated output current: 16 A vs. 12 A. All other specifications and form factor are identical within the BM44 series.
Q: Do you supply new, refurbished, or surplus units?
A: Konmask.com supplies new OEM units and verified surplus stock. Condition is clearly stated on each listing. Contact us if you need clarification.
Q: Can Konmask.com provide a certificate of conformity or test report?
A: Yes, available upon request for new OEM units. Contact [email protected].
