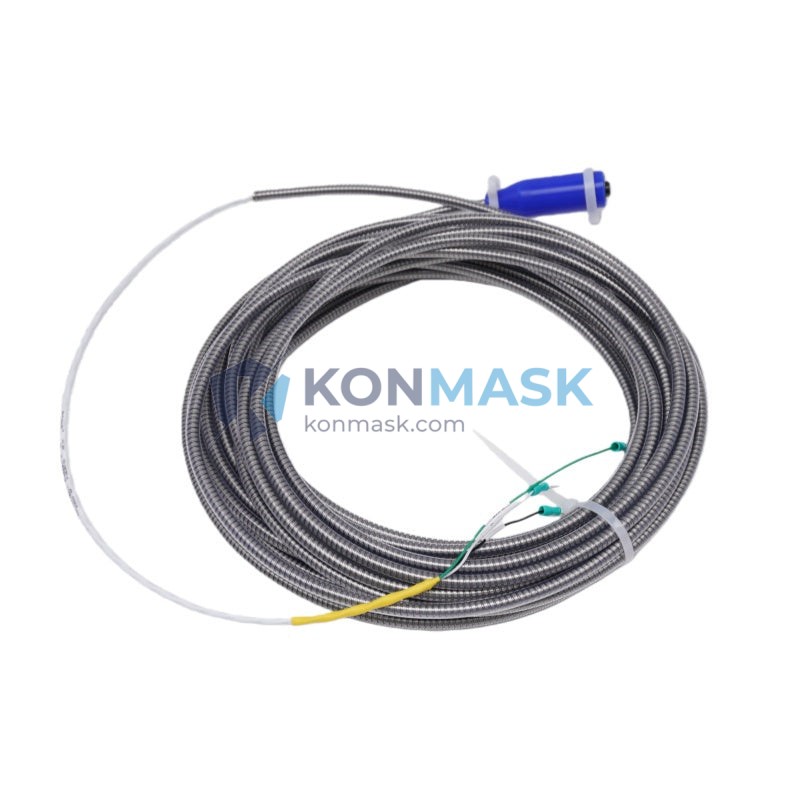

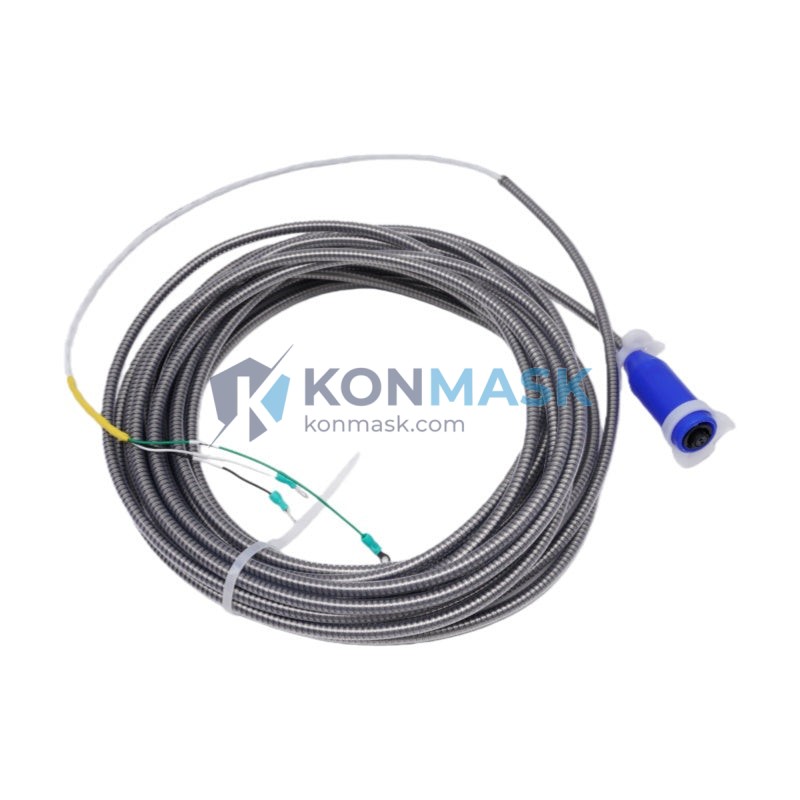

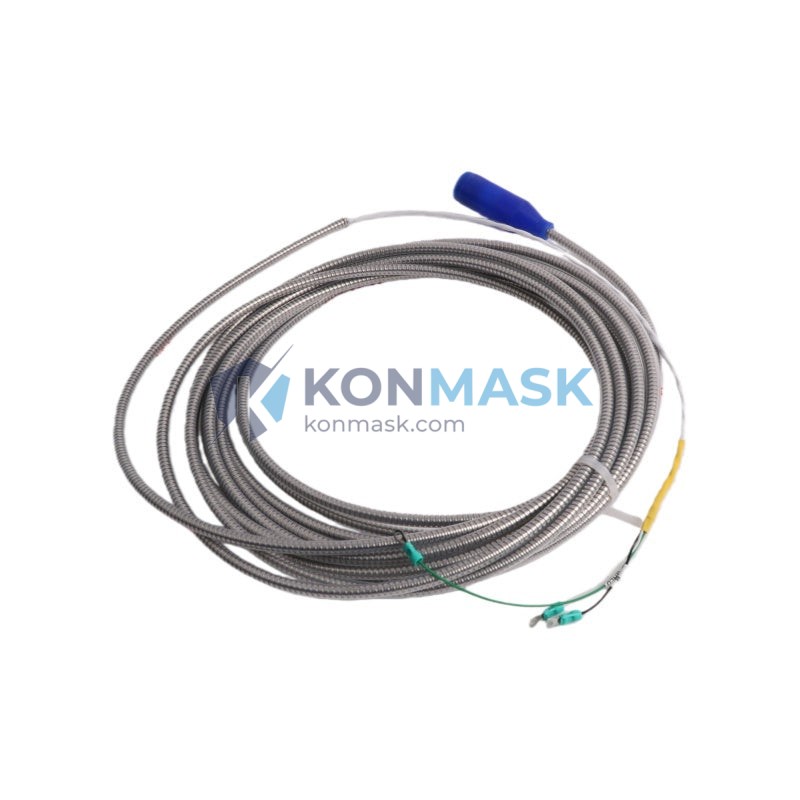

Bently Nevada 106765-30 – Velomitor XA Sensor Interconnect Cable (30 ft) | Velomitor XA Series
The Bently Nevada 106765-30 is a factory-specified sensor interconnect cable engineered for the Velomitor XA piezo-velocity vibration sensor platform. Designed for procurement engineers and reliability teams operating rotating machinery protection systems, this cable ensures signal integrity between the Velomitor XA sensor and the 3500 Series monitoring rack — with zero field-modification required.
As an authorized distributor, Konmask.com supplies this cable with full traceability documentation, supporting MRO, capital project, and emergency replacement procurement workflows.
Complete Technical Specifications
| Part Number | 106765-30 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | Velomitor XA |
| Cable Type | Sensor Interconnect Cable |
| Compatible Sensor | Velomitor XA Piezo-Velocity Sensor |
| Compatible Monitor | Bently Nevada 3500 Series Machinery Protection System |
| Connector Type | OEM-specified, field-ready terminations |
| Cable Length | 30 ft (~9.1 m) — suffix -30 |
| Signal Type | Velocity (piezo-velocity, low-impedance output) |
| Operating Temperature | Per Bently Nevada Velomitor XA environmental spec |
| Weight | 1,200 g (approx.) |
| Country of Origin | USA |
Proven Application Environments
- Steam and gas turbine vibration monitoring
- Centrifugal compressor and pump bearing surveillance
- Motor and gearbox health monitoring
- Petrochemical, refinery, and LNG plant machinery protection
- Power generation and utilities rotating equipment
- Offshore platform and subsea topside machinery systems
Engineering Advantages
- OEM-matched signal path — eliminates impedance mismatch and noise artifacts from non-OEM cabling
- Drop-in replacement — no field re-termination or calibration adjustment required
- Shielded construction — rejects EMI/RFI interference common in industrial switchgear environments
- Validated compatibility — tested against Bently Nevada 3500 Series rack input specifications
- Traceability-ready — documentation supports ISO 55000 asset management and API 670 compliance audits
System Architecture & Signal Flow
The 106765-30 cable forms the critical link in the Velomitor XA signal chain:
Rotating Machinery Bearing Housing → Velomitor XA Sensor (piezo-velocity) → 106765-30 Interconnect Cable (30 ft) → Bently Nevada 3500 Series Monitor Input → DCS / Safety System
The cable carries the low-impedance velocity signal from the sensor to the monitor’s transducer input card, preserving waveform fidelity for both overall vibration level alarming and spectral analysis via System 1 software.
Sourcing & Quality Verification
- Sourced from authorized Bently Nevada / Baker Hughes distribution channels
- Each unit inspected for connector integrity and cable continuity prior to shipment
- Packaging integrity verified — OEM labeling and part number markings confirmed
- Certificate of Conformance (CoC) available upon request
- Counterfeit-risk mitigation: Konmask.com does not source from grey-market or unverified secondary channels
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability
- MOQ: 1 piece
- Payment: T/T, L/C, PayPal, and major credit cards accepted
- Export: Worldwide shipping with commercial invoice and packing list; export licensing assistance available
- Emergency Orders: Contact [email protected] for expedited processing
Technical FAQ
Q: Is the 106765-30 compatible with the standard Velomitor (non-XA) sensor?
A: No. The 106765-30 is specifically designed for the Velomitor XA variant. Verify your sensor model before ordering.
Q: Can this cable be extended in the field?
A: Bently Nevada does not recommend field extension of sensor interconnect cables. Use the correct length part number for your installation distance.
Q: Does this cable require a barrier or isolator?
A: Depends on your hazardous area classification. Consult your site’s electrical area classification drawings and Bently Nevada’s installation manual for the 3500 Series.
Q: What is the warranty?
A: Konmask.com provides a 12-month warranty against manufacturing defects. OEM warranty terms apply where applicable.
