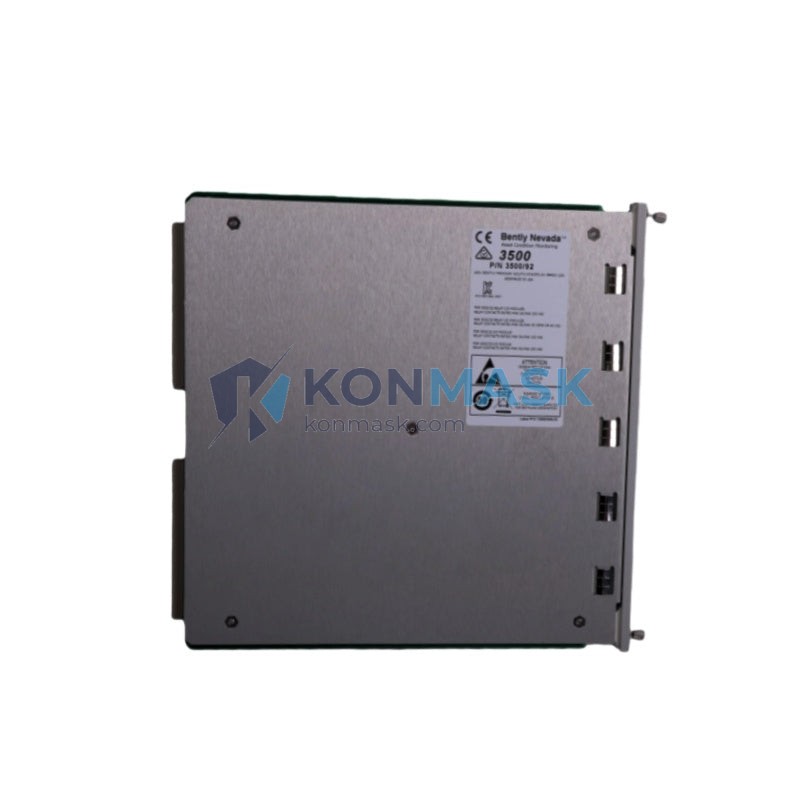

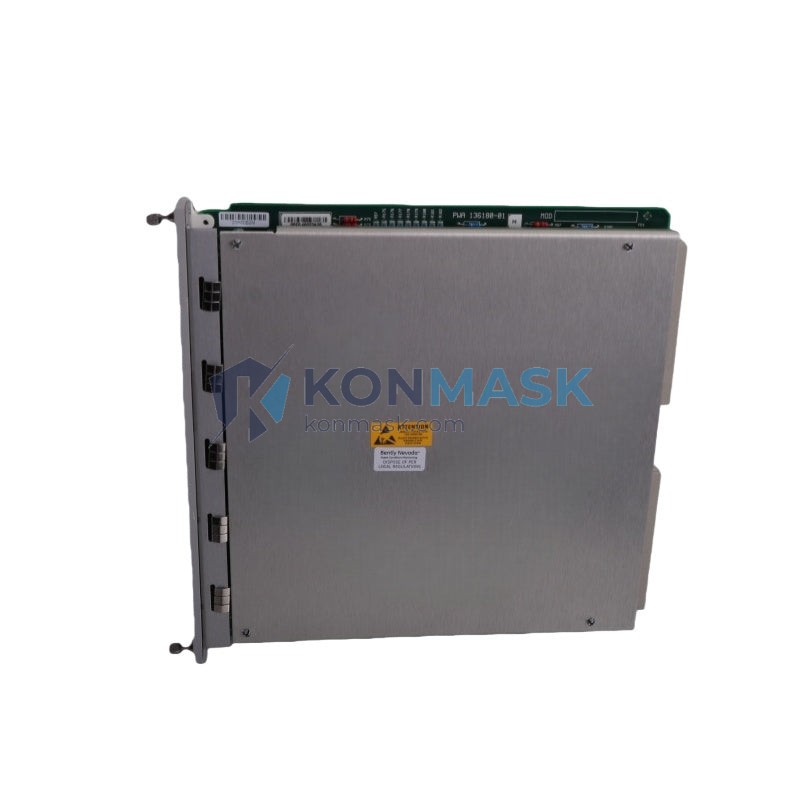

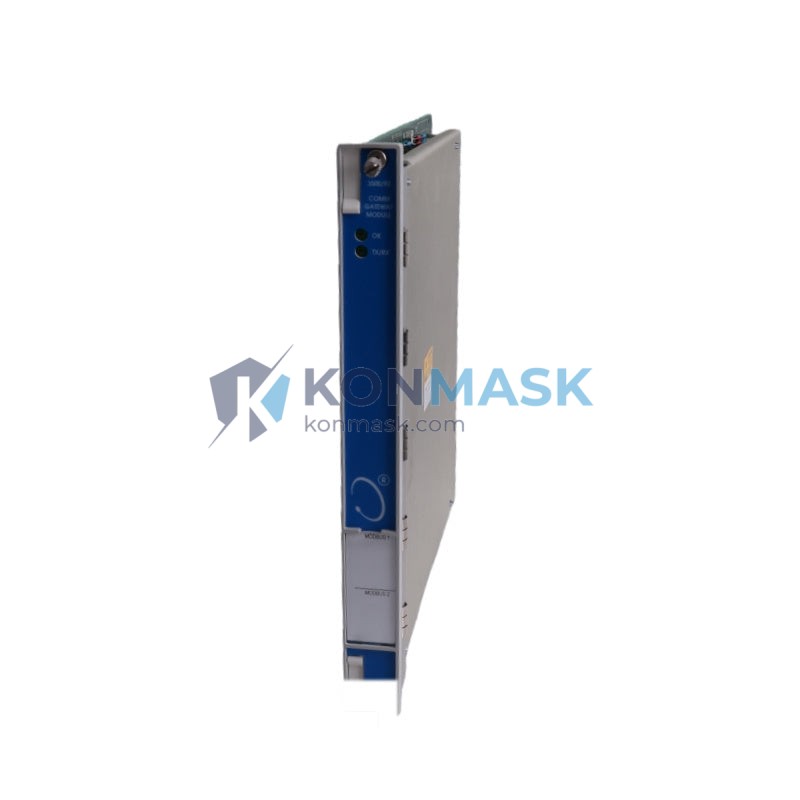

Bently Nevada 3500/92 Communication Gateway – Modbus TCP/IP & RS-232/RS-422 Interface | 3500 Series Platform
Engineering Background
The Bently Nevada 3500 Series is the industry benchmark for continuous online machinery protection in rotating equipment applications — turbines, compressors, pumps, and generators. The 3500/92 Communication Gateway is the dedicated network interface card for this platform, enabling seamless integration between the 3500 rack and plant-level DCS, SCADA, or historian systems via standard industrial protocols.
Product Positioning
Designed for procurement engineers and reliability teams who require deterministic, low-latency data acquisition from Bently Nevada protection racks without compromising the integrity of the safety-critical monitoring loop. The 3500/92 occupies a single slot in the 3500 rack and provides simultaneous multi-protocol communication, making it the preferred gateway for brownfield DCS integration and greenfield IIoT deployments alike.
Complete Technical Specifications
| Part Number / SKU | 3500/92 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Platform | 3500 Series Machinery Protection System |
| Module Type | Communication Gateway / Network Interface Card |
| Communication Protocols | Modbus TCP/IP (Ethernet), Modbus RTU (RS-232 / RS-422) |
| Ethernet Port | 10/100 Base-T, RJ-45 |
| Serial Ports | RS-232 & RS-422 (configurable) |
| Rack Compatibility | 3500/20 Rack (all frame sizes) |
| Slot Requirement | 1 slot (I/O module position) |
| Power Supply | Supplied by 3500 rack backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | 1,230 g (approx.) |
| Country of Origin | United States |
| Certifications | CE, UL, CSA (per 3500 platform) |
| Configuration Tool | Rack Configuration Software (RCS) / System 1 |
Proven Application Environments
- Oil & Gas: Upstream compressor trains, LNG turbine protection racks requiring DCS integration via Modbus TCP
- Power Generation: Steam and gas turbine monitoring with historian data export to OSIsoft PI or Aspen InfoPlus.21
- Petrochemical: Centrifugal pump and fan protection systems integrated into Honeywell Experion, Emerson DeltaV, or ABB 800xA
- Marine & Offshore: Vessel machinery monitoring with redundant Ethernet gateway configuration
- Mining: Mill drive and crusher protection with SCADA polling via Modbus RTU over RS-422
Engineering Advantages
- Non-intrusive integration: Gateway communicates with the 3500 rack over the internal backplane — no interruption to the protection loop during commissioning or reconfiguration
- Dual-protocol simultaneous operation: Ethernet Modbus TCP and serial Modbus RTU can operate concurrently, supporting redundant SCADA polling architectures
- High-resolution data access: Exposes all dynamic (vibration, position, speed) and static (alarm setpoints, relay status) parameters as Modbus registers
- Deterministic latency: Optimized firmware ensures sub-100 ms scan cycle for critical process variables
- Backward compatibility: Fully compatible with legacy 3500 racks and current-generation System 1 Evolution software
- Minimal footprint: Single-slot form factor preserves rack space for I/O expansion
System Architecture & Signal Flow
The 3500/92 sits within the 3500/20 rack and communicates with all installed monitor modules (vibration, temperature, speed, position) via the rack’s internal communication bus. External systems connect via:
- Ethernet (RJ-45): Modbus TCP/IP polling from DCS, SCADA, or historian — supports multiple simultaneous client connections
- RS-232 / RS-422: Modbus RTU for legacy PLC integration or point-to-point serial SCADA links
Configuration is performed offline using Bently Nevada’s Rack Configuration Software (RCS), with parameters downloaded to the module via the front-panel serial port or Ethernet. No rack shutdown is required for configuration updates in most firmware revisions.
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified industrial surplus channels with documented chain of custody
- Pre-shipment inspection includes: visual examination, label/serial verification, firmware version check, and functional communication test where applicable
- Original Bently Nevada packaging and documentation supplied where available
- Certificate of conformance (CoC) available upon request for critical applications
- Warranty: 90-day functional warranty against DOA; extended warranty options available
Procurement Process
- Confirm compatibility: Verify your 3500 rack firmware version and RCS software revision against the 3500/92 compatibility matrix (contact our technical team for assistance)
- Request a quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation
- Place order: Purchase via this listing or submit a PO — we accept T/T wire transfer, PayPal, and major credit cards
- Shipping: DHL / FedEx Express worldwide; export documentation (commercial invoice, packing list, EAR99 classification) provided for customs clearance
- After-sales support: Technical integration support available via email and WhatsApp during business hours (UTC+8)
Technical FAQ
Q: Can the 3500/92 be used with a 3500/20 rack running an older firmware version?
A: Yes, the 3500/92 is backward compatible with most 3500/20 rack firmware versions. We recommend confirming the minimum firmware requirement in the 3500/92 datasheet (GEK-91485) for your specific revision.
Q: How many Modbus TCP clients can connect simultaneously?
A: The 3500/92 supports up to 4 simultaneous Modbus TCP client connections, suitable for DCS + historian + SCADA concurrent polling.
Q: Is the 3500/92 compatible with System 1 Evolution software?
A: Yes. The module is fully supported by System 1 Evolution for configuration, data acquisition, and alarm management.
Q: What Modbus register map is used?
A: Bently Nevada publishes the full Modbus register map in the 3500/92 Communication Gateway Manual (GEK-91485). We can provide a copy upon request.
Q: Can I order a tested spare for critical plant applications?
A: Yes. We offer pre-tested units with functional test reports. Contact us to specify your testing requirements.
