Bently Nevada 31000-16-05-00-080-03-02 Proximity Probe Housing Assembly – 3300 Series Vibration Monitoring System
When a proximity probe housing fails mid-operation on a high-speed turbine or compressor train, the consequences are immediate and severe: undetected shaft vibration, missed critical alarms, and the very real risk of catastrophic machinery failure. Without a properly installed and calibrated probe housing assembly, your condition monitoring system is blind — leaving rotating assets worth millions of dollars exposed to unplanned downtime, costly repairs, and potential safety incidents. In industries where continuous uptime is non-negotiable, the integrity of every sensor mounting component is as critical as the sensor itself.

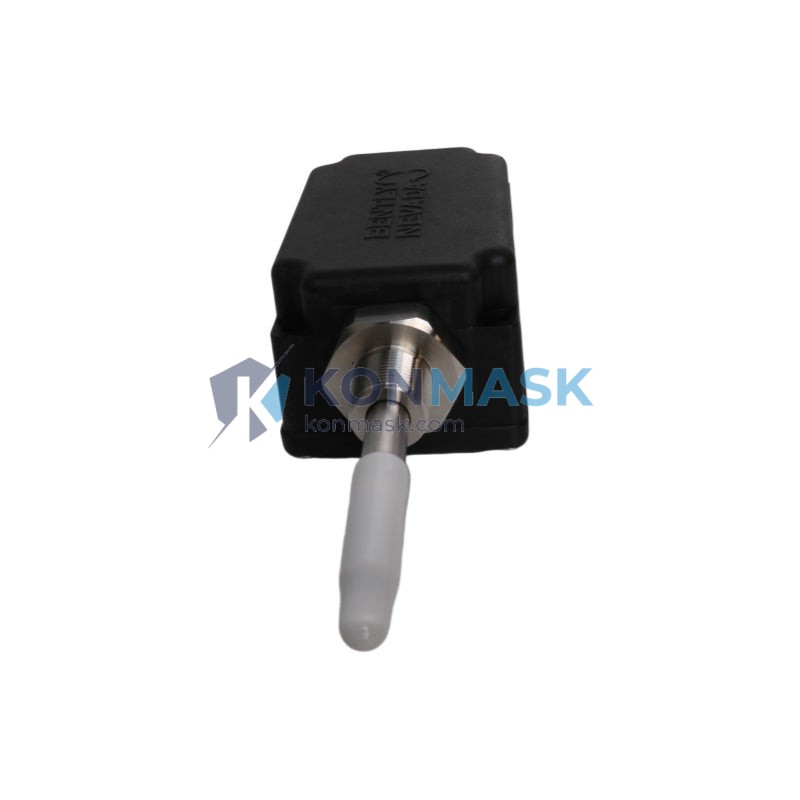

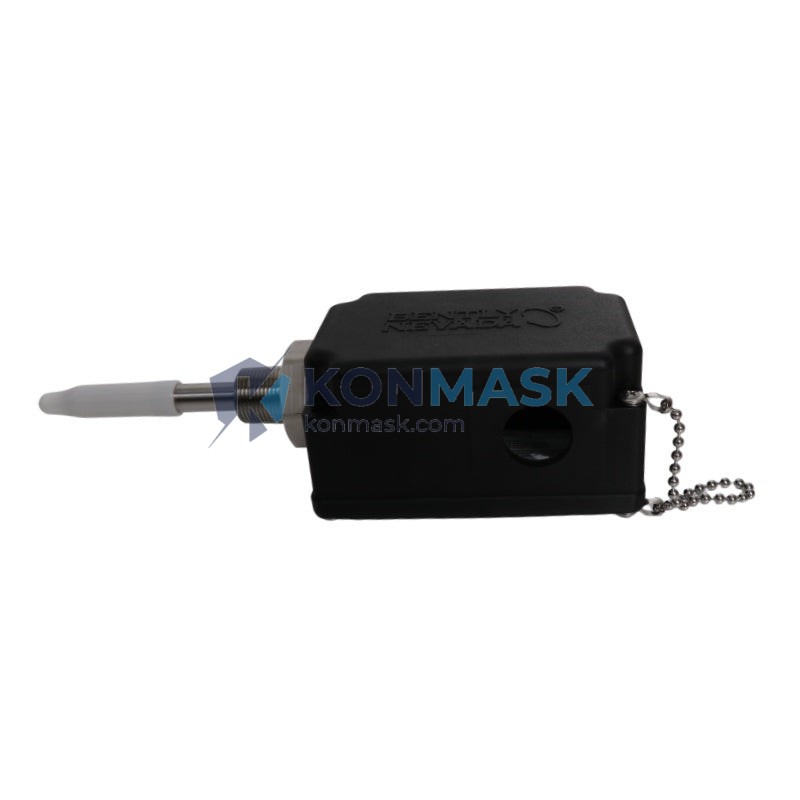

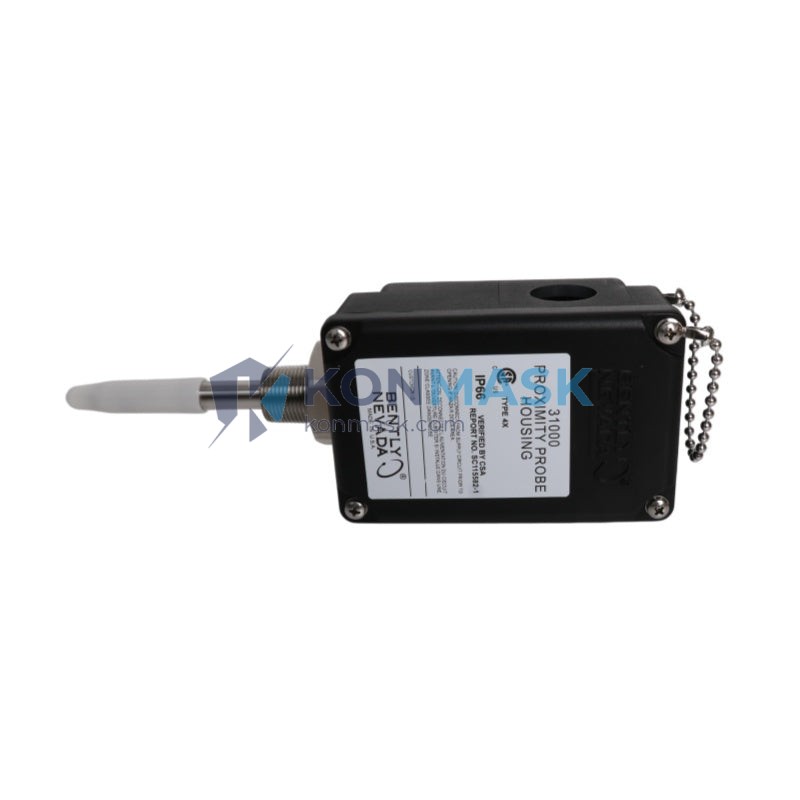

The Bently Nevada 31000-16-05-00-080-03-02 is a precision-engineered Proximity Probe Housing Assembly designed for the 3300 Series — one of the most widely deployed vibration monitoring platforms in global industrial automation. This specific part number encodes a complete mechanical configuration: 16mm probe diameter compatibility, 5mm gap range, stainless construction, and a defined cable exit orientation optimized for tight machinery installations. Within the 3300 Series ecosystem, this housing assembly serves as the critical mechanical interface between the eddy-current probe tip and the rotating shaft, ensuring consistent gap geometry, electrical isolation, and long-term positional stability in harsh environments including high temperature, high vibration, and chemically aggressive atmospheres.
Technical Specifications
- Part Number: 31000-16-05-00-080-03-02
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 Proximity Transducer System
- Product Type: Proximity Probe Housing Assembly
- Probe Compatibility: 3300 Series 16mm Proximity Probes
- Nominal Gap Range: 5 mm (as encoded in part number)
- Cable Exit Configuration: 080° orientation
- Mounting Thread: As per 3300 Series standard (refer to OEM datasheet)
- Construction Material: Stainless steel body with corrosion-resistant finish
- Operating Temperature: Suitable for industrial machinery environments (refer to OEM datasheet for exact range)
- Weight: Approx. 1,500 g (packaged)
- Compliance: Designed to meet API 670 machinery protection standard requirements
Key Features & Benefits
- Precision Gap Geometry: Maintains consistent probe-to-shaft gap for accurate eddy-current measurement, eliminating false alarms and missed fault detection.
- Robust Mechanical Interface: Stainless steel housing resists vibration-induced loosening, thermal cycling fatigue, and chemical corrosion in oil & gas and petrochemical environments.
- Defined Cable Exit Angle: The 080° cable exit orientation simplifies cable routing in confined machinery spaces, reducing installation time and mechanical stress on the cable.
- Drop-in 3300 Series Compatibility: Direct replacement for existing 3300 Series installations — no re-calibration of the monitoring system required when replacing like-for-like.
- API 670 Alignment: Supports compliance with the industry standard for machinery protection systems, critical for regulated facilities and insurance requirements.
- Long Service Life: Engineered for continuous duty in 24/7 industrial operations with minimal maintenance requirements.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, steam turbines, and pipeline pumping stations where shaft vibration monitoring is mandatory under API 670.
- Power Generation: Steam and gas turbine-generators in utility and industrial power plants requiring continuous vibration surveillance.
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, and other critical rotating equipment in ATEX/hazardous area installations.
- LNG & Offshore: Topside compressor trains and subsea-adjacent machinery where reliability and corrosion resistance are paramount.
- Pulp & Paper / Steel: High-speed rolls, fans, and blowers where bearing condition monitoring drives predictive maintenance programs.
- Marine Propulsion: Shaft monitoring on large marine diesel and gas turbine propulsion systems.
System Integration & Compatible Parts
The 31000-16-05-00-080-03-02 housing assembly is designed to integrate seamlessly within the Bently Nevada 3300 Series proximity transducer system. Typical compatible components include:
- Bently Nevada 3300 Series 16mm Proximity Probes (e.g., 330103, 330104 series)
- Bently Nevada 3300 Series Extension Cables (3300 XL 8mm / 11mm / 14mm / 16mm)
- Bently Nevada 3300 Series Proximitor® Sensors / Signal Conditioners
- Bently Nevada 3500 Series Machinery Protection System rack modules
- System 1® Evolution condition monitoring software
Contact Konmask.com to confirm exact compatibility with your installed system configuration before ordering.
Our Quality Assurance Process
- Source Verification: All Bently Nevada parts are sourced through verified industrial supply channels. We do not source from unverified grey-market suppliers.
- Visual & Dimensional Inspection: Each unit undergoes physical inspection for mechanical integrity, thread condition, and correct part number labeling prior to dispatch.
- Original Packaging: Where available, parts are supplied in original OEM packaging with full traceability documentation.
- Secure Export Packaging: All international shipments are packed to withstand transit vibration and humidity, with anti-static and moisture-barrier protection as appropriate.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email [email protected].
- Provide your required quantity, delivery destination, and any urgency requirements.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange export documentation, customs clearance support, and your preferred shipping method (DHL / FedEx / sea freight).
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and instrumentation components — not a generalist marketplace.
- Global B2B Export Experience: Serving engineering teams and MRO procurement departments across Southeast Asia, the Middle East, Europe, and the Americas.
- Technical Pre-Sales Support: Our team can assist with cross-referencing, compatibility verification, and system-level sourcing for complete BOM requirements.
- Competitive Lead Times: Established supplier relationships enable faster sourcing for both standard and obsolete Bently Nevada part numbers.
- Transparent Documentation: Full commercial invoice, packing list, and certificate of origin provided for all export shipments.
Frequently Asked Questions
Q: Is the 31000-16-05-00-080-03-02 a direct replacement for my existing 3300 Series housing?
A: Yes, provided your existing installation uses a 16mm probe with the same gap and cable exit configuration. Always verify the full part number against your as-built documentation before ordering.
Q: Can this housing be used with non-Bently Nevada probes?
A: This housing is engineered specifically for the Bently Nevada 3300 Series probe geometry and thread specification. Use with third-party probes is not recommended and may compromise measurement accuracy and system certification.
Q: Do you provide export documentation for customs clearance?
A: Yes. We provide full commercial invoice, packing list, and certificate of origin. HS code guidance is available upon request.
Q: What is the typical lead time for this part?
A: Lead time varies by current stock availability. Please submit an RFQ for a confirmed lead time. Urgent requirements can often be accommodated — please indicate urgency in your inquiry.
Q: Can you source other Bently Nevada 3300 or 3500 Series components?
A: Yes. Konmask.com maintains sourcing capability across the full Bently Nevada product range including probes, extension cables, Proximitor sensors, and 3500 rack modules. Submit your complete BOM for a consolidated quotation.
