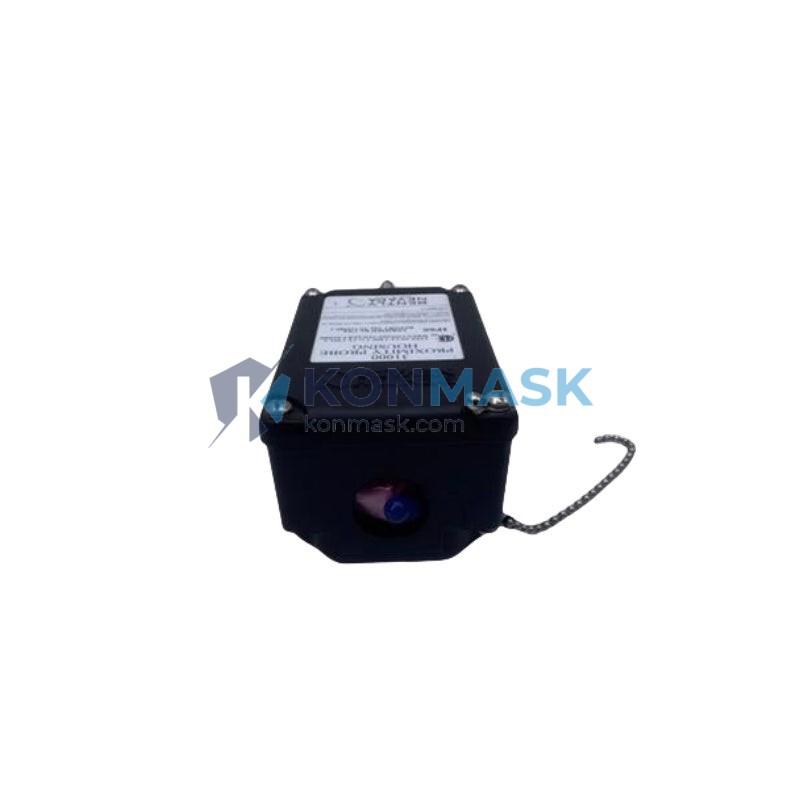

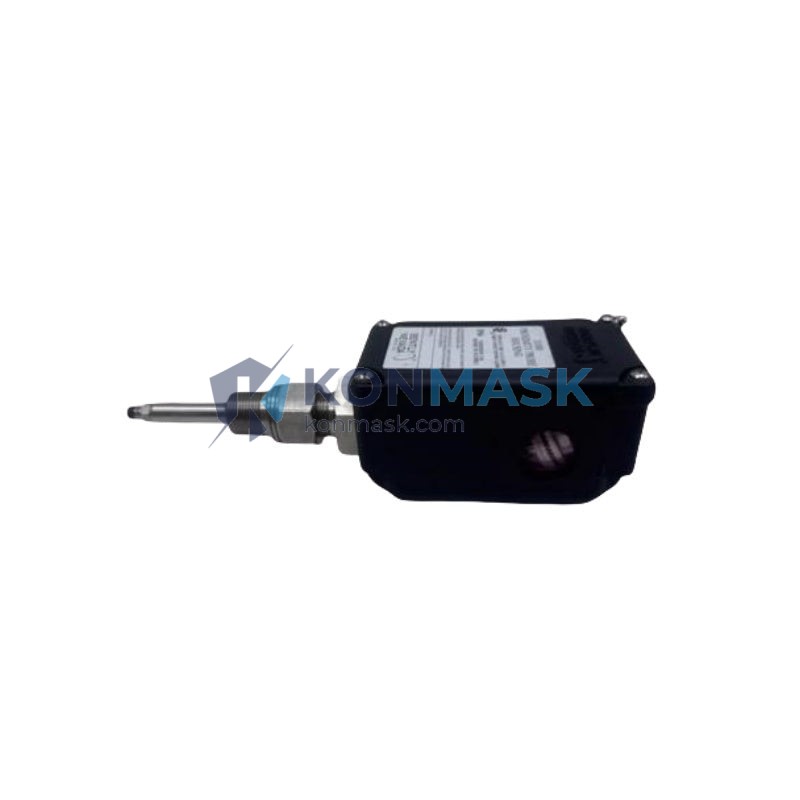

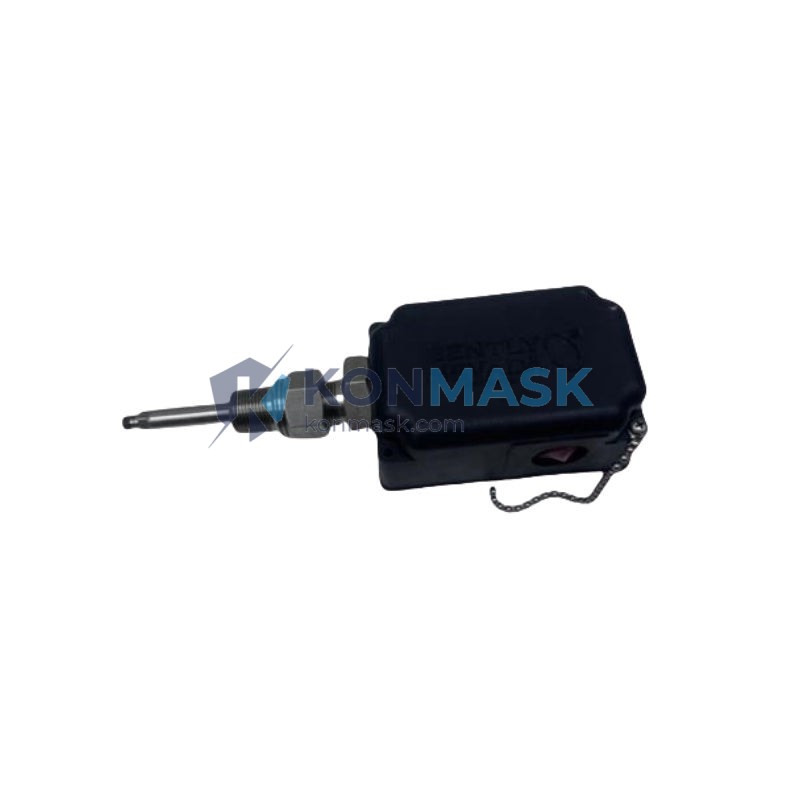

Bently Nevada 31000-16-05-15-040-02-02 – Proximity Probe Housing Assembly | 3300 XL Series Platform
Engineering Background: The Bently Nevada 31000 and 32000 Series Proximity Probe Housing Assemblies are precision-engineered transducer mounting solutions designed for continuous, non-contact vibration and position measurement in rotating machinery. Developed under Baker Hughes’ Bently Nevada product line, these assemblies are the industry benchmark for turbomachinery protection systems worldwide.
Product Positioning: Part number 31000-16-05-15-040-02-02 is a field-proven housing assembly compatible with the 3300 XL Series monitoring platform. It is specified by OEM machinery builders and end-user reliability engineers for critical asset protection in power generation, oil & gas, petrochemical, and heavy industrial environments. Konmask.com supplies this component as a verified OEM-grade replacement with full traceability.
Complete Technical Specifications
- Part Number: 31000-16-05-15-040-02-02
- Series Compatibility: Bently Nevada 31000 & 32000 Series; 3300 XL Platform
- Probe Type: Eddy-current proximity transducer housing
- Tip Diameter: 5 mm (standard)
- Cable Length: 5 m (16 ft)
- Thread Size: M10 × 1.0 (metric fine thread)
- Operating Temperature: –35°C to +177°C (–31°F to +350°F)
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Linear Range: 0.25 mm to 2.25 mm (10 mil to 90 mil)
- Supply Voltage: –24 VDC (nominal)
- Output: –2 VDC to –18 VDC
- Weight: 1,700 g (assembly with cable)
- Ingress Protection: IP67
- Connector Type: 2-pin MIL-spec coaxial
- Country of Origin: United States
- HS Code: 8543.70.9960
Proven Application Environments
- Steam and gas turbine shaft vibration monitoring (API 670 compliant)
- Centrifugal compressor radial and axial position measurement
- Pump and motor bearing clearance monitoring
- Gearbox and expander rotor dynamic analysis
- Power generation — combined cycle, nuclear auxiliary, and hydro turbines
- Offshore and onshore oil & gas processing trains
- Petrochemical reactor agitator and extruder monitoring
Engineering Advantages
- Non-contact measurement: Zero mechanical wear; continuous operation without maintenance intervals
- High-temperature tolerance: Rated to +177°C for hot-section turbine installations
- EMI-shielded cable: Armored coaxial construction rejects electrical noise in VFD-heavy environments
- Direct OEM replacement: Drop-in compatibility with existing 3300 XL monitor cards — no recalibration required
- API 670 compliant: Meets machinery protection standard for critical rotating equipment
- Long cable run support: 5 m integrated cable minimizes field splicing and signal degradation
System Architecture & Signal Flow
The 31000-16-05-15-040-02-02 operates as the sensing element in a three-component Bently Nevada proximity system:
- Probe (this assembly) — generates eddy-current field; outputs raw voltage proportional to gap distance
- Extension Cable — transmits signal from probe tip to proximitor/driver (matched impedance required)
- Proximitor / Signal Conditioner (e.g., 3300 XL 8mm Proximitor) — conditions output; feeds 3500 or 3300 monitor rack
System must use matched probe + extension cable + proximitor from the same series for calibrated accuracy.
Sourcing & Quality Verification
- Source: OEM-grade components from authorized distribution and verified surplus inventory
- Inspection: Visual inspection, connector integrity check, and cable continuity test prior to shipment
- Documentation: Certificate of conformance and packing list with every order
- Traceability: Lot and date code records maintained; available upon request
- Packaging: Anti-static foam-lined box with moisture barrier; cable coiled to manufacturer specification
Procurement Process
- Confirm part number 31000-16-05-15-040-02-02 against your BOM or existing probe label
- Verify cable length (5 m / 16 ft) and tip diameter (5 mm) match your installation geometry
- Add to cart — HKD pricing displayed; multi-currency checkout supported
- For volume orders (>5 units) or urgent shutdowns, contact [email protected] for priority allocation
- Export documentation issued within 24 hours of order confirmation
Technical FAQ
Q: Is this probe compatible with the Bently Nevada 3500 monitor rack?
A: Yes. When paired with the correct 3300 XL Proximitor and matched extension cable, output is fully compatible with 3500 Series monitor input cards.
Q: Can I use a different extension cable length?
A: No. Probe, extension cable, and proximitor must be a matched set of the same series and total cable length to maintain calibration.
Q: What is the target material for the eddy-current field?
A: Calibrated for AISI 4140 steel. For other shaft materials (stainless, titanium, Inconel), a material correction factor must be applied per Bently Nevada application note.
Q: Do you provide installation and commissioning support?
A: Konmask.com provides technical documentation and pre-sales engineering consultation via email. On-site commissioning can be arranged through our partner network.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 2–4 weeks. Contact us for real-time availability.
