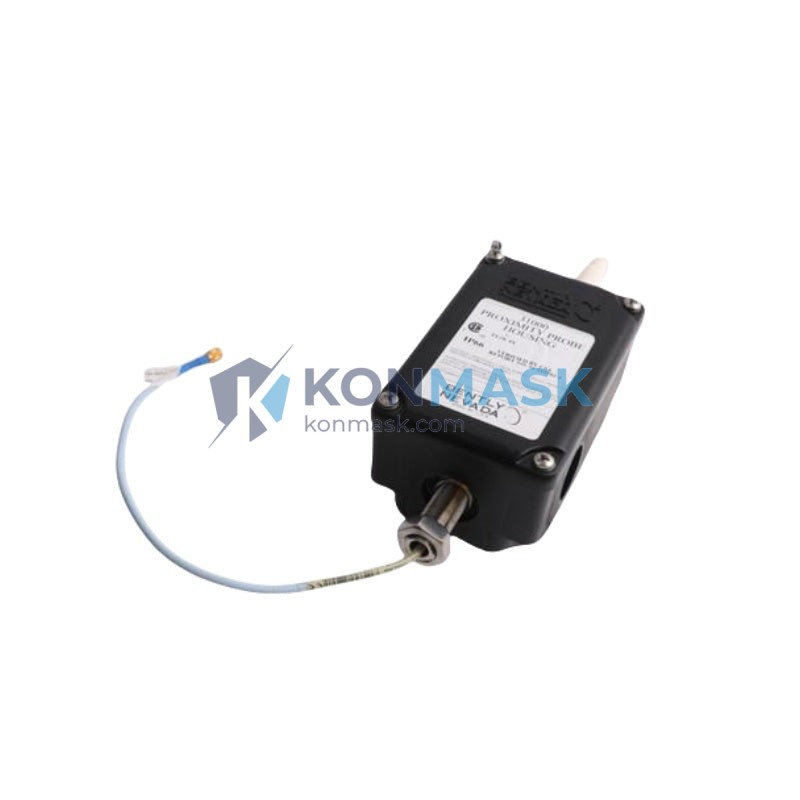

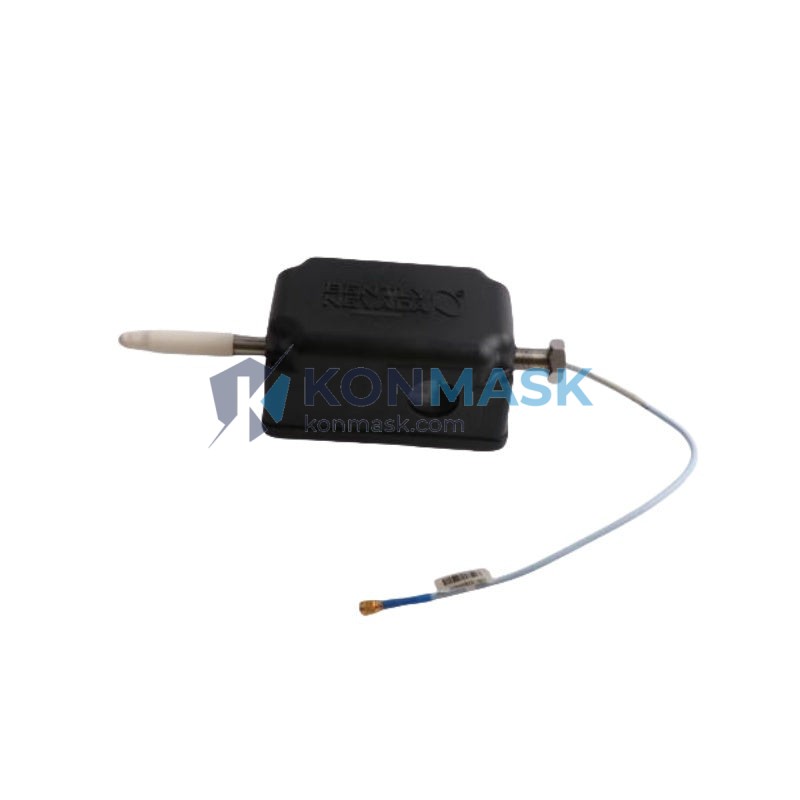

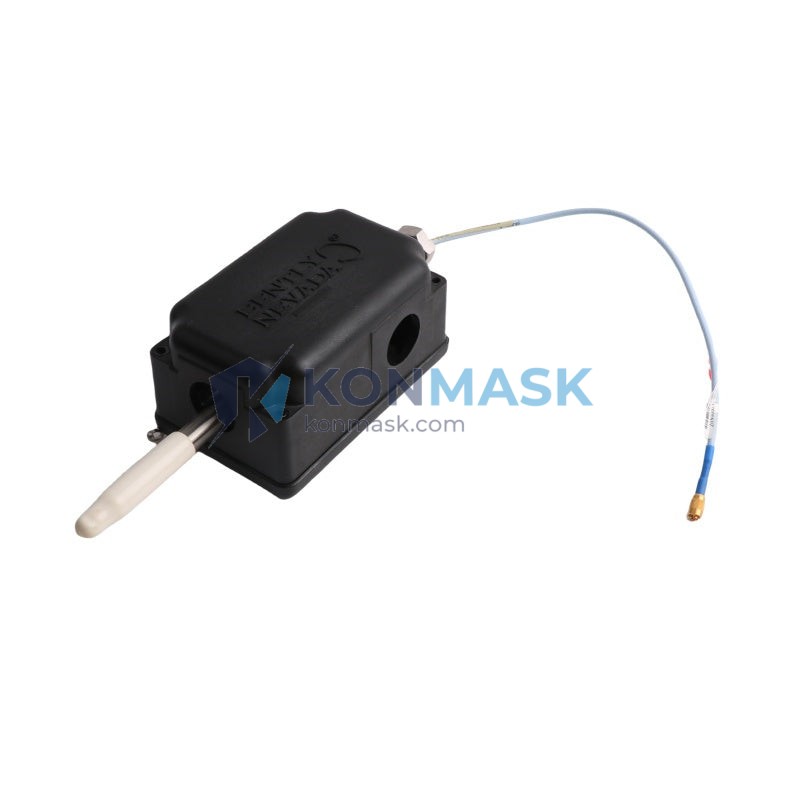

Bently Nevada 31000-16-10-00-162-00-02 Proximity Probe Housing Assembly | 3300 XL Series
Engineering Background
The Bently Nevada 3300 XL Series represents the global standard for continuous vibration monitoring in rotating machinery protection systems. Deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities worldwide, the 3300 XL platform is trusted where unplanned downtime is not an option. The housing assembly (P/N 31000-16-10-00-162-00-02) is a precision-engineered mechanical interface component that secures and aligns the eddy-current proximity probe within the machine casing, ensuring consistent gap distance, signal integrity, and long-term mechanical stability under harsh operating conditions.
Product Positioning
Designed for procurement engineers and reliability teams requiring a direct OEM-equivalent replacement or new-installation component for Bently Nevada 3300 XL proximity measurement chains. This housing assembly is compatible with standard 3300 XL probe configurations and is stocked at Konmask.com for immediate dispatch to global destinations.
Complete Technical Specifications
| Part Number | 31000-16-10-00-162-00-02 |
| Brand | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 XL Proximity Transducer System |
| Component Type | Proximity Probe Housing Assembly |
| Probe Compatibility | 3300 XL 8mm Proximity Probes |
| Thread / Mounting | Per OEM specification (metric/imperial per variant) |
| Material | Stainless steel / corrosion-resistant alloy |
| Cable Length Compatibility | Designed for standard 3300 XL extension cable configurations |
| Operating Temperature | -35°C to +177°C (probe tip) |
| IP Rating | IP67 (sealed assembly) |
| Weight | Approx. 60 g |
| Country of Origin | United States |
| HS Code | 9031.80 |
| Compliance | CE, RoHS compatible; suitable for SIL-rated loops |
Proven Application Environments
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial displacement measurement
- Pump and motor bearing proximity sensing
- Gearbox and expander vibration protection systems
- Power generation (nuclear, thermal, hydro) rotating machinery
- Offshore and onshore oil & gas processing trains
- Petrochemical and refinery critical machinery protection
Engineering Advantages
- OEM-grade dimensional accuracy — maintains precise probe-to-target gap for linear output within the 3300 XL calibrated range
- Corrosion-resistant construction — suitable for wet, high-humidity, and chemically aggressive environments
- Vibration-resistant locking — thread-lock design prevents probe migration under continuous machine vibration
- Drop-in replacement — no field modification required; direct fit to existing 3300 XL installations
- Reduced MTTR — standardized housing enables rapid probe swap during planned or emergency maintenance windows
System Architecture & Signal Flow
The 3300 XL proximity measurement chain consists of: Probe → Extension Cable → Proximitor® Sensor → Monitor (3500 or 3300 rack). The housing assembly (31000-16-10-00-162-00-02) mechanically anchors the probe at the machine casing, establishing the critical air-gap geometry. The eddy-current field generated by the probe tip interacts with the rotating target (shaft), and the Proximitor converts the gap variation into a DC voltage signal (typically –24 VDC nominal, –200 mV/mil sensitivity). This signal feeds directly into the 3500 Series monitor for alarm, trip, and data acquisition functions per API 670 requirements.
Sourcing & Quality Verification
- All units sourced from authorized distribution channels or verified surplus with full traceability documentation
- Pre-shipment inspection: visual, dimensional, and continuity checks performed
- Original OEM packaging preserved where available; anti-static and moisture-barrier packaging applied
- Certificate of Conformance (CoC) available upon request
- Batch and date code records maintained for full supply chain traceability
Procurement Process
- Submit RFQ via Konmask.com Contact Page or email support@konmask.com
- Receive formal quotation with lead time, CoC availability, and shipping options within 24 business hours
- Confirm PO — we accept T/T wire transfer, PayPal, and major credit cards
- Dispatch within 1–3 business days; DHL / FedEx / UPS express available for urgent requirements
- Post-delivery technical support available via email or WhatsApp: +0086 19859288691
Technical FAQ
Q: Is this housing compatible with the 3300 NSv or 3300 RAM probe series?
A: This housing is specifically dimensioned for the 3300 XL 8mm probe family. Compatibility with NSv or RAM variants should be confirmed against OEM dimensional drawings before ordering.
Q: Can this be used in a SIL 2 safety loop?
A: The mechanical housing itself does not carry a SIL rating; SIL compliance is determined at the system level by the Proximitor and monitor combination. Consult your functional safety engineer for loop assessment.
Q: Do you provide installation support?
A: Yes. Our technical team can provide gap-setting procedures, torque specifications, and commissioning guidance. Contact support@konmask.com.
Q: What is the lead time for bulk orders (>10 units)?
A: Bulk availability is subject to current stock. Submit an RFQ for confirmed lead time and volume pricing.
